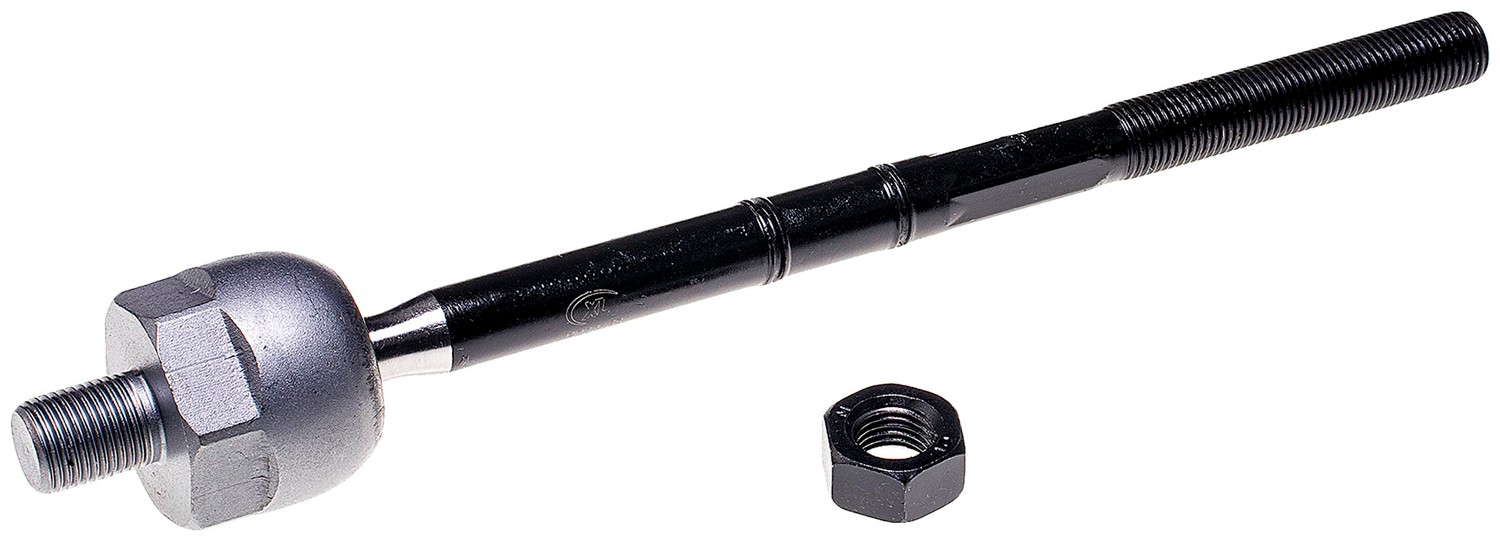

Dorman 543-750 Steering Tie Rod End

Dorman 543-750 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 1 Thread Direction	Clockwise (Right)
Center Mount Hole Quantity	0
Ball Joint Included	Yes
9091	Steel
5235	No
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
4241	Yes
2827	No
2334	No
End 2 Type	Threaded
881	Threaded
Head Drive Type	Smooth
Color	Black
Material	Steel
Type	Straight
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	E-Coated
Package Contents	1 Steering Tie Rod
Package Contents	1 Nut
Thread Pitch	1.5 mm MM
Bolts Included	No
Dust Boot Included	No
36	14 MM
662	10 MM
Grade Type	Standard
Center Mount Stud Quantity	1 IN
Greaseable	No
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
End 2 Thread Pitch	1.5 mm MM
Outside Diameter	40.5 mm MM
End 2 Thread Direction	Clockwise (Right)
Housing Material	Steel
Stud Length	20 MM
Height	40.5 MM
Width	40.5 MM
Length	274.5 MM
Weight	1.32 lb LB
Tie Rod End Thread Diameter	14 mm MM
Bearing Material	Polymer
Washer Included	No
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Explorer Sport Trac	Front Inner	2001 to 2005
Ford	Explorer Sport	Front Inner	2001 to 2003
Ford	Ranger	Front Inner	2005 to 2012
Mazda	B2300	Front Inner	2005 to 2010
Mazda	B3000	Front Inner	2005 to 2008
Mazda	B4000	Front Inner	2005 to 2010
