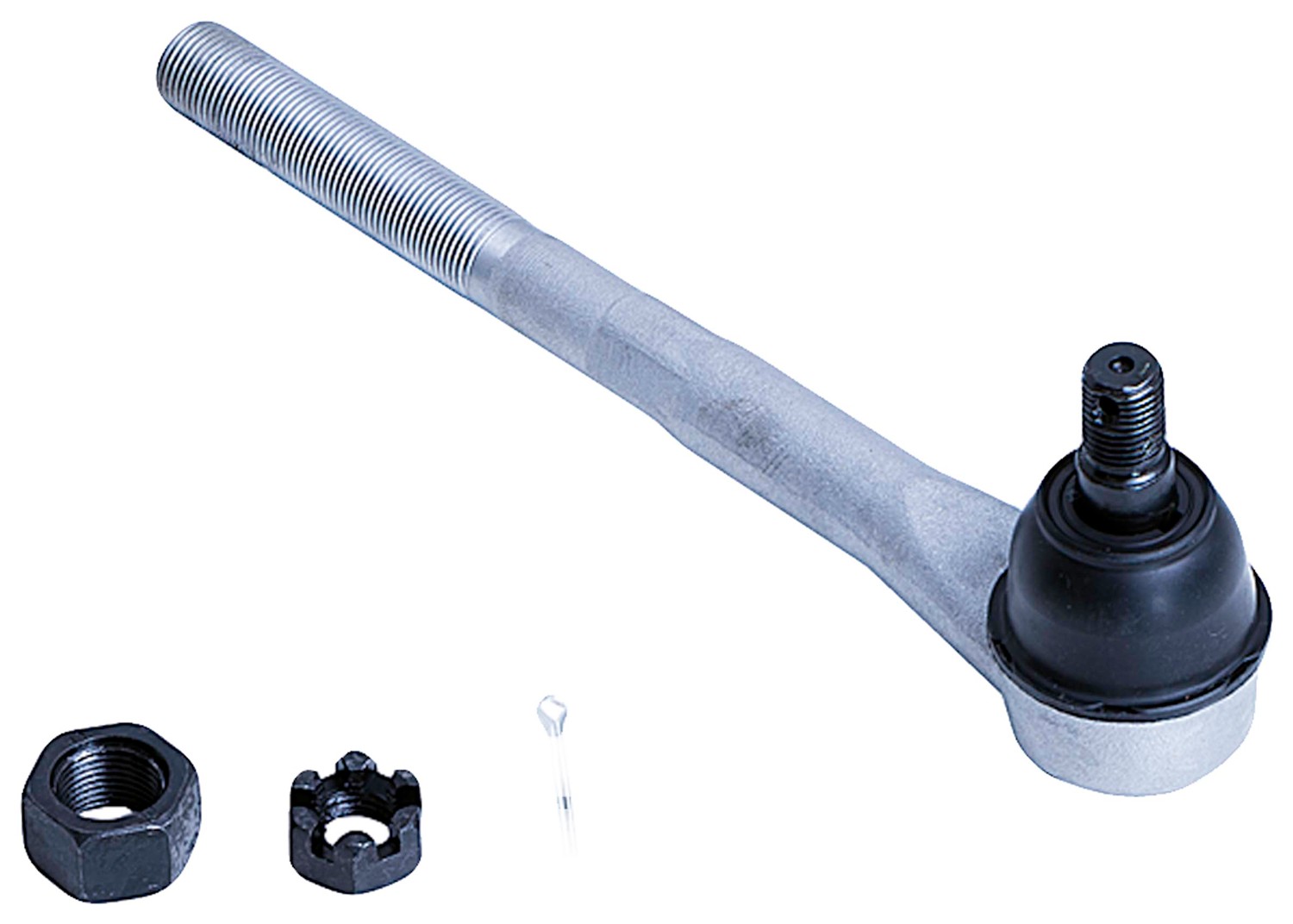

Dorman 543-757 Steering Tie Rod End

Dorman 543-757 Steering Tie Rod End

Features:

Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Package Contents	1 Castle Nut
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	18 mm MM
Package Contents	1 Cotter Pin
Package Contents	1 Nut
Tie Rod End Thread Diameter	18 mm MM
36	18 MM
Weight	5 lb LB
662	15.6 MM
End 2 Threads Per Inch	1.5 mm MM
End 2 Thread Pitch	1.5 mm MM
Length	225 MM
Width	39.76 MM
1786	18.4 MM
End 2 Type	Threaded
End 2 Attachment Type	Threaded
Height	79.53 MM
Outside Diameter	39.76 mm MM
Stud Length	20 MM
9091	Steel
9090	Polychloroprene
End 1 Attachment Type	Threaded
4241	Yes
Center Mount Hole Quantity	0
Head Drive Type	Smooth
Color	Silver
Color	Black
Type	Straight
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	E-Coated
Housing Material	Steel
Bearing Material	Polymer
Washer Included	No
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Grade Type	Standard
Greaseable	No
End 1 Thread Direction	Clockwise (Right)
Bolts Included	No
End 2 Thread Direction	Clockwise (Right)
Center Mount Stud Quantity	1 IN
Thread Pitch	1.5 mm MM
2334	No
5235	No
881	Threaded
Ball Joint Included	Yes
Material	Steel
2827	Yes
Package Contents	1 Tie Rod End
End 2 Thread Diameter	14 mm MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Expedition	Front Left Inner	1997 to 2002
Ford	F-150 Heritage	Front Left Inner	2004 to 2004
Ford	F-150	Front Left Inner	1997 to 2003
Ford	F-250	Front Left Inner	1997 to 1997
Ford	F-250	Front Left Inner	1998 to 1999	Light Duty
Ford	Lobo	Front Left Inner	1997 to 2003
Lincoln	Blackwood	Front Left Inner	2002 to 2002
Lincoln	Navigator	Front Left Inner	1998 to 2002
