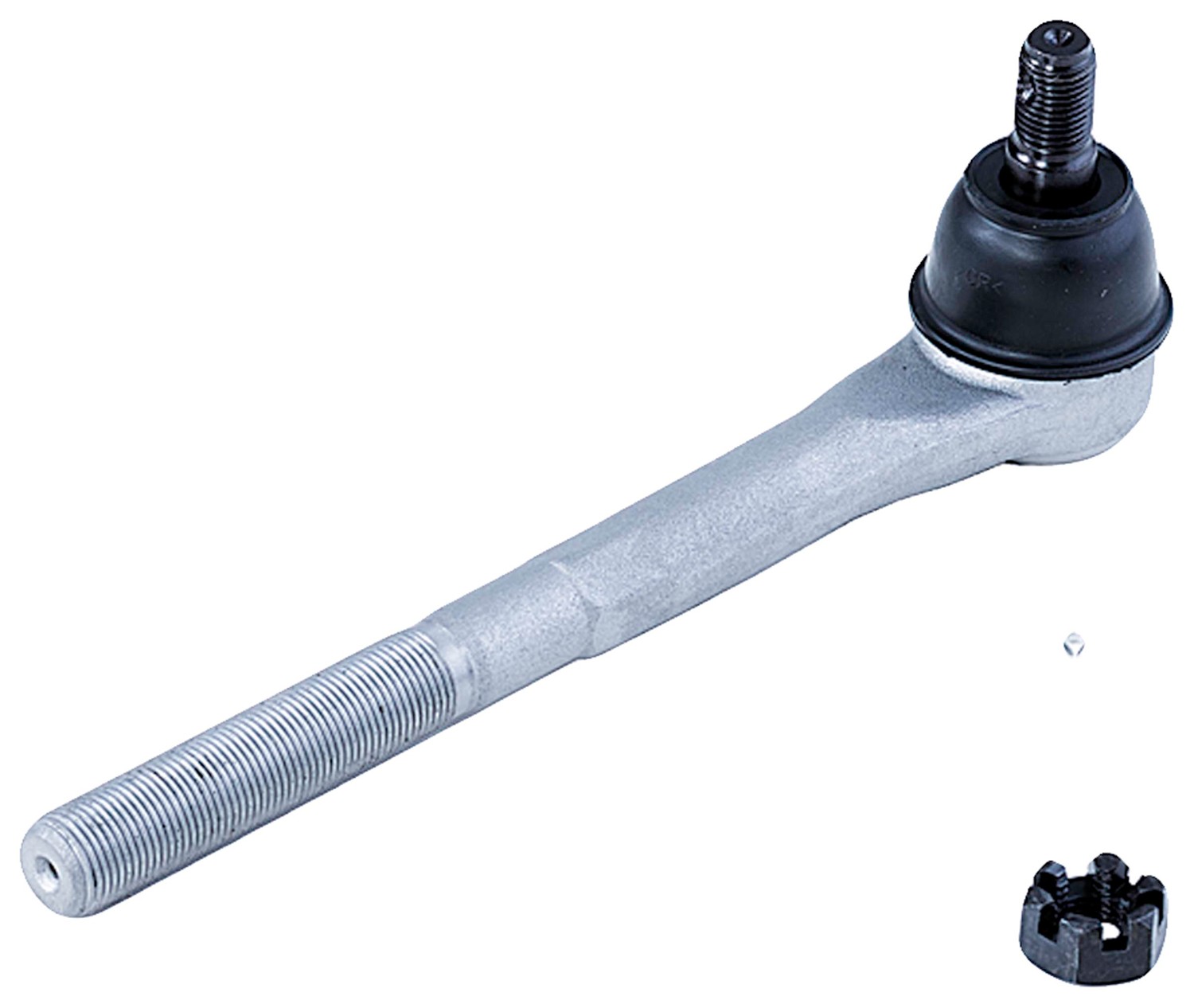

Dorman 543-758 Steering Tie Rod End

Dorman 543-758 Steering Tie Rod End

Features:

Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Head Drive Type	Smooth
662	15.6 MM
36	18 MM
1786	18.4 MM
Center Mount Stud Quantity	1 IN
End 1 Thread Diameter	18 mm MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	14 mm MM
End 2 Thread Pitch	1.5 mm MM
End 2 Threads Per Inch	1.5 mm MM
End 1 Thread Direction	Clockwise (Right)
Greaseable	No
Grade Type	Standard
Package Contents	1 Nut
Package Contents	1 Cotter Pin
Package Contents	1 Castle Nut
Outside Diameter	39.76 mm MM
Thread Pitch	1.5 mm MM
Tie Rod End Thread Diameter	18 mm MM
Weight	5 lb LB
Package Contents	1 Tie Rod End
Material	Steel
End 2 Type	Threaded
Width	39.76 MM
Height	79.53 MM
Stud Length	20 MM
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
Center Mount Hole Quantity	0
Bolts Included	No
Ball Joint Included	Yes
9091	Steel
9090	Polychloroprene
5235	No
4241	Yes
2827	Yes
2334	No
881	Threaded
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Washer Included	No
Bearing Material	Polymer
Housing Material	Steel
Finish	E-Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Straight
Color	Black
Color	Silver
Length	225 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Expedition	Front Right Inner	1997 to 2002
Ford	F-150 Heritage	Front Right Inner	2004 to 2004
Ford	F-150	Front Right Inner	1997 to 2003
Ford	F-250	Front Right Inner	1997 to 1997
Ford	F-250	Front Right Inner	1998 to 1999	Light Duty
Ford	Lobo	Front Right Inner	1997 to 2003
Lincoln	Blackwood	Front Right Inner	2002 to 2002
Lincoln	Navigator	Front Right Inner	1998 to 2002
