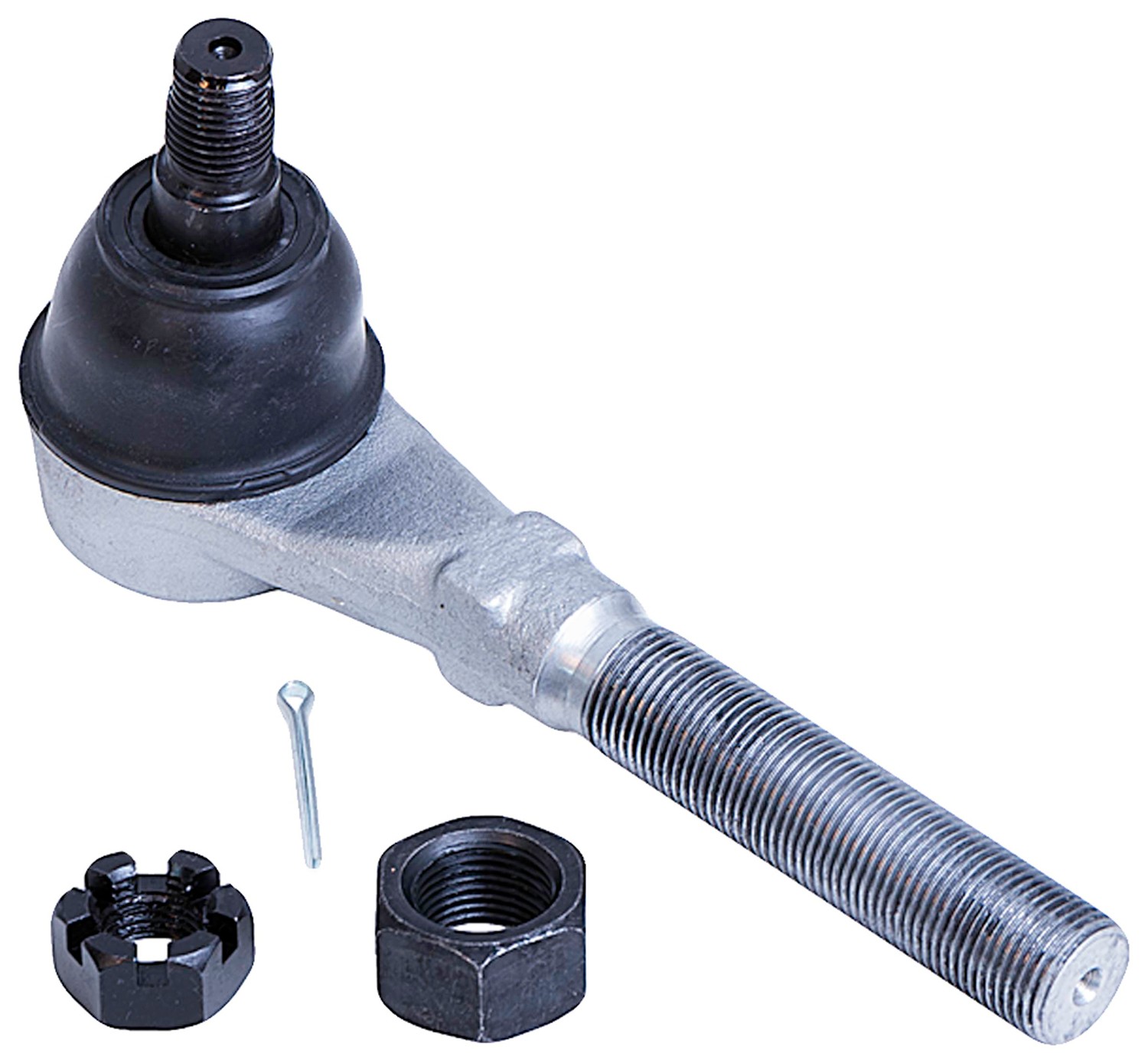

Dorman 543-759 Steering Tie Rod End

Dorman 543-759 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Outside Diameter	45.83 mm MM
Color	Silver
Color	Black
Type	Straight
Stud Length	20 MM
Height	79.64 MM
Width	45.83 MM
Length	150 MM
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	E-Coated
5235	No
9090	Polychloroprene
Weight	5 lb LB
9091	Steel
Ball Joint Included	Yes
End 2 Thread Direction	Clockwise (Right)
Bolts Included	No
36	18 MM
662	15.6 MM
1786	18.4 MM
Center Mount Stud Quantity	1 IN
End 1 Thread Diameter	18 mm MM
End 1 Thread Pitch	1.5 mm MM
Package Contents	1 Cotter Pin
Package Contents	1 Nut
End 2 Threads Per Inch	1.5 mm MM
End 2 Type	Threaded
End 1 Thread Direction	Clockwise (Right)
Greaseable	No
End 2 Thread Diameter	14 mm MM
Grade Type	Standard
Dust Boot Included	Yes
Grease Fitting Included	No
End 2 Attachment Type	Threaded
End 2 Thread Pitch	1.5 mm MM
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Washer Included	No
Bearing Material	Polymer
Boot Colour	Yes
Housing Material	Steel
Center Mount Hole Quantity	0
Tie Rod End Thread Diameter	18 mm MM
End 1 Attachment Type	Threaded
Thread Pitch	1.5 mm MM
881	Threaded
2334	Yes
2827	Yes
Material	Steel
4241	Yes
Head Drive Type	Smooth
Package Contents	1 Tie Rod End
Package Contents	1 Castle Nut

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Expedition	Front Left Inner	1997 to 2002
Ford	F-150 Heritage	Front Left Inner	2004 to 2004
Ford	F-150	Front Left Inner	1997 to 2003
Ford	F-250	Front Left Inner	1997 to 1997
Ford	F-250	Front Left Inner	1998 to 1999	Light Duty
Ford	Lobo	Front Left Inner	2002 to 2003
Lincoln	Navigator	Front Left Inner	1998 to 2002
