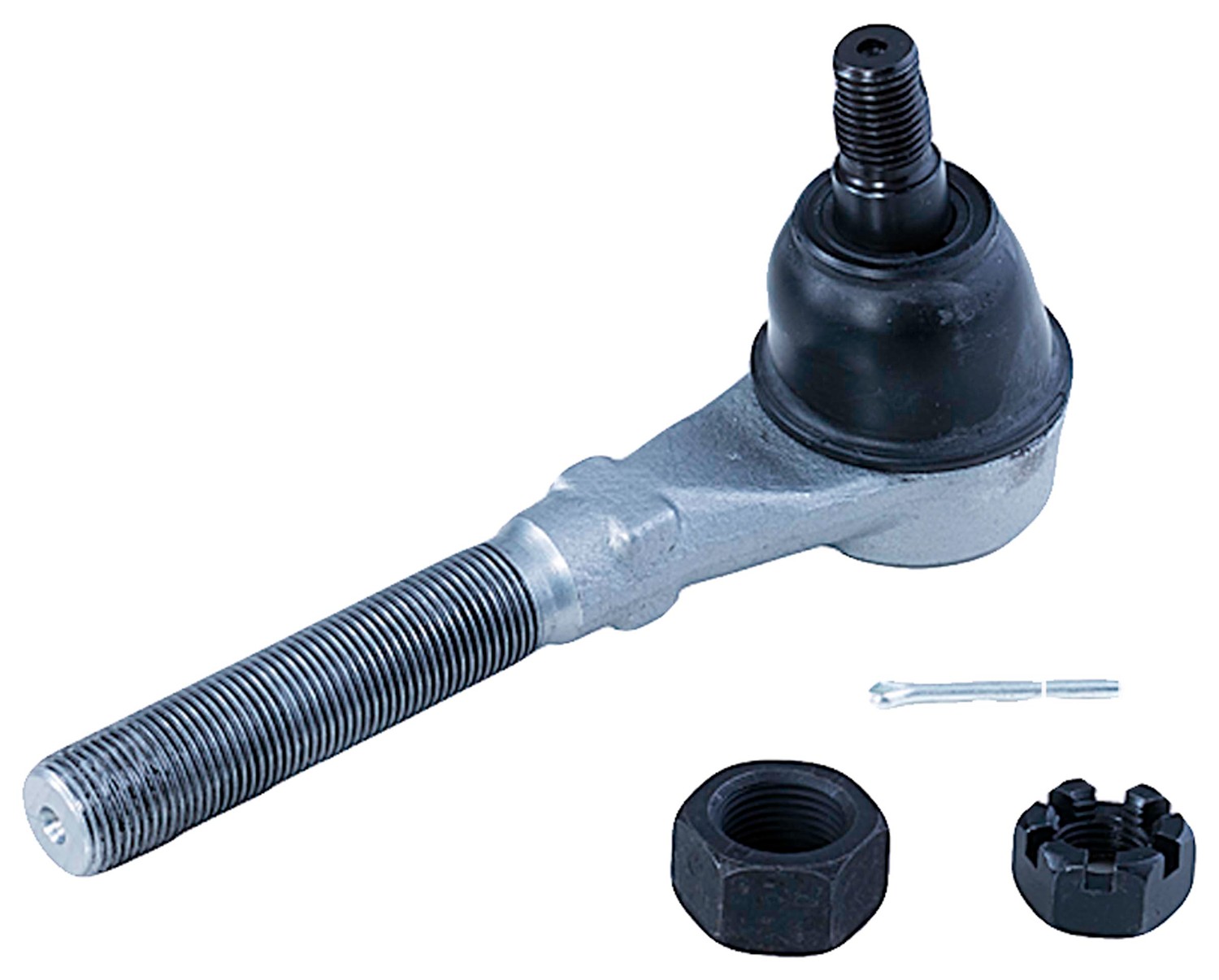

Dorman 543-760 Steering Tie Rod End

Dorman 543-760 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Grade Type	Standard
Length	150.5 MM
Width	45.83 MM
Height	79.64 MM
Stud Length	20 MM
36	18 MM
662	15.6 MM
1786	18.4 MM
Center Mount Stud Quantity	1 IN
End 1 Thread Diameter	18 mm MM
End 1 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	14 mm MM
End 2 Thread Pitch	1.5 mm MM
End 2 Threads Per Inch	1.5 mm MM
Outside Diameter	45.83 mm MM
Thread Pitch	1.5 mm MM
Tie Rod End Thread Diameter	18 mm MM
Weight	5 lb LB
881	Threaded
2334	Yes
2827	Yes
4241	Yes
5235	No
9090	Polychloroprene
9091	Steel
Ball Joint Included	Yes
Bolts Included	No
Center Mount Hole Quantity	0
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
End 2 Type	Threaded
Material	Steel
Package Contents	1 Tie Rod End
Package Contents	1 Castle Nut
Package Contents	1 Cotter Pin
Package Contents	1 Nut
Head Drive Type	Smooth
Color	Silver
Color	Black
Type	Straight
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	E-Coated
Housing Material	Steel
Boot Colour	Yes
Bearing Material	Polymer
Washer Included	No
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Greaseable	No
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Expedition	Front Right Inner	1997 to 2002
Ford	F-150 Heritage	Front Right Inner	2004 to 2004
Ford	F-150	Front Right Inner	1997 to 2003
Ford	F-250	Front Right Inner	1997 to 1997
Ford	F-250	Front Right Inner	1998 to 1999	Light Duty
Ford	Lobo	Front Right Inner	2002 to 2003
Lincoln	Navigator	Front Right Inner	1998 to 2002
