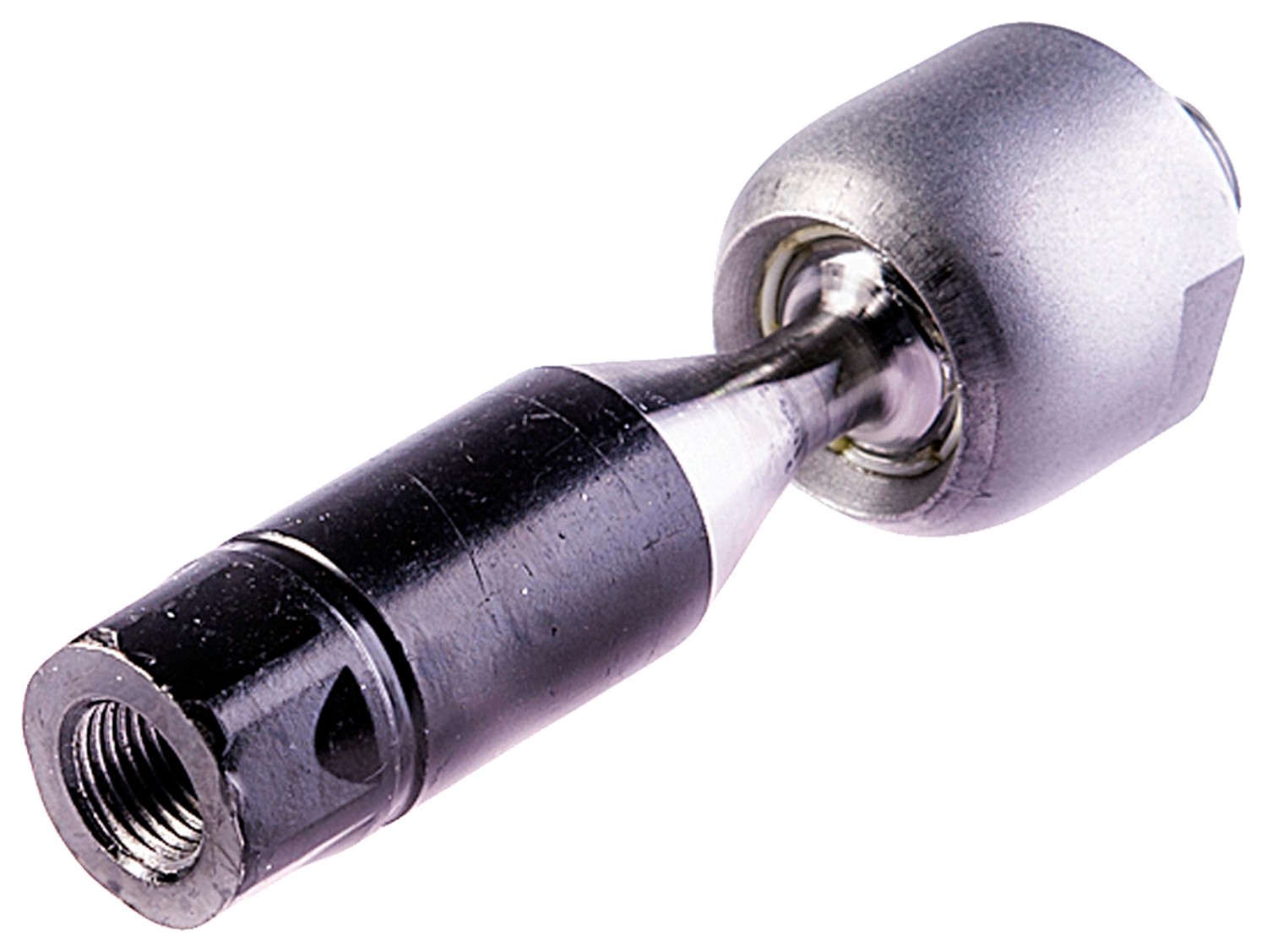

Dorman 543-792 Steering Tie Rod End

Dorman 543-792 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Weight	1.15 lb LB
End 2 Thread Pitch	1.5 mm MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Greaseable	No
Grade Type	Standard
Ball Joint Included	Yes
Length	137 MM
Width	40.5 MM
36	26.5 MM
662	10 MM
Center Mount Hole Quantity	1 IN
Center Mount Stud Quantity	1 IN
End 1 Thread Diameter	16 mm MM
Height	40.5 MM
Dust Boot Included	No
Grease Fitting Included	No
Pre-greased	Yes
End 1 Thread Pitch	1.5 mm MM
End 2 Gender	Male
Stud Length	14.5 MM
End 1 Gender	Female
End 2 Thread Diameter	18 mm MM
Washer Included	No
Bolts Included	No
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
Color	Black
Head Drive Type	Smooth
Package Contents	1 Nut
881	Threaded
Tie Rod End Thread Diameter	16 mm MM
Thread Pitch	1.5 mm MM
5235	No
4241	Yes
Outside Diameter	40.5 mm MM
2827	No
2334	No
End 2 Type	Threaded
Bearing Material	Polymer
Housing Material	Steel
Material	Steel
Package Contents	1 Tie Rod
Finish	E-Coated
Adjustable	Yes
Mounting Hardware Included	Yes
9091	Steel
Type	Straight

Vehicle Applications:

Make	Model	Position	Years	Notes
Buick	Rainier	Front Inner	2004 to 2007
Chevrolet	SSR	Front Inner	2003 to 2006
Chevrolet	Trailblazer EXT	Front Inner	2002 to 2006
Chevrolet	Trailblazer	Front Inner	2002 to 2009
GMC	Envoy XL	Front Inner	2002 to 2006
GMC	Envoy XUV	Front Inner	2004 to 2005
GMC	Envoy	Front Inner	2002 to 2009
Isuzu	Ascender	Front Inner	2003 to 2008
Oldsmobile	Bravada	Front Inner	2002 to 2004
Saab	9-7x	Front Inner	2005 to 2009
