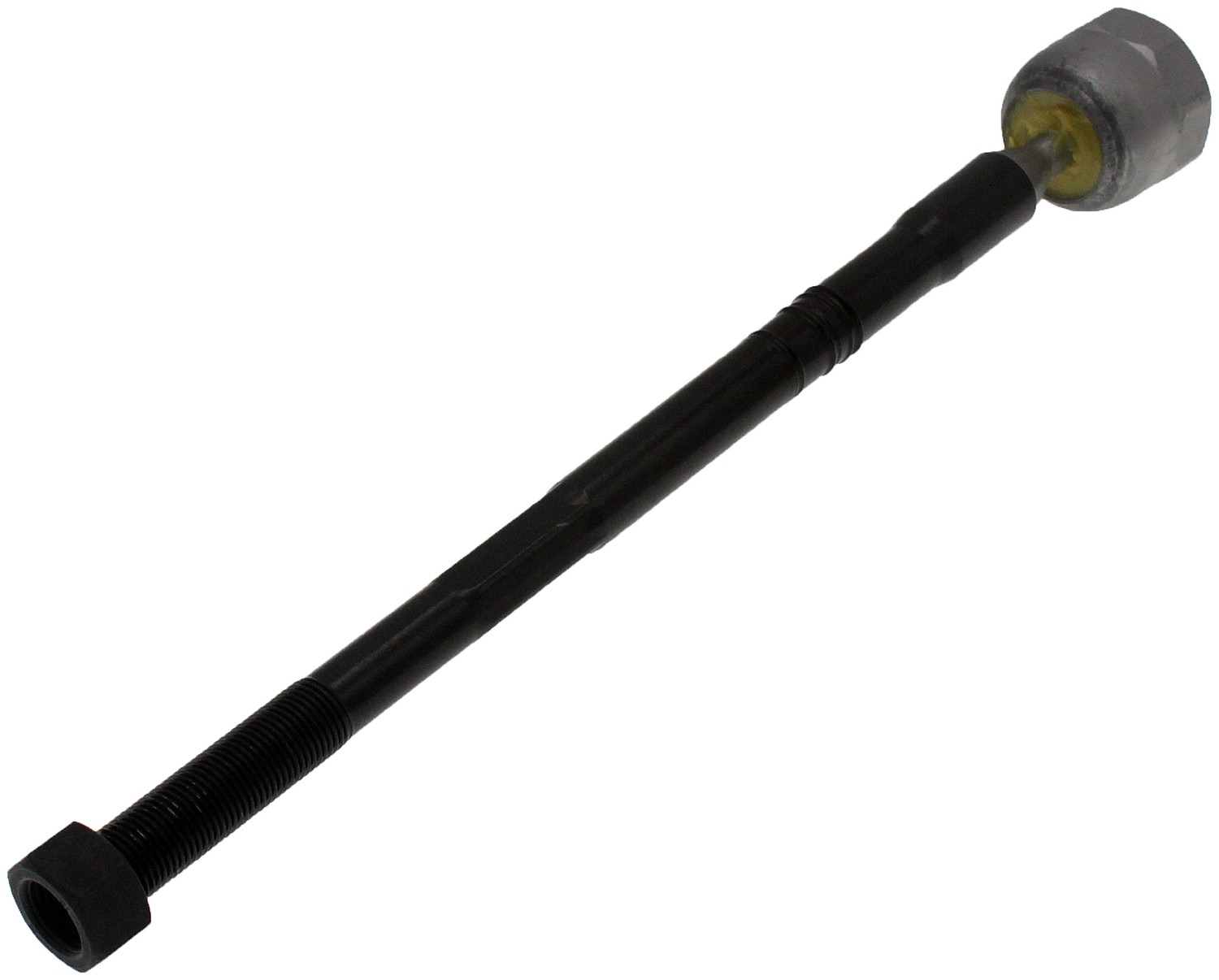

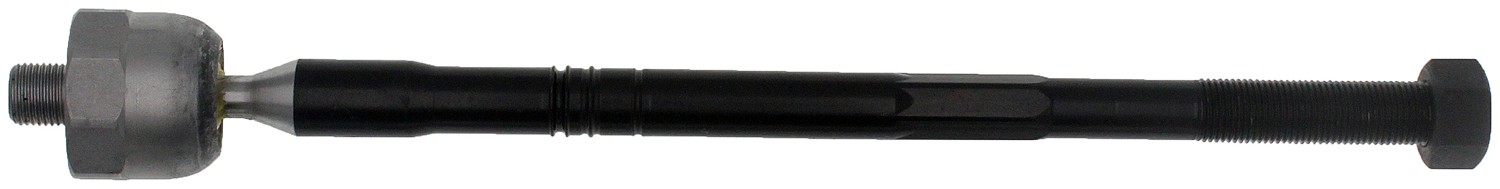

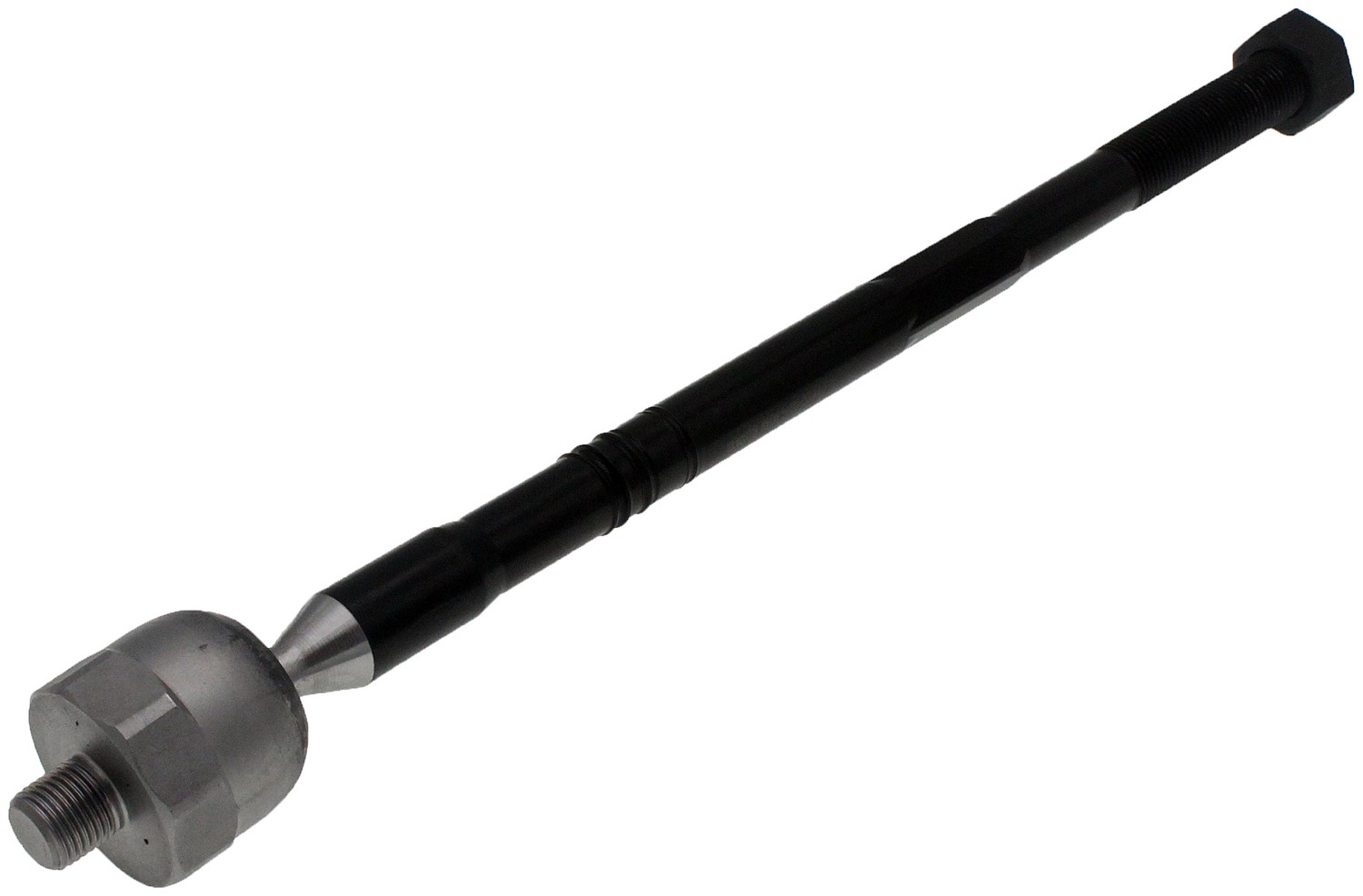

Dorman 543-863 Steering Tie Rod End

Dorman 543-863 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 2 Type	Male Threaded
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Grade Type	Standard
Dust Boot Included	No
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
Bearing Material	Polymer
Housing Material	Steel
Finish	Powder Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Straight
Color	Black
Head Drive Type	Smooth
Package Contents	1 Nut
Package Contents	1 Steering Tie Rod End
Material	Steel
End 1 Attachment Type	Threaded
Center Mount Hole Quantity	0
Bolts Included	No
9091	Steel
9090	Polychloroprene
881	Threaded
End 1 Gender	Male
Length	351.5 MM
Width	43 MM
Height	351.5 MM
Weight	1.2 lb LB
Thread Pitch	1.5 mm MM
Outside Diameter	19 mm MM
End 2 Thread Pitch	M1.5 MM
End 2 Thread Diameter	16 mm MM
End 1 Thread Pitch	M1.5 MM
End 1 Thread Diameter	16 mm MM
Center Mount Stud Quantity	1 IN
Bolt Thread Diameter	16 mm MM
Bolt Length	63 mm MM
662	10.1 MM
36	16.5 MM
