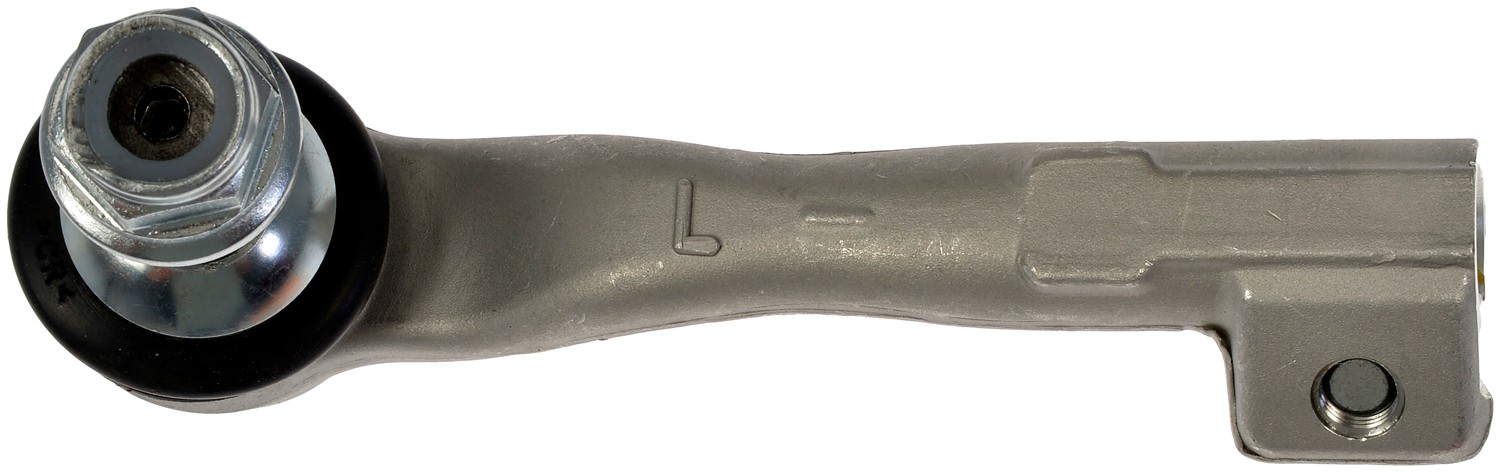

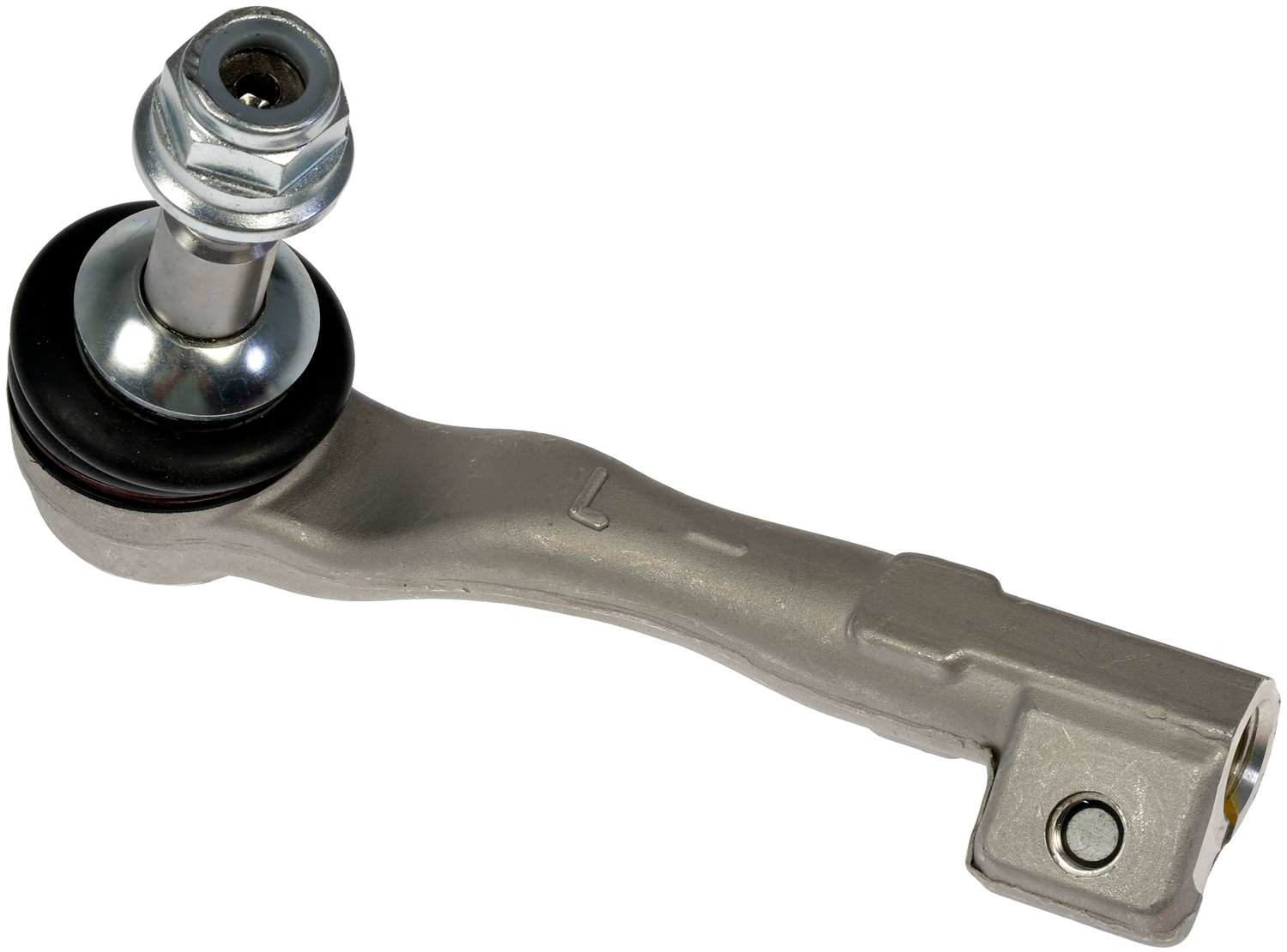

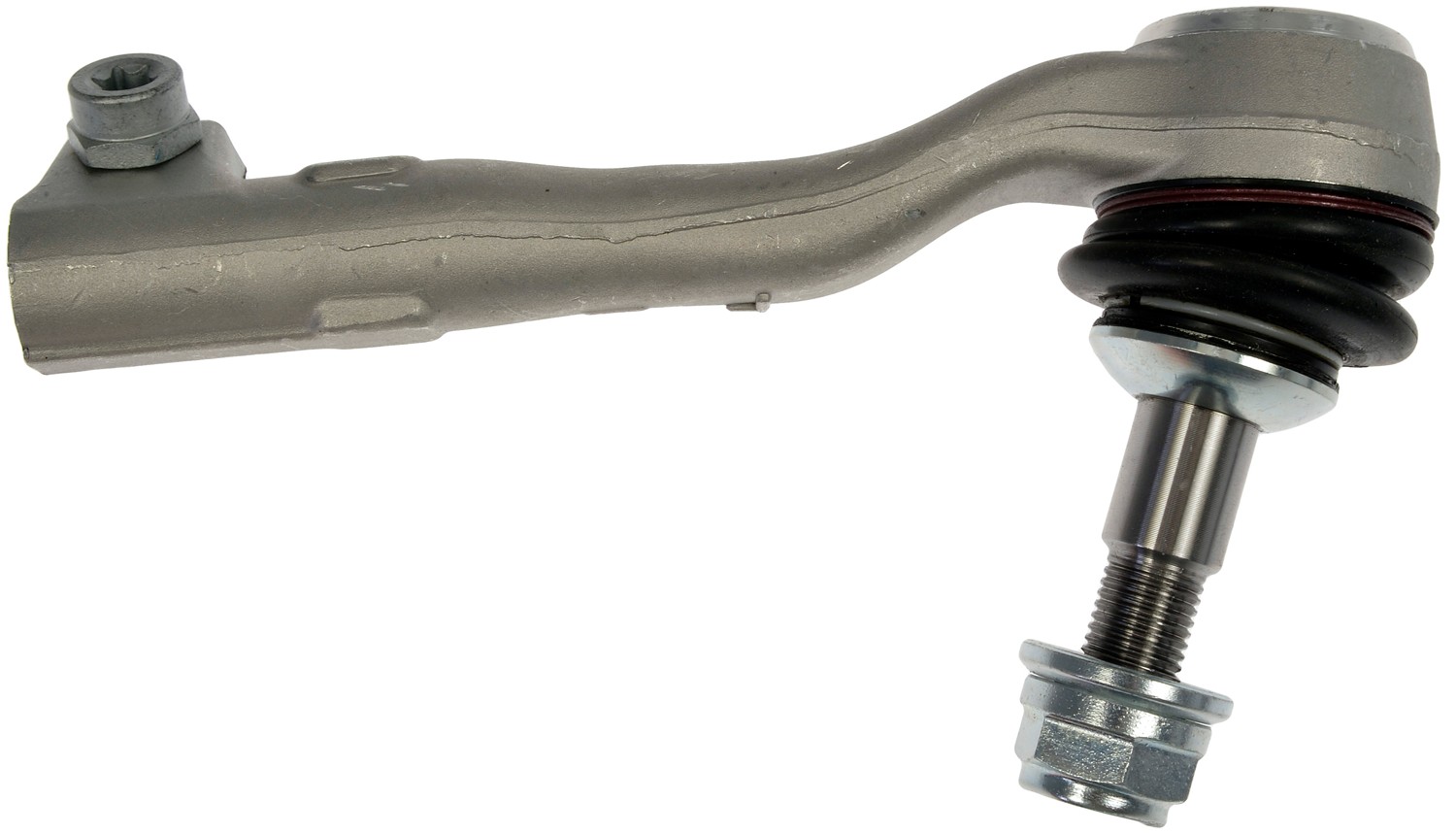

Dorman 543-929 Steering Tie Rod End

Dorman 543-929 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 1 Attachment Type	Threaded
Bearing Material	Polymer
Type	Bent
End 1 Gender	Female
Mounting Hardware Included	Yes
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Counterclockwise (Left)
Grade Type	Standard
Height	101.2 MM
Pre-greased	Yes
End 2 Attachment Type	Threaded
Outside Diameter	23 mm MM
Dust Boot Included	Yes
End 2 Gender	Male
End 2 Type	Threaded
Weight	1.3 lb LB
36	23 MM
Package Contents	1 Tie Rod End
Package Contents	1 Ball Joint
Material	Steel
Width	41.19 MM
Length	160 MM
Housing Material	Steel
Thread Pitch	M1.5 MM
662	14 MM
Bolt Length	22 mm MM
Bolt Thread Diameter	10 mm MM
Center Mount Hole Quantity	1 IN
Tie Rod End Thread Diameter	14 mm MM
881	Taper
Head Drive Type	Smooth
Package Contents	1 Nut
Package Contents	1 Bolt
Center Mount Stud Quantity	1 IN
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	M1.5 MM
End 2 Thread Diameter	14 mm MM
9091	Steel
End 2 Thread Pitch	M1.5 MM
Bolts Included	Yes
9090	Polychloroprene
Adjustable	Yes
Finish	Powder Coated
Color	Black
Grease Fitting Included	No
