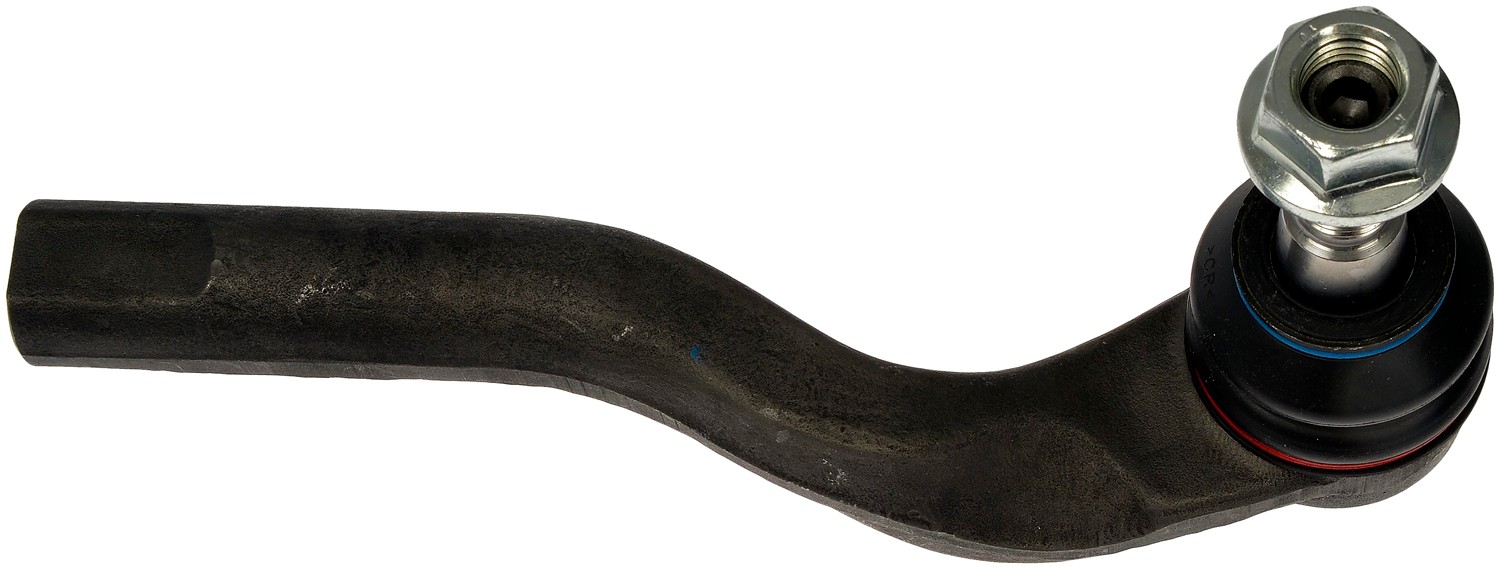

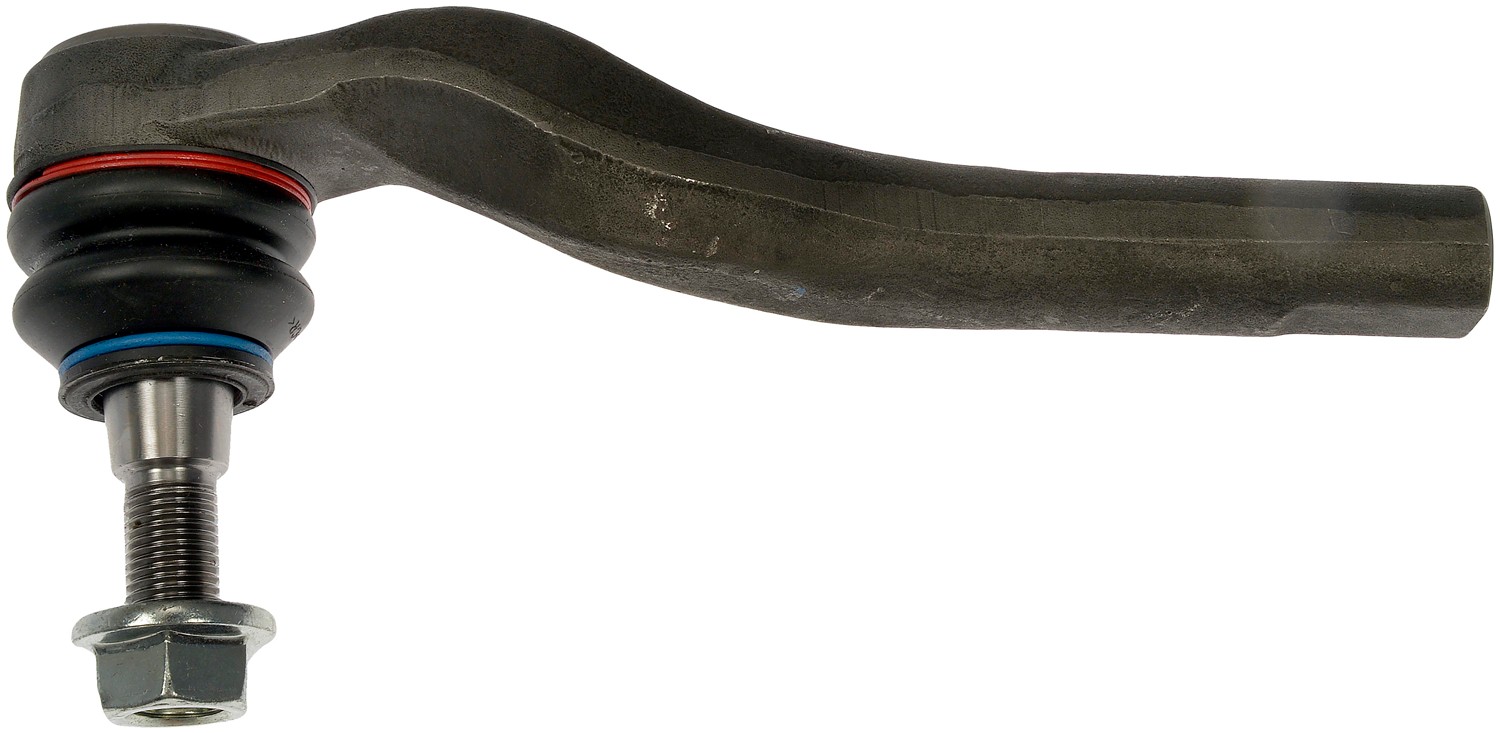

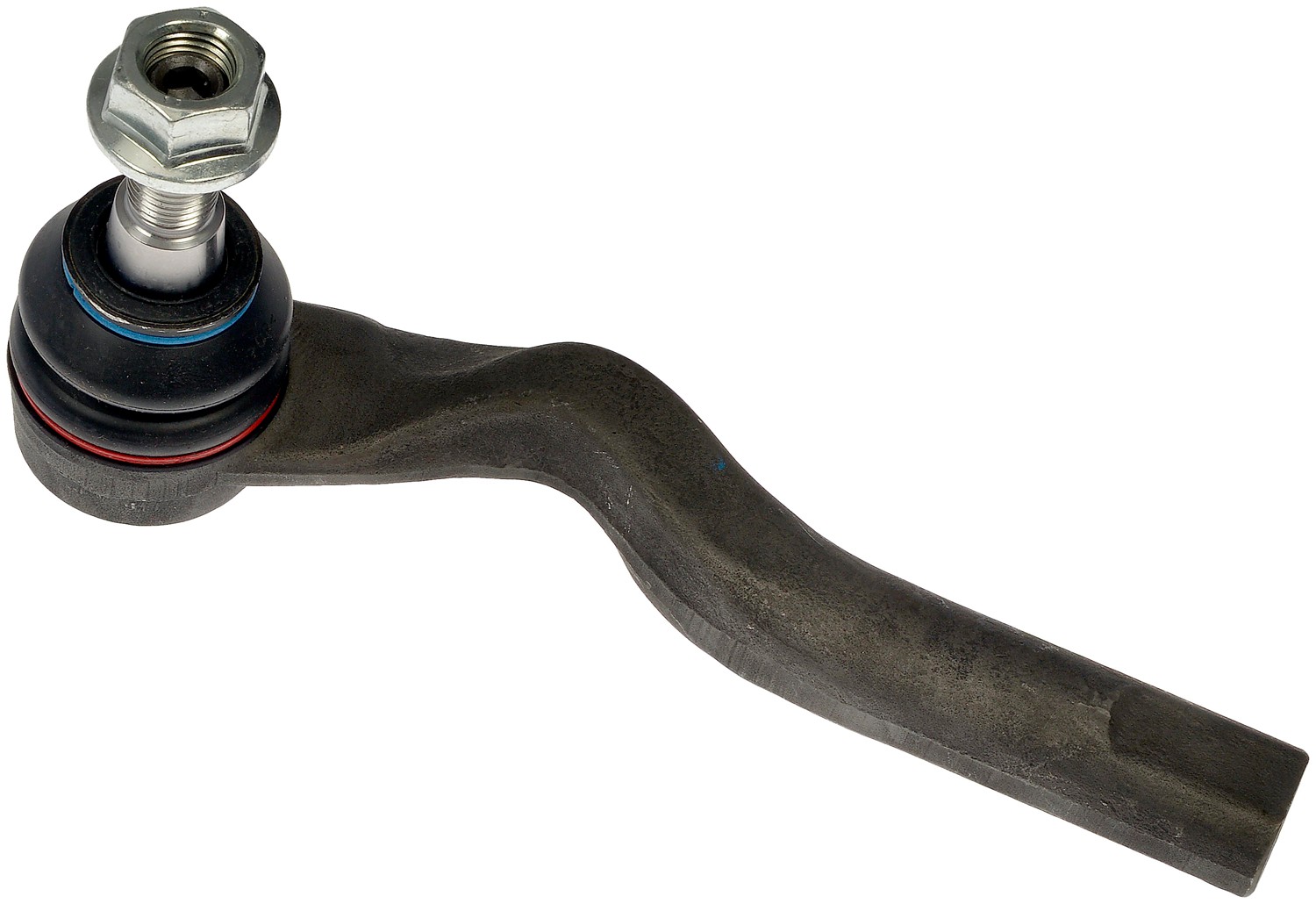

Dorman 544-030 Steering Tie Rod End

Dorman 544-030 Steering Tie Rod End

Features:

Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 2 Thread Direction	Clockwise (Right)
Center Mount Hole Quantity	1 IN
Center Mount Stud Quantity	1 IN
End 1 Thread Diameter	18 mm MM
End 1 Thread Pitch	M1.25 MM
9091	Steel
Adjustable	Yes
Finish	Powder Coated
Grease Fitting Included	No
Package Contents	1 Tie Rod End
Type	Straight
Material	Steel
End 2 Gender	Male
Outside Diameter	25.07 mm MM
Thread Pitch	M1.5 MM
Housing Material	Steel
End 2 Type	Threaded
Tie Rod End Thread Diameter	16 mm MM
End 1 Thread Direction	Clockwise (Right)
Pre-greased	Yes
Weight	2.25 lb LB
Mounting Hardware Included	Yes
Dust Boot Included	Yes
Grade Type	Standard
Color	Black
881	Taper
9090	Polychloroprene
End 2 Thread Diameter	10 mm MM
Bolts Included	No
End 2 Attachment Type	Threaded
Head Drive Type	Hex
End 2 Thread Pitch	M1.25 MM
Bearing Material	Polymer
End 1 Gender	Female
Length	110 MM
36	25.07 MM
662	16.7 MM
Width	42.02 MM
End 1 Attachment Type	Threaded
Height	95.4 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Mercedes-Benz	Metris	Front Right Outer	2016 to 2023
Mercedes-Benz	V220d	Front Right Outer	2016 to 2020
Mercedes-Benz	V250	Front Right Outer	2017 to 2020
