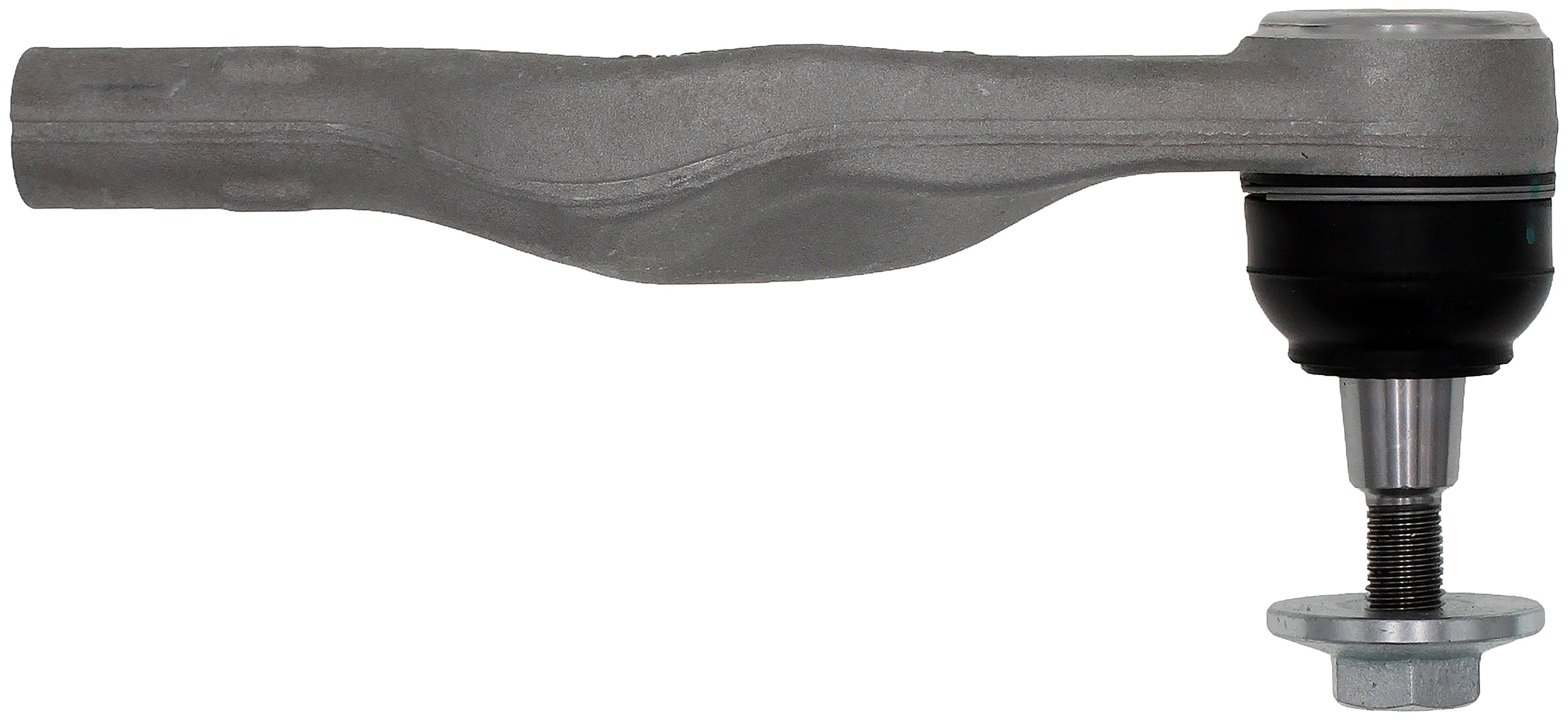

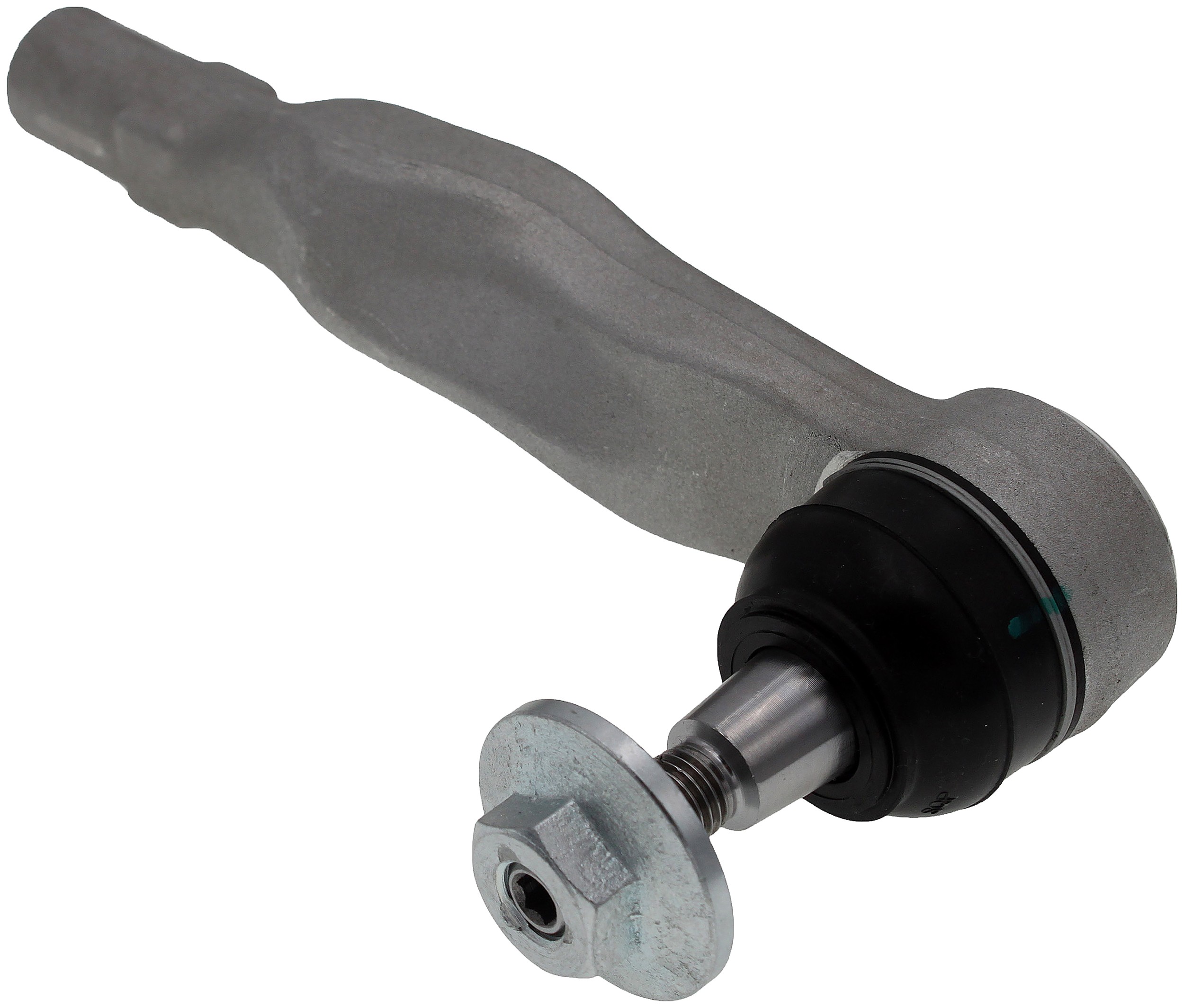

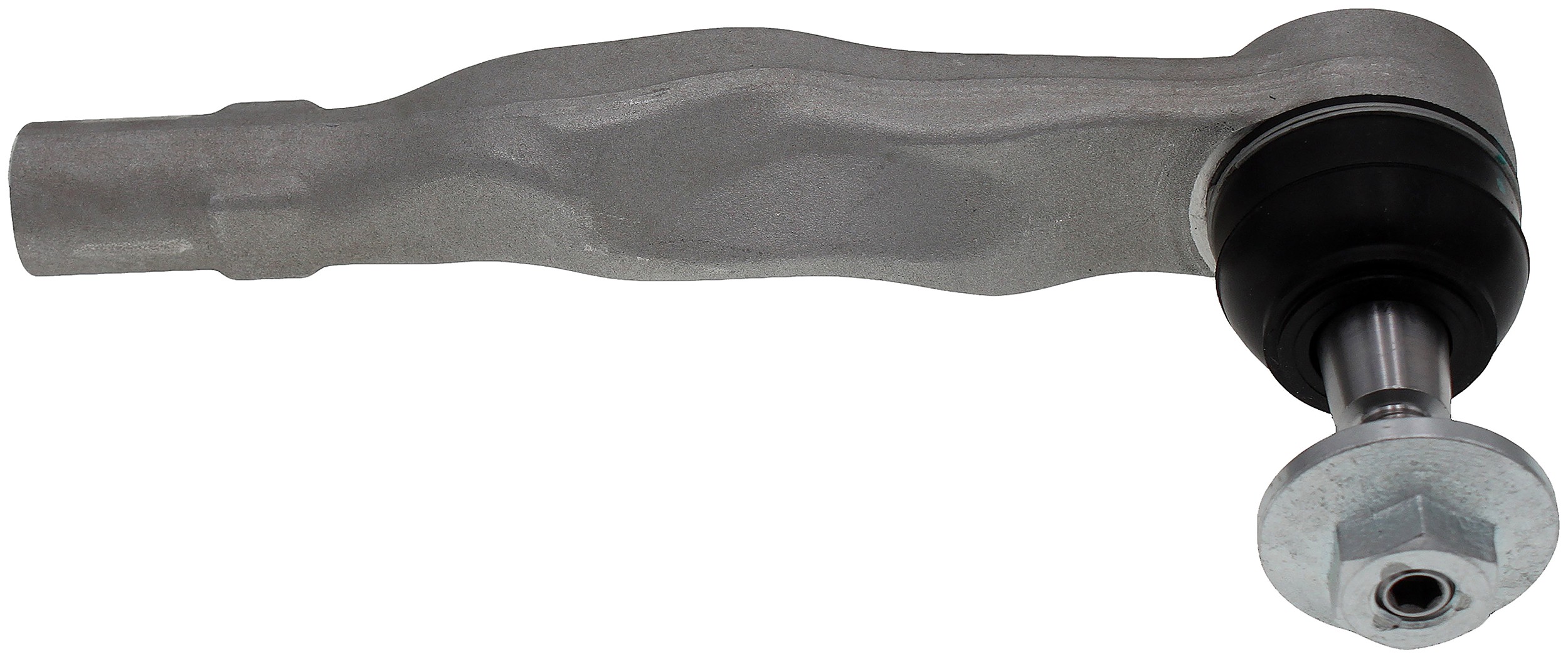

Dorman 544-056 Steering Tie Rod End

Dorman 544-056 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Package Contents	1 Ball Joint
Dust Boot Included	Yes
Finish	Powder Coated
Height	98.93 MM
Package Contents	1 Nut
Grease Fitting Included	No
Pre-greased	Yes
Tie Rod End Thread Diameter	16 mm MM
Thread Pitch	1.5 mm MM
Mounting Hardware Included	Yes
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
End 2 Type	Threaded
Material	Steel
Package Contents	1 Tie Rod End
Adjustable	No
Weight	1.3 lb LB
Grade Type	Standard
End 2 Gender	Female
Outside Diameter	23.76 mm MM
36	23.76 MM
Housing Material	Steel
End 1 Gender	Male
662	15.6 MM
Bearing Material	Polymer
End 2 Thread Pitch	1.5 mm MM
Length	197 MM
Width	46.84 MM
End 2 Thread Diameter	16 mm MM
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	12 mm MM
Head Drive Type	Hex
Center Mount Stud Quantity	1 IN
881	Taper
9090	Polychloroprene
9091	Steel
Color	Black
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Clockwise (Right)
Bolts Included	No
Center Mount Hole Quantity	1 IN
Type	Bent

Vehicle Applications:

Make	Model	Position	Years	Notes
Bentley	Continental	Front Right Outer	2019 to 2025
Bentley	Flying Spur	Front Right Outer	2020 to 2025
Porsche	Panamera	Front Right Outer	2017 to 2025
