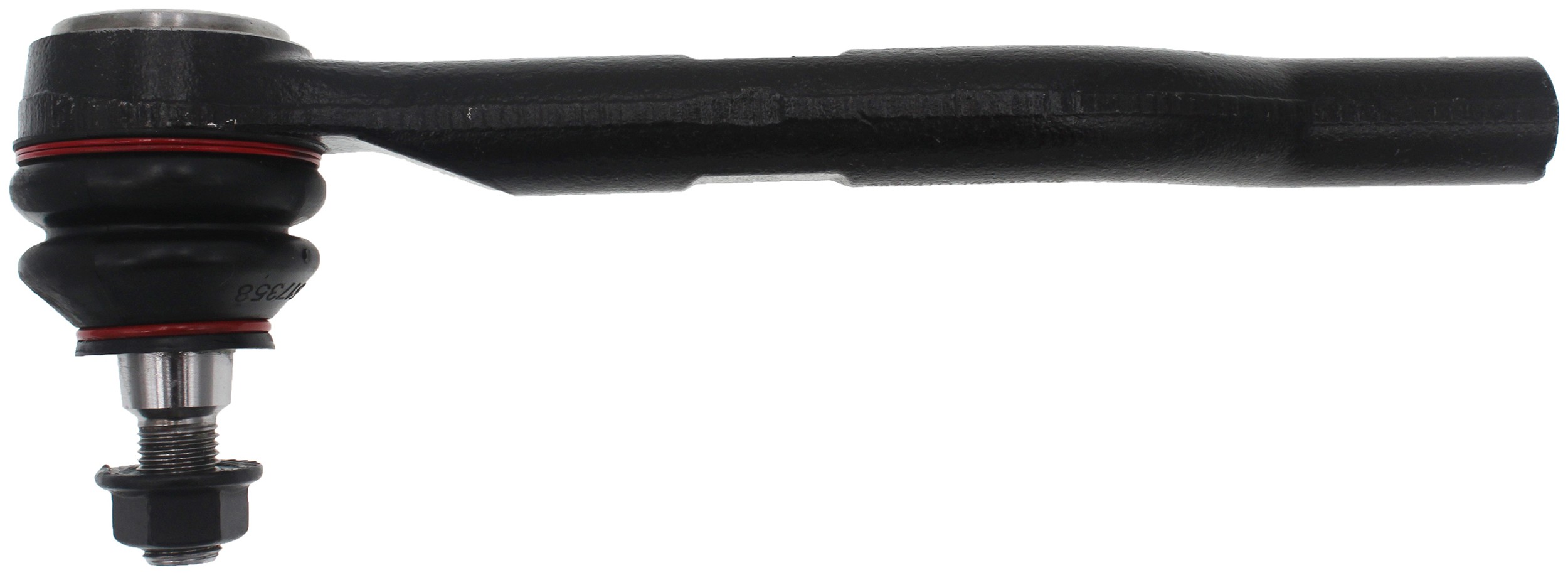

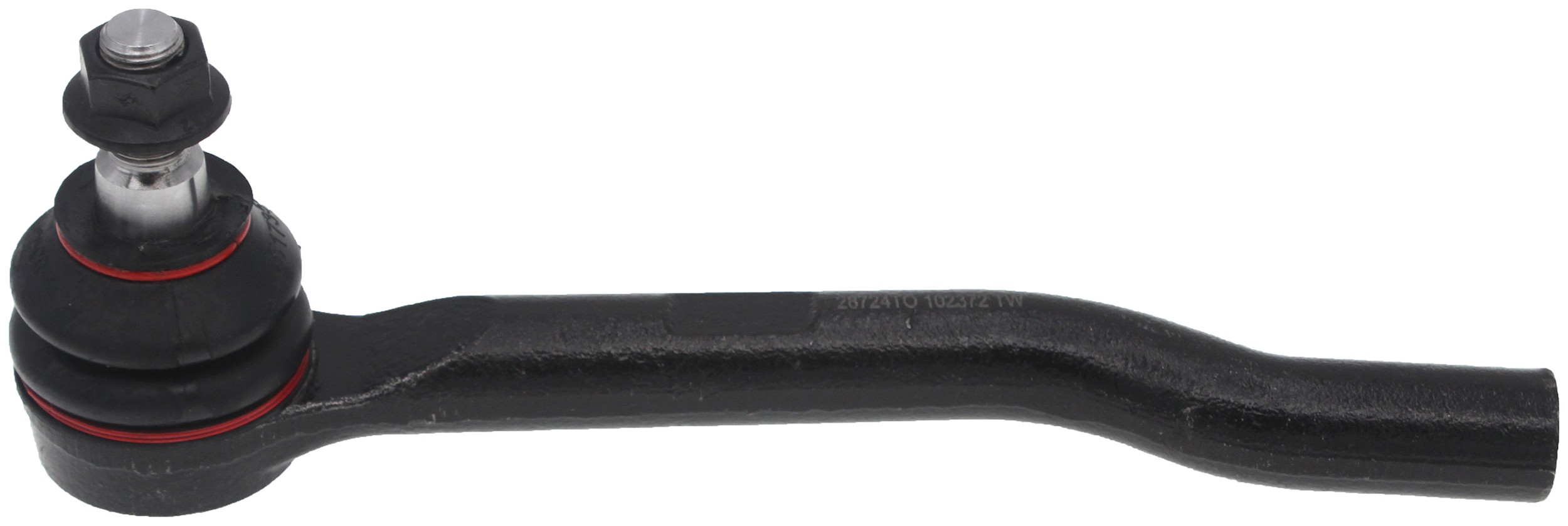

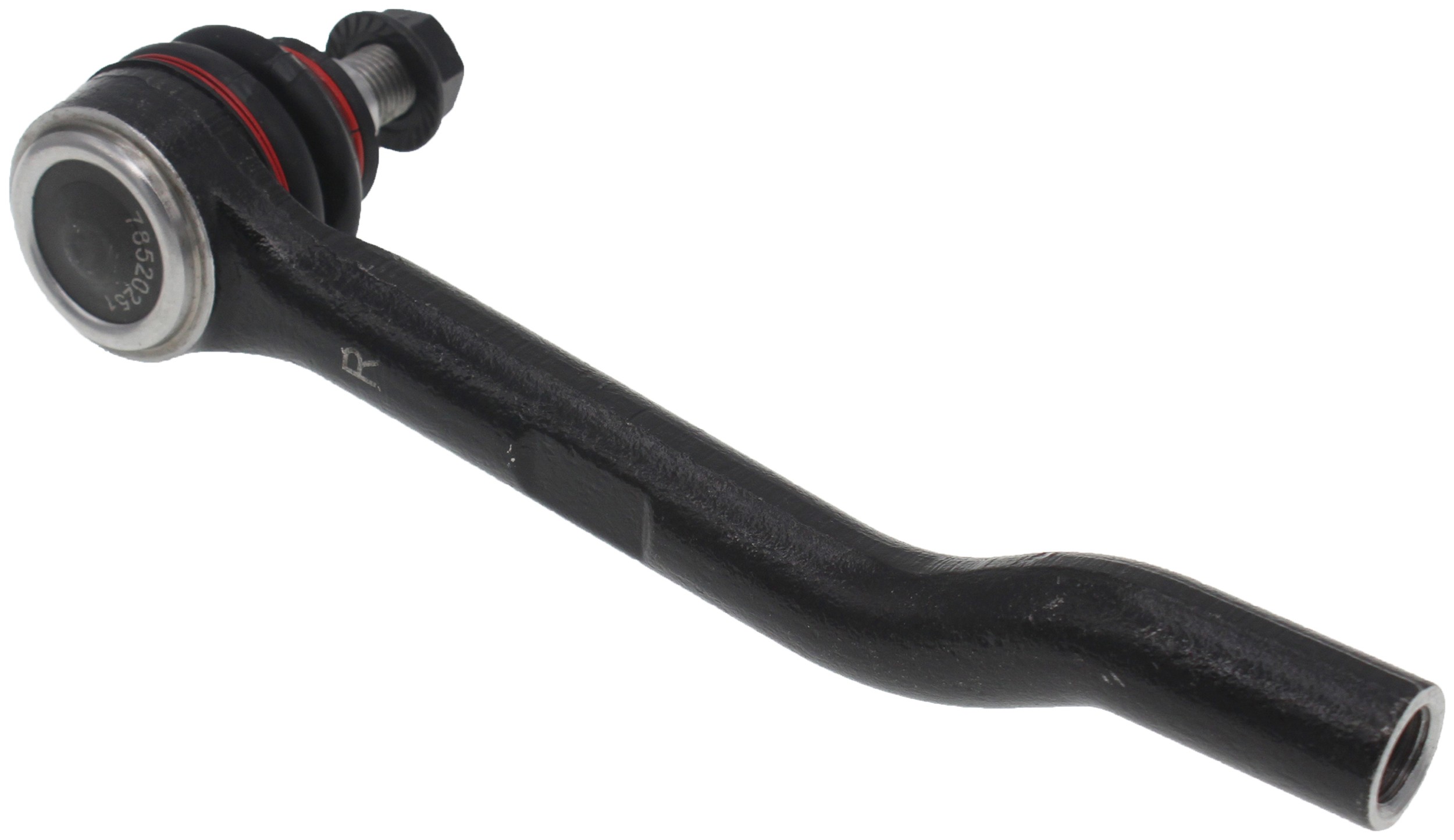

Dorman 544-208 Steering Tie Rod End

Dorman 544-208 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Center Mount Hole Quantity	1 IN
Type	Bent
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	Powder Coated
Housing Material	Steel
Package Contents	1 Ball Joint
Package Contents	1 Nut
662	15.3 MM
Package Contents	1 Tie Rod End
End 1 Thread Diameter	14 mm MM
Package Contents	1 Cotter Pin
Weight	1.56 lb
Center Mount Stud Quantity	1 IN
Material	Steel
End 2 Thread Pitch	1.25 mm MM
End 2 Thread Diameter	12 mm MM
36	20 MM
Outside Diameter	20 mm MM
Thread Pitch	1.25 mm MM
End 2 Type	Threaded
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
Bolts Included	No
9091	Steel
9090	Polychloroprene
881	Taper
Tie Rod End Thread Diameter	M14 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Head Drive Type	Smooth
Color	Black
Length	205.7 MM
Grade Type	Standard
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Female
Bearing Material	Polymer
End 1 Thread Pitch	1.5 mm MM
Height	77.8 MM
Width	43 MM
