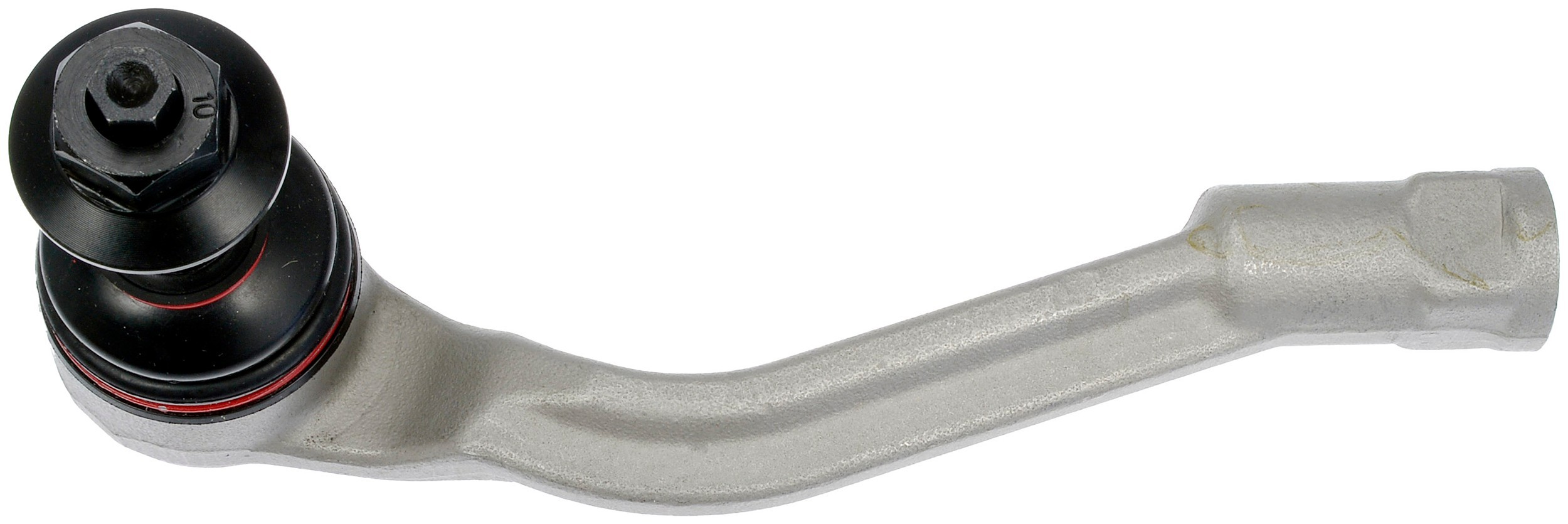

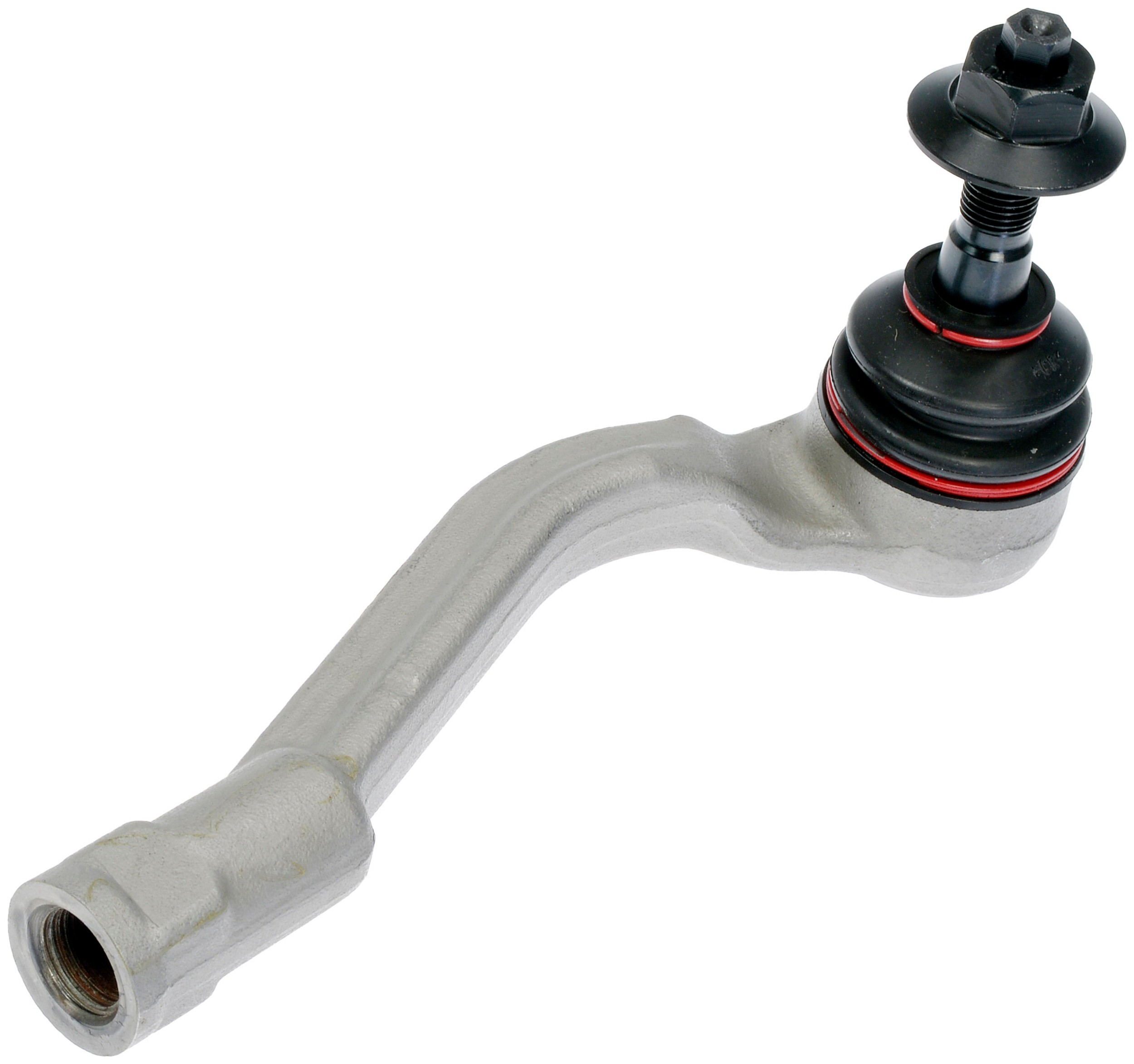

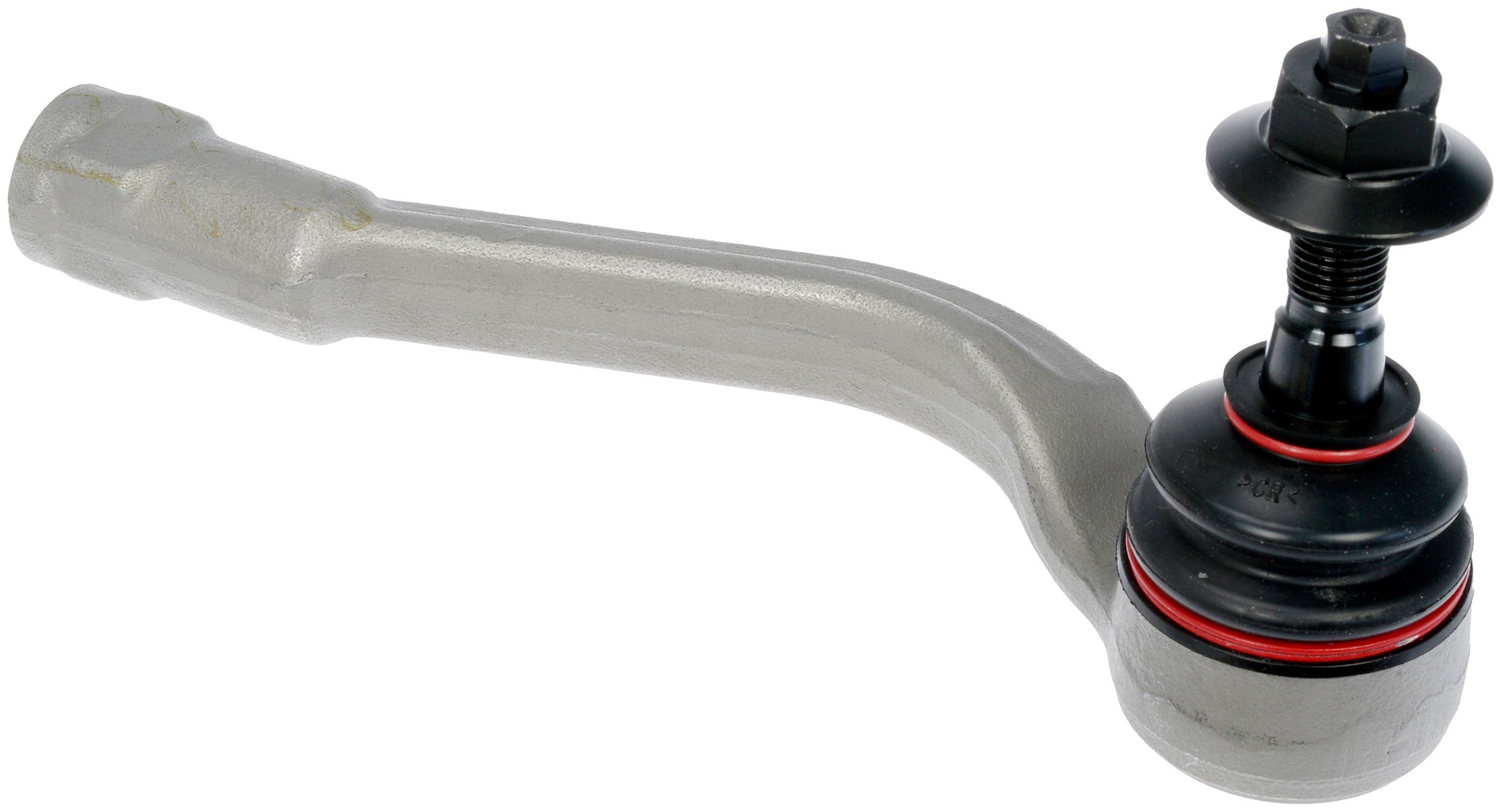

Dorman 544-250 Steering Tie Rod End

Dorman 544-250 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

9091	Steel
Color	Black
Dust Boot Included	Yes
Pre-greased	Yes
Grease Fitting Included	No
Length	186 MM
Width	39.66 MM
Height	95.04 MM
Package Contents	1 Nut
Package Contents	1 Ball Joint
Package Contents	1 Tie Rod
Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
Weight	1.54 lb LB
Tie Rod End Thread Diameter	16 mm MM
Type	Bent
End 1 Threads Per Inch	2
End 1 Attachment Type	Threaded
Mounting Hardware Included	Yes
Adjustable	Yes
Center Mount Stud Quantity	1 IN
Center Mount Hole Quantity	1 IN
End 1 Thread Diameter	12 mm MM
881	Threaded
36	18.5 MM
Thread Pitch	1.5 mm MM
2334	No
Outside Diameter	18.5 mm MM
End 2 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	16 mm MM
662	13.2 MM
9090	Polychloroprene
End 1 Thread Pitch	1.25 mm MM
Ball Joint Included	Yes
Bolts Included	No
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Clockwise (Right)
Greaseable	No
Grade Type	Standard
End 1 Gender	Male
Head Drive Type	Hex
Bearing Material	Polymer
End 2 Gender	Female
Housing Material	Steel
Finish	Powder Coated

Vehicle Applications:

Make	Model	Position	Years	Notes
Hyundai	Palisade	Front Right Outer	2020 to 2025
Hyundai	Sonata	Front Right Outer	2018 to 2019
Kia	Cadenza	Front Right Outer	2018 to 2020
