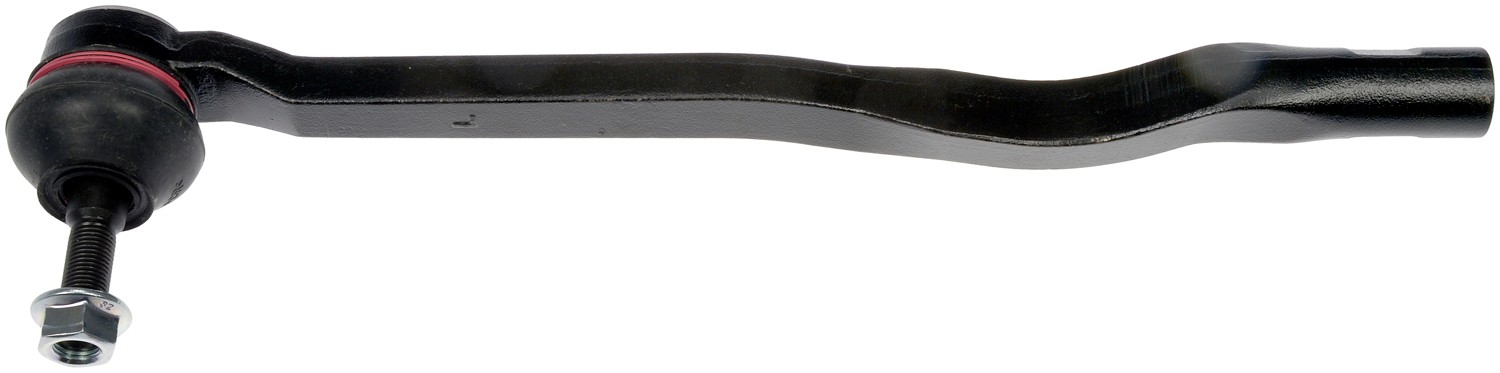

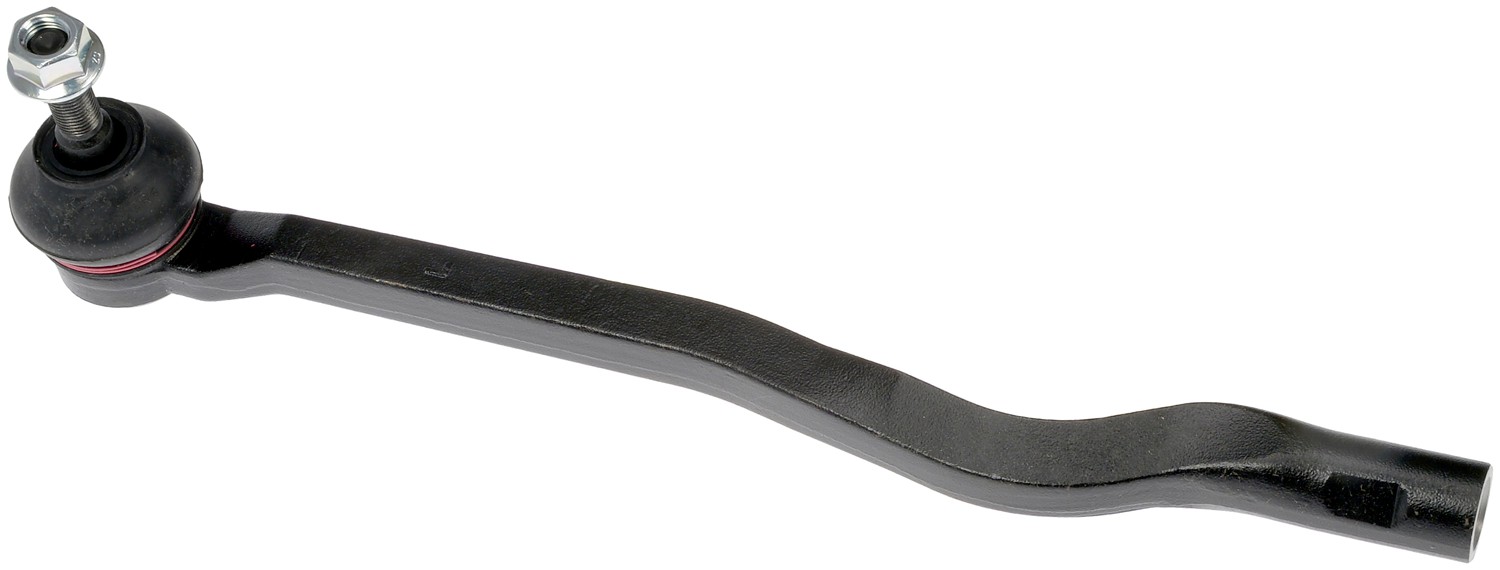

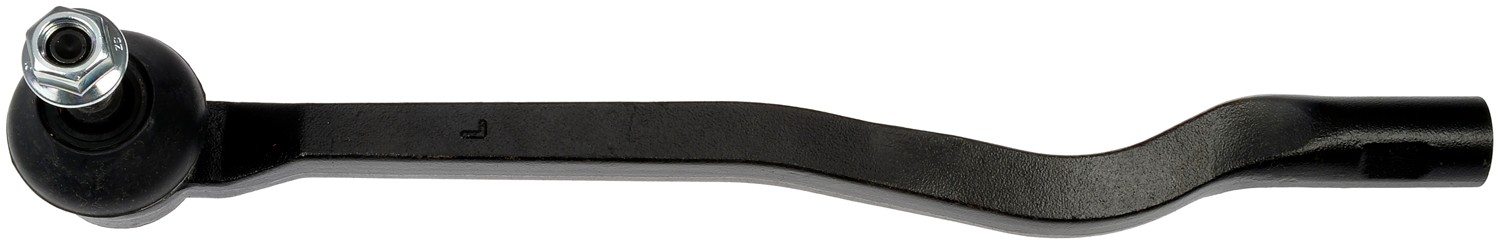

Dorman 544-319 Steering Tie Rod End

Dorman 544-319 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Bolts Included	No
Thread Pitch	M1.5 MM
Thread Pitch	M1.25 MM
Outside Diameter	14.5 mm MM
End 2 Thread Pitch	M1.25 MM
End 2 Thread Diameter	12 mm MM
End 1 Thread Pitch	M1.5 MM
End 1 Thread Diameter	16 mm MM
Center Mount Hole Quantity	1 IN
662	14.51 MM
36	16 MM
Head Drive Type	Smooth
Color	Black
Type	Bent
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	Powder Coated
Housing Material	Steel
Bearing Material	Polymer
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Grade Type	Standard
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
881	Taper
9090	Polychloroprene
9091	Steel
Center Mount Stud Quantity	0
End 1 Attachment Type	Threaded
End 2 Type	Taper
Material	Steel
Package Contents	1 Tie Rod End
Package Contents	1 Ball Joint
Package Contents	1 Nut
Weight	2.92 lb
Length	386.42 MM
Width	51 MM
Height	94.5 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Lexus	GS350	Rear Left Outer	2013 to 2020
Lexus	GS450h	Rear Left Outer	2013 to 2018
Lexus	RC300	Rear Left Outer	2021 to 2025
Lexus	RC350	Rear Left Outer	2015 to 2025
