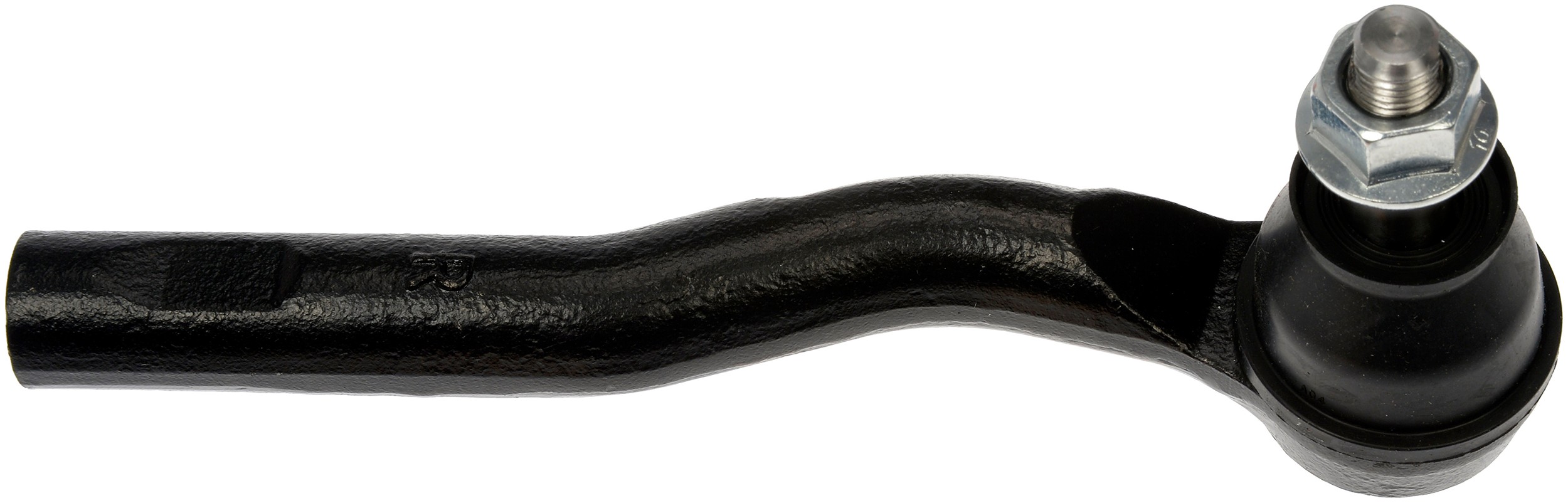

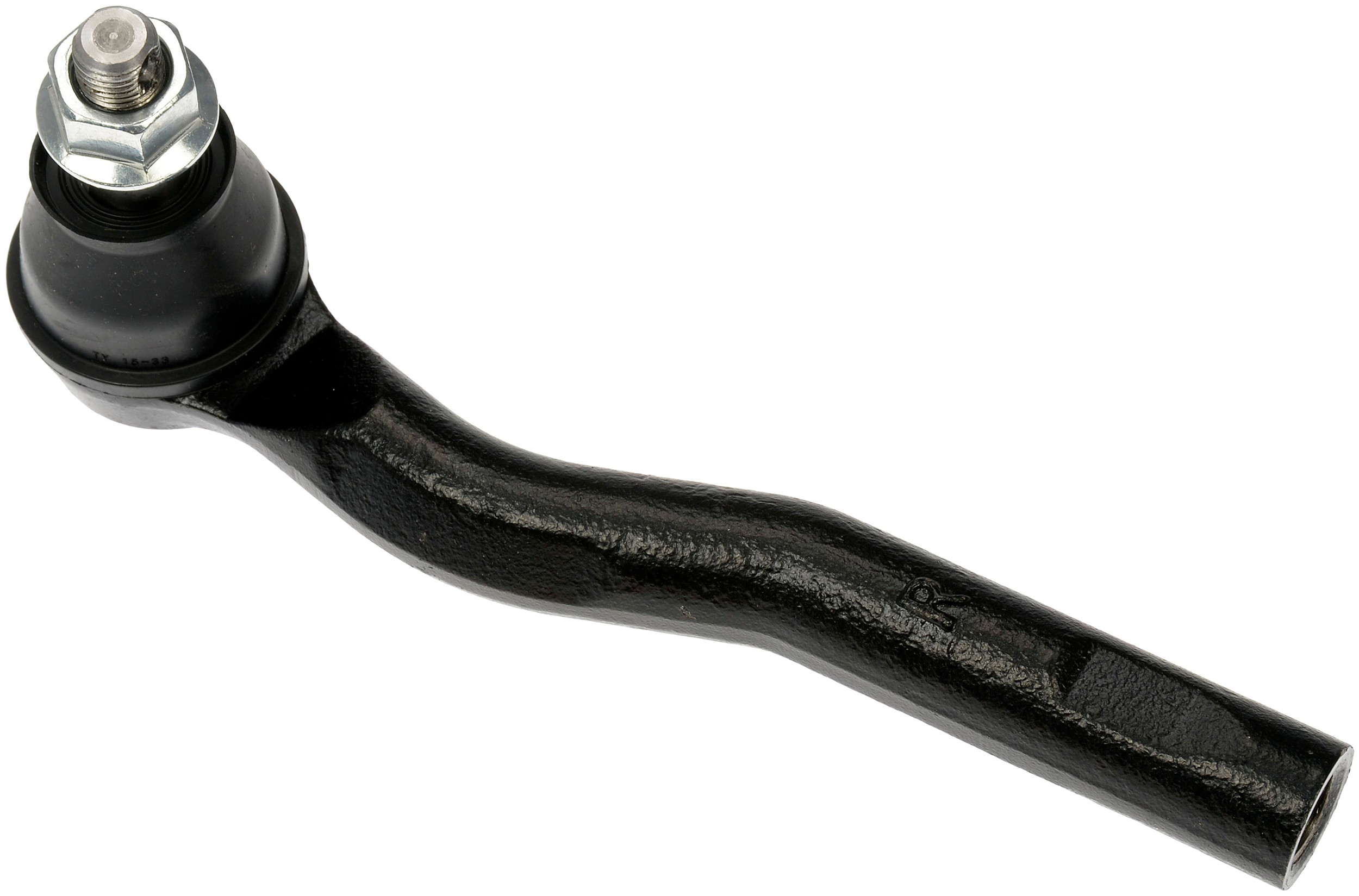

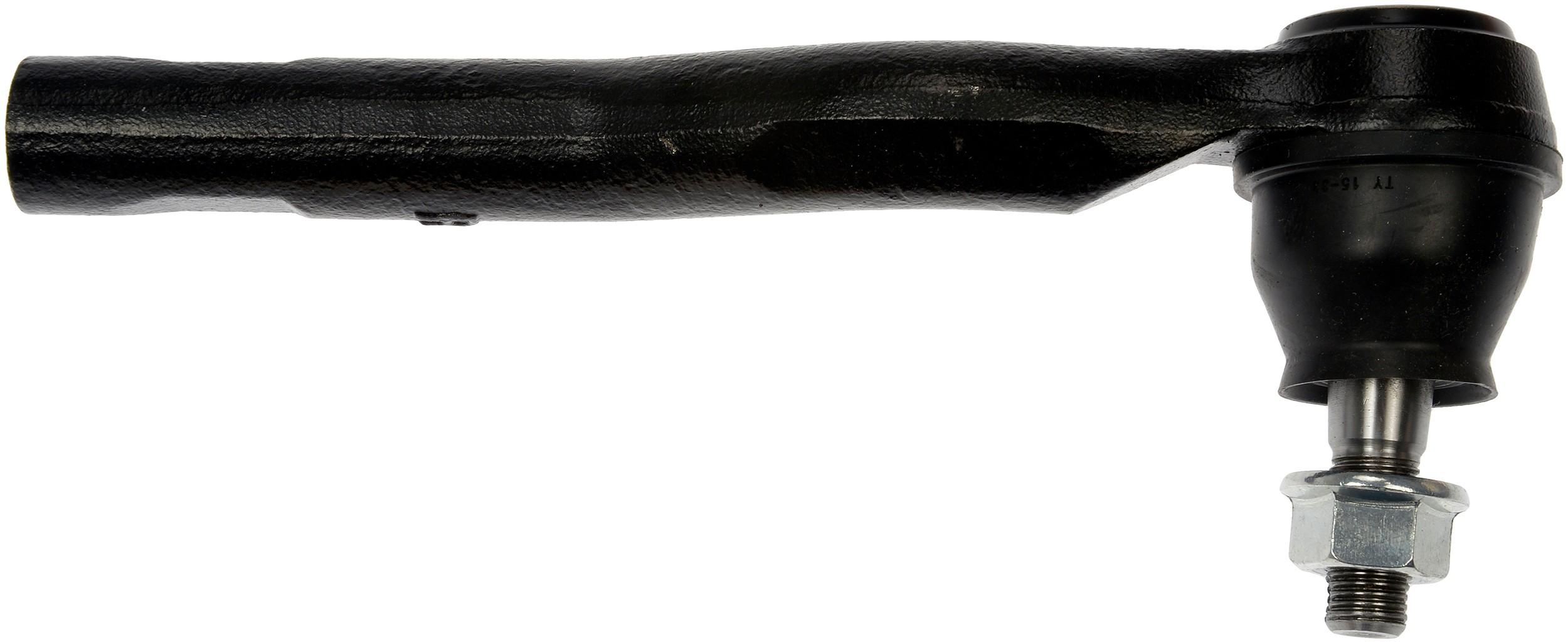

Dorman 544-452 Steering Tie Rod End

Dorman 544-452 Steering Tie Rod End

Features:

Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 1 Thread Pitch	M1.5 MM
9090	Polychloroprene
9091	Steel
Bolts Included	No
End 1 Attachment Type	Threaded
Thread Pitch	M1.25 MM
Outside Diameter	22.8 mm MM
End 2 Type	Taper
Material	Steel
Package Contents	1 Tie Rod
Package Contents	1 Castle Nut
Package Contents	1 Cotter Pin
Bearing Material	Polymer
Height	86.7 MM
Head Drive Type	Smooth
Color	Black
Type	Bent
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	Powder Coated
Housing Material	Steel
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	37.12 MM
Length	181.5 MM
Grade Type	Standard
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
End 2 Thread Pitch	M1.25 MM
End 2 Thread Diameter	12 mm MM
End 1 Thread Diameter	14 mm MM
Center Mount Stud Quantity	1 IN
Center Mount Hole Quantity	1 IN
662	12.6 MM
36	22.8 MM
Weight	1.8 lb LB
881	Taper

Vehicle Applications:

Make	Model	Position	Years	Notes
Mazda	2	Front Right Outer	2016 to 2025
Scion	iA	Front Right Outer	2016 to 2016
Toyota	Yaris R	Front Right Outer	2016 to 2020
Toyota	Yaris iA	Front Right Outer	2017 to 2018
Toyota	Yaris	Front Right Outer	2016 to 2020
