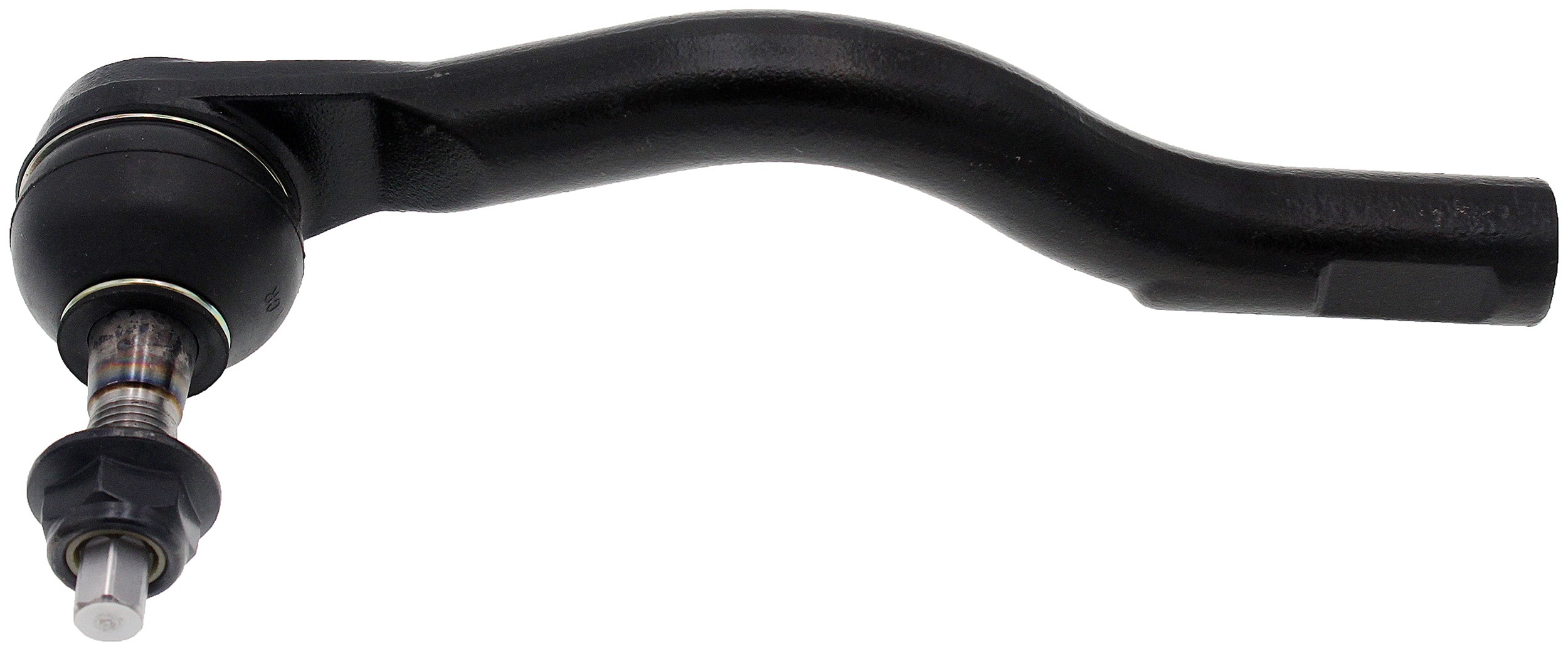

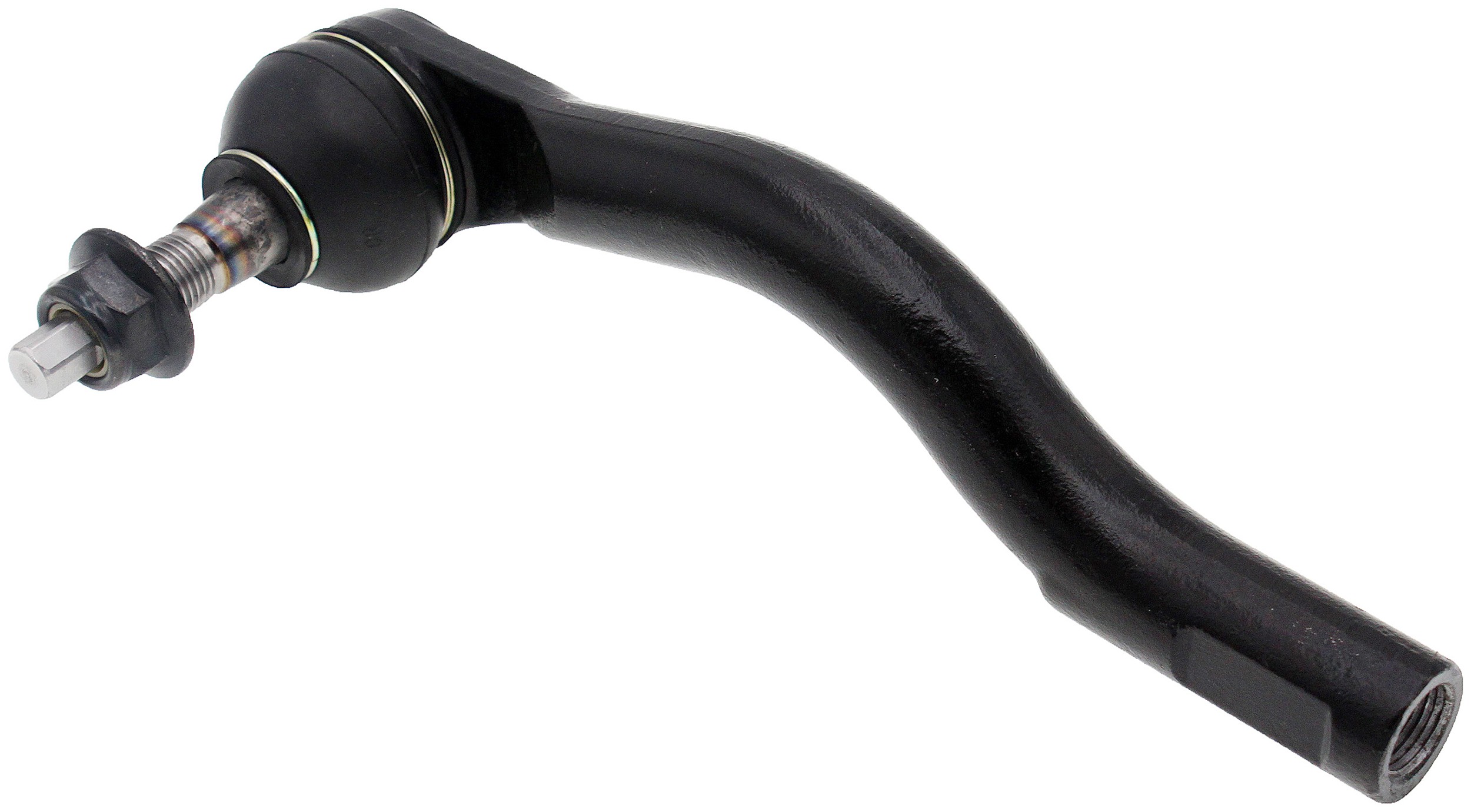

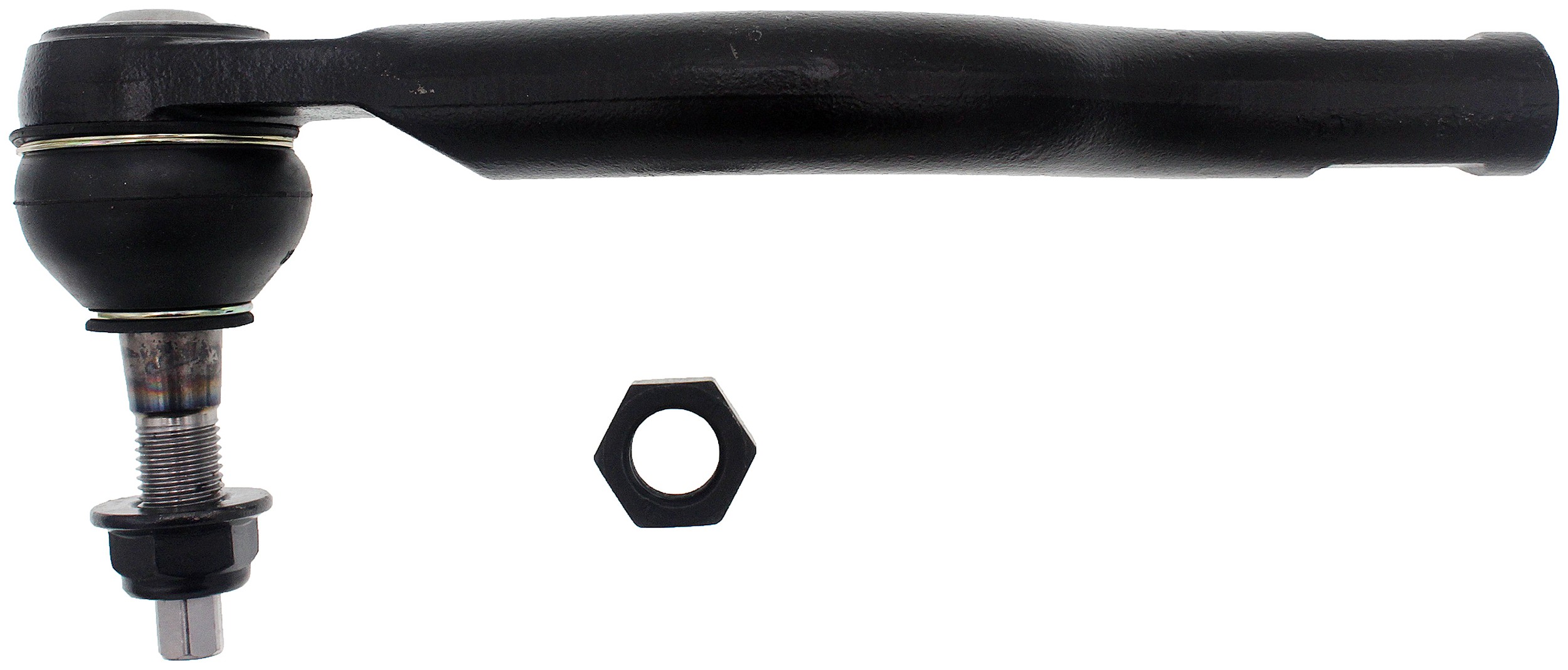

Dorman 544-508 Steering Tie Rod End

Dorman 544-508 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Bolts Included	No
Housing Material	Steel
Finish	Powder Coated
Adjustable	Yes
Tie Rod End Thread Diameter	16 mm MM
Weight	2.4 lb LB
Mounting Hardware Included	Yes
Outside Diameter	20.55 mm MM
Type	Bent
End 2 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	14 mm MM
Color	Black
Thread Pitch	1.5
Package Contents	2 Nuts
36	20.55 MM
Length	224 MM
Width	41.6 MM
Package Contents	1 Ball Joint
Package Contents	1 Tie Rod End
Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
Center Mount Stud Quantity	1 IN
Ball Joint Included	Yes
9091	Steel
Height	104 MM
9090	Polychloroprene
881	Taper
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Grade Type	Standard
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 1 Gender	Female
End 1 Thread Pitch	1.5 mm MM
Bearing Material	Polymer
End 2 Gender	Male
662	14.5 MM
Center Mount Hole Quantity	1 IN
End 1 Thread Diameter	16 mm MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Chrysler	Grand Caravan	Front Right Outer	2021 to 2025
Chrysler	Pacifica	Front Right Outer	2017 to 2025
Chrysler	Voyager	Front Right Outer	2020 to 2025
