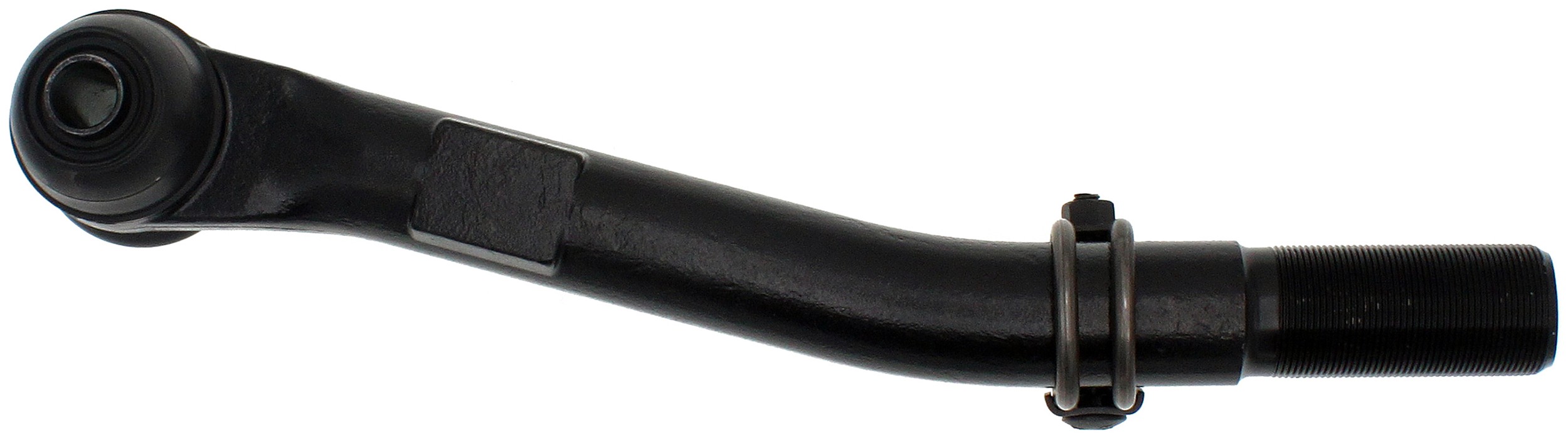

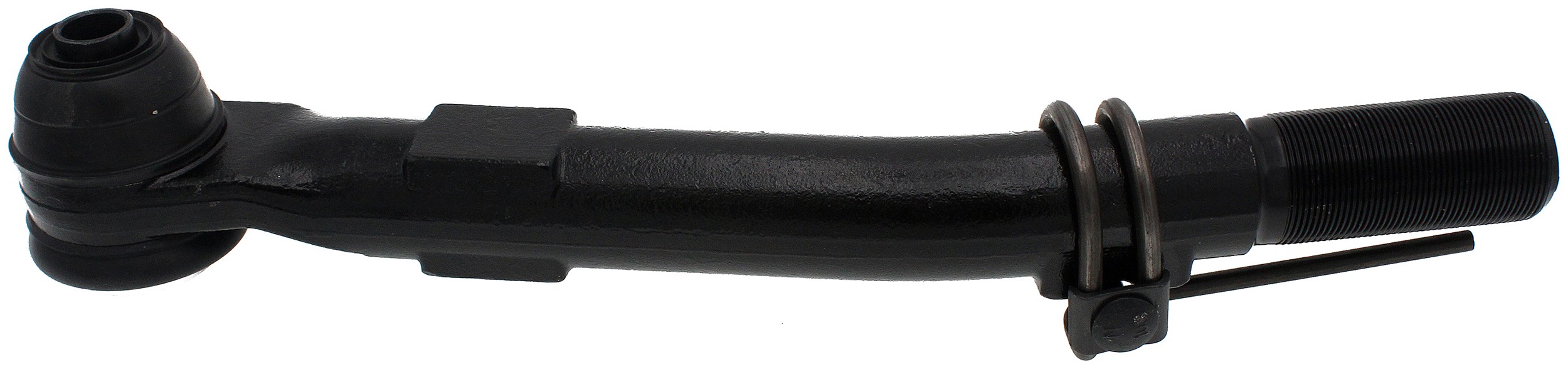

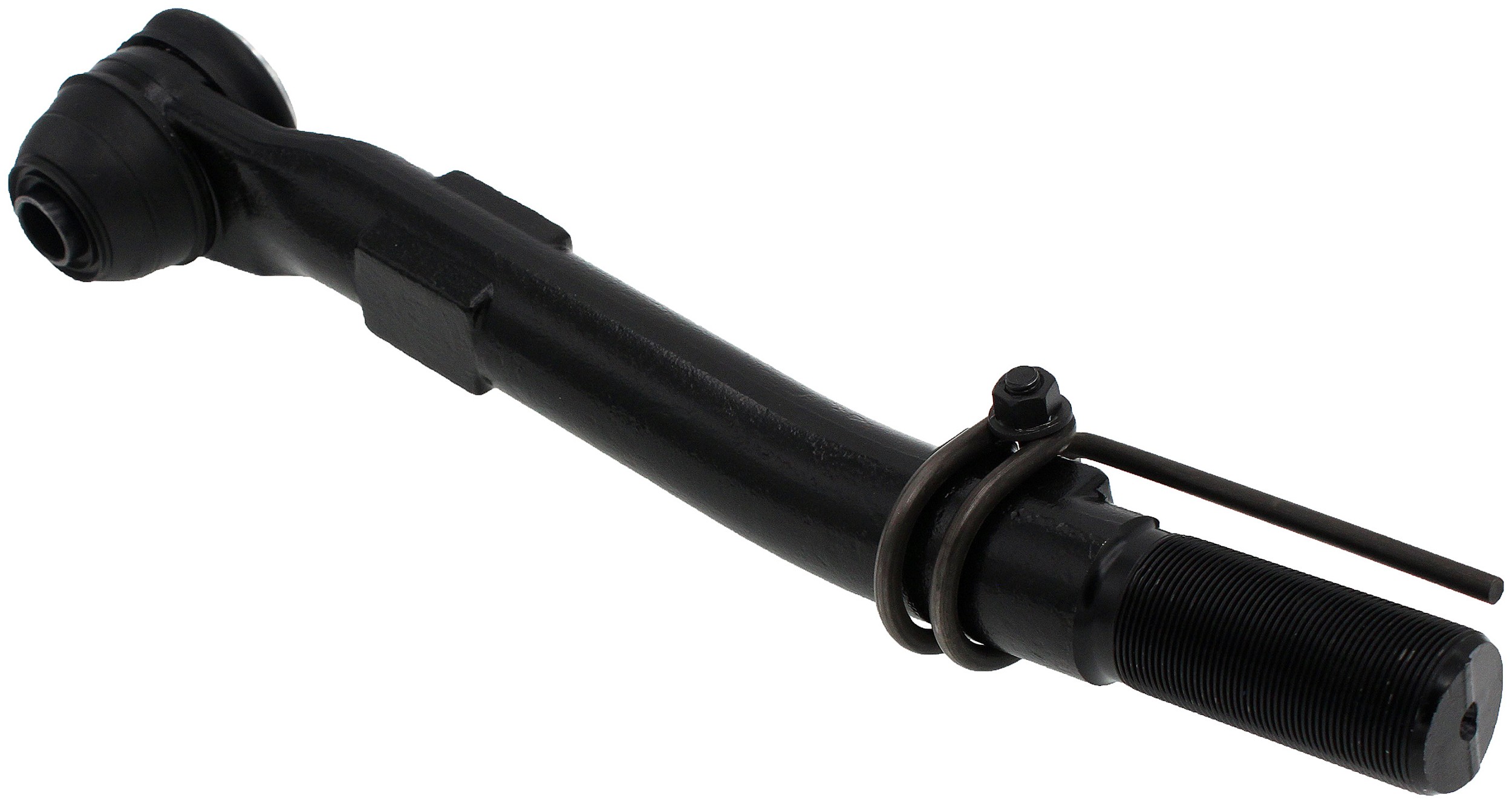

Dorman 544-564 Steering Tie Rod End

Dorman 544-564 Steering Tie Rod End

Features:

Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 2 Thread Diameter	16.8 mm MM
Height	71.8 MM
Color	Black
Type	Straight
Mounting Hardware Included	Yes
Width	60.4 MM
End 1 Attachment Type	Threaded
Adjustable	Yes
Finish	Powder Coated
Package Contents	1 Nut
Package Contents	1 Tie Rod End
Grade Type	Standard
Tie Rod End Thread Diameter	1 9/16 in IN
End 1 Thread Pitch	16
Outside Diameter	37.9 mm MM
End 2 Thread Pitch	M1.25 MM
End 1 Thread Diameter	1 9/16 in IN
662	23.3 MM
36	37.9 MM
End 1 Gender	Male
End 1 Thread Direction	Clockwise (Right)
End 2 Attachment Type	Threaded
Housing Material	Steel
Bearing Material	Polymer
End 2 Thread Direction	Clockwise (Right)
Dust Boot Included	Yes
Grease Fitting Included	No
9090	Polychloroprene
881	Taper
9091	Steel
Material	Steel
Head Drive Type	Smooth
Pre-greased	Yes
Weight	8.22 lb
Thread Pitch	1.25
Package Contents	1 Bolt
Length	373.5 MM
End 2 Gender	Male
Bolts Included	Yes
