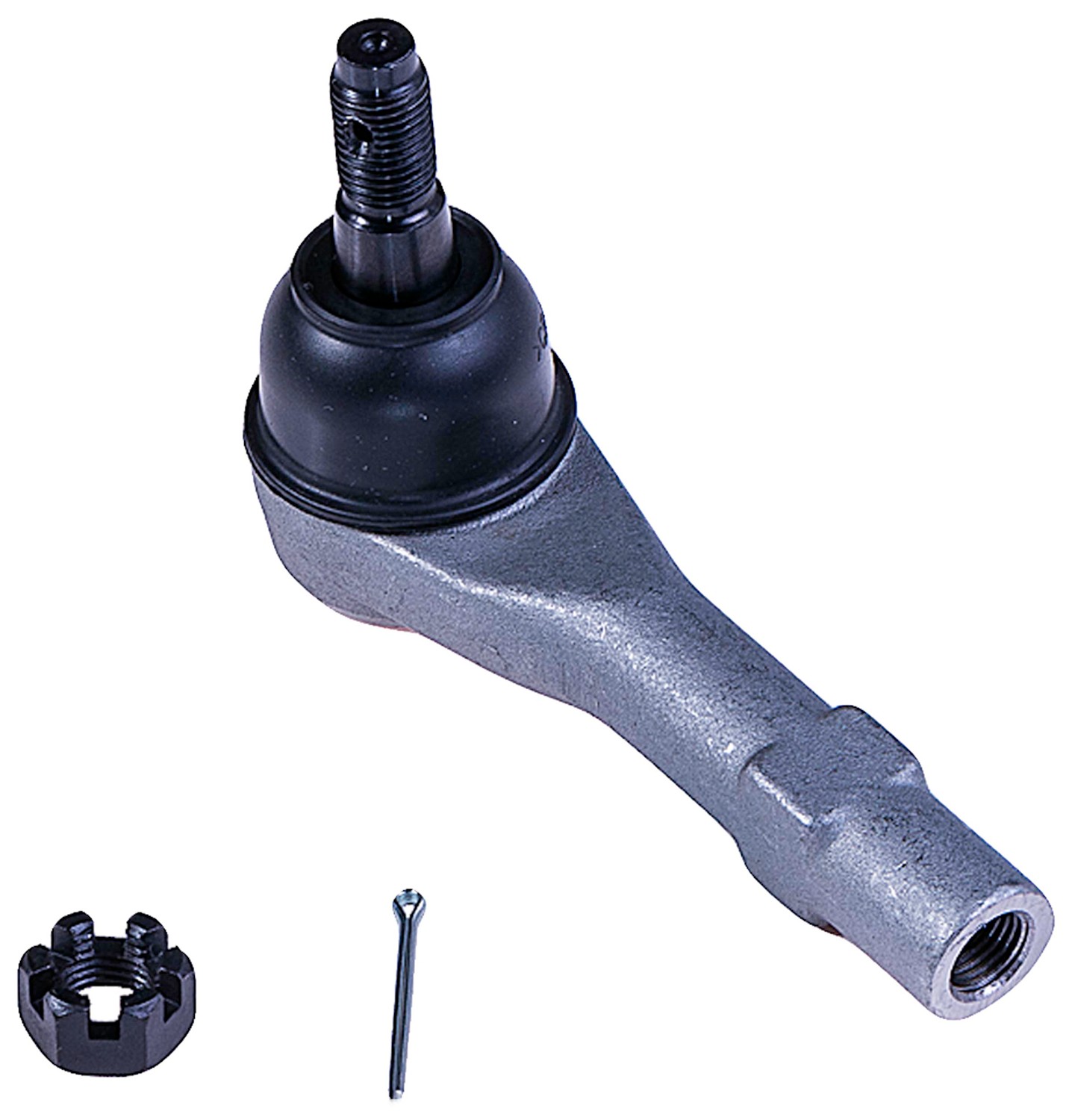

Dorman 544-581 Steering Tie Rod End

Dorman 544-581 Steering Tie Rod End

Features:

Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

Housing Material	Steel
End 2 Attachment Type	Threaded
2827	Yes
Weight	3 lb LB
Adjustable	Yes
Finish	E-Coated
2334	Yes
End 2 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	14 mm MM
Center Mount Stud Quantity	1 IN
Thread Pitch	1.5 mm MM
Tie Rod End Thread Diameter	14 mm MM
Center Mount Hole Quantity	1 IN
1786	19.8 MM
662	15.4 MM
36	20.76 MM
Package Contents	1 Castle Nut
Mounting Hardware Included	Yes
5235	No
9090	Polychloroprene
Boot Colour	Yes
Package Contents	1 Cotter Pin
Bearing Material	Polymer
Package Contents	1 Tie Rod
881	Threaded
Washer Included	No
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
9091	Steel
Material	Steel
Dust Boot Included	Yes
Ball Joint Included	Yes
Bolts Included	No
Grade Type	Standard
End 1 Attachment Type	Threaded
Greaseable	No
End 2 Type	Threaded
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
Stud Length	27 MM
Height	84.69 MM
Width	43.85 MM
Length	127 MM
4241	Yes
Outside Diameter	43.85 mm MM
Head Drive Type	Smooth
Color	Silver
Color	Black
Type	Straight
End 2 Threads Per Inch	2 mm MM
End 2 Thread Pitch	1.5 mm MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Ford	Explorer	Front Outer	1998 to 2003
Ford	Ranger	Front Outer	1998 to 2012
Mazda	B2300	Front Outer	2001 to 2010
Mazda	B2500	Front Outer	1998 to 2001
Mazda	B3000	Front Outer	1998 to 2008
Mazda	B4000	Front Outer	1998 to 2010
Mercury	Mountaineer	Front Outer	1998 to 2003
