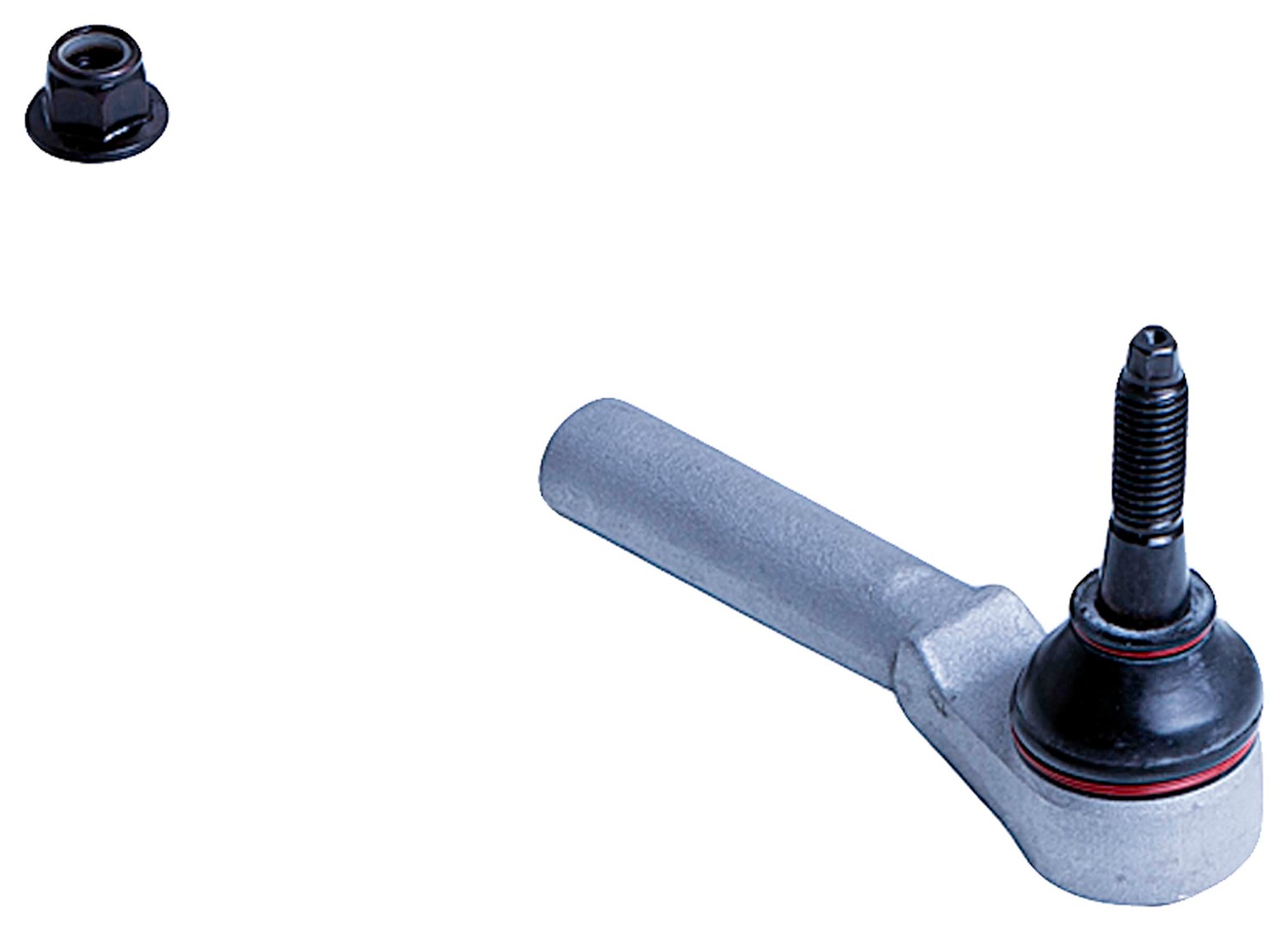

Dorman 544-663 Steering Tie Rod End

Dorman 544-663 Steering Tie Rod End

Features:

Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

End 1 Gender	Female
Outside Diameter	11.3 mm MM
End 2 Threads Per Inch	2 mm MM
End 2 Thread Pitch	1.75 mm MM
End 2 Thread Diameter	12 mm MM
End 1 Thread Pitch	1.5 mm MM
Height	28.13 MM
Stud Length	35 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Greaseable	No
Grade Type	Standard
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
Tie Rod End Thread Diameter	14 mm MM
Weight	3 lb LB
Washer Included	Yes
Bearing Material	Polymer
Boot Colour	Black
Housing Material	Steel
Finish	E-Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Straight
Color	Black
End 1 Thread Diameter	14 mm MM
Center Mount Stud Quantity	1 IN
Center Mount Hole Quantity	1 IN
1786	22 MM
Color	Silver
Head Drive Type	Hex
662	12.3 MM
36	6.31 MM
Bolts Included	No
Package Contents	1 Nut
Package Contents	1 Tie Rod
Material	Steel
881	Threaded
2334	No
2827	No
End 2 Type	Threaded
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
4241	Yes
5235	No
9090	Polychloroprene
9091	Steel
Ball Joint Included	Yes
Length	128 MM
Width	11.3 MM
Thread Pitch	1.75 mm MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Chevrolet	Impala	Front Outer	2004 to 2013
Chevrolet	Monte Carlo	Front Outer	2006 to 2007
Chevrolet	Venture	Front Outer	1997 to 2005
Oldsmobile	Silhouette	Front Outer	1997 to 2004
Pontiac	Grand Prix	Front Outer	1997 to 2003
Pontiac	Montana	Front Outer	1999 to 2005
Pontiac	Trans Sport	Front Outer	1997 to 1999
