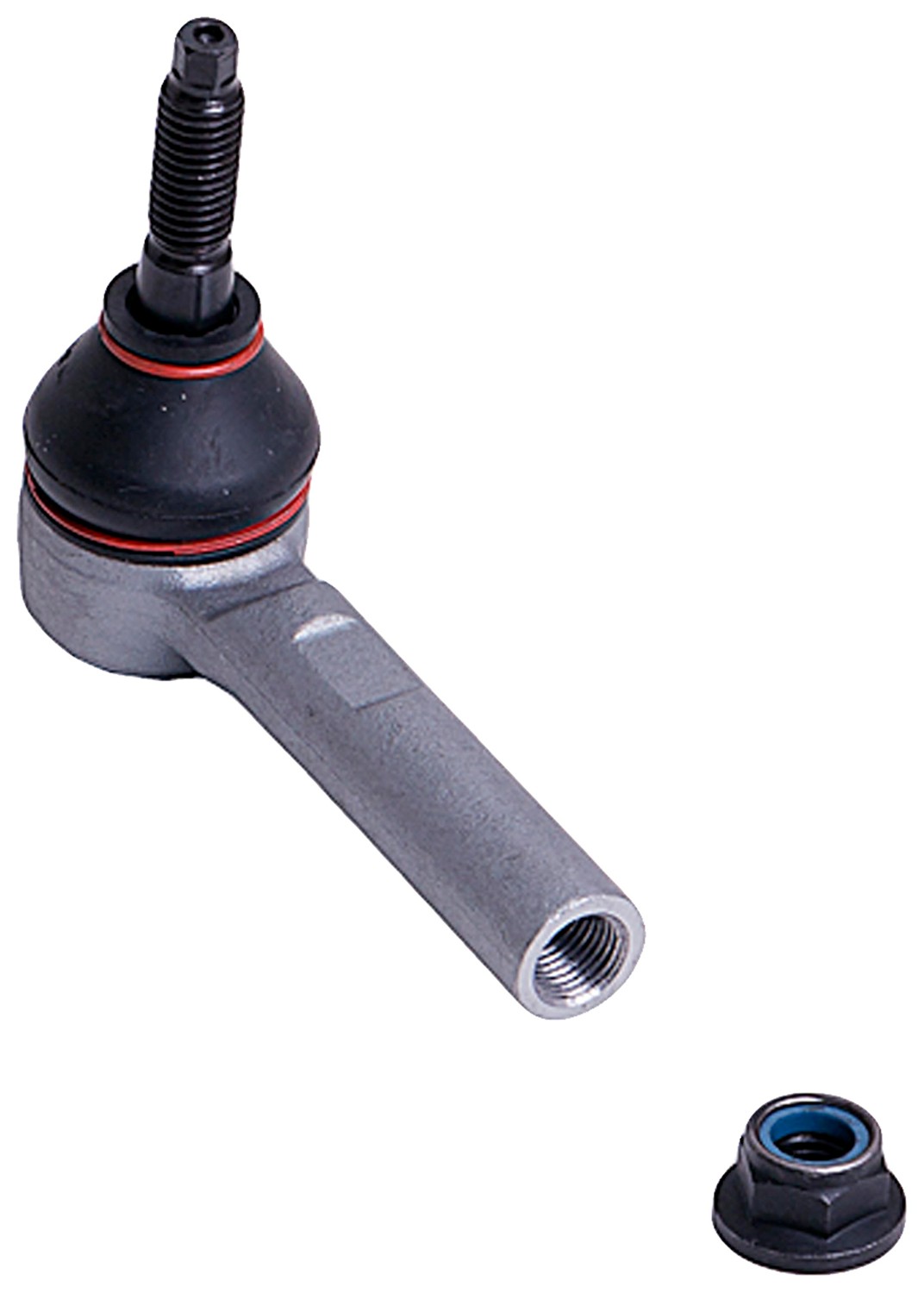

Dorman 544-666 Steering Tie Rod End

Dorman 544-666 Steering Tie Rod End

Features:

Reliably engineered – built to decrease wear rate and ensure overall strength
Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

9091	Steel
Thread Pitch	1.75 mm MM
Outside Diameter	36.57 mm MM
Material	Steel
Package Contents	1 Tie Rod End
End 2 Threads Per Inch	2 mm MM
End 2 Thread Direction	Clockwise (Right)
Package Contents	1 Nut
End 2 Thread Pitch	1.75 mm MM
End 2 Thread Diameter	12 mm MM
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	14 mm MM
End 1 Thread Direction	Counterclockwise (Left)
Greaseable	No
Grade Type	Standard
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Female
Washer Included	No
Bearing Material	Polymer
Boot Colour	Black
Housing Material	Steel
Finish	E-Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Type	Straight
Stud Length	35.5 MM
Height	92.4 MM
881	Threaded
2334	No
2827	No
Width	36.57 MM
Length	110 MM
Color	Black
1786	12.3 MM
Color	Silver
Head Drive Type	Hex
4241	Yes
5235	No
9090	Polychloroprene
Ball Joint Included	Yes
Bolts Included	No
End 1 Attachment Type	Threaded
Center Mount Hole Quantity	1 IN
End 2 Attachment Type	Threaded
End 2 Type	Threaded
Tie Rod End Thread Diameter	14 mm MM
Weight	3 lb LB
662	12.3 MM
Center Mount Stud Quantity	1 IN
36	19.55 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Chevrolet	Captiva Sport	Front Outer	2008 to 2009
Chevrolet	Cobalt	Front Outer	2005 to 2010
Chevrolet	Equinox	Front Outer	2005 to 2009
Chevrolet	HHR	Front Outer	2006 to 2011
Pontiac	G4	Front Outer	2005 to 2006
Pontiac	G5	Front Outer	2007 to 2010
Pontiac	Pursuit	Front Outer	2005 to 2006
Pontiac	Torrent	Front Outer	2006 to 2009
Saturn	Ion	Front Outer	2003 to 2007
Saturn	Vue	Front Outer	2002 to 2009
Suzuki	XL-7	Front Outer	2007 to 2009
