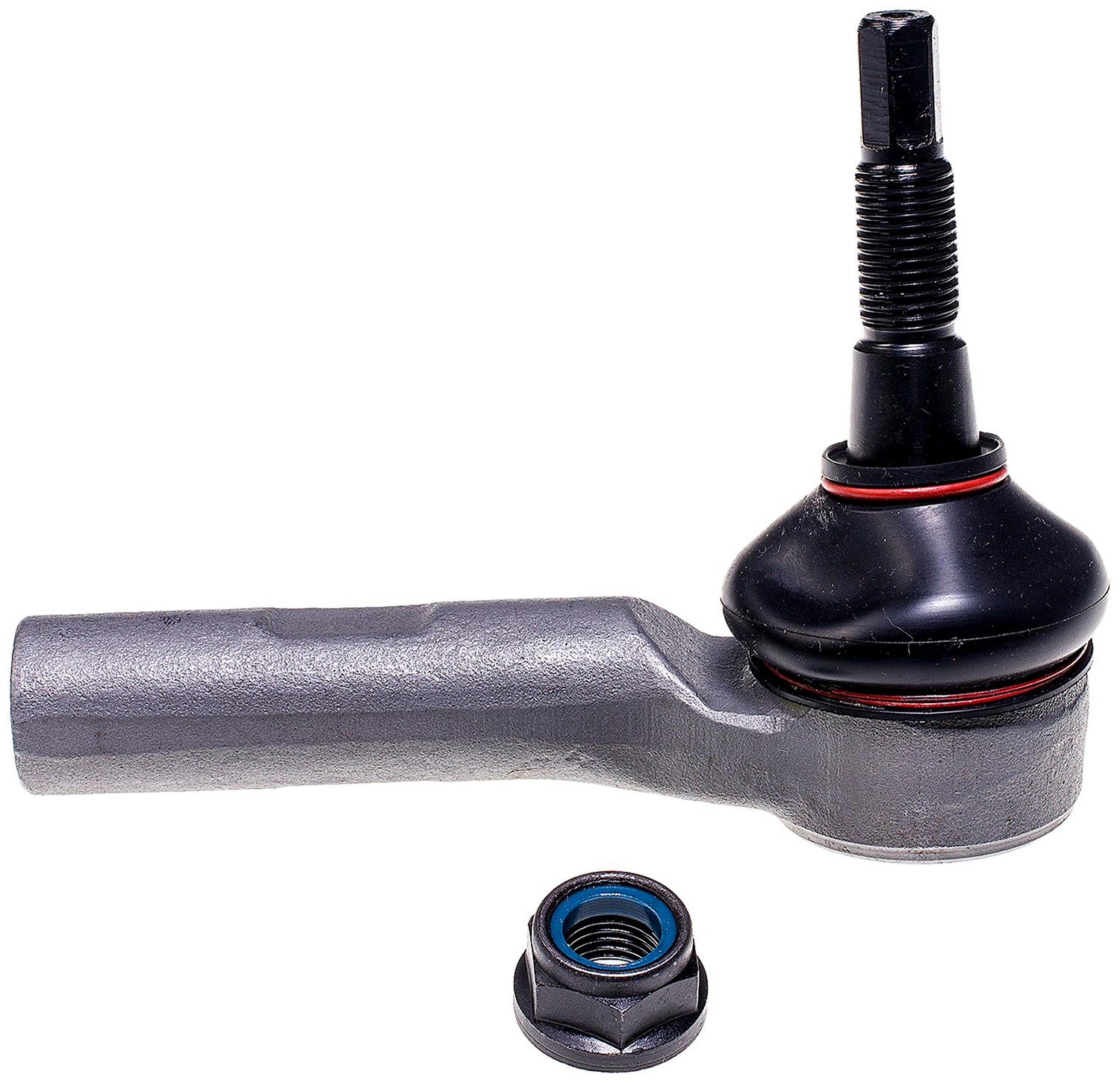

Dorman 544-682 Steering Tie Rod End

Dorman 544-682 Steering Tie Rod End

Features:

Trustworthy quality – backed by team of professional engineers and quality control specialists in the United States
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion
Reliably engineered – built to decrease wear rate and ensure overall strength

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.

Attributes:

9091	Steel
End 2 Attachment Type	Threaded
End 2 Type	Threaded
Stud Length	42.5 MM
End 1 Attachment Type	Threaded
Bolts Included	No
Material	Steel
Height	110.9 MM
Width	39.54 MM
Length	120 MM
Package Contents	1 Tie Rod End
Package Contents	1 Nut
Ball Joint Included	Yes
Center Mount Hole Quantity	1 IN
9090	Polychloroprene
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Greaseable	No
Grade Type	Standard
5235	No
4241	Yes
2827	No
2334	No
Dust Boot Included	Yes
881	Threaded
Type	Straight
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Female
Washer Included	No
Bearing Material	Polymer
Boot Colour	Black
Housing Material	Steel
Finish	E-Coated
Adjustable	Yes
Mounting Hardware Included	Yes
Weight	1.68 lb LB
Tie Rod End Thread Diameter	16 mm MM
Thread Pitch	1.5 mm MM
Outside Diameter	39.54 mm MM
End 2 Threads Per Inch	2 mm MM
End 2 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	16 mm MM
Color	Black
Color	Silver
36	24.02 MM
662	15 MM
1786	22.8 MM
Head Drive Type	Hex
Center Mount Stud Quantity	1 IN
