Dorman 686-433 Front Left Loaded Knuckle

£359.95 Inc VAT

- +

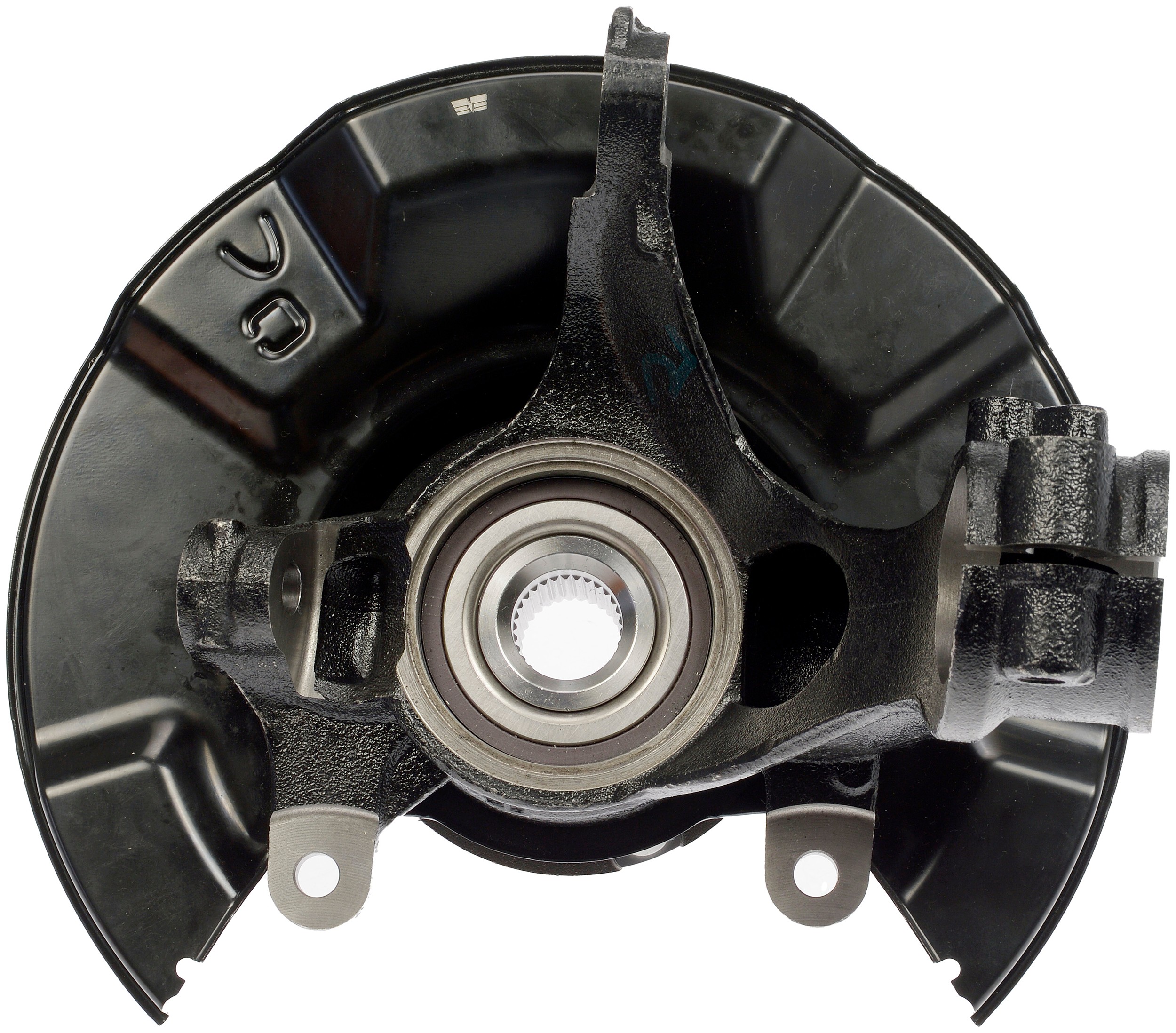

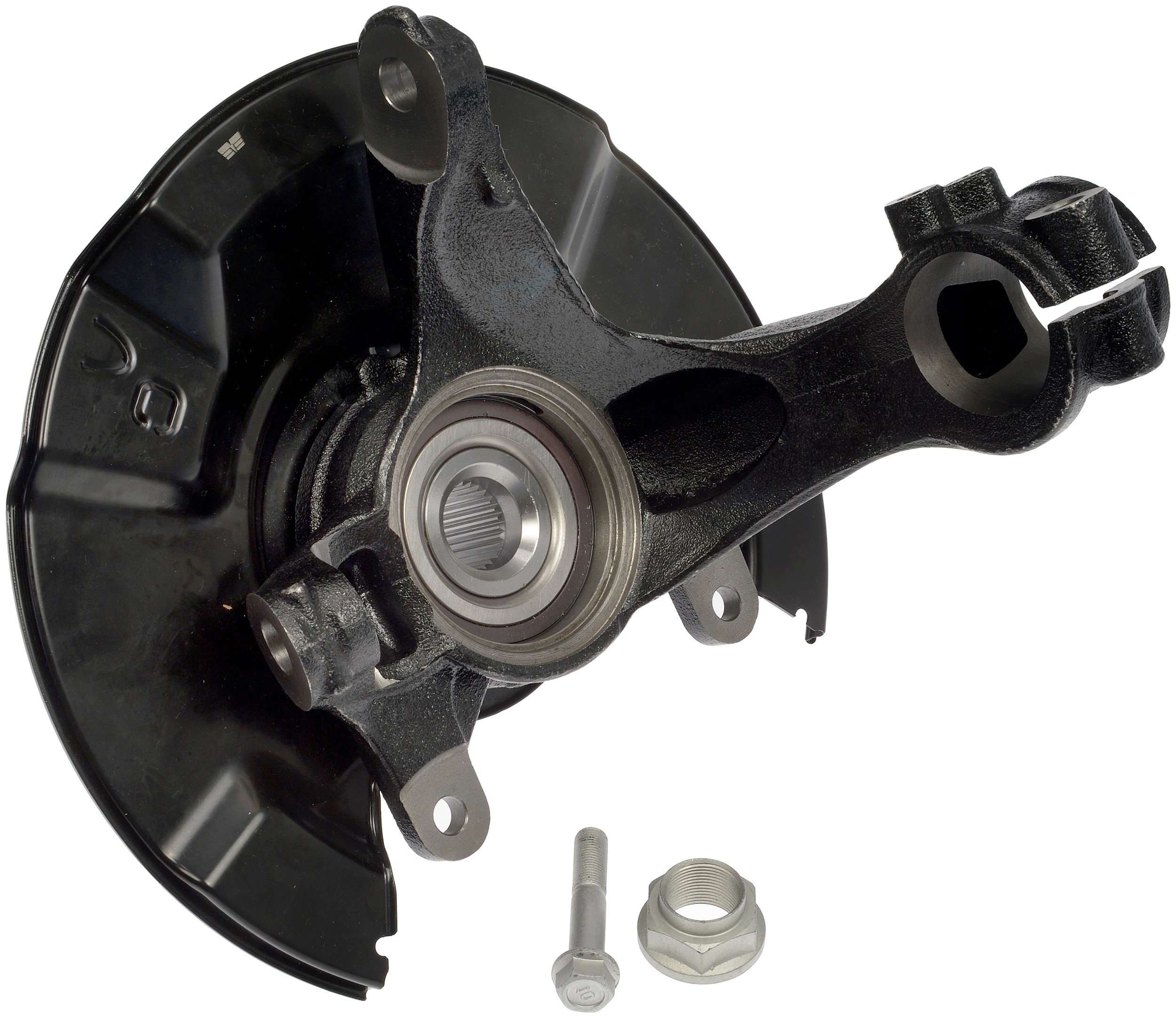

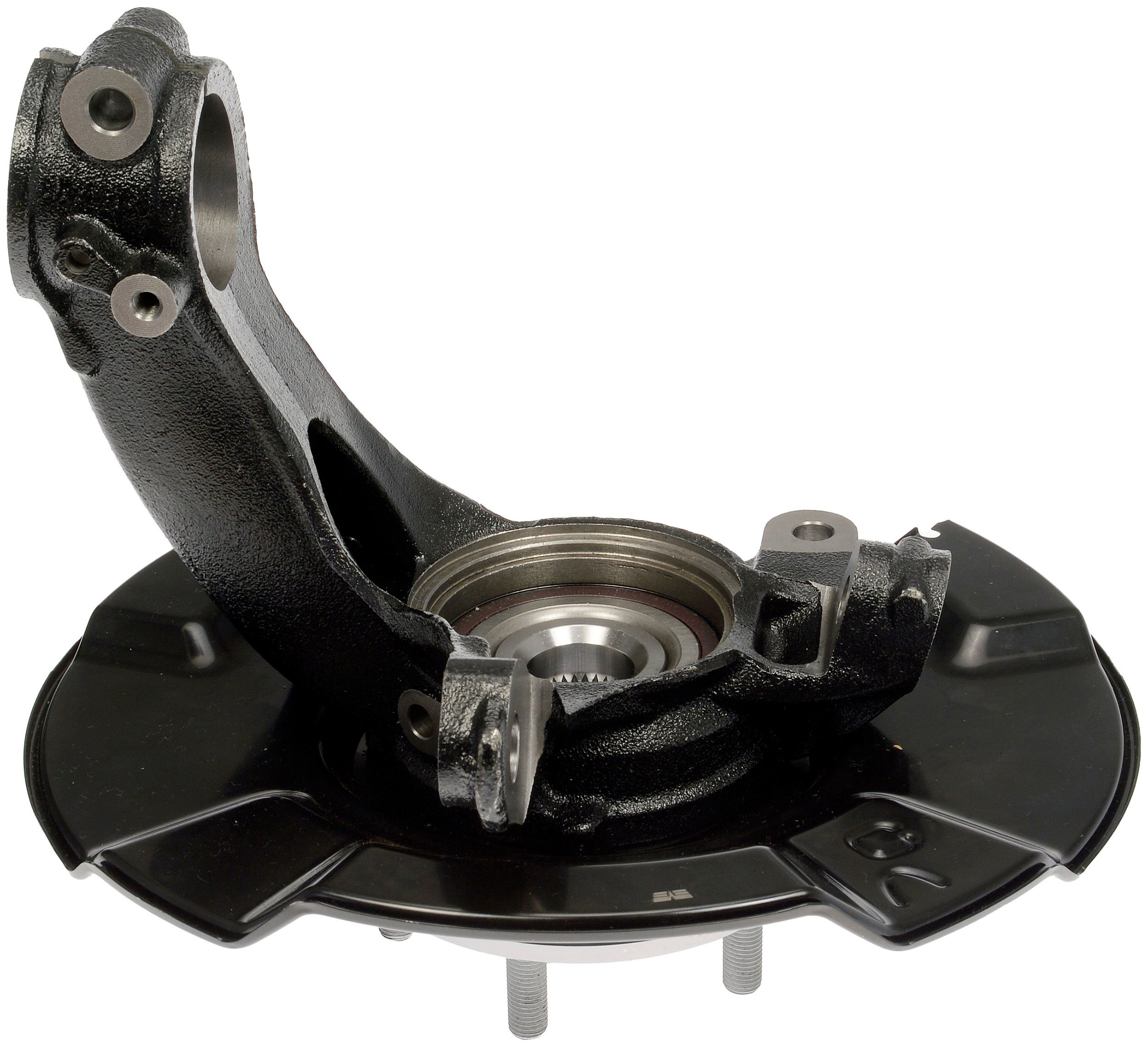

Dorman 686-433 Front Left Loaded Knuckle

Features:

  • Saves hours – eliminates the possibility of extended time spent wrestling with individual corroded components
  • Simpler solution – no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
  • Quality engineering – designed in the United States and backed by a century of automotive aftermarket experience
  • Pre-pressed assembly – this complete loaded knuckle kit includes all necessary components ready for installation right out of the box



Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier



Attributes:

Outside Diameter 106 mm MM
Flange Bolt Hole Quantity 5
Stud Thread Type Fine
Knuckle Pilot Hole Diameter 91 mm MM
Knuckle Bolt Thread Pitch 1.25 mm MM
Knuckle Bolt Hole Size 12.2 mm MM
Bolt Circle Diameter 114.3 mm MM
Flange Bolt Hole Diameter 13.75 mm MM
Hub Pilot Diameter 88.5 mm MM
Inside Diameter 91 mm MM
Knuckle Bolt Circle Diameter 12.2 in IN
Bearing Type Ball
Finish Painted
Drive Type Driven
Instruction Manual Included No
Grade Type Standard Replacement
Spline Quantity 30
Connector Included No
Mounting Hardware Included No
Flange Quantity 1
Pre-Greased No

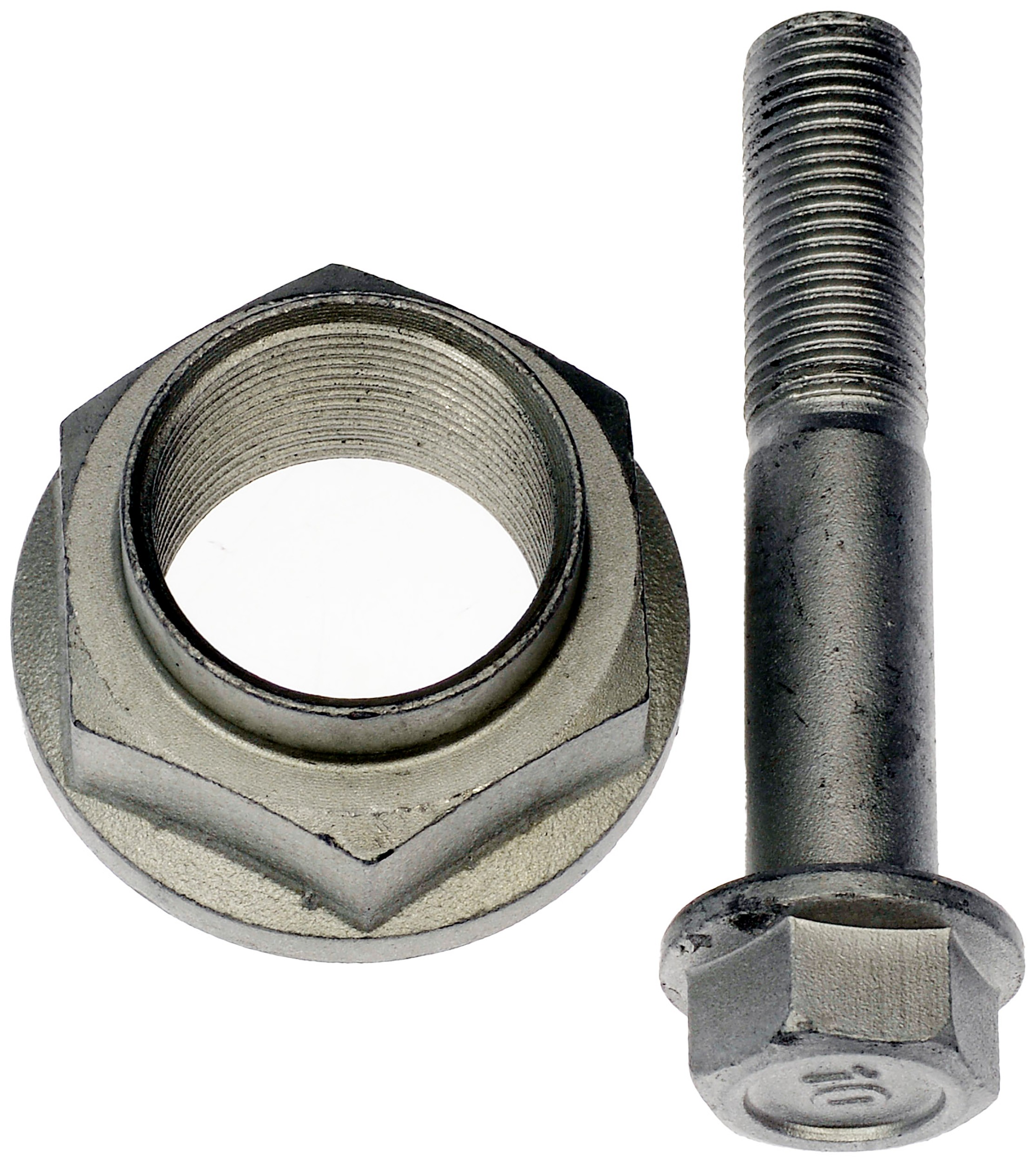

Package Contents 1 Bolt
Package Contents 1 Axle Nut
Anti Lock Braking System Type Sensor
Flange Diameter 139.5 mm
Nut Included Yes
Package Contents 1 Loaded Knuckle
Brake Pilot Diameter 139.5 mm
Bearing Generation Gen 1
Flange Bolts Included Yes
Material Cast Iron
Width 240 mm MM
Axle Nut Included Yes
Wheel Stud Thread Pitch 1.5 mm MM
Wheel Stud Size 1.25 mm MM
Knuckle Bolt Hole Thread Type Fine
Wheel Stud Size 12 mm MM
3076 Yes
Wheel Pilot Diameter 64 mm MM
Wheel Bolt Thread Pitch 1.5 mm MM
3077 No
Wheel Stud Quantity 5
Color Black
Wheel Bolt Thread Pitch 12 mm MM
Wheel Studs Included Yes



Vehicle Applications:

Make Model Position Years Notes
Honda Accord Front Left 2018 to 2022
Weight 9.518 kg
