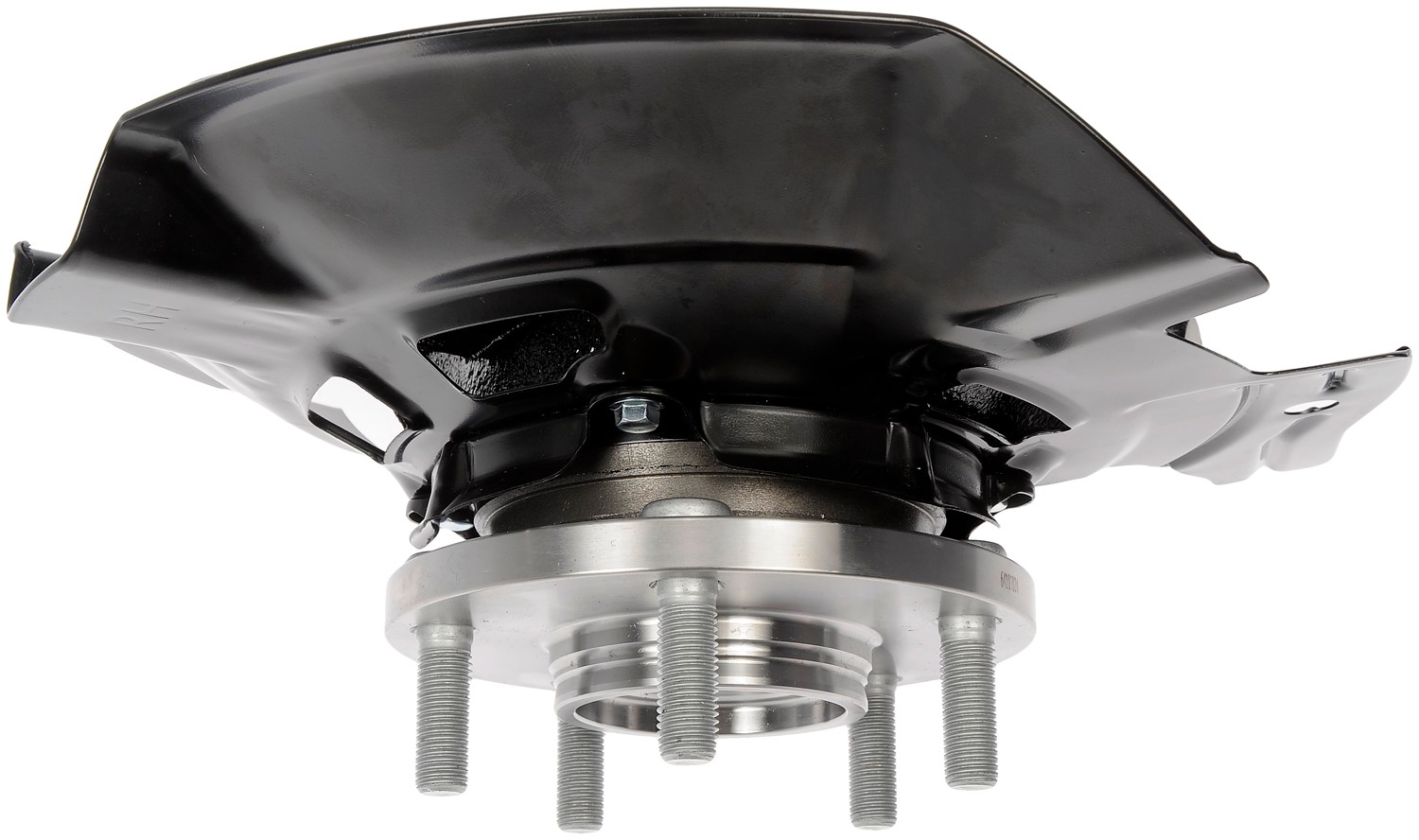

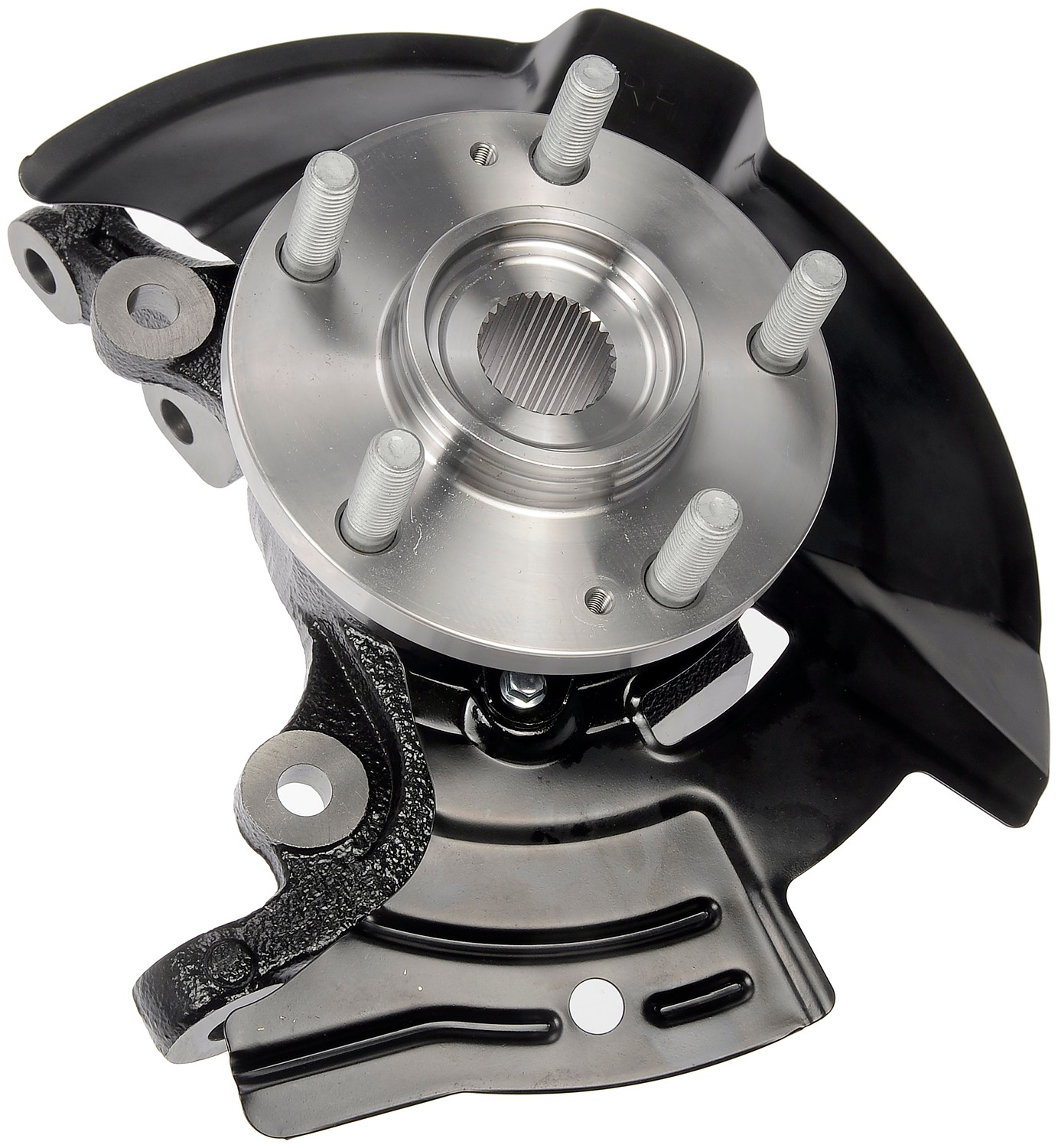

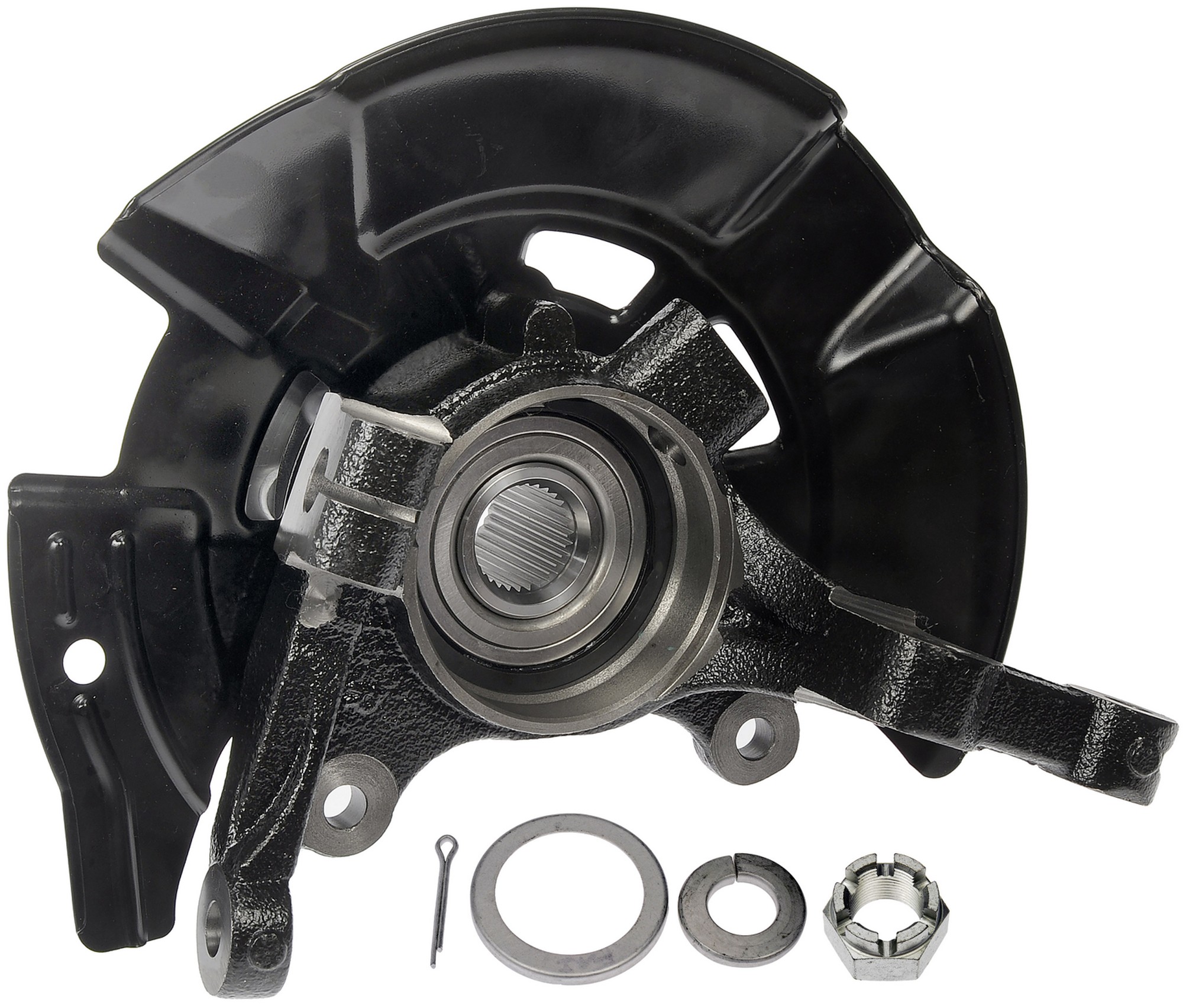

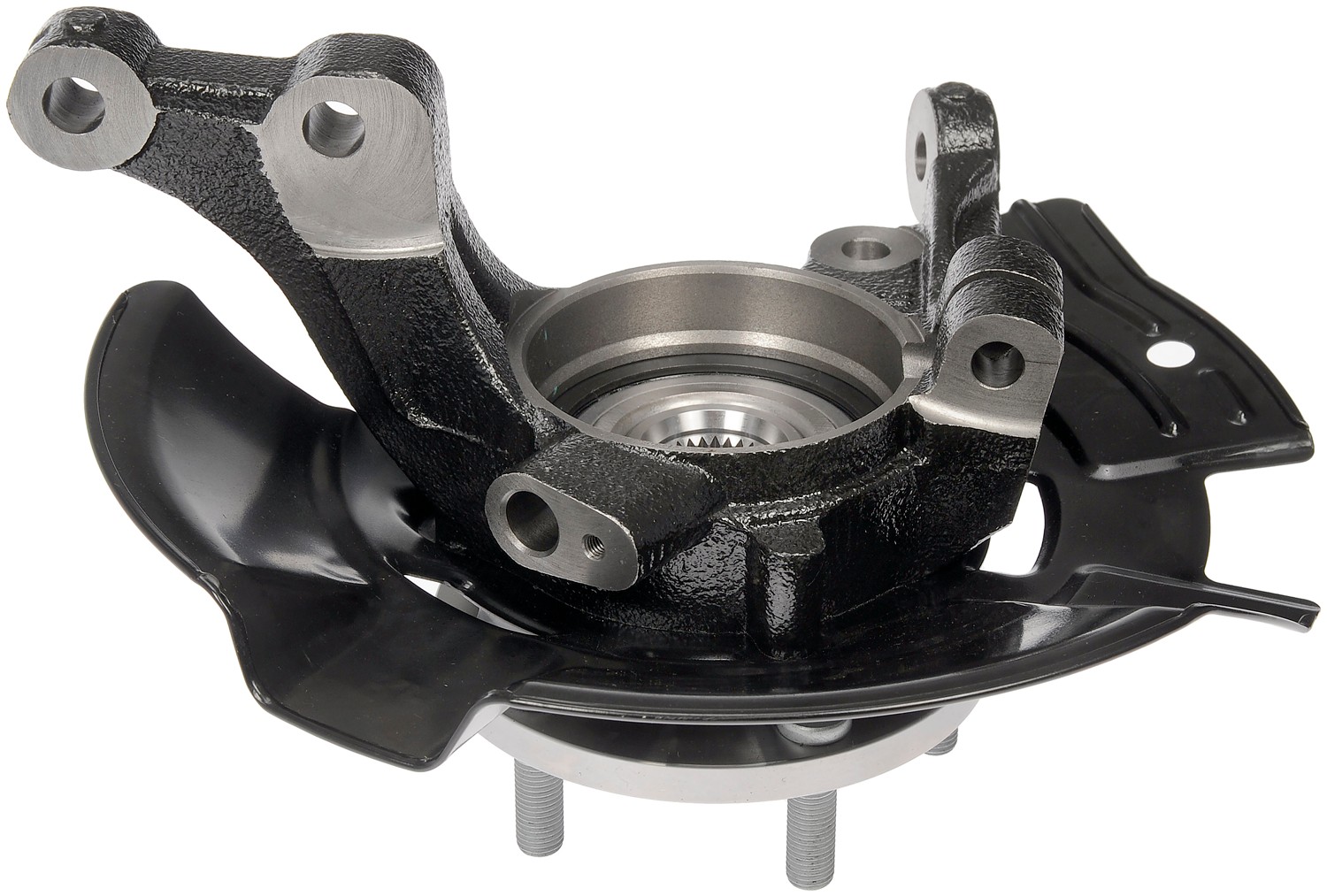

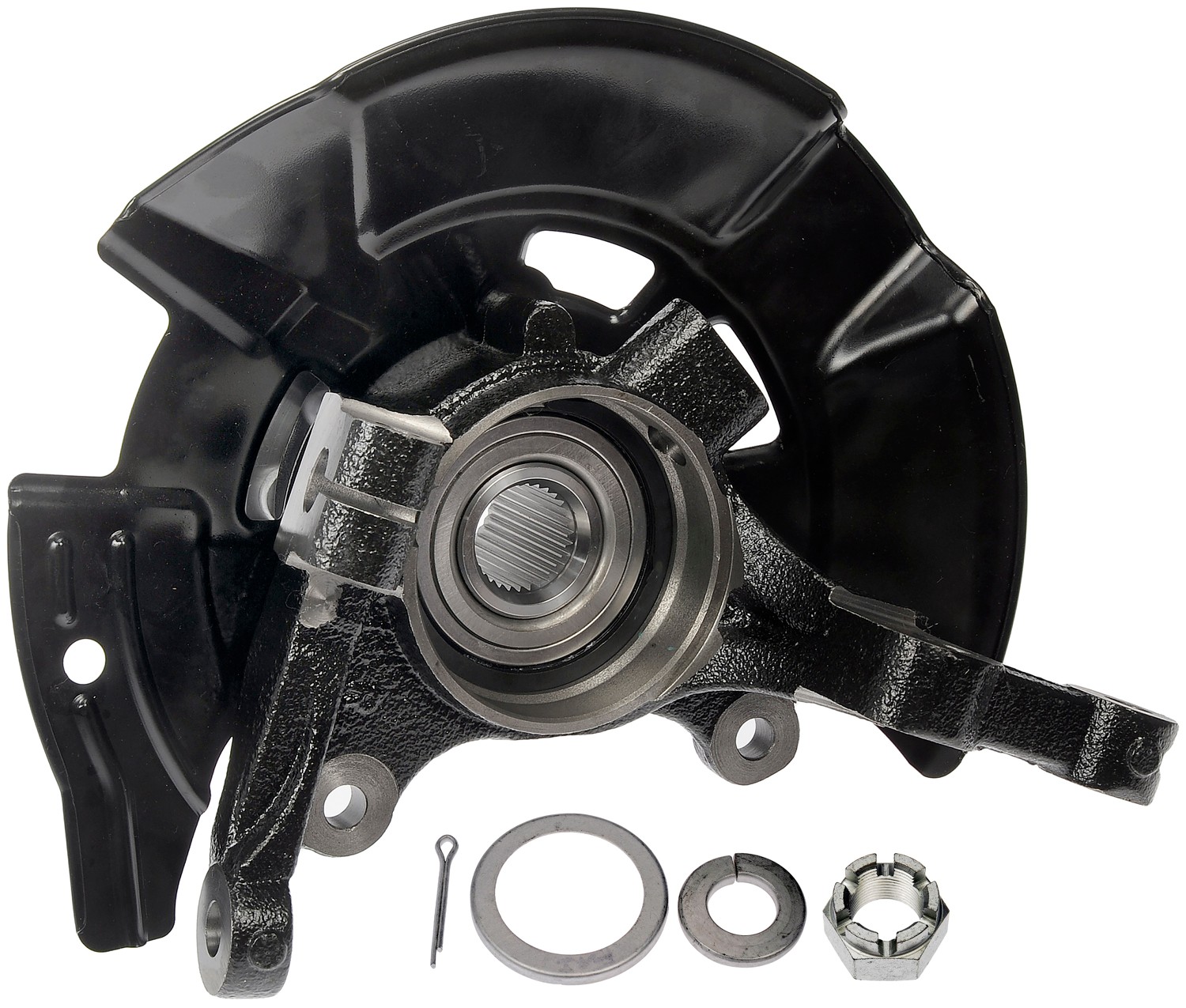

Dorman 698-462 Front Right Loaded Knuckle

Dorman 698-462 Front Right Loaded Knuckle

Features:

Quality engineering – designed in the United States and backed by a century of automotive aftermarket experience
Pre-pressed assembly – this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
Saves hours – eliminates the possibility of extended time spent wrestling with individual corroded components
Simpler solution – no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.

Attributes:

Bearing Generation	Gen 1
Material	Cast Iron
Color	Black
Mounting Hardware Included	No
Finish	Painted
Instruction Manual Included	No
Grade Type	Standard Replacement
Thread Tolerance	-g/H
Stud Thread Type	Fine
Spline Quantity	30
Pre-Greased	No

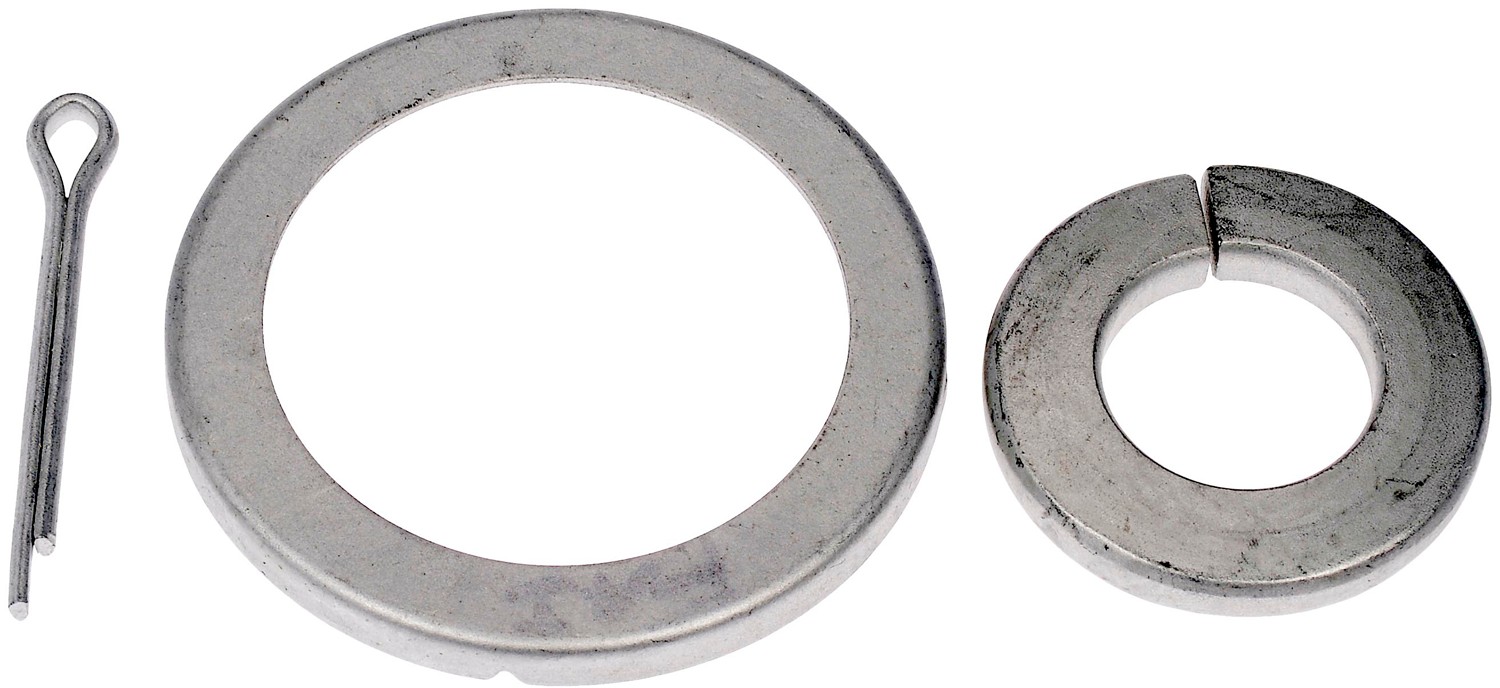

Package Contents	2 Washers
Package Contents	1 Cotter Pin

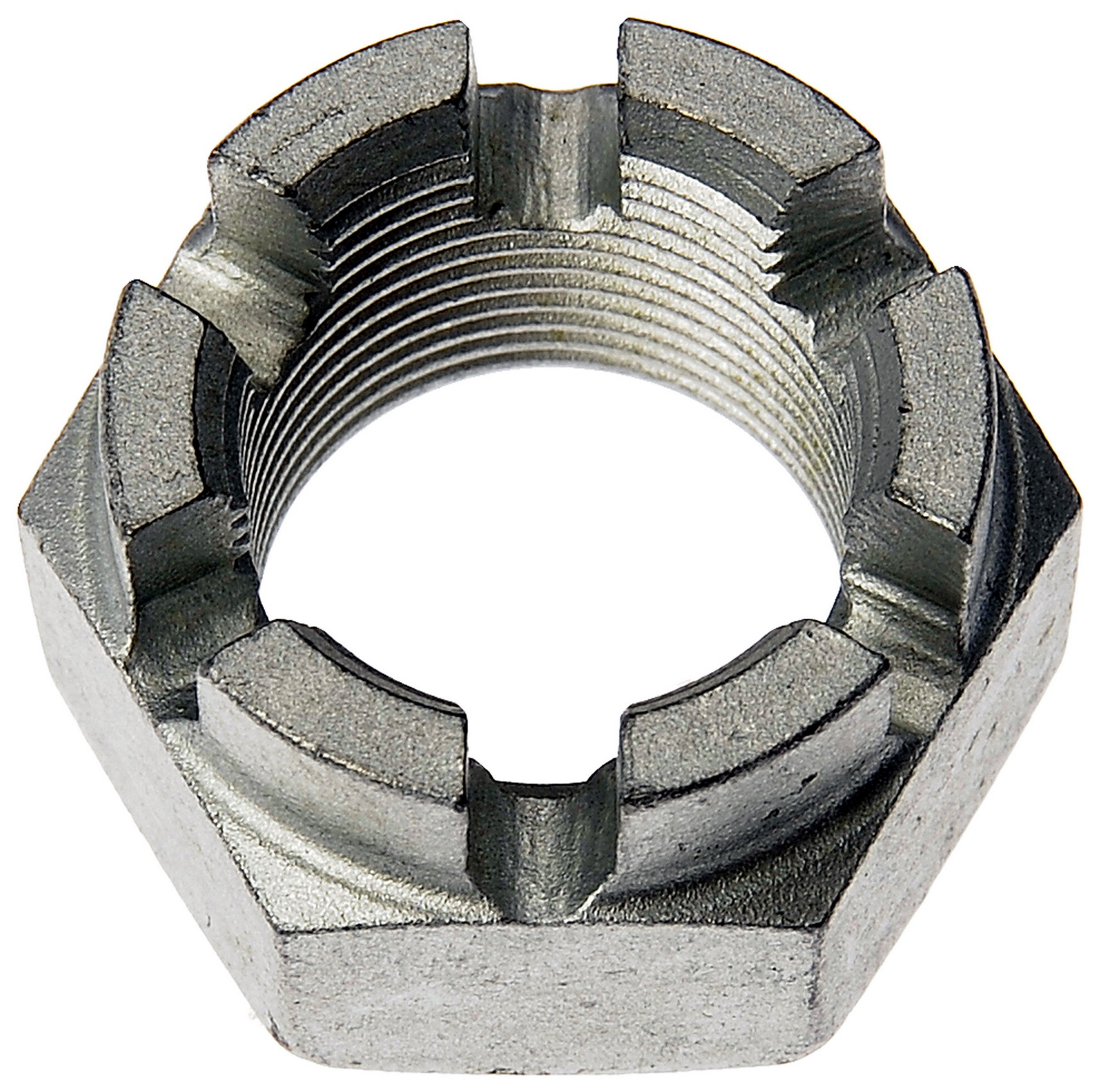

Package Contents	1 Castle Nut
Package Contents	1 Loaded Knuckle
Nut Included	Yes
Knuckle Bolt Hole Thread Type	Fine
Flange Quantity	1
Flange Bolts Included	Yes
Drive Type	Driven
Bearing Type	Ball
Axle Nut Included	Yes
Anti Lock Braking System Type	Sensor
3077	No
3076	Yes
Width	296.25 mm MM
Wheel Stud Thread Pitch	1.5 mm MM
Wheel Bolt Thread Pitch	1.5 mm MM
Outside Diameter	102 mm MM
Knuckle Pilot Hole Diameter	84 mm MM
Knuckle Bolt Thread Pitch	1.5 mm MM
Knuckle Bolt Hole Size	12.5 mm MM
Knuckle Bolt Circle Diameter	114.3 mm MM
Inside Diameter	75 mm MM
Hub Pilot Diameter	84 mm MM
Flange Bolt Hole Diameter	114.3 mm MM
