Dorman 698-475 Front Left Loaded Knuckle

Dorman 698-475 Front Left Loaded Knuckle

Features:

Quality engineering – designed in the United States and backed by a century of automotive aftermarket experience

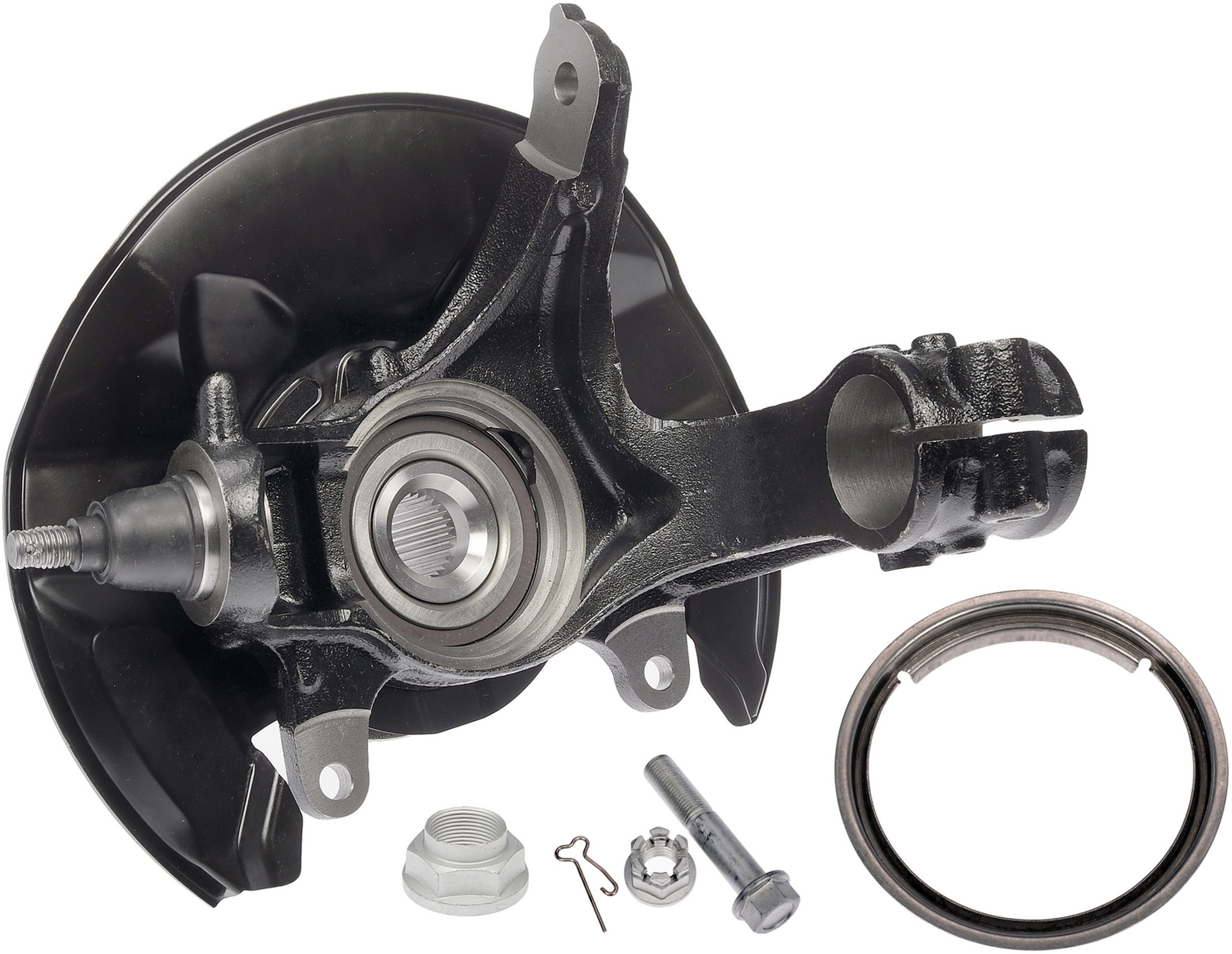

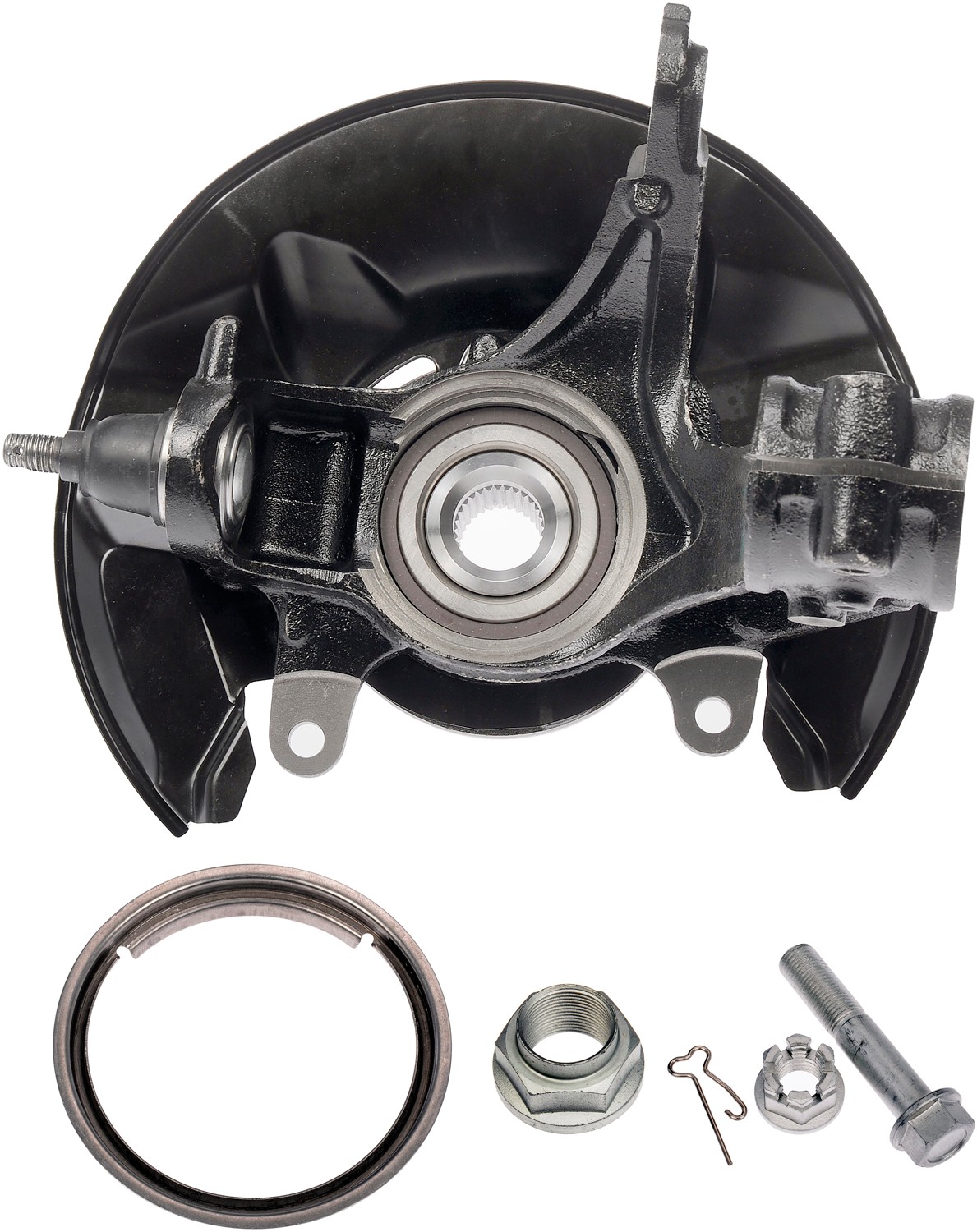

Pre-pressed assembly – this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
Saves hours – eliminates the possibility of extended time spent wrestling with individual corroded components
Simpler solution – no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.

Attributes:

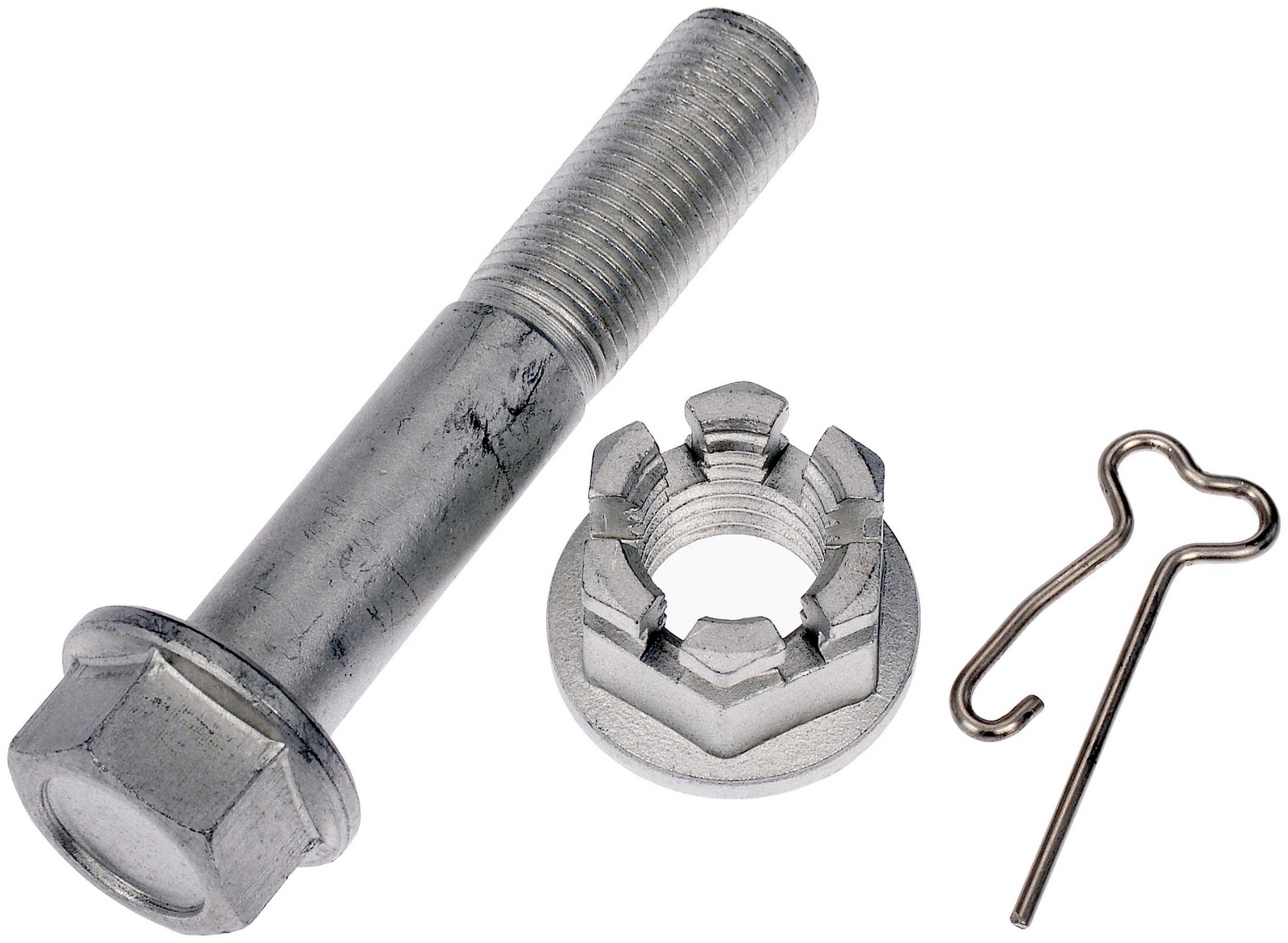

Package Contents	1 Bolt
Grade Type	Standard Replacement
Instruction Manual Included	No
Finish	Painted
Drive Type	Driven
Bearing Type	Ball
Bearing Generation	Gen 1
Wheel Studs Included	Yes
Thread Tolerance	-g/H
Mounting Hardware Included	No
Color	Black
Material	Cast Iron
Axle Nut Included	Yes
Stud Thread Type	Fine
Spline Quantity	30
Pre-Greased	No
Bolt Circle Diameter	114.3 mm MM
Brake Pilot Diameter	139.3 mm MM
Flange Bolt Hole Diameter	114.3 mm MM
Flange Diameter	139.3 mm MM
Inside Diameter	31.5 mm MM
Knuckle Bolt Circle Diameter	114.3 mm MM
Knuckle Bolt Hole Size	12.6 mm MM
Knuckle Bolt Thread Pitch	1.5 mm MM
Knuckle Pilot Hole Diameter	83.6 mm MM
3077	No
3076	Yes
Outside Diameter	106 mm MM
Wheel Bolt Thread Pitch	1.5 mm MM
Wheel Stud Size	M12-1.5 MM
Wheel Stud Thread Pitch	1.5 mm MM
Width	278.6 mm MM

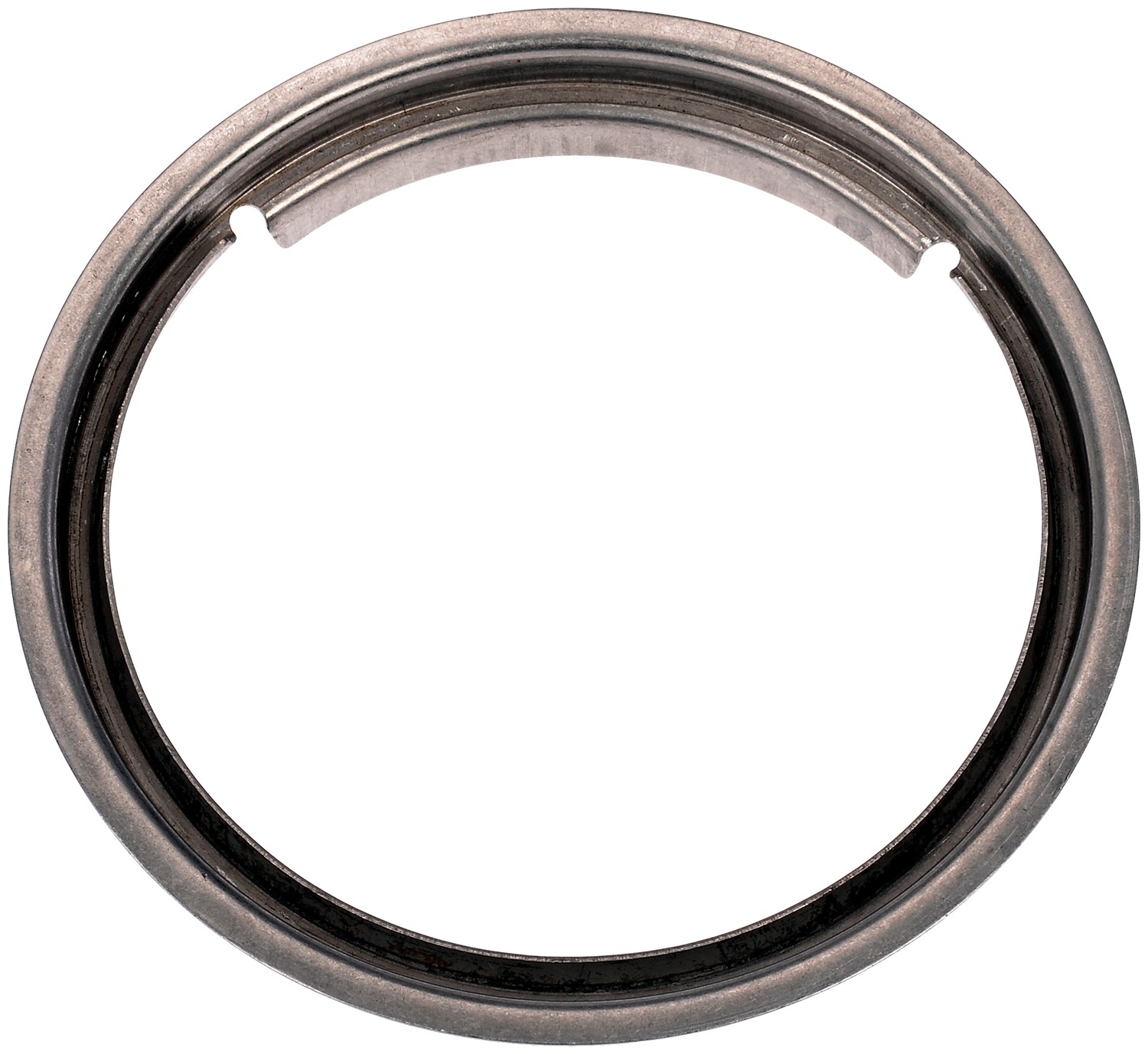

Package Contents	1 Dust Deflector
Nut Included	Yes
Package Contents	1 Cotter Pin

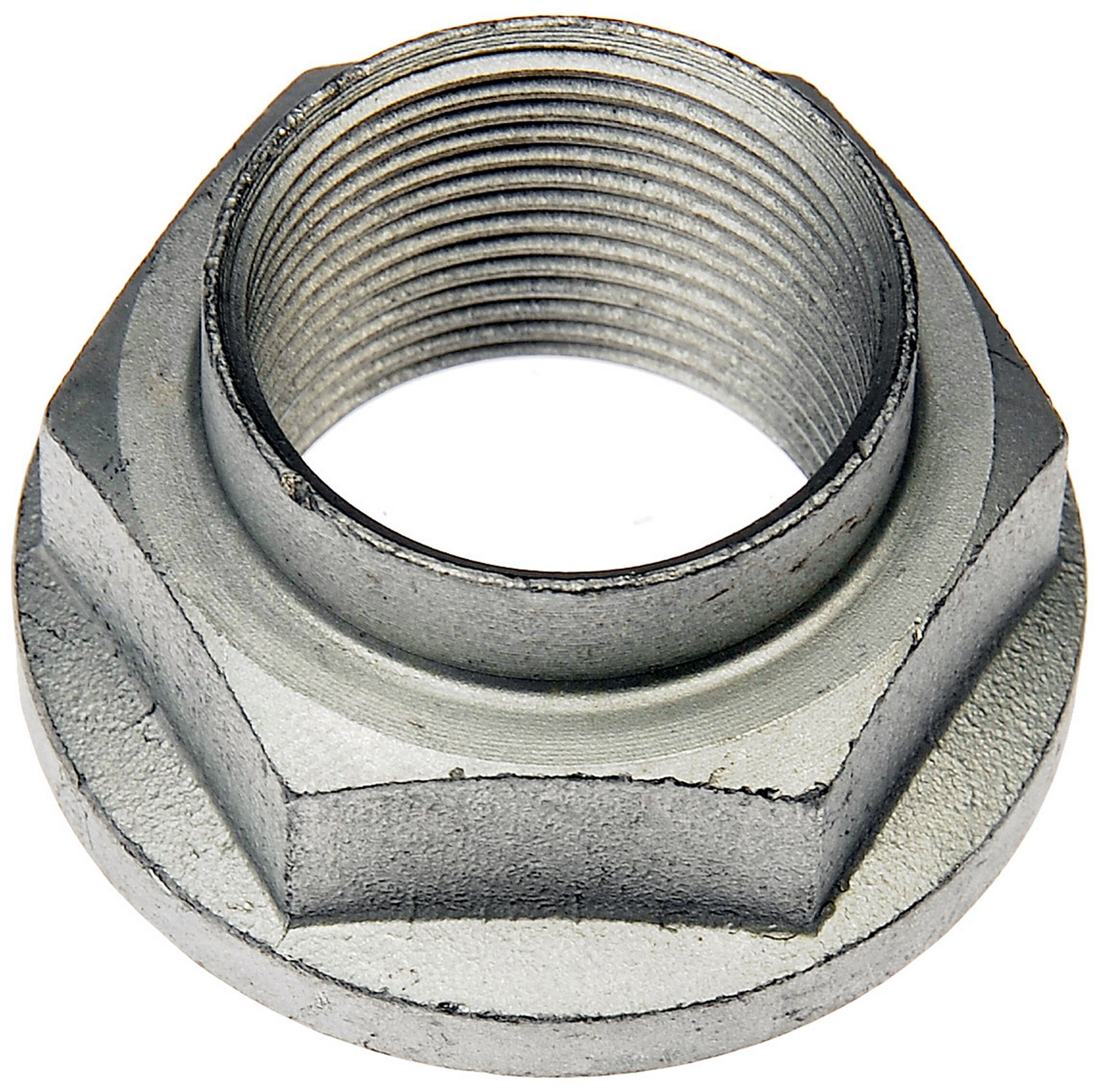

Package Contents	1 Axle Nut, 1 Castle Nut

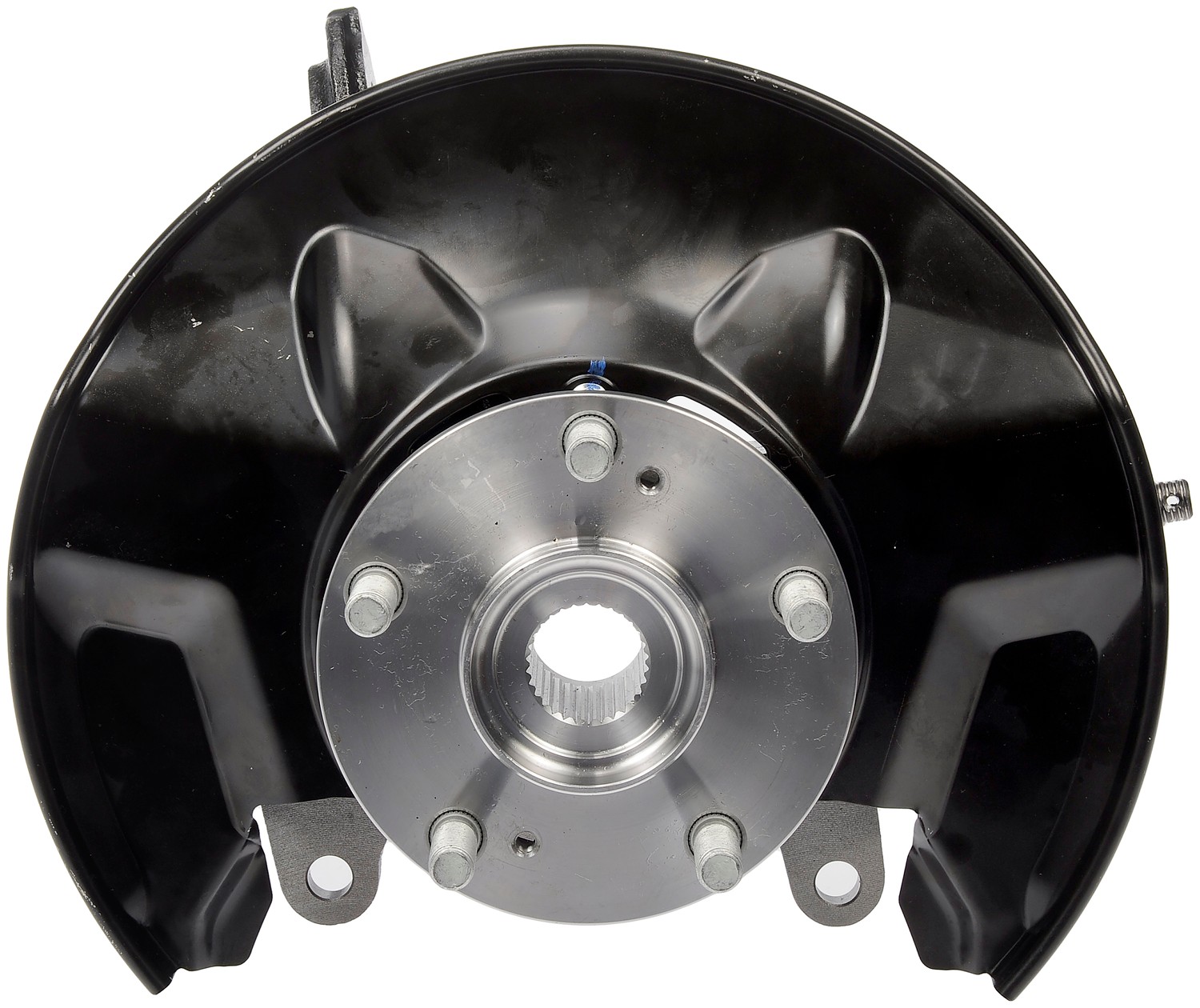

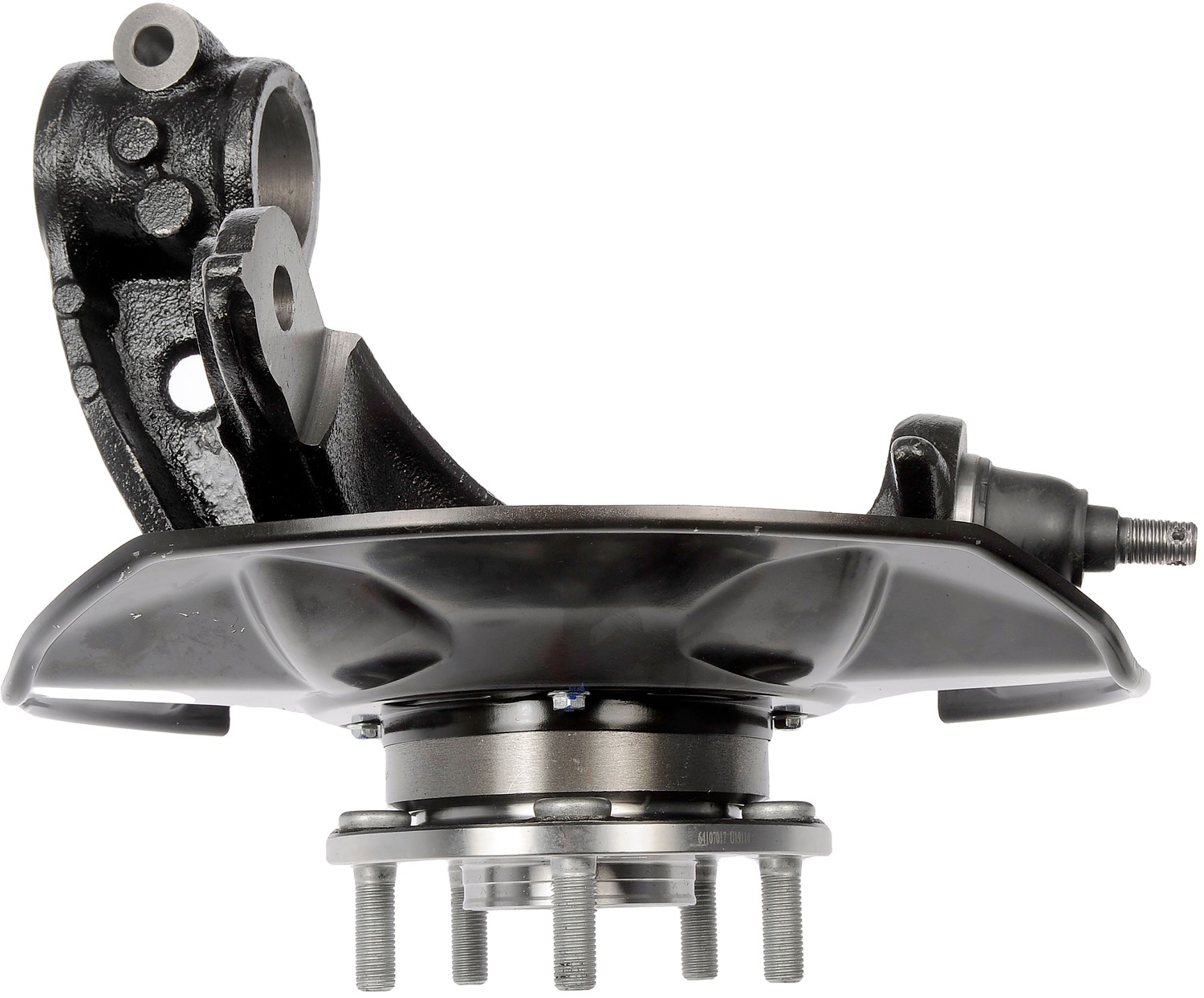

Package Contents	1 Loaded Knuckle
Knuckle Bolt Hole Thread Type	Fine
Flange Bolt Hole Quantity	5
Flange Bolts Included	Yes
Flange Quantity	1
