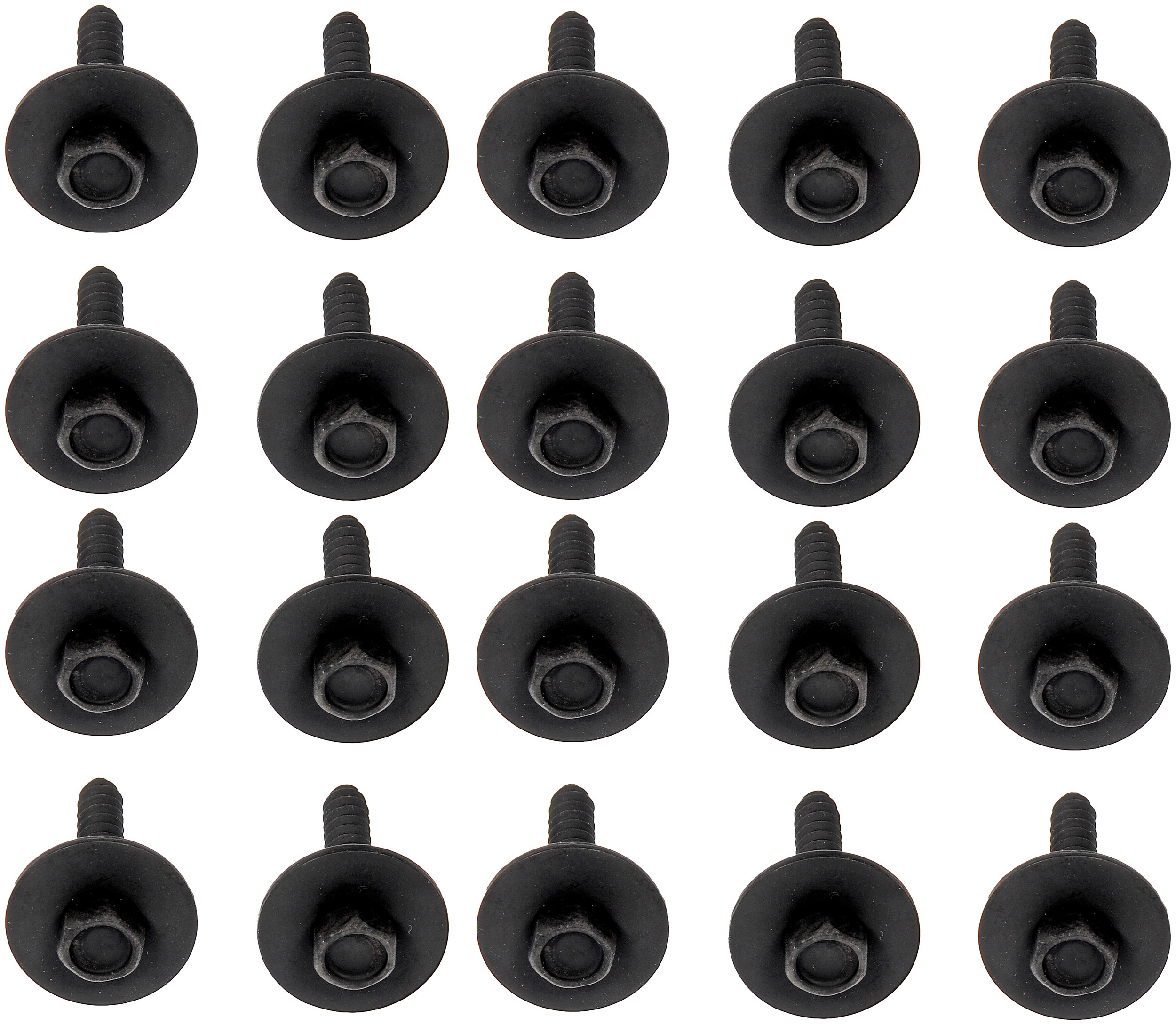

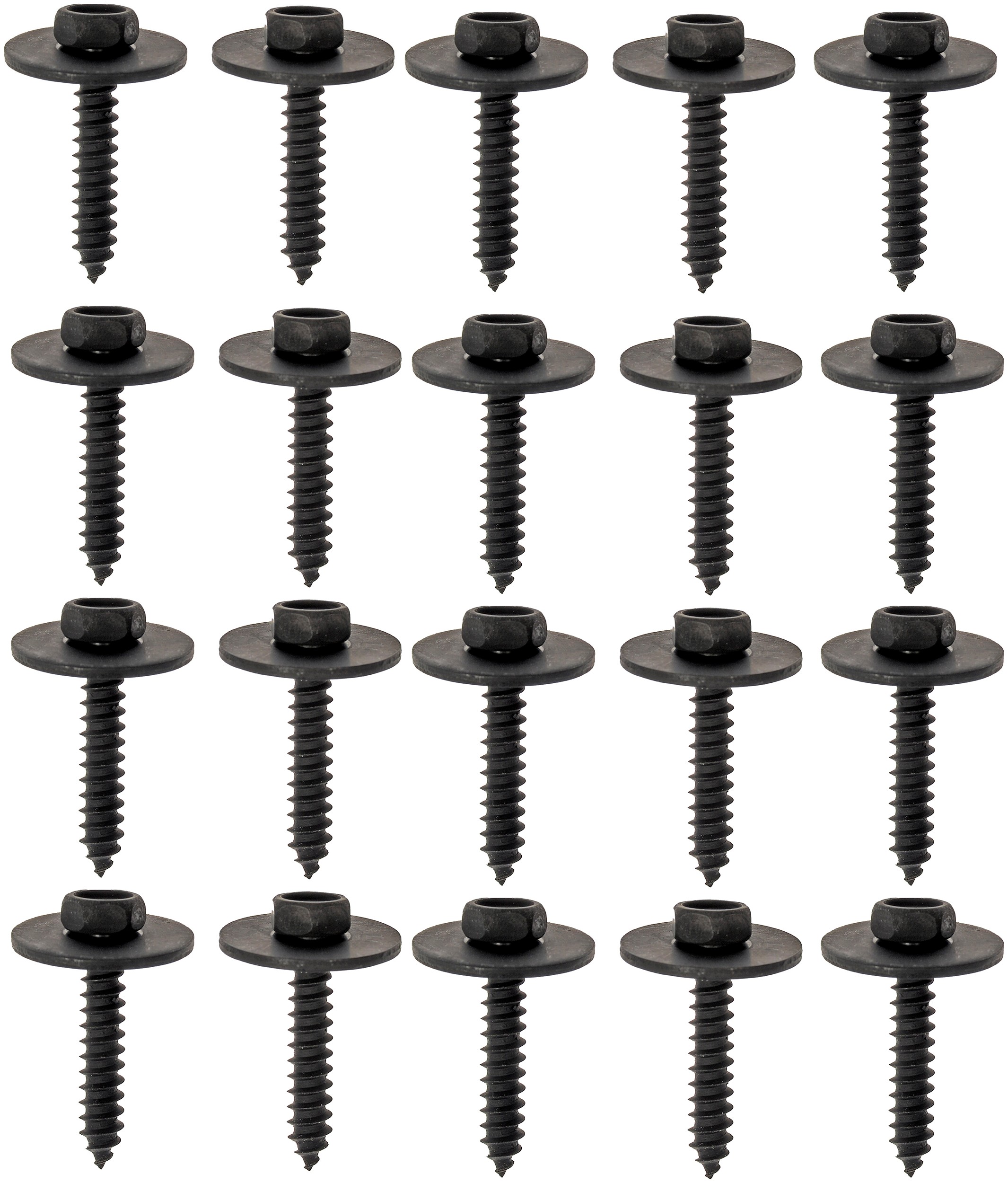

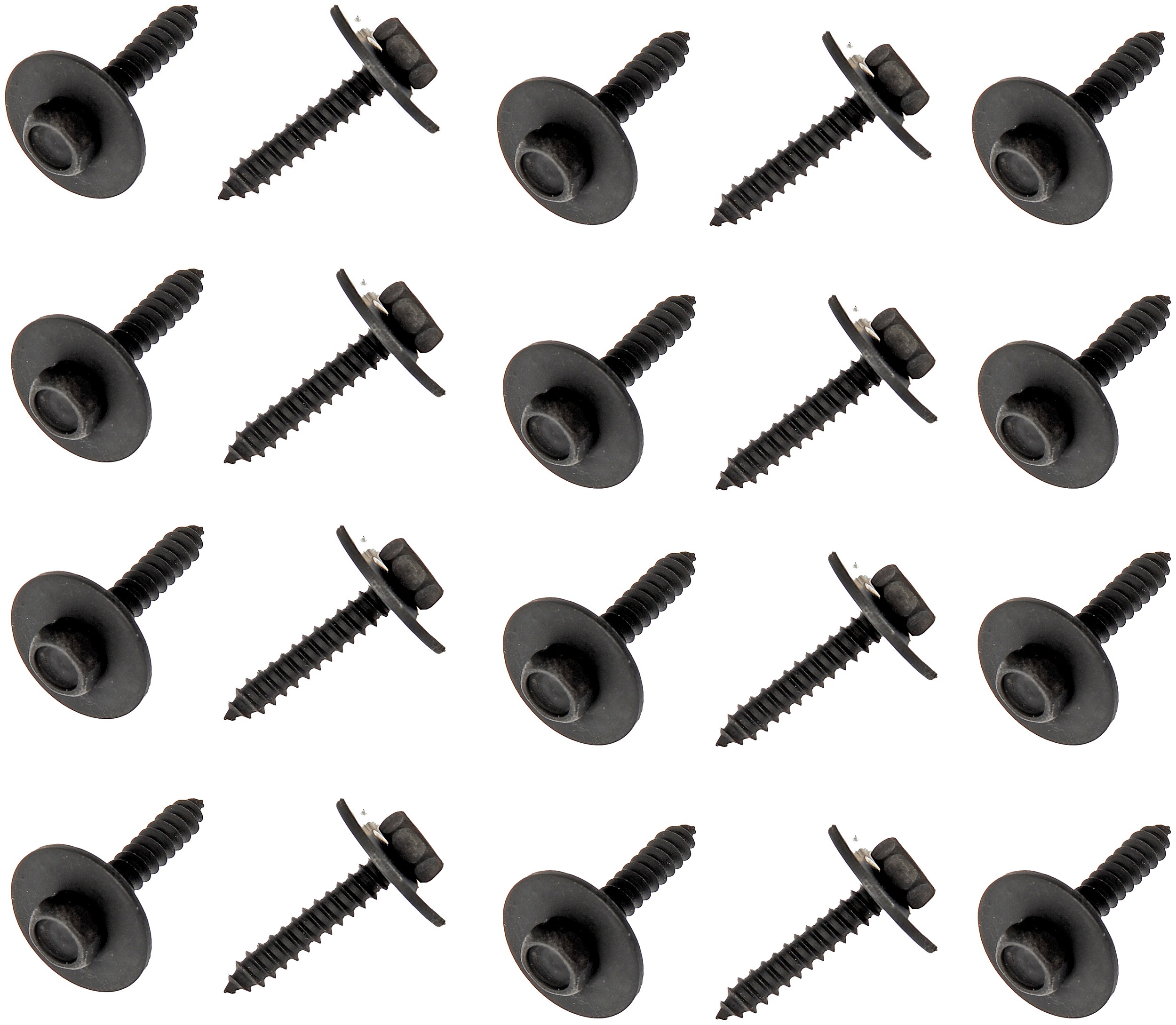

Dorman 700-115 Splash Shield Retainer Hardware – Self-Tapping Hex Head – M4.8 X 25MM
Features:
- Various uses – can fasten specific areas and components of a vehicle like factory equipment or be used elsewhere that calls for a similar fastener
- Durable construction – these screws are made from quality components to ensure reliable performance and a long service life
- Trustworthy quality – backed by team of product experts in the United States and more than a century of automotive experience
- Constructed of high-quality materials for long-lasting durability
- Many different styles are available, including threaded and wide panel
- Packaged in a variety of piece counts for use with both small and large projects
Dorman offers a comprehensive selection of screws for almost any automotive fastening job. A large selection of diameters, lengths and quantities are available in different assortments and/or kits. A multitude of thread varieties are available. Check the product details to make sure you have the right size and quantity for what you need.
Attributes:
| Size Number | #10 IN |
| Head Drive Type | Hex |
| Material | Steel |
| Thread Direction | Clockwise (Right) |
| Color | Black |
| Type | Sheet Metal |
| Finish | Black Phosphate |
| Thread Type | Medium |
| SAE or Metric | Metric |
| Heat Hardened | No |
| Grade Type | Standard |
| Thread Size | M4.8-1.59 |
| ACQ Rated | No |
| 964 | 4.6 MM |
| 1786 | 1 MM |
| Fastener Length (In) | 1.26 in IN |
| Head Tool Size | 8 mm MM |
| Overall Length | 35 mm MM |
| Thread Diameter | 4.8 mm MM |
| Thread Pitch | 1.59 mm MM |
| 1585 | Hex Washer |
| 2821 | No |
| 2849 | Yes |
| 2850 | Yes |
| 9175 | No |
| 9181 | Standard |
| Callout Size | M4.8-1.59 |
| Diameter | 4.8 mm |
| Drive Style | Hex |
| Fastener Length | 33 mm |
| Fastener Plating | Black Phosphate |
| Package Contents | 20 Screws |
| Screw Name | Tapping Hex Head Screw |
| Screw Style | Hex Head Self Tapping |
| Screw Type | Self Tapping Screw |
| Washer Attached | Yes |
| Thread Length | 32 MM |
| Head Diameter | 19 MM |
Vehicle Applications:
| Make | Model | Position | Years | Notes |
| Chrysler | Grand Caravan | Front | 2021 to 2021 | |
| Chrysler | Grand Caravan | Lower Front | 2021 to 2021 | |
| Chrysler | Grand Caravan | Rear | 2021 to 2021 | |
| Chrysler | Pacifica | Front | 2017 to 2021 | |
| Chrysler | Pacifica | Lower Front | 2017 to 2021 | |
| Chrysler | Pacifica | Rear | 2017 to 2021 | |
| Chrysler | Voyager | Front | 2020 to 2021 | |
| Chrysler | Voyager | Lower Front | 2020 to 2021 | |
| Chrysler | Voyager | Rear | 2020 to 2021 | |
| Dodge | Dart | Front Lower | 2013 to 2016 | |
| Dodge | Dart | N/A | 2013 to 2016 | |
| Dodge | Dart | Rear | 2013 to 2016 | |
| Jeep | Compass | Front | 2018 to 2018 | |
| Jeep | Wrangler | Front | 2018 to 2019 | |
| Ram | 1500 | Front | 2012 to 2021 | |
| Ram | 1500 | Rear | 2012 to 2017 | |
| Ram | 2500 | Front | 2012 to 2017 | |
| Ram | 3500 | Front | 2013 to 2017 |
