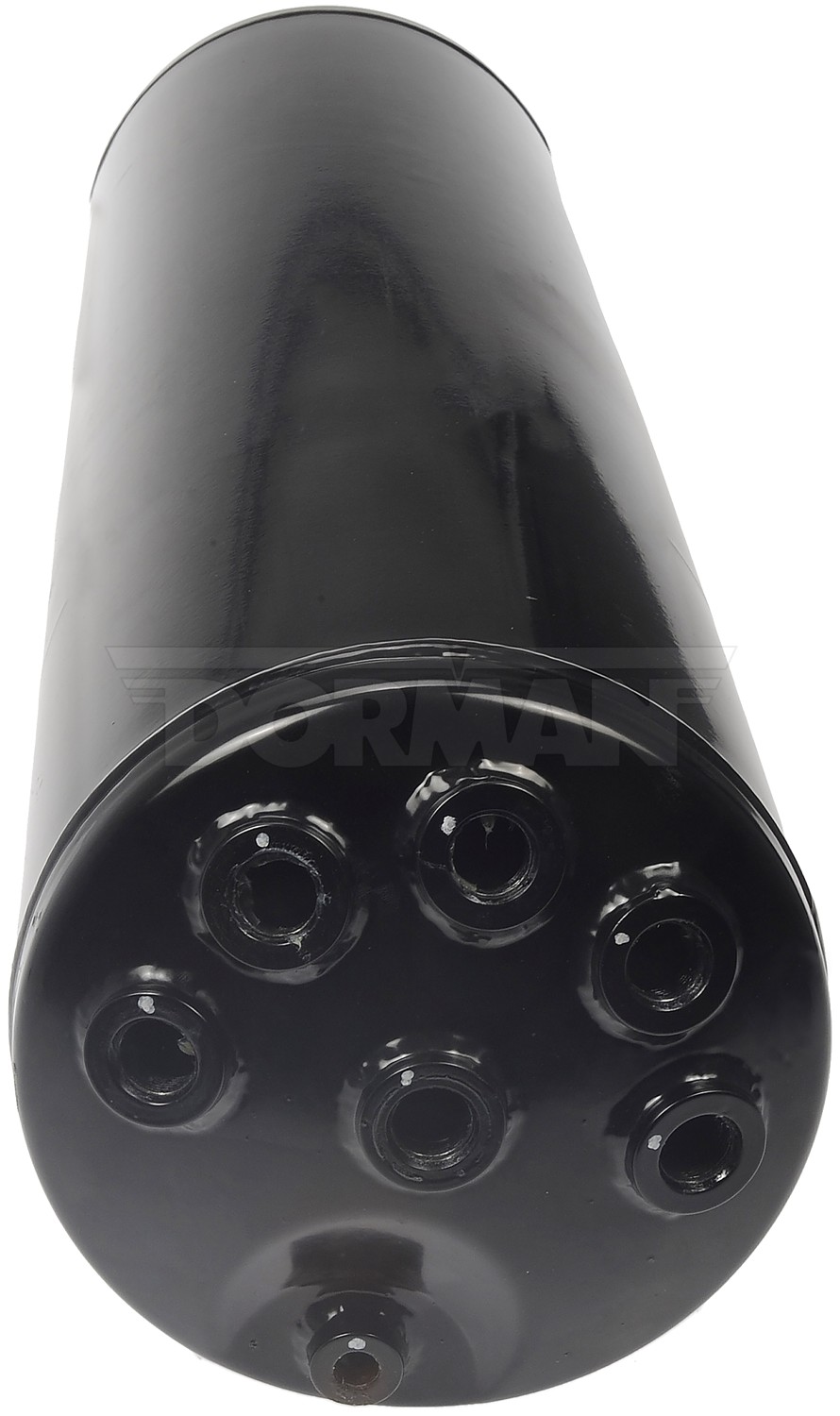

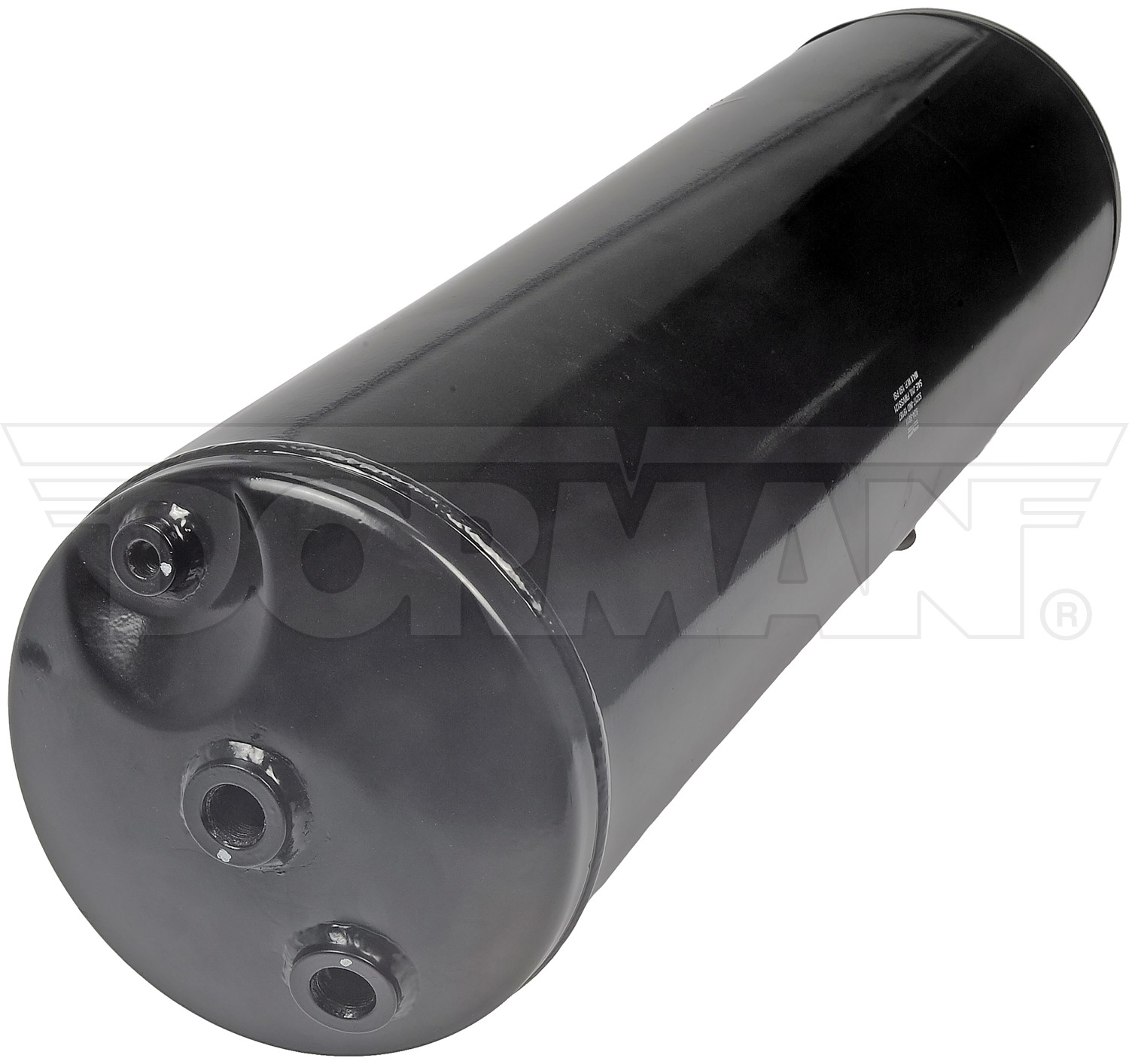

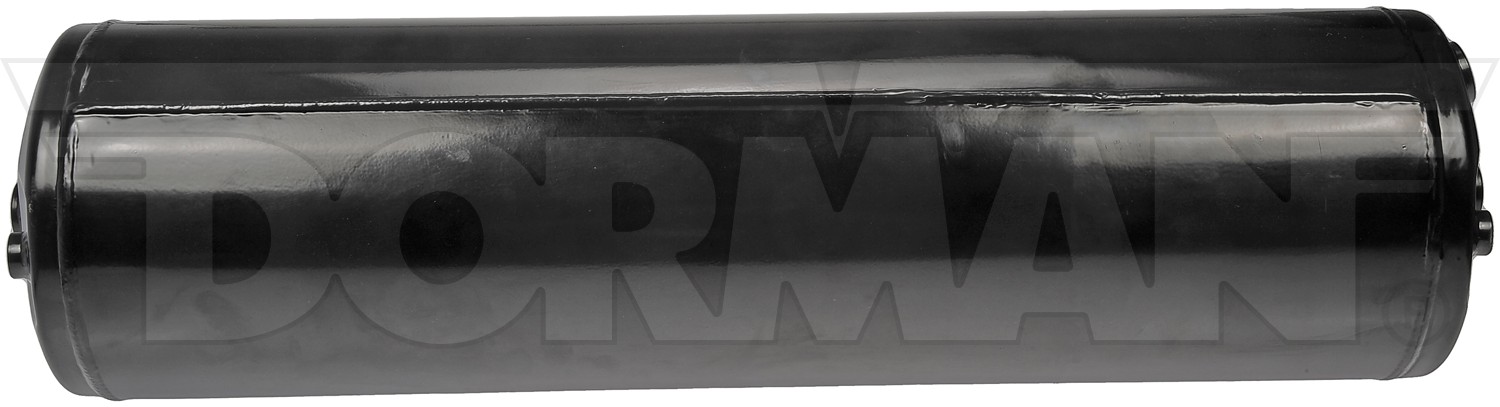

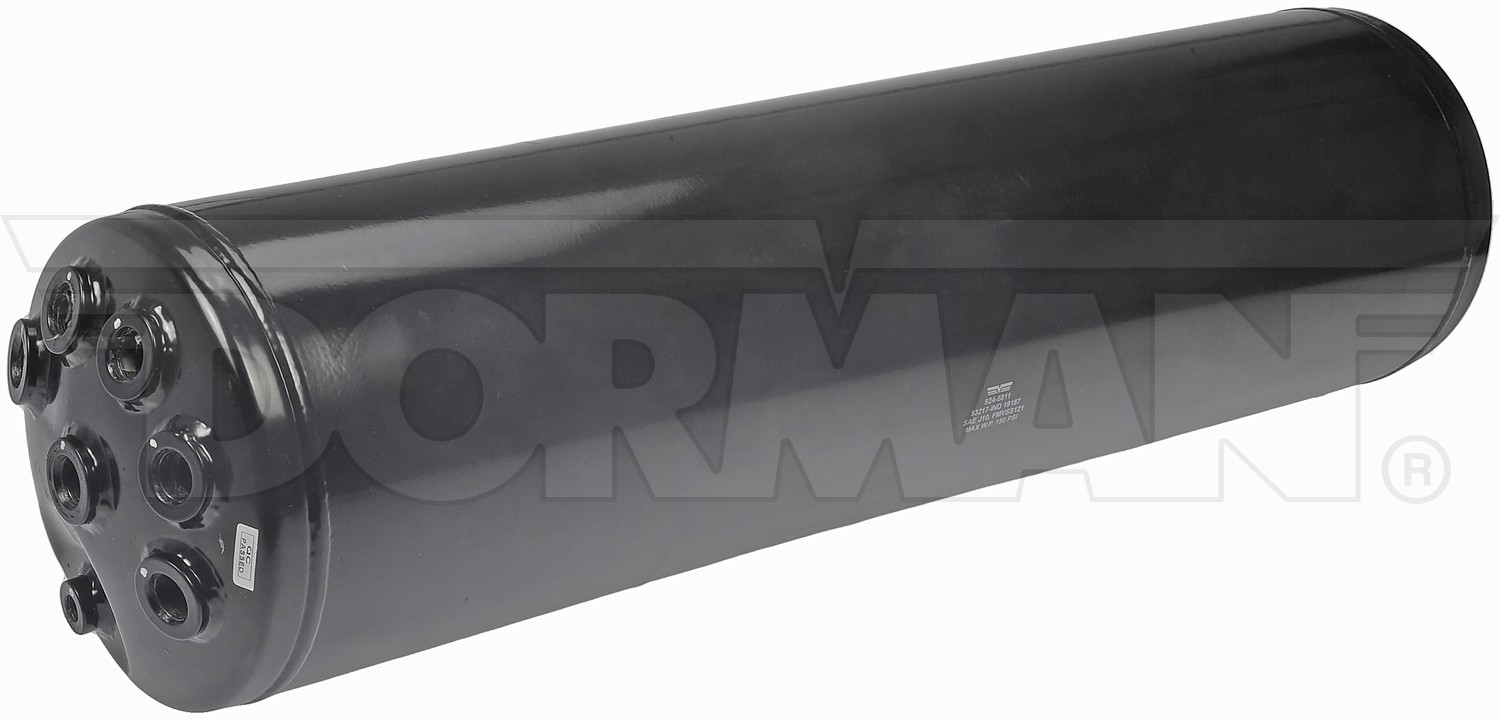

Dorman 924-5811 Air Brake Reservoir

Dorman 924-5811 Air Brake Reservoir

Features:

Quality construction – this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
Validation tested – has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
Excellent value – original equipment quality at a lower cost
Direct replacement – this air reservoir features the same port configuration and physical dimensions as the original tank
Quality construction – this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
Validation tested – has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance

Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.

Attributes:

Thread Size	22 m
Thread Size	22 m
Volume	30 L
Valve Included	No
Threaded Mounting Bracket Included	No
Thread Size	1/4 in
Thread Size	1/4 in
Thread Size	22 m
Diameter	8.5 IN
Length	33 IN
Maximum Working Pressure	150 PSI PS
Length (A)	33.3 in IN
Diameter (B)	8.6 in IN
3515	0.13 IN
Material	Carbon Steel
Color	Black
Mounting Hardware Included	No
Mounting Hole Quantity	0
Capacity	30 Lt
Air Tank Type	Tractor
Mounting Type	Strap On
Number of Chambers	2
Package Contents	1 Air Tank
Port Quantity	10
Port Thread Diameter	M22
Port Thread Diameter	M22
Port Thread Diameter	M22
Port Thread Diameter	M22
Port Thread Diameter	M22
Port Thread Diameter	M22
Port Thread Diameter	M22
Port Thread Diameter	M22
Port Thread Diameter	1/4 in
Port Thread Diameter	1/4 in
Port Thread Pitch	1.5 mm
Port Thread Pitch	1.5 mm
Port Thread Pitch	1.5 mm
Port Thread Pitch	1.5 mm
Port Thread Pitch	1.5 mm
Port Thread Pitch	1.5 mm
Port Thread Pitch	1.5 mm
Port Thread Pitch	1.5 mm
Tank Chamber Quantity	2
Thread Size	22 m
Thread Size	22 m
Thread Size	22 m
Thread Size	22 m
Thread Size	22 m
