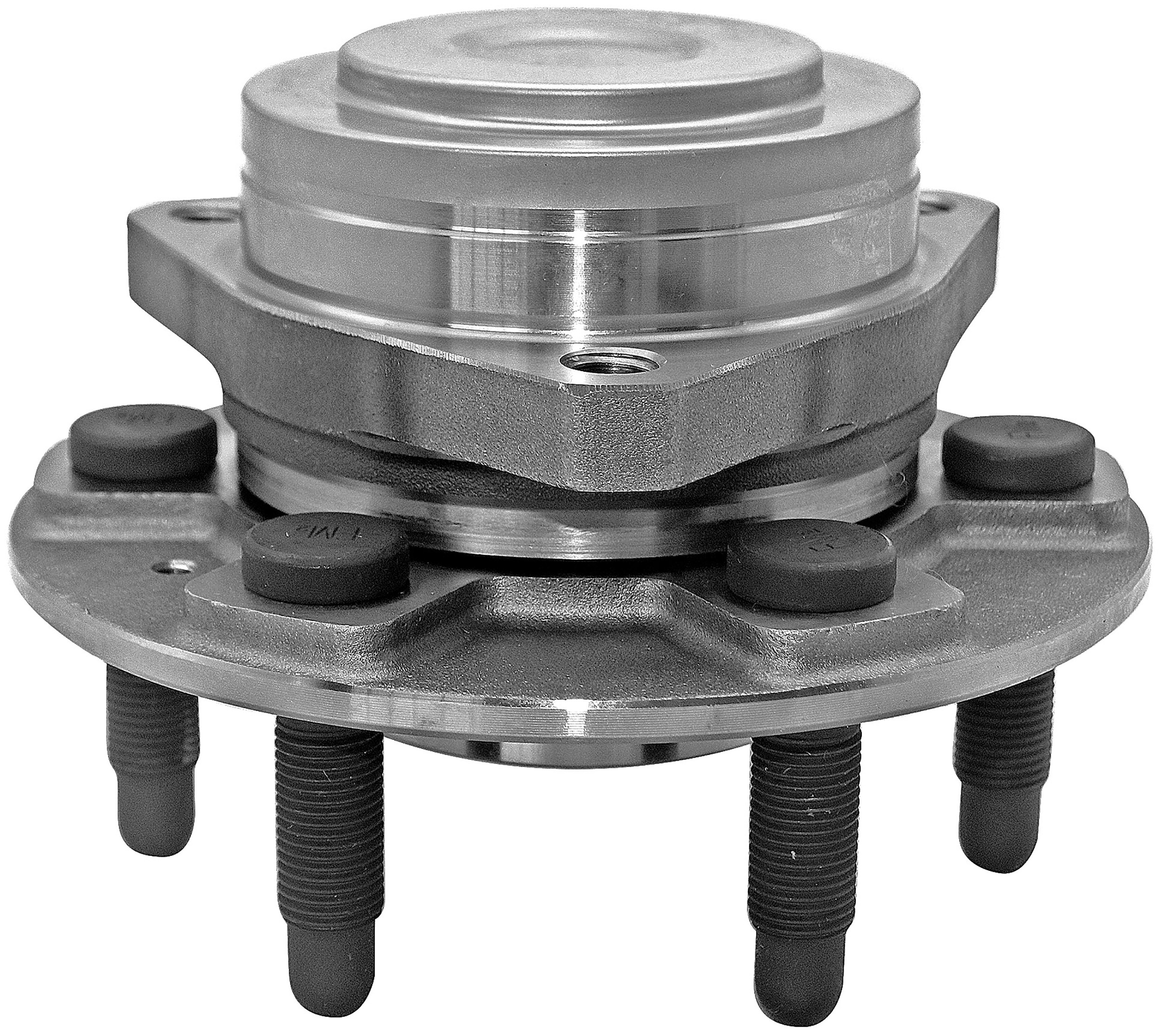

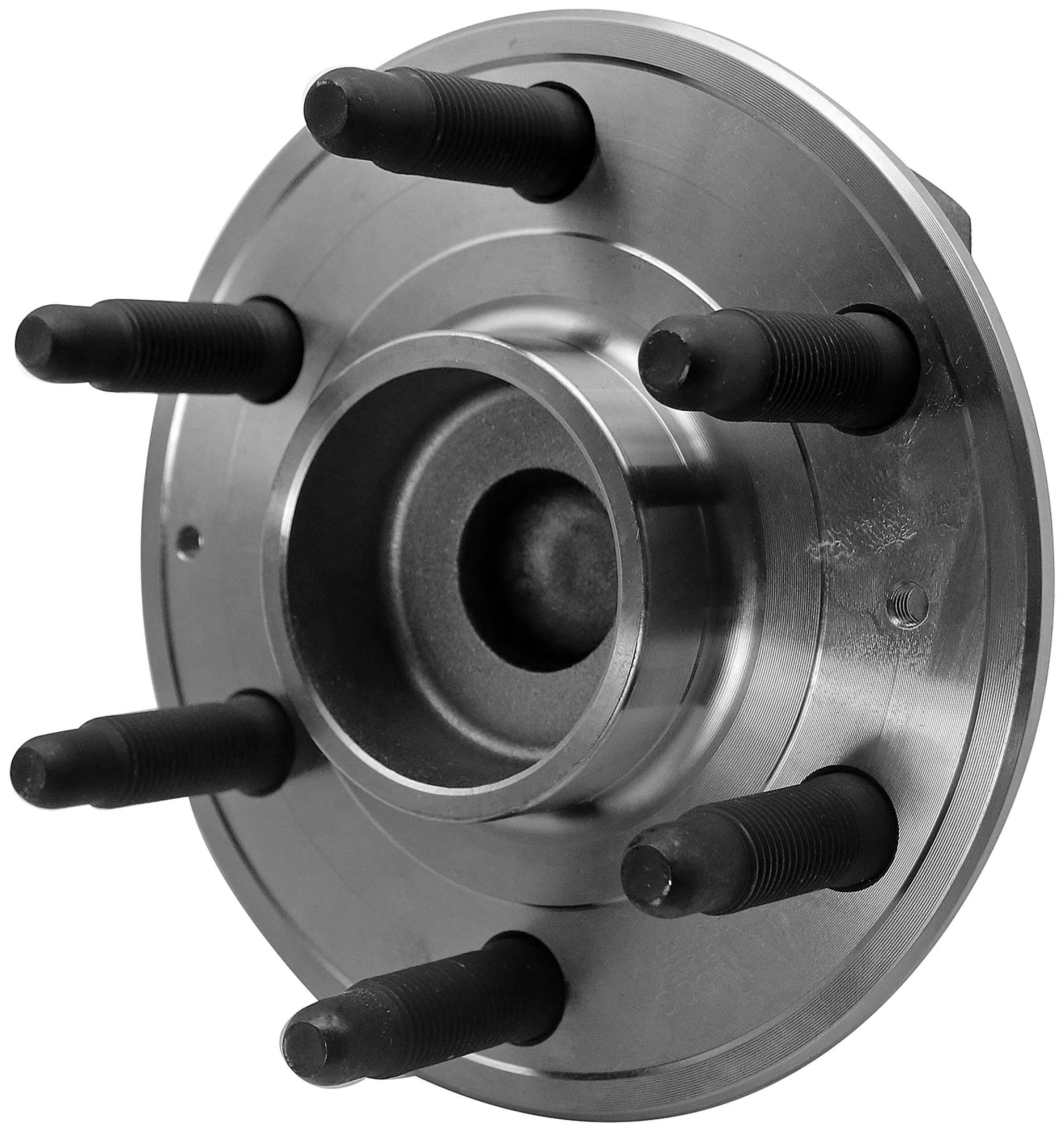

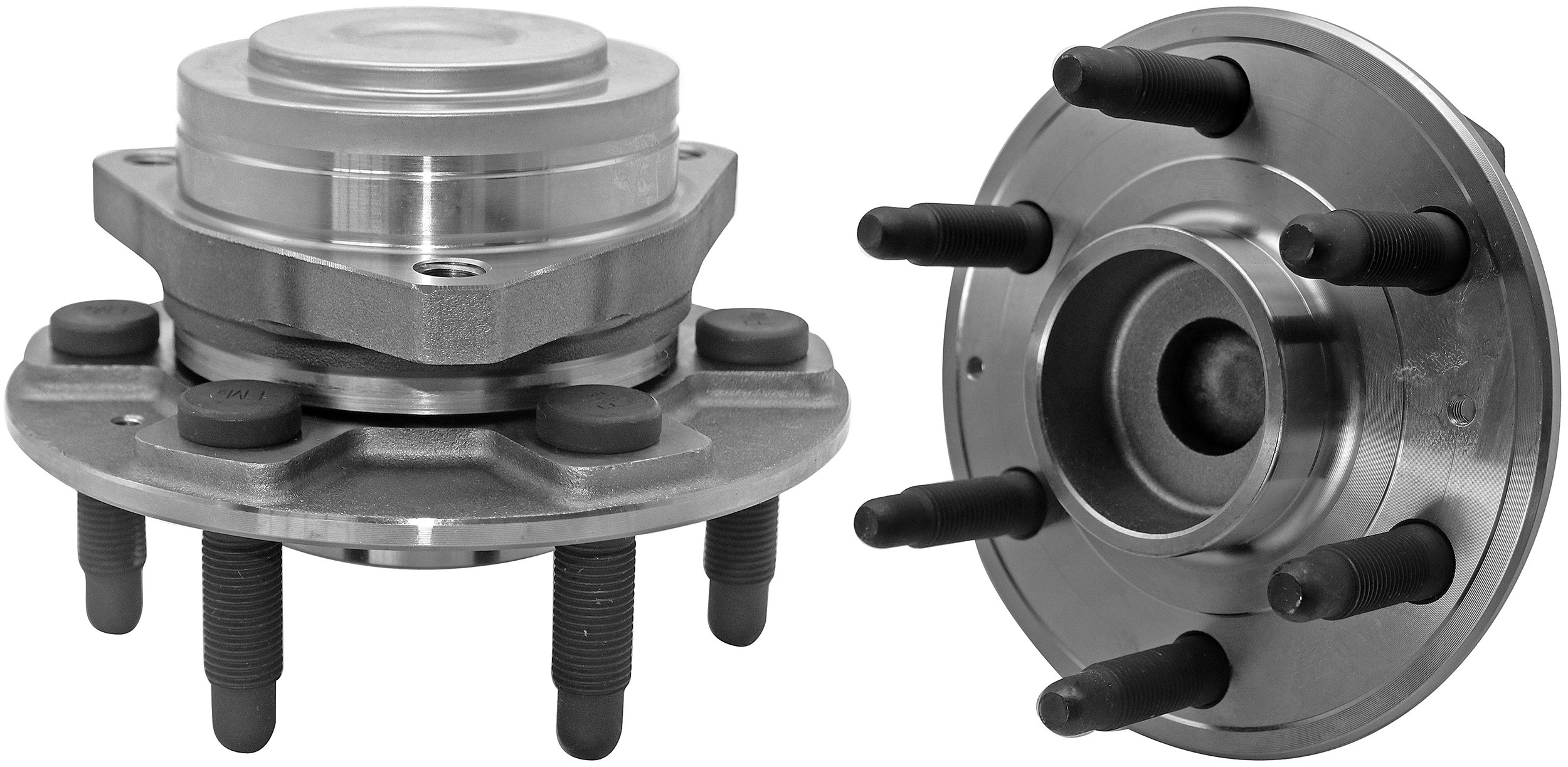

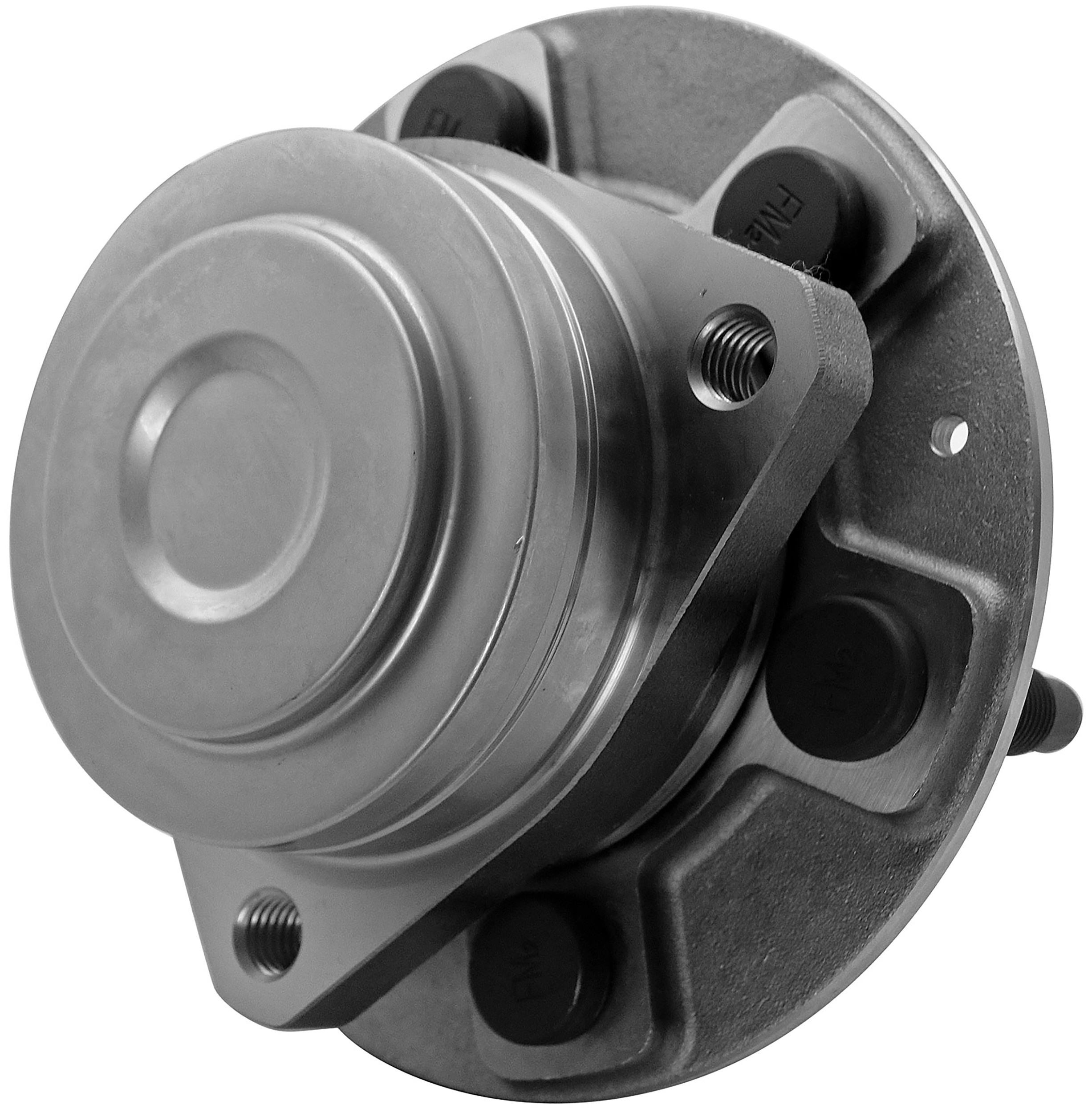

Dorman 951-306 Wheel Hub And Bearing Assembly

Dorman 951-306 Wheel Hub And Bearing Assembly

Features:

Trustworthy quality – engineered and tested in the United States
Complete repair – this assembly includes the wheel hub and application-specific bearing components
Saves time – eliminates work required to remove individual corroded components

This replacement wheel bearing and hub assembly comes with the hub and critical bearing replacement components included for a complete repair on specific vehicle applications.

Attributes:

4585	12 MM
10495	2
10764	6H
10771	Fine
Anti Lock Brake Sensor Included	No
Axle Nut Included	No
Grade Type	Standard Replacement
Package Contents	1 Wheel Hub Assembly
Wheel Bolt Thread Pitch	1.5
Width	42 MM
Brake Pilot Diameter	67.4 MM
Wheel Pilot Diameter	66.9 MM
Flange Diameter	157 MM
Flange Offset	42 MM
Inside Diameter	55 MM
Outside Diameter	157 MM
Wheel Stud Thread Pitch	1.5 mm MM
Bolt Circle Diameter	120 mm MM
1987	Gen 3
10120	12 MM
Mounting Hardware Included	No
Spline Quantity	0
Connector Quantity:	0
Drive Type	Non-driven
Material	Steel
Bearing Type	Ball
Flange Bolt Hole Quantity	3
Nut Included	No
Wheel Stud Size	14
Wheel Stud Quantity	6
Flange Shape	Triangular
Pre-greased	Yes
880	Fine
1886	Yes
1965	Yes
1969	No
10119	116 IN
1970	Yes
1971	Encoder
10010	91.3 MM

Vehicle Applications:

Make	Model	Position	Years	Notes
Buick	Enclave	Rear	2018 to 2024
Cadillac	XT5	Rear	2017 to 2025
Cadillac	XT6	Rear	2020 to 2025
Chevrolet	Traverse Limited	Rear	2024 to 2024
Chevrolet	Traverse	Rear	2018 to 2023
GMC	Acadia	Rear	2017 to 2023
