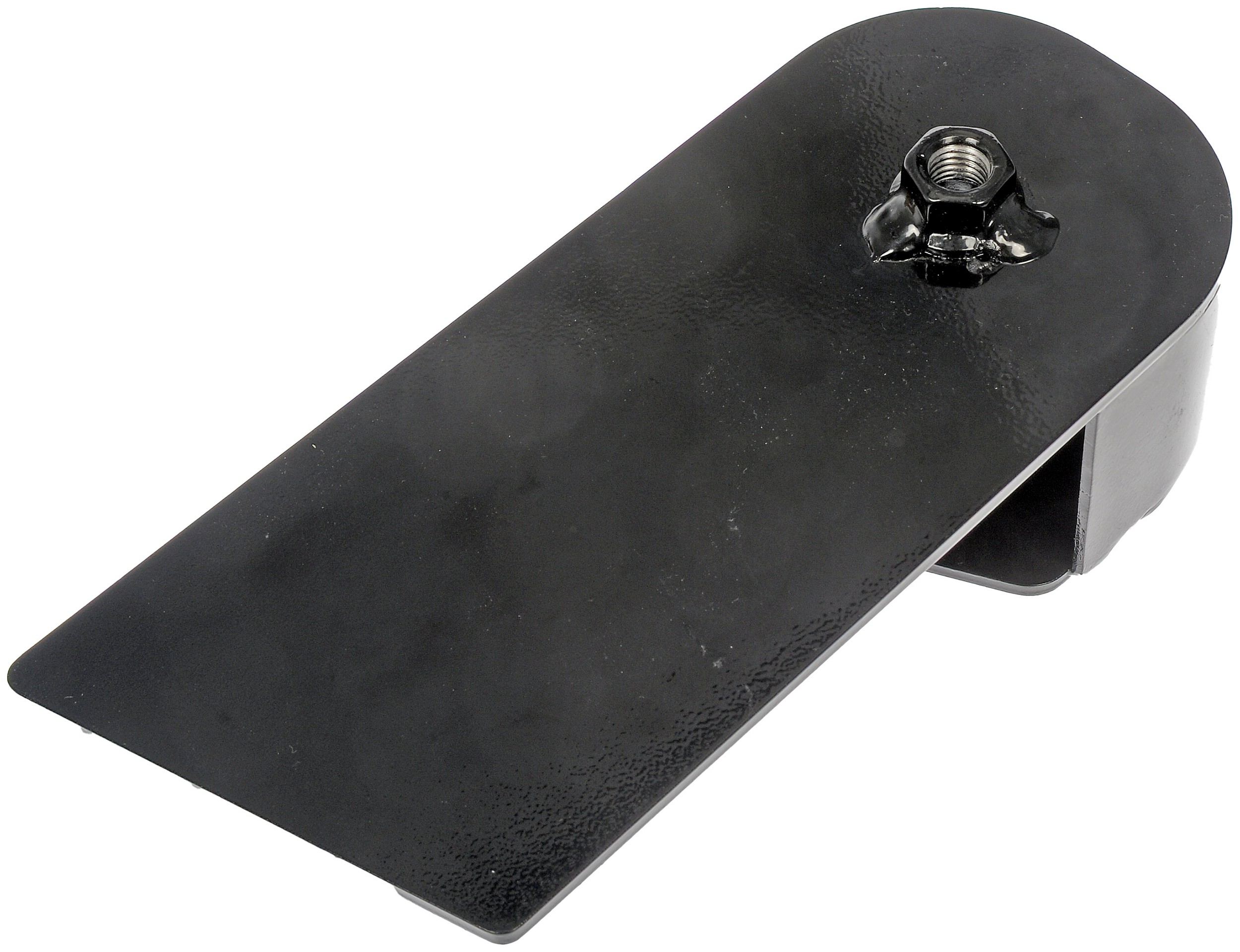

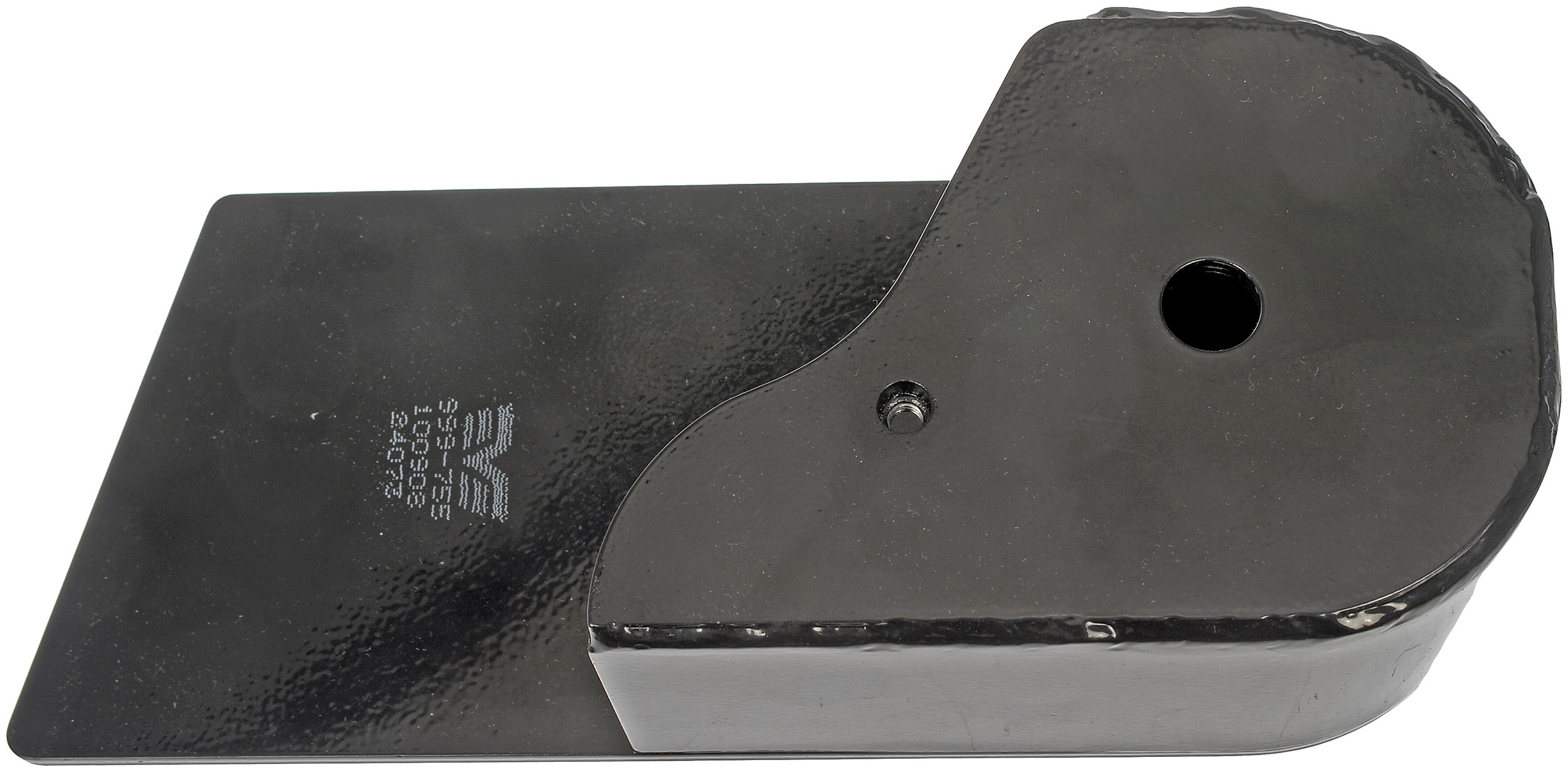

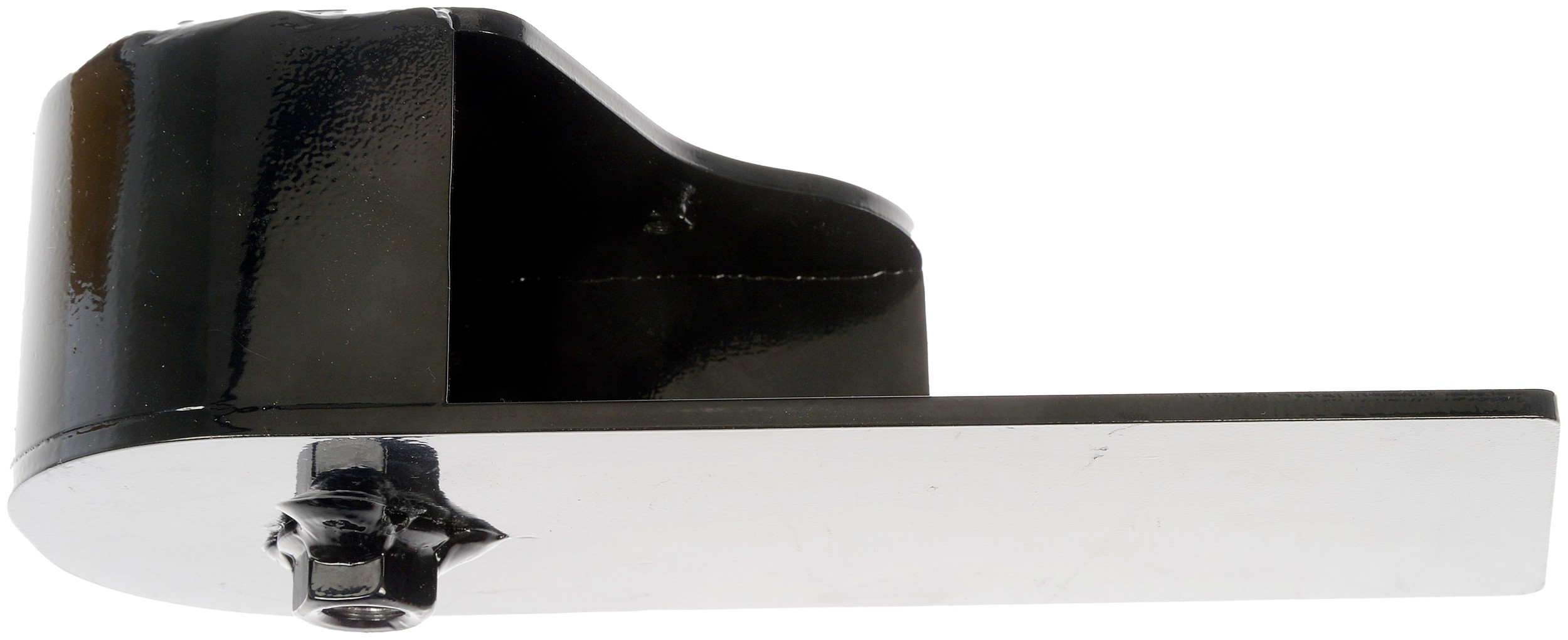

Dorman 999-755 Upper Trailing Arm Bracket
Features:
- Better solution – eliminates the need for precise undercar measurements and custom fabrication of a new bracket, or finding and installing a usable replacement part from a salvage yard
- Time-saving solution – this weld-on carbon steel coil spring bracket is designed to save time and money by allowing replacement of just the rusted factory bracket rather than the entire axle assembly
- Better repair – eliminates the need to fabricate a custom bracket or settle for a salvage yard part to replace a rusted original equipment bracket
When a rear upper left side control arm bracket rusts and fails on certain GM, Isuzu and Saab SUV models, cost-effective repair solutions are limited. Replacing the damaged bracket requires precise measurements and custom fabrication of a new bracket, or finding and installing a usable replacement part from a salvage yard. Dealership options are costly or simply unavailable. This Dorman OE FIX trailing arm bracket enables a simpler repair by a technician or a skilled vehicle owner. It is manufactured from rugged material, engineered for a precise, weld-on fit and designed to help restore a secure, reliable connection to the rear trailing arm. Check the product details and carefully review the installation procedure to select the correct replacement bracket for your vehicle and position. If you need a replacement bracket for the rear upper right side, choose Dorman part number 999-754.
Attributes:
| 5523 | 10.2 IN |
| 7631 | 1 IN |
| 7632 | 1 IN |
| 7633 | 2.7 IN |
| 7634 | 2.7 IN |
| Configuration | One Piece |
| Stud Thread Diameter | 6 mm MM |
| Stud Material | Stainless Steel |
| Attachment Type | Weld On |
| Mounting Hardware Included | Yes |
| Color | Black |
| Material | Steel |
| Package Contents | 1 Control Arm Bracket |
| Package Contents | 1 Brake Cable Bracket |
| Package Contents | 2 Brake Cable Mounting Bolts |
| Mounting Hole Diameter | 15 MM |
| 3515 | 4.5 MM |
| Grade Type | Standard Replacement |
| Universal Or Specific Fit | Specific |
| Stud Thread Direction | Right |
| 4966 | 35 MM |
| 5522 | 4 IN |
Vehicle Applications:
| Make | Model | Position | Years | Notes |
| Buick | Rainier | Rear Left | 2004 to 2007 | |
| Chevrolet | SSR | Rear Left | 2003 to 2006 | |
| Chevrolet | Trailblazer EXT | Rear Left | 2002 to 2006 | |
| Chevrolet | Trailblazer | Rear Left | 2002 to 2009 | |
| GMC | Envoy XL | Rear Left | 2002 to 2006 | |
| GMC | Envoy XUV | Rear Left | 2004 to 2005 | |
| GMC | Envoy | Rear Left | 2002 to 2009 | |
| Isuzu | Ascender | Rear Left | 2004 to 2008 | |
| Oldsmobile | Bravada | Rear Left | 2002 to 2004 | |
| Saab | 9-7x | Rear Left | 2005 to 2009 |
