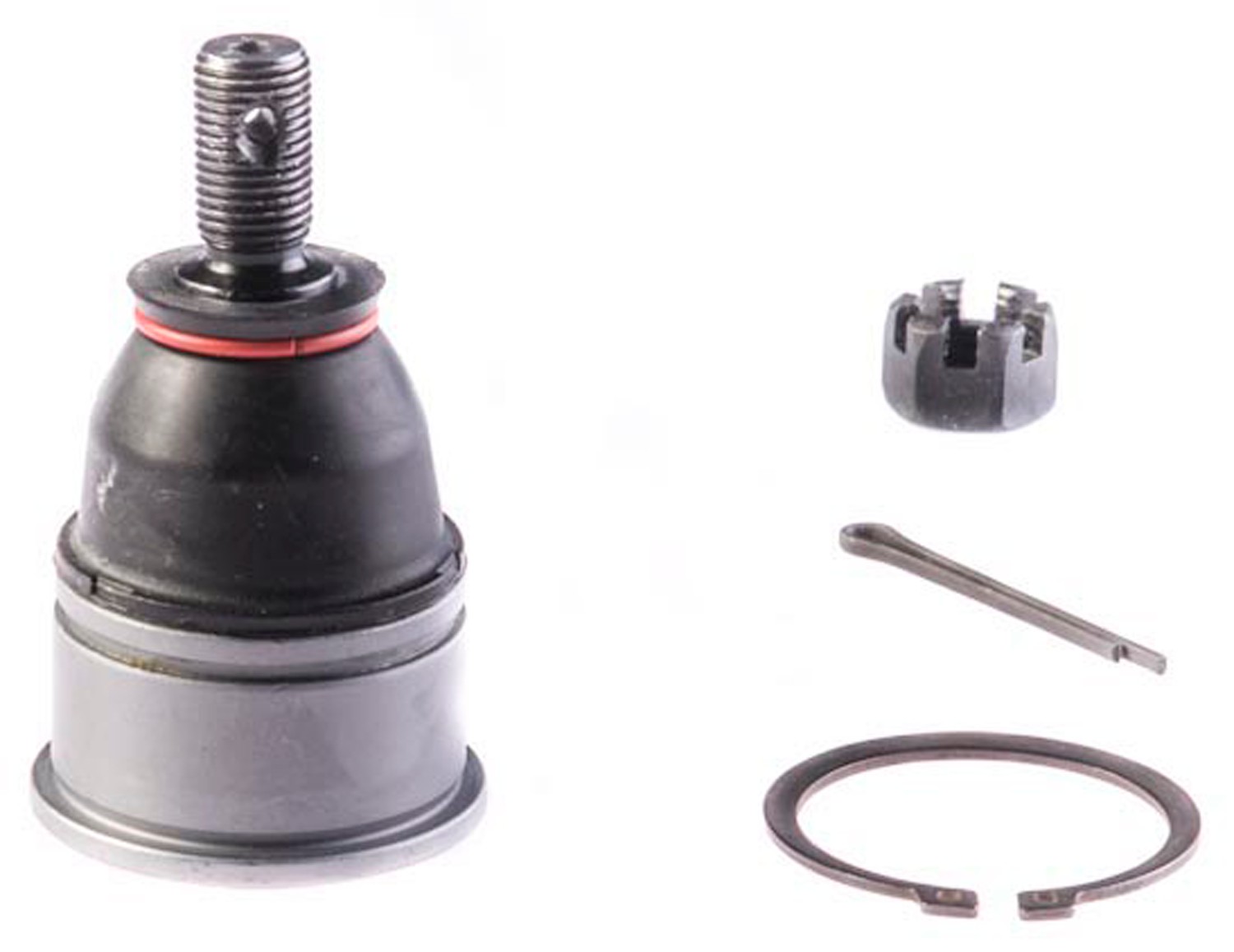

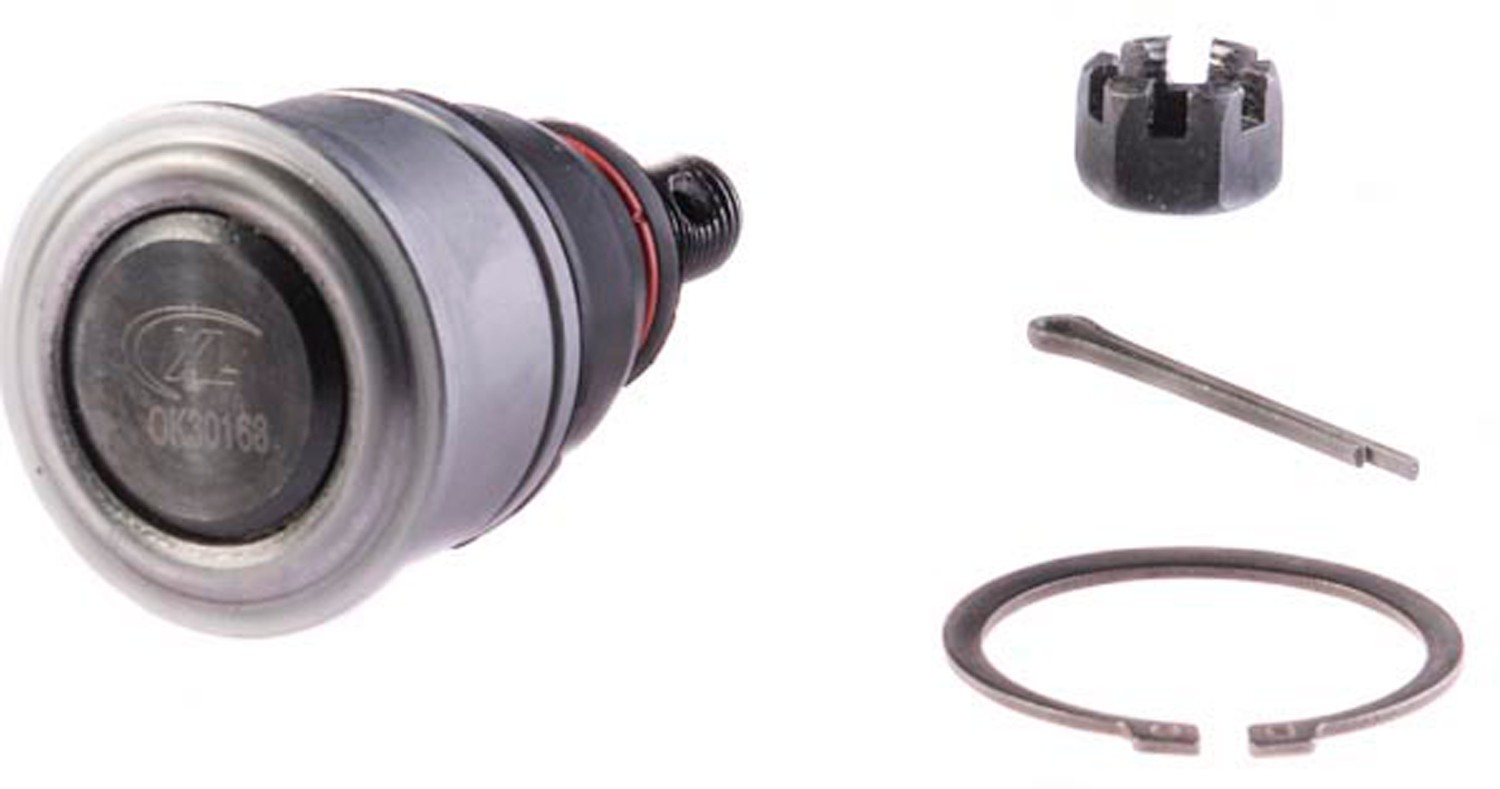

Dorman B9643XL Suspension Ball Joint

Dorman B9643XL Suspension Ball Joint

Features:

Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Material	Steel
2827	No
Package Contents	Retaining Ring
9090	Polychloroprene
Package Contents	Cotter Pin
Package Contents	Castle Nut
Package Contents	Ball Joint
Nuts Included	Yes
Bushing Included	No
Bushing Quantity	0
Greaseable	No
Washers Included	No
Cotter Pin Hole	Yes
Length	111 MM
Width	59 MM
Height	85.03 MM
Maximum Outside Diameter	61 MM
881	Tapered
2334	Yes
Dust Boot Included	Yes
Bushings Included	No
Suspension Grade Type	Premium
Grease Fitting Included	No
Mounting Hole Quantity	0
Mounting Type	Press-In
Adjustable	No
Mounting Hardware Included	Yes
Type	Threaded
Color	Grey
2381	Yes
839	12 mm MM
4966	35.5 MM
9211	2 IN
9212	22 MM
9213	27.2 MM
Housing Press Fit Diameter	42 mm MM
Stud Thread Diameter	12 mm MM
Stud Thread Pitch	1.5 mm MM
Thread Pitch	1.25 mm MM
Bolts/Studs Included	Yes
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Taper
9210	Yes
9204	No
9209	No
