Dorman BJ60305XL Suspension Ball Joint

Dorman BJ60305XL Suspension Ball Joint

Features:

Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion
Extended-life construction – this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Stud Thread Pitch	1.5 mm MM
Stud Thread Diameter	18 mm MM
Material	Steel
Color	Grey
Type	Threaded
Mounting Hardware Included	Yes
Adjustable	No
9211	2 IN
Mounting Type	Bolt-In
Mounting Hole Quantity	2
Grease Fitting Included	No
Suspension Grade Type	Premium
Bushings Included	No
Bushing Quantity	0
Greaseable	No
Washers Included	No
Cotter Pin Hole	Yes
Dust Boot Included	Yes
2334	Yes
881	Pinch
839	12 mm MM
4966	35.5 MM
Bolts/Studs Included	Yes
Length	111 MM
Width	59 MM
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Pinch
9210	Yes
9209	No
9204	No
Bushing Included	No
Nuts Included	Yes

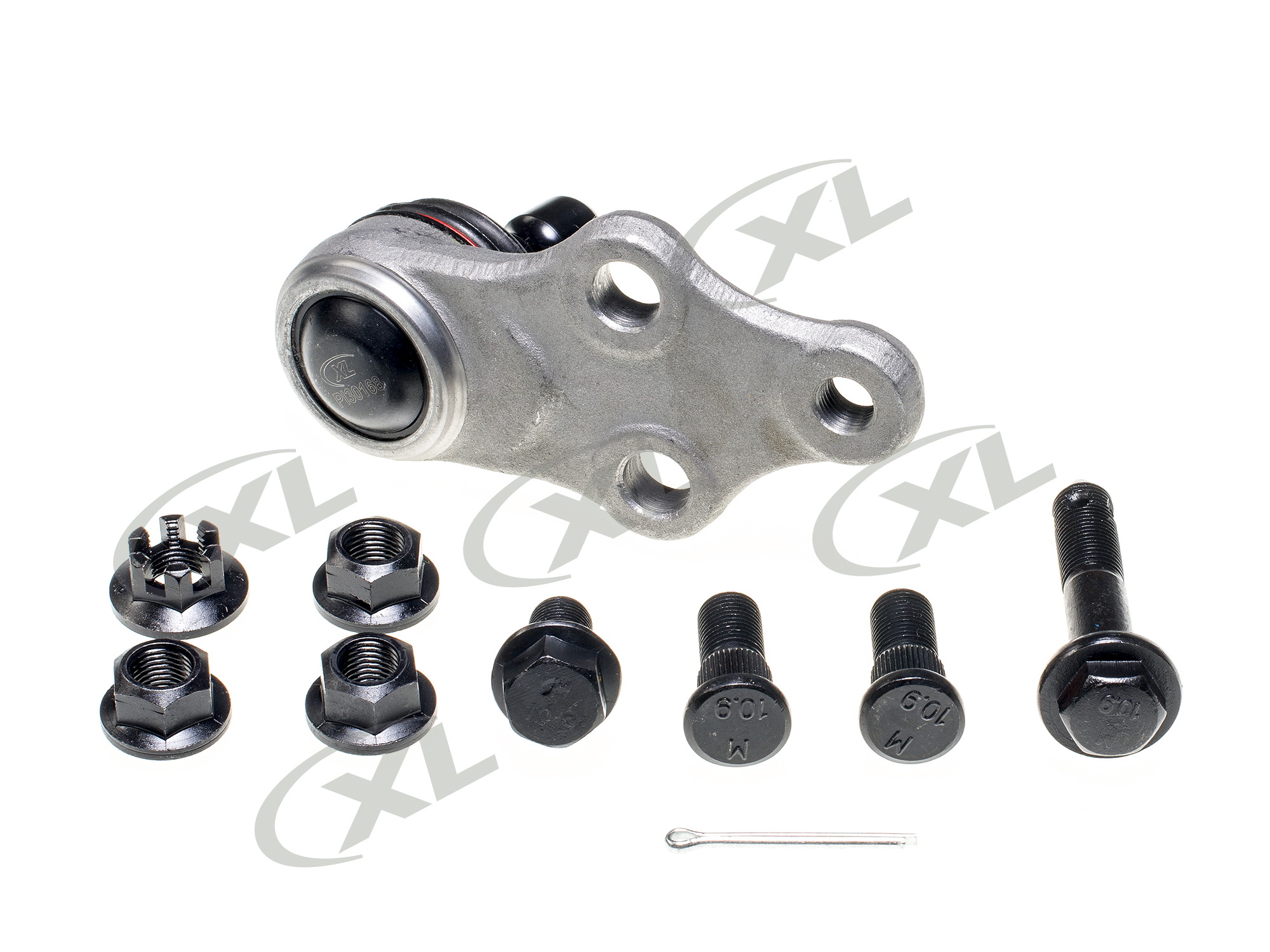

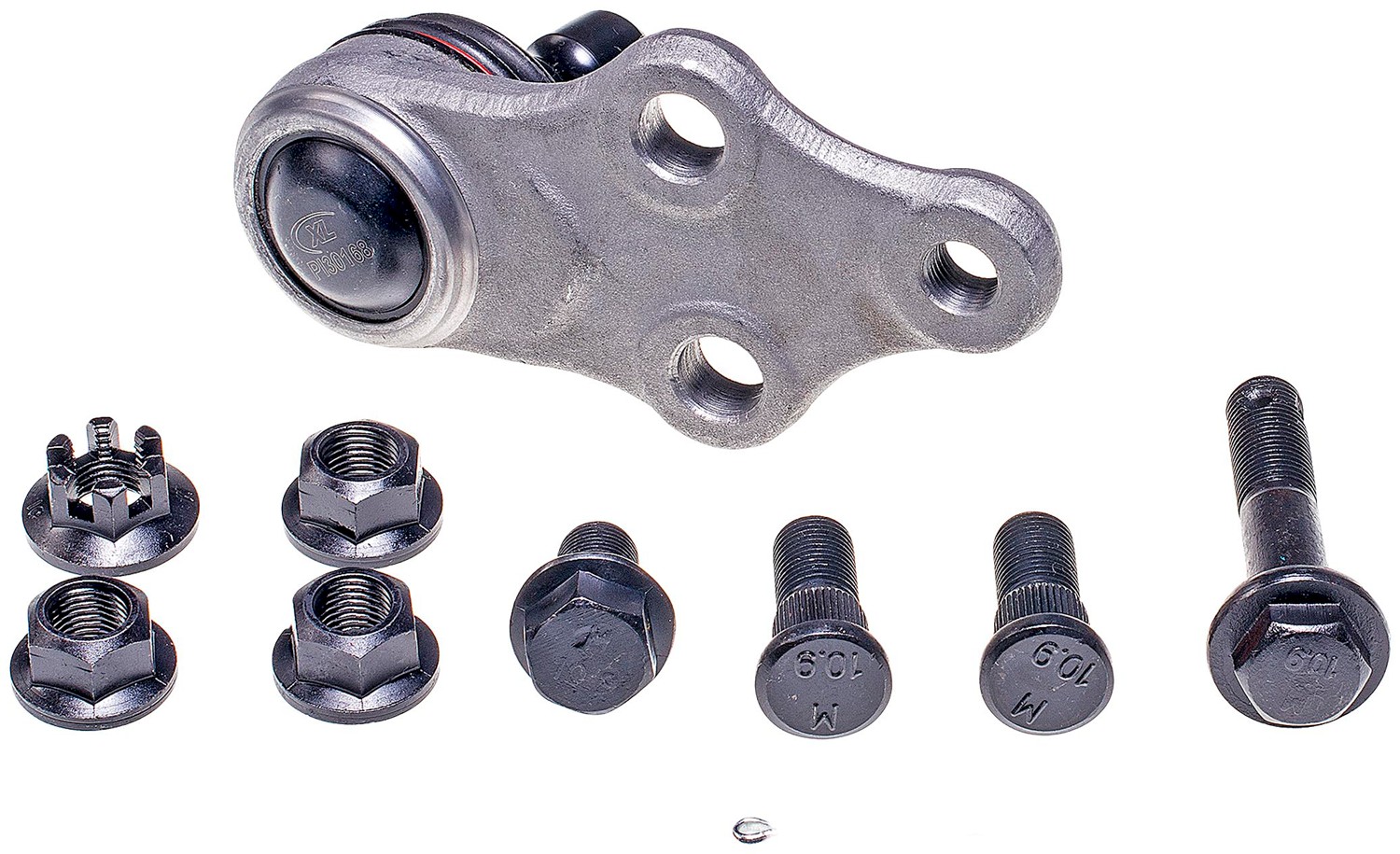

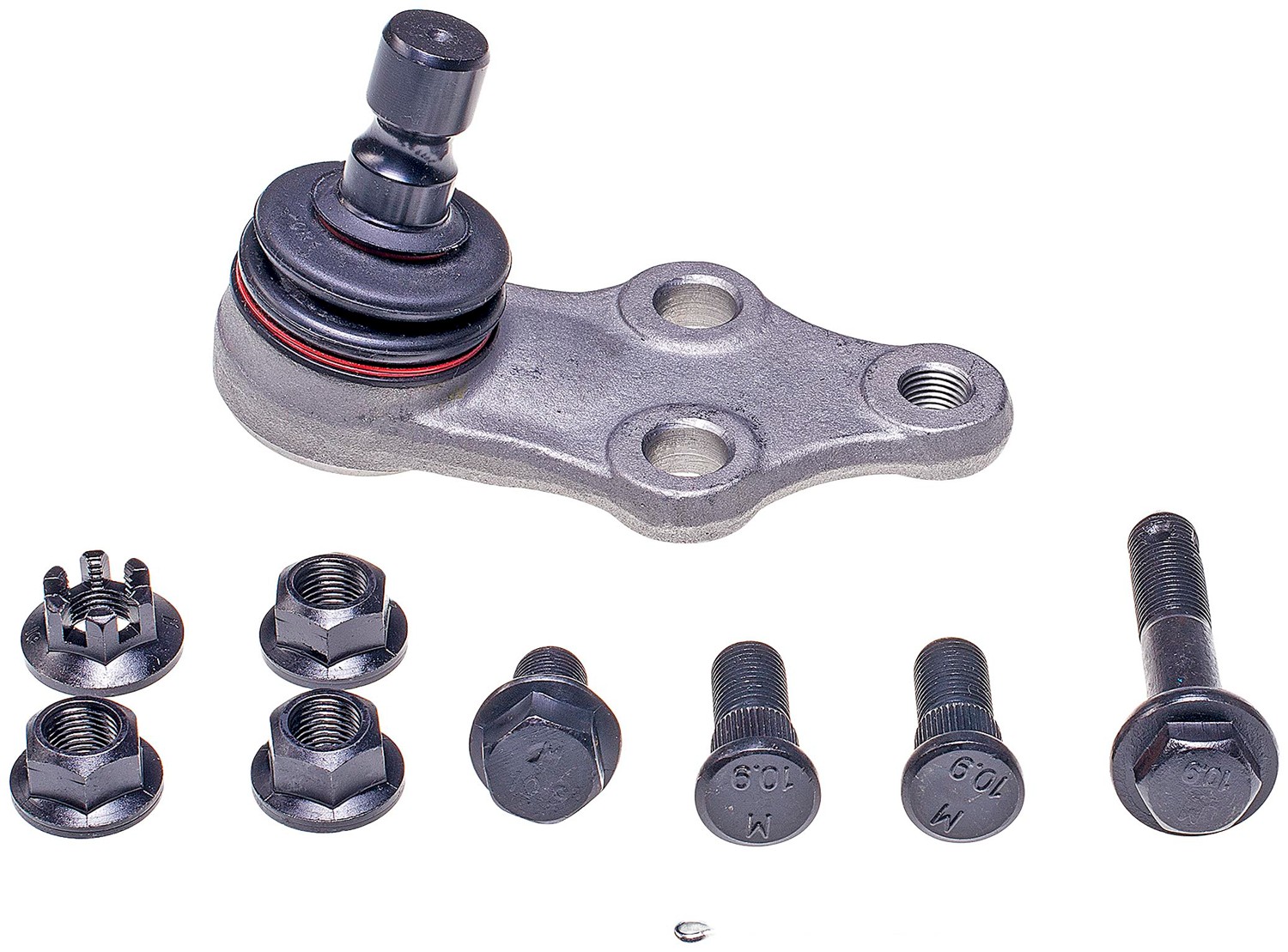

Package Contents	1 Ball Joint
Height	85.03 MM
Maximum Outside Diameter	61 MM
Package Contents	1 Castle Nut
Package Contents	1 Cotter Pin
Housing Press Fit Diameter	45 mm MM
9213	27.2 MM
9212	22 MM
Package Contents	4 Bolts
Package Contents	3 Nuts
9090	Polychloroprene
2827	No
2381	Yes
Thread Pitch	1.5 mm MM
