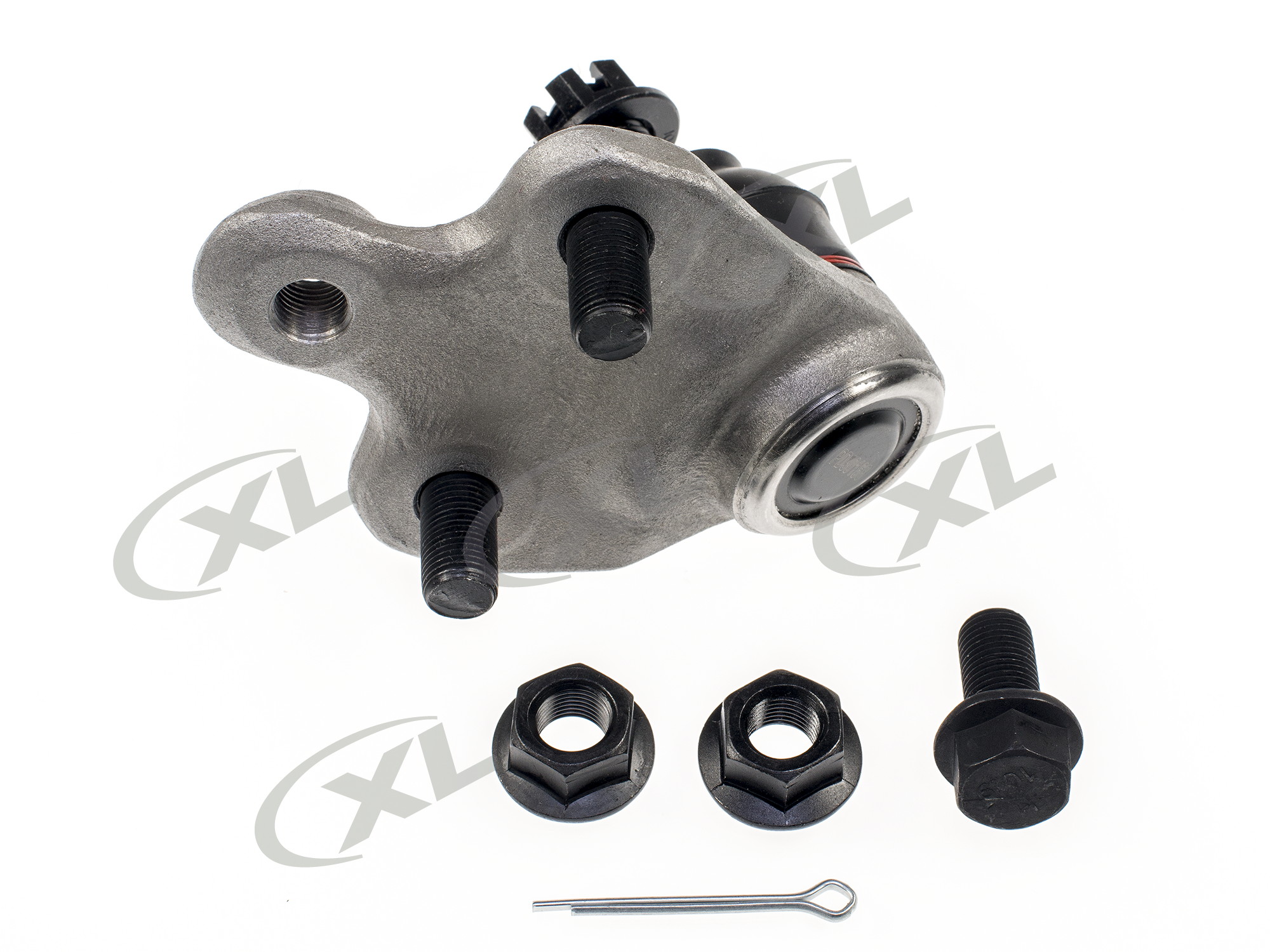

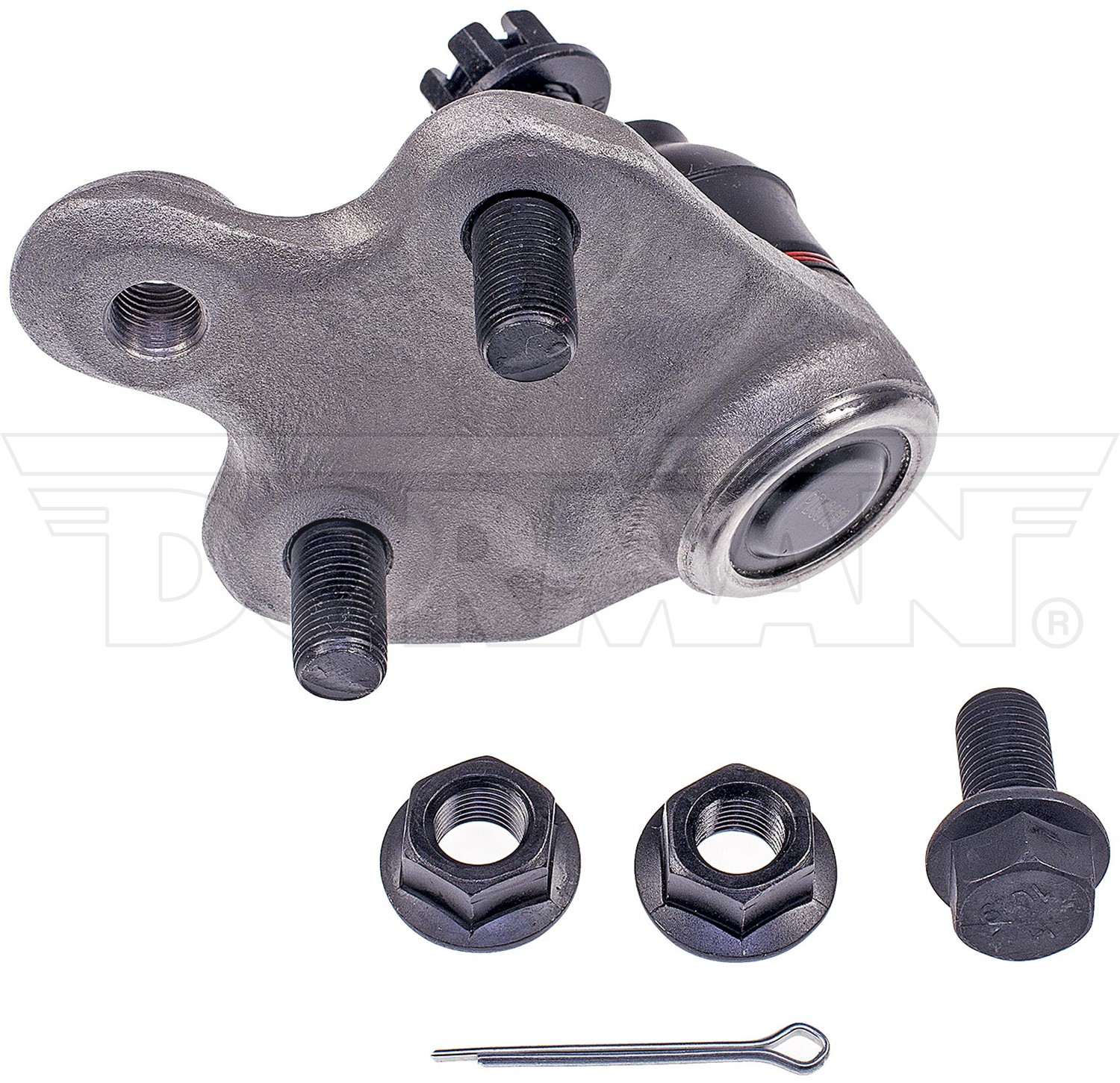

Dorman BJ74305XL Suspension Ball Joint

Dorman BJ74305XL Suspension Ball Joint

Features:

Premium corrosion resistance – WeatherShield external coating to resist corrosion
Extended-life construction – this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

9211	2 IN
839	12 mm MM
4966	35.5 MM
9212	22 MM
9213	27.2 MM
Housing Press Fit Diameter	45 mm MM
Stud Thread Diameter	14 mm MM
Stud Thread Pitch	1.5 mm MM
Thread Pitch	M1.5 MM
Maximum Outside Diameter	61 MM
Mounting Hole Quantity	1 IN
Height	85.03 MM
Width	59 MM
Length	111 MM
Package Contents	1 Bolt
Package Contents	2 Nuts
Package Contents	1 Cotter Pin
Package Contents	1 Castle Nut
Package Contents	1 Ball Joint
Nuts Included	Yes
Bushing Included	No
Bolts/Studs Included	Yes
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Taper
9210	Yes
9209	No
9204	No
9090	Rubber
2827	No
2381	Yes
2334	Yes
881	Taper
Bushing Quantity	0
Greaseable	No
Washers Included	No
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Suspension Grade Type	Standard
Grease Fitting Included	No
Mounting Type	Bolt On
Adjustable	No
Mounting Hardware Included	Yes
Type	Threaded
Color	Gray
Material	Steel
