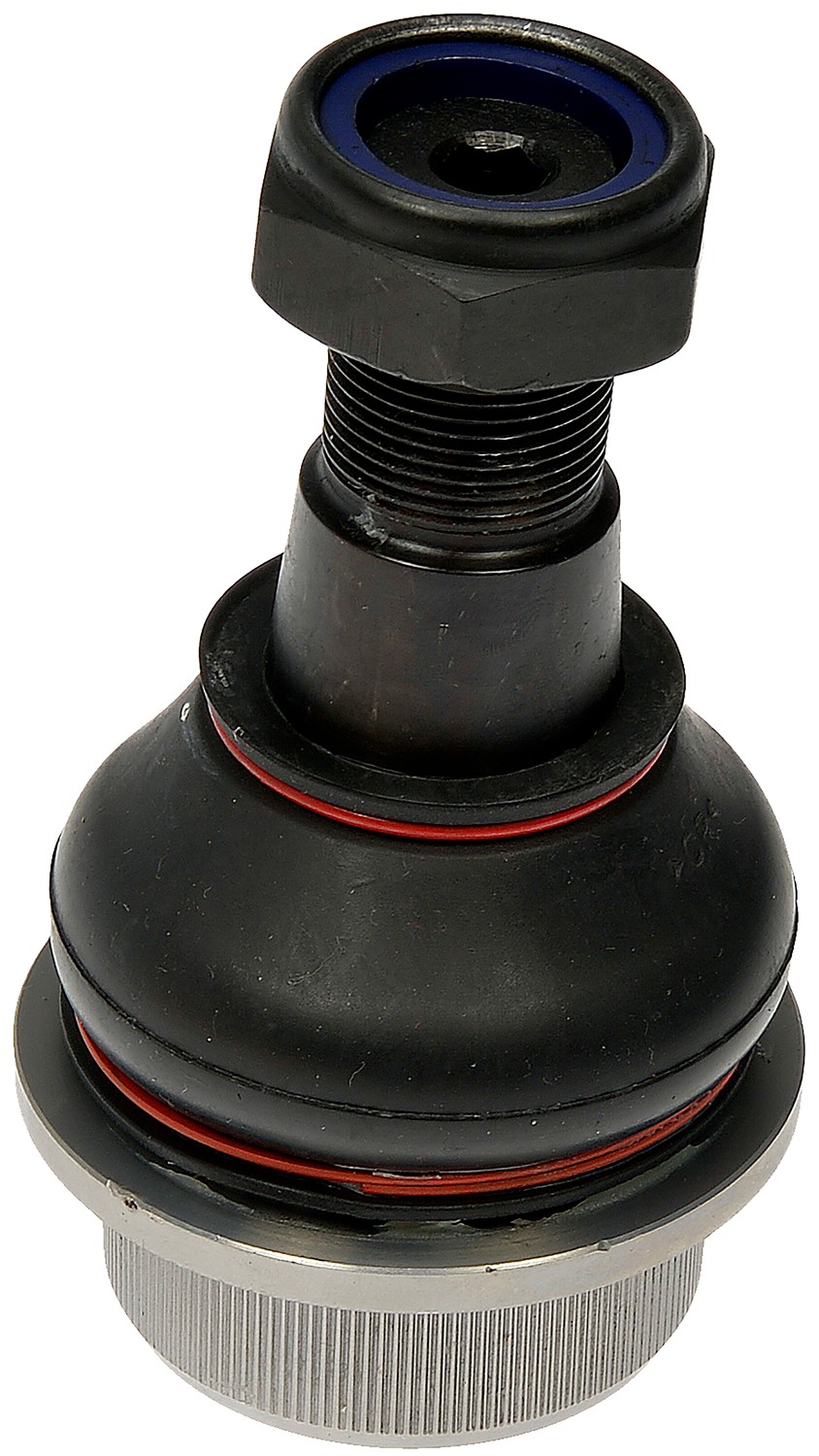

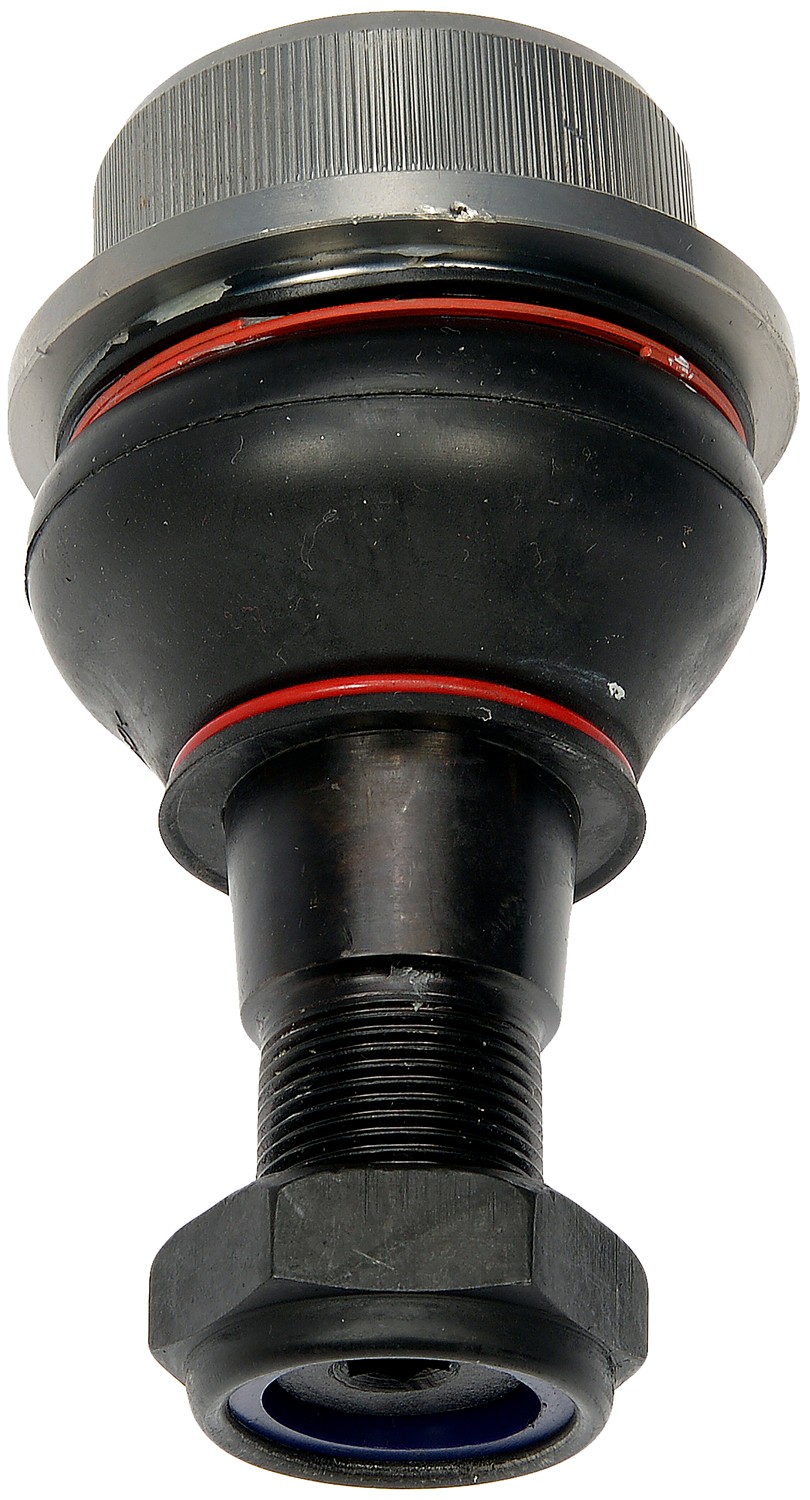

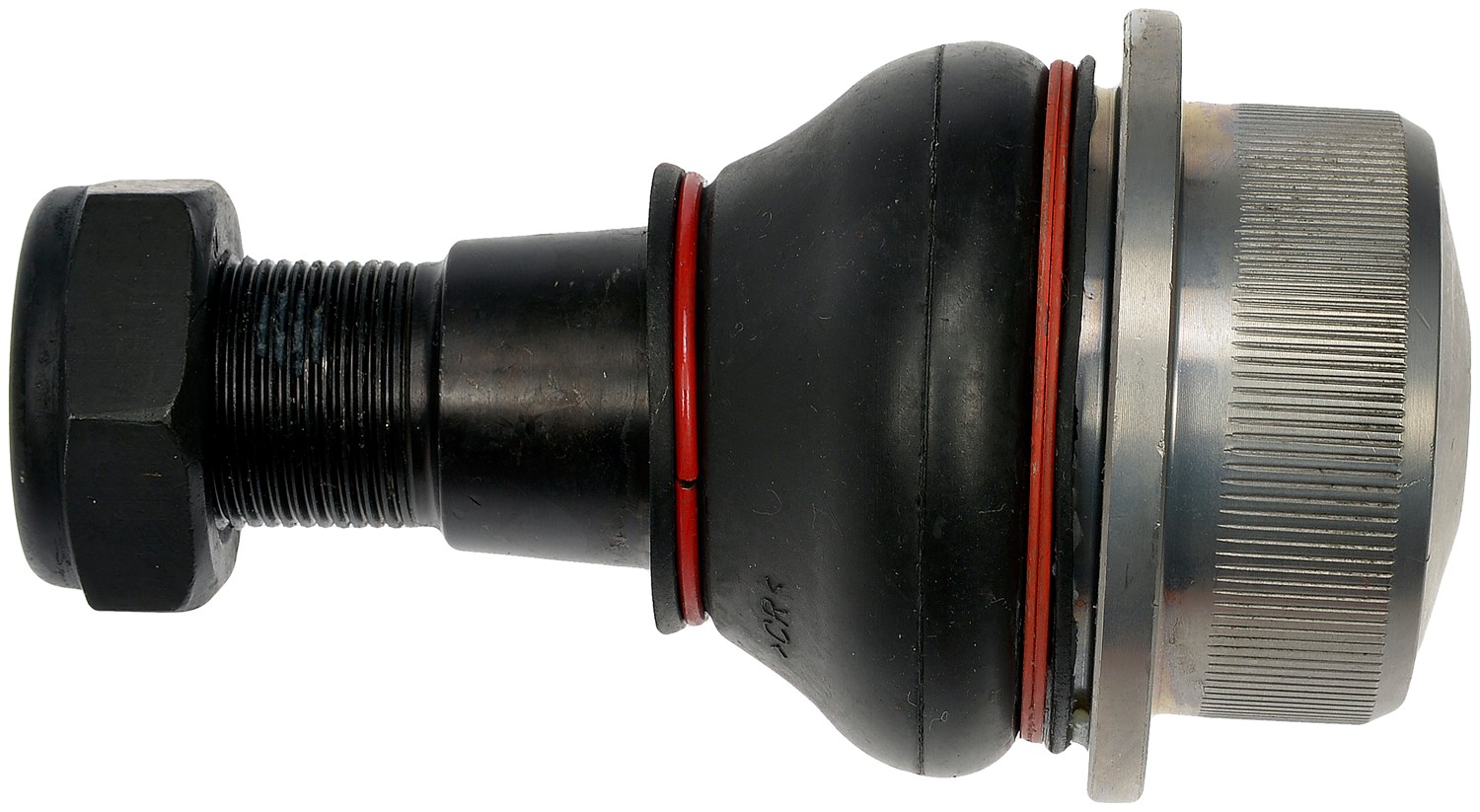

Dorman BJ83015XL Suspension Ball Joint

Dorman BJ83015XL Suspension Ball Joint

Features:

Superior ball stud – hardened stud with highly polished ball
Low-friction bearing – forged housing with synthetic grease and low-friction polymer bearing
Premium corrosion resistance – external coating resists corrosion
Extended-life construction – this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing

This extended life ball joint is built for smooth performance and superior durability. It features a hardened stud, highly polished ball and maintenance-free polymer bearing, with synthetic grease and premium corrosion resistance.

Attributes:

9203	11.7 MM
9058	44.68 MM
9058	30 MM
Package Contents	6 Nuts
Package Contents	6 Bolts
Package Contents	1 Cotter Pin
Package Contents	1 Castle Nut
Package Contents	1 Zerk Fitting
Package Contents	1 Ball Joint
Nuts Included	Yes
Bushing Included	No
Height	85.03 MM
Mounting Hardware Included	Yes
Type	Bolt On
Color	Gray
Greaseable	Yes
Material	Steel
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Taper
Bushing Quantity	0
4966	23 MM
839	21 mm MM
Grease Fitting Included	Yes
Length	111 MM
Maximum Outside Diameter	56.06 MM
3068	25.4 MM
881	Tapered
2334	Yes
2381	Yes
Adjustable	No
2827	Yes
Thread Pitch	1.5 mm MM
Stud Thread Pitch	1.5 mm MM
9090	Polychloroprene
9210	Yes
Suspension Grade Type	Standard
Stud Thread Diameter	1/2 in IN
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	Yes
Washers Included	No
9204	Yes
9209	Yes
Mounting Bolt Thread Pitch	M24 MM
9058	28 MM
Mounting Hole Quantity	0
Mounting Type	Bolt-In
Bolts/Studs Included	Yes
Width	59 MM
Mounting Bolt Thread Diameter	5/16 in IN
Housing Press Fit Diameter	45 mm MM
9213	17.95 MM
9212	21.4 MM
9211	1.59 IN
9207	25.4 MM
