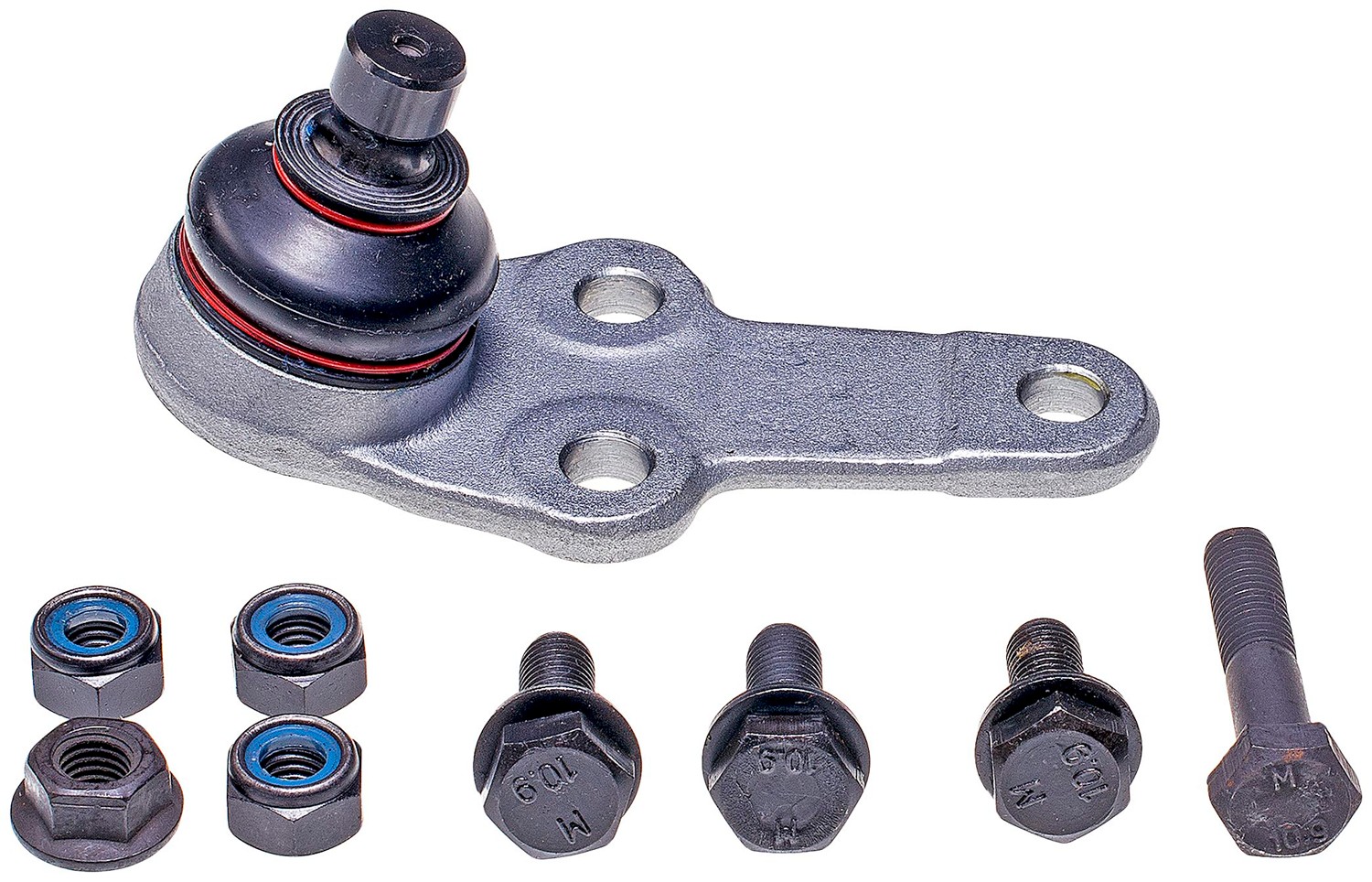

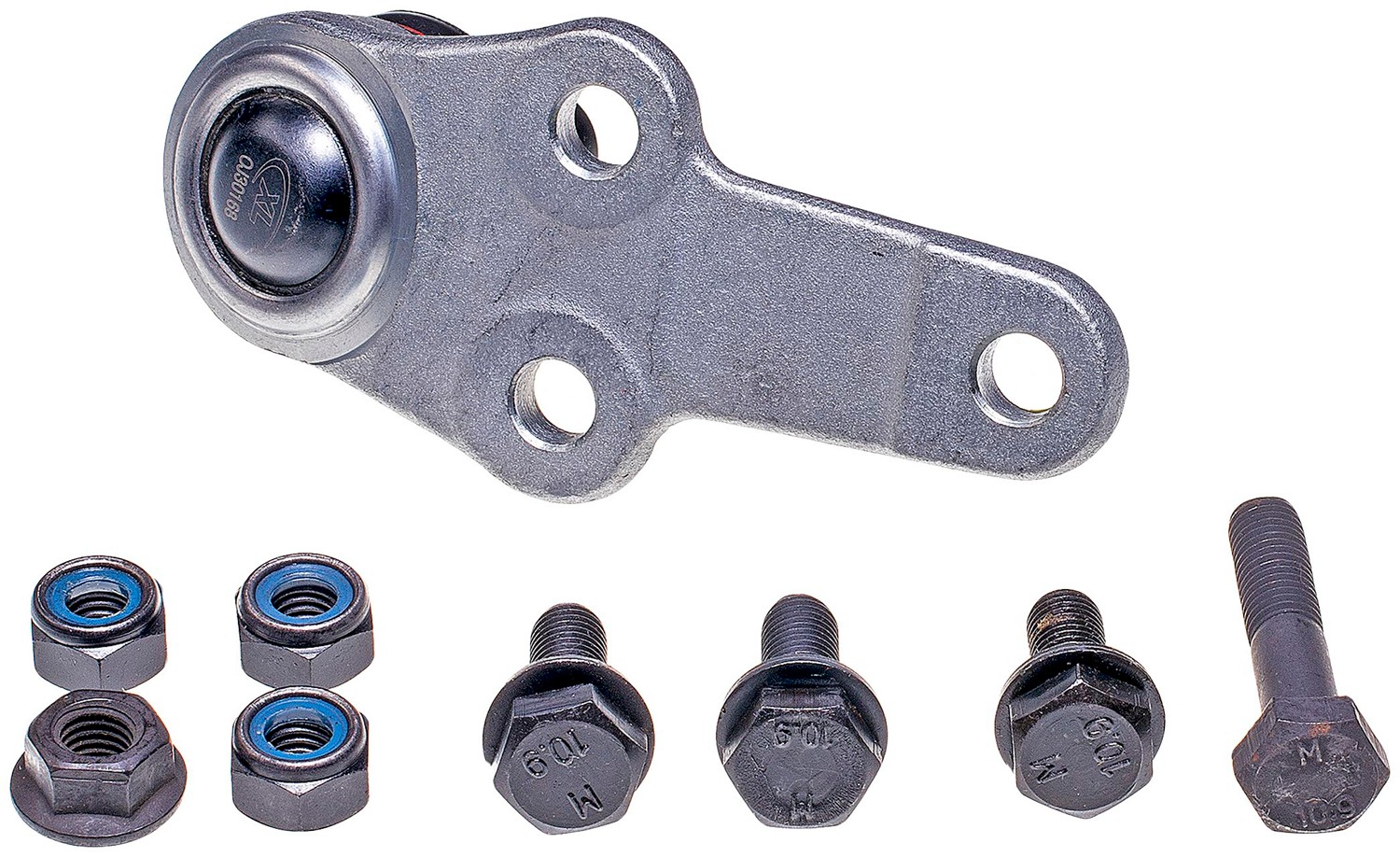

Dorman BJ86305XL Suspension Ball Joint
Features:
- Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance – WeatherShield external coating to resist corrosion
- Upgraded direct replacement – this lower ball joint is designed to match the fit of the OE design in specified severe-duty applications and is engineered for improved durability
- Upgraded direct replacement – this lower ball joint is designed to match the fit of the OE design in specified severe-duty applications and is engineered for improved durability
- No-compromise construction – specifically designed for vehicles used for off-road work, heavy hauling or towing and other tough commercial applications where readiness for duty is required
- No-compromise construction – specifically designed for vehicles used for off-road work, heavy hauling or towing and other tough commercial applications where readiness for duty is required
This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.
Attributes:
| Bearing Material | Polymer |
| Ball Joint Installed | Yes |
| Attachment Type | Pinch |
| 9210 | Yes |
| 9209 | No |
| 9204 | No |
| 9090 | Polychloroprene |
| Bushings Included | No |
| Suspension Grade Type | Premium |
| Grease Fitting Included | No |
| 9213 | 27.2 MM |
| Housing Press Fit Diameter | 45 mm MM |
| Stud Thread Diameter | 16.5 mm MM |
| Mounting Hole Quantity | 3 |
| Mounting Type | Bolt-In |
| Stud Thread Pitch | 1.5 mm MM |
| Thread Pitch | 16 mm MM |
| Package Contents | 4 Bolts |
| Washers Included | No |
| Cotter Pin Hole | No |
| Adjustable | No |
| Mounting Hardware Included | Yes |
| Type | Threaded |
| Color | Grey |
| 2827 | No |
| Dust Boot Included | Yes |
| Height | 85.03 MM |
| 2381 | Yes |
| 2334 | No |
| 881 | Pinch |
| Width | 59 MM |
| Package Contents | 1 Ball Joint |
| Bushing Quantity | 0 |
| Length | 111 MM |
| Maximum Outside Diameter | 61 MM |
| Greaseable | No |
| 839 | 12 mm MM |
| 4966 | 35.5 MM |
| 9211 | 2 IN |
| Nuts Included | Yes |
| Bushing Included | No |
| Package Contents | 4 Nuts |
| Bolts/Studs Included | Yes |
| 9212 | 22 MM |
| Material | Steel |
