Dorman BJ96125XL Suspension Ball Joint

Dorman BJ96125XL Suspension Ball Joint

Features:

Premium corrosion resistance – WeatherShield external coating to resist corrosion
Extended-life construction – this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Type	Threaded
Material	Steel
Maximum Outside Diameter	61 MM
9090	Polychloroprene
9204	No
9209	No
4966	35.5 MM
9211	2 IN
9212	22 MM
9213	27.2 MM
Housing Press Fit Diameter	41.8 mm MM
Stud Thread Diameter	16 mm MM
Stud Thread Pitch	1.5 mm MM
9210	Yes
Thread Pitch	1.5 mm MM
Attachment Type	Taper
Ball Joint Installed	Yes
Bearing Material	Polymer
Bolts/Studs Included	Yes
Bushing Included	No
Nuts Included	Yes

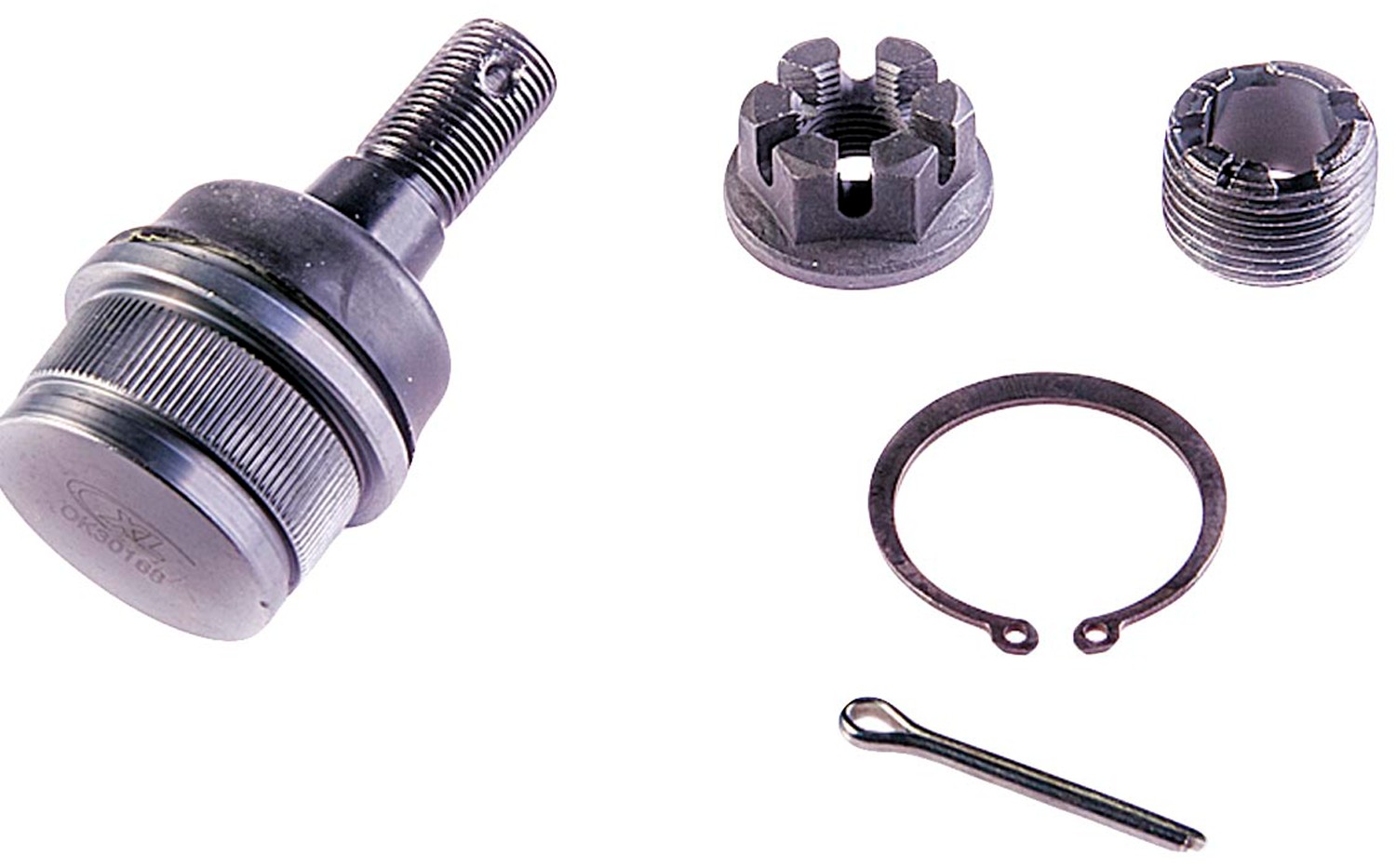

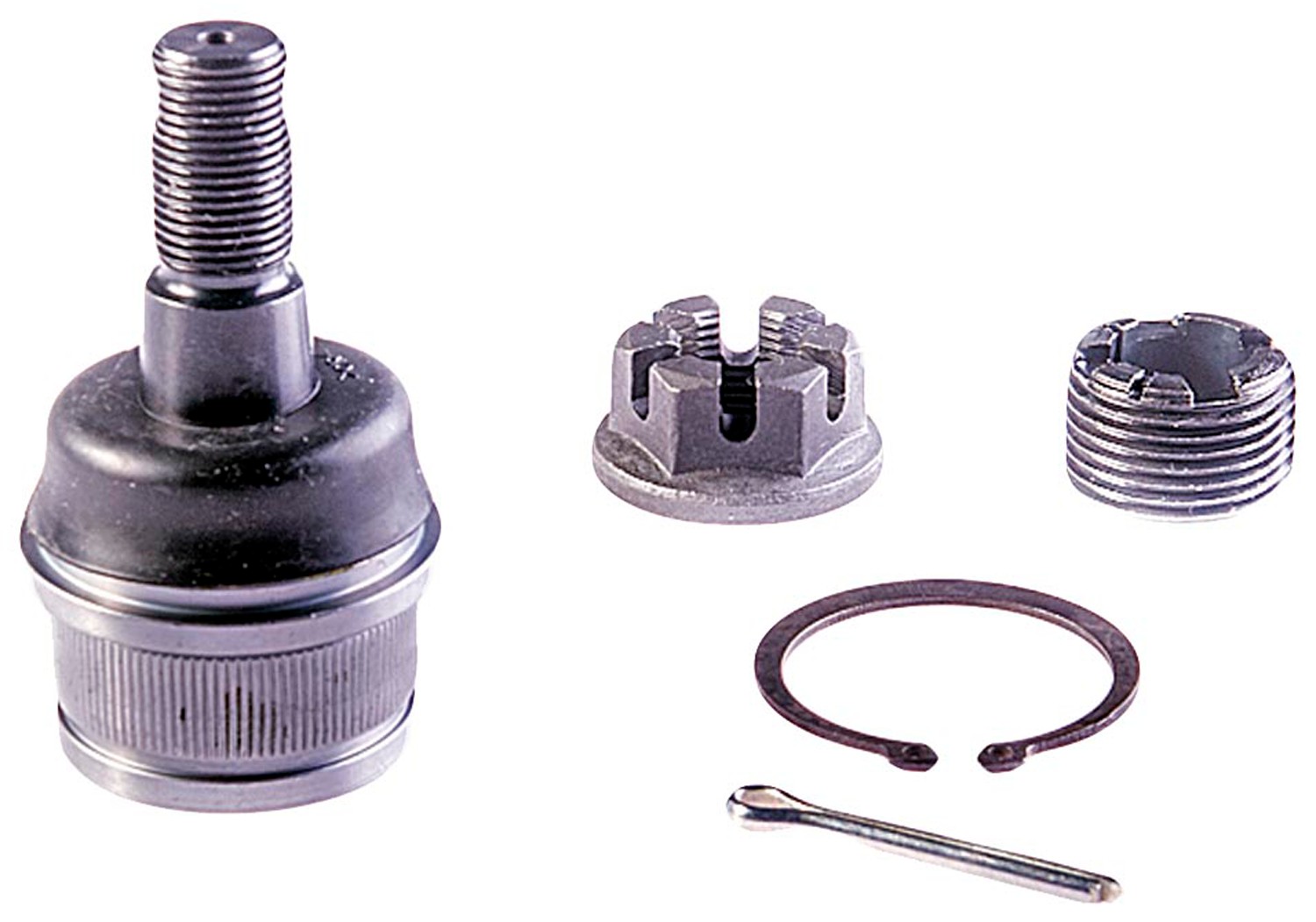

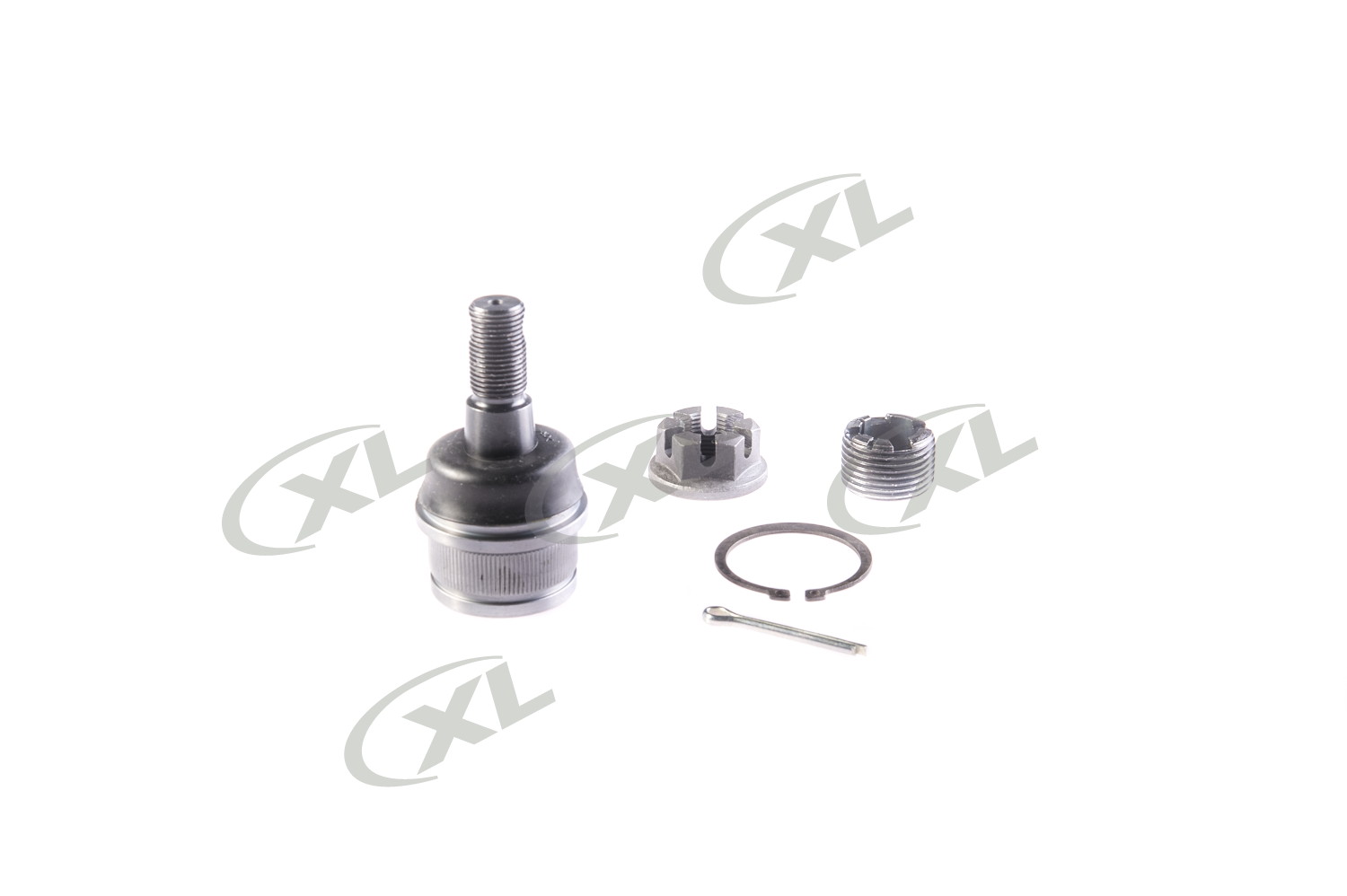

Package Contents	1 Ball Joint
Package Contents	1 Castle Nut
Package Contents	1 Cotter Pin
Package Contents	1 Retaining Ring
Package Contents	1 Threaded Insert
881	Tapered
2334	Yes
2381	Yes
2827	No
Bushing Quantity	0
Greaseable	No
Washers Included	No
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Suspension Grade Type	Premium
Grease Fitting Included	No
Mounting Hole Quantity	0
Length	111 MM
Width	59 MM
Height	85.03 MM
Mounting Type	Press-In
Adjustable	No
839	12 mm MM
Mounting Hardware Included	Yes
Color	Gray
