Dorman BJ96145XL Suspension Ball Joint

Dorman BJ96145XL Suspension Ball Joint

Features:

Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Bearing Material	Polymer
Greaseable	No
Bushing Quantity	0
Washers Included	No
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Suspension Grade Type	Premium
Grease Fitting Included	No
Mounting Hole Quantity	0
Mounting Type	Press-In
Adjustable	No
Mounting Hardware Included	Yes
Type	Threaded
Color	Gray

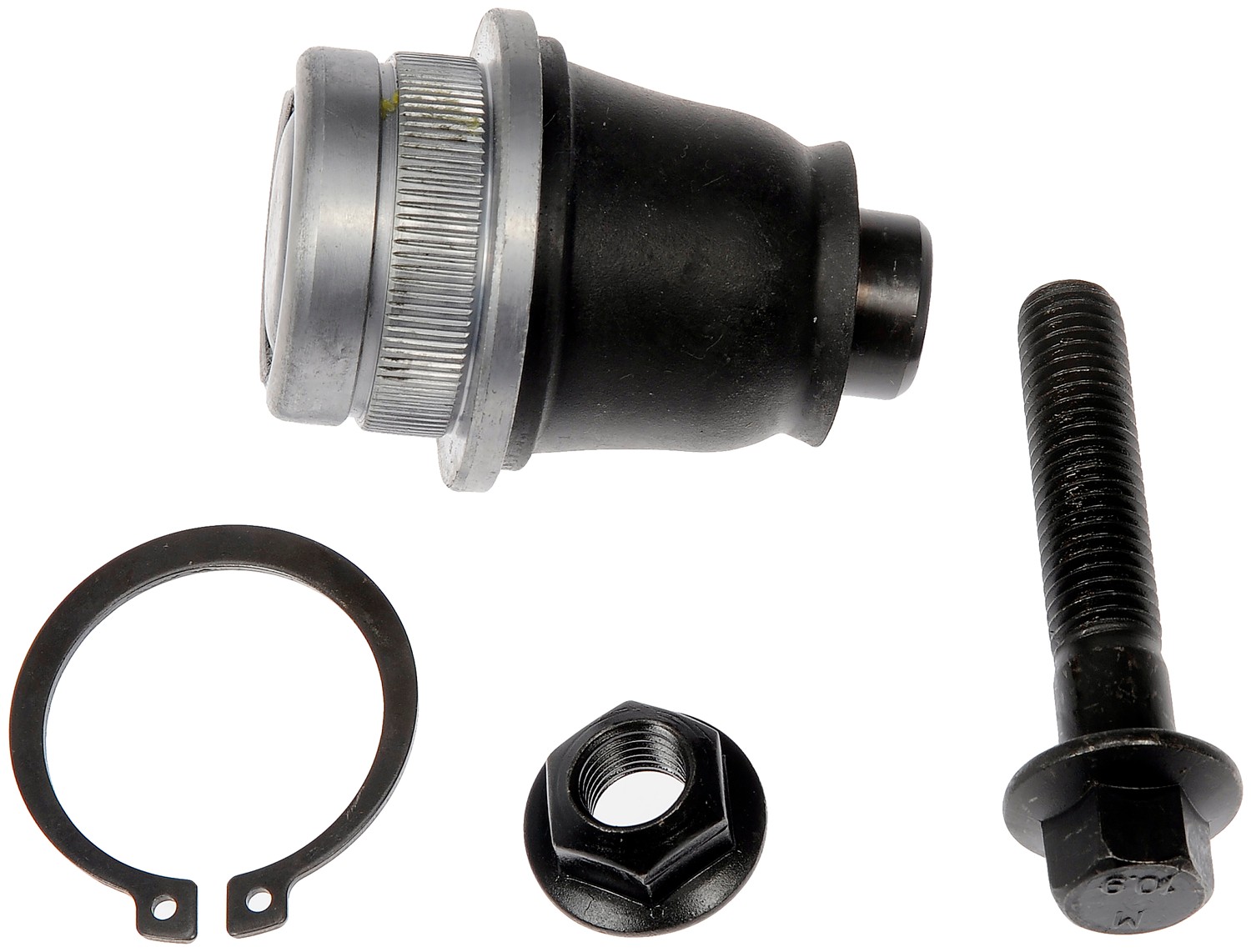

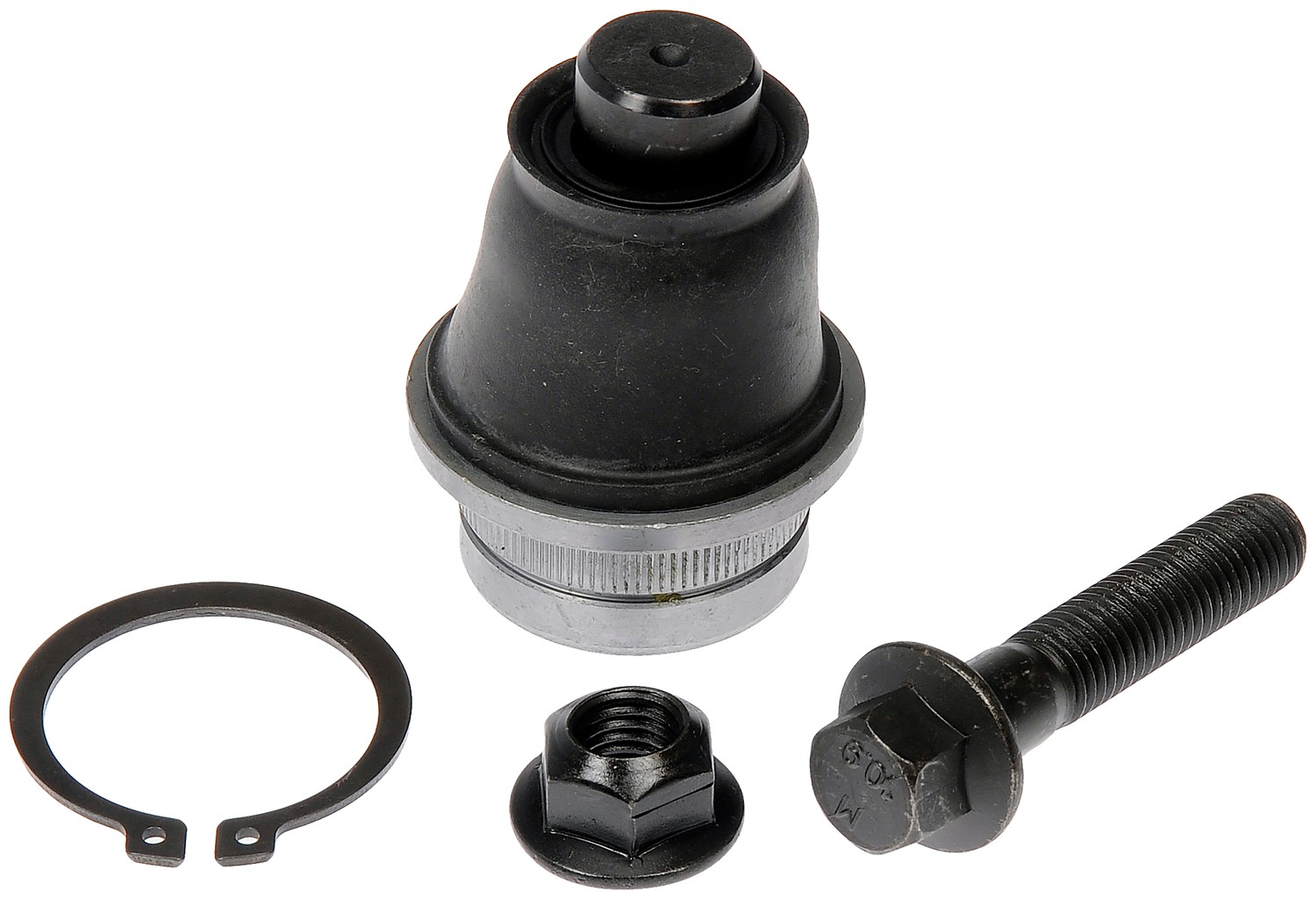

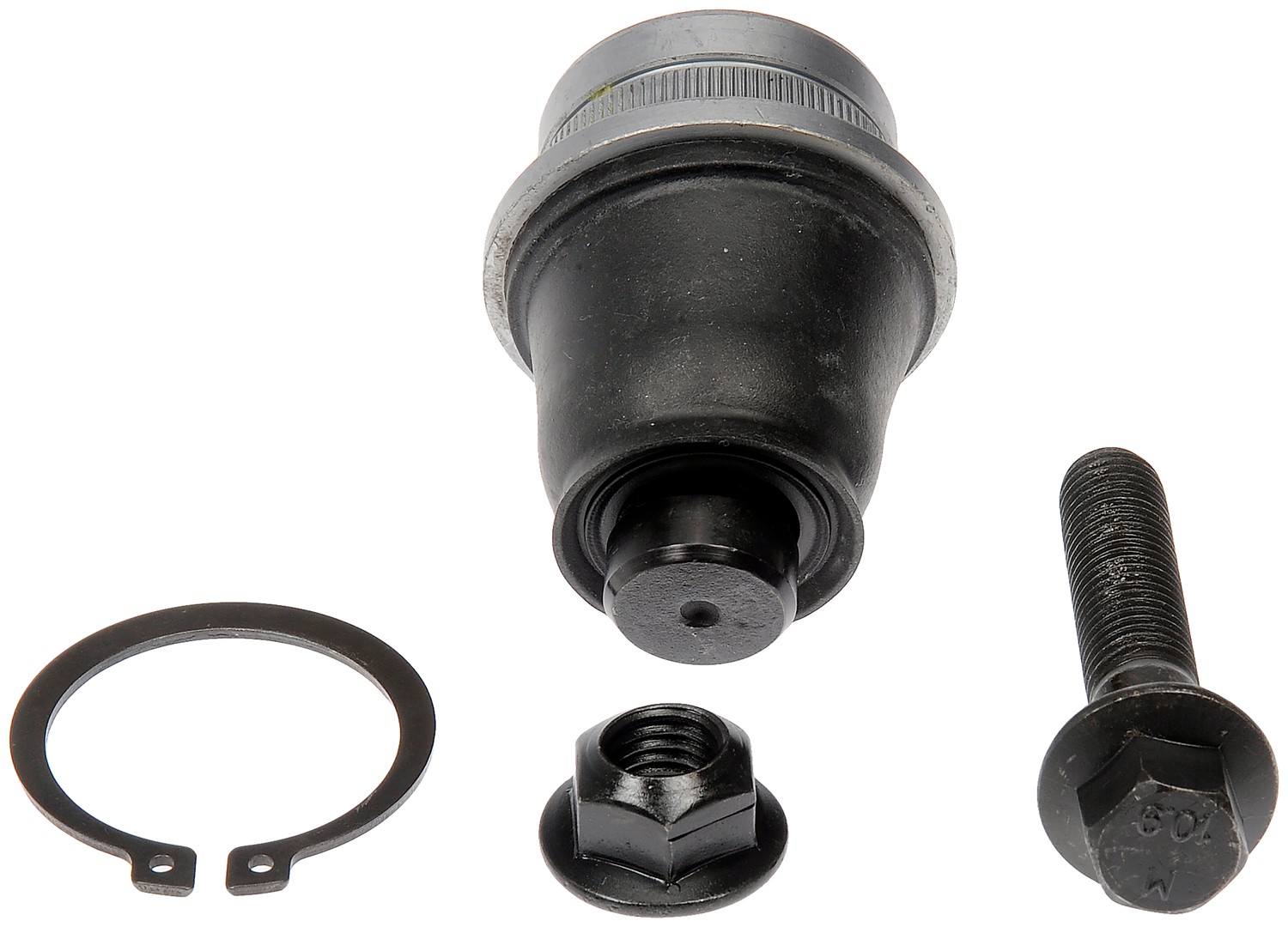

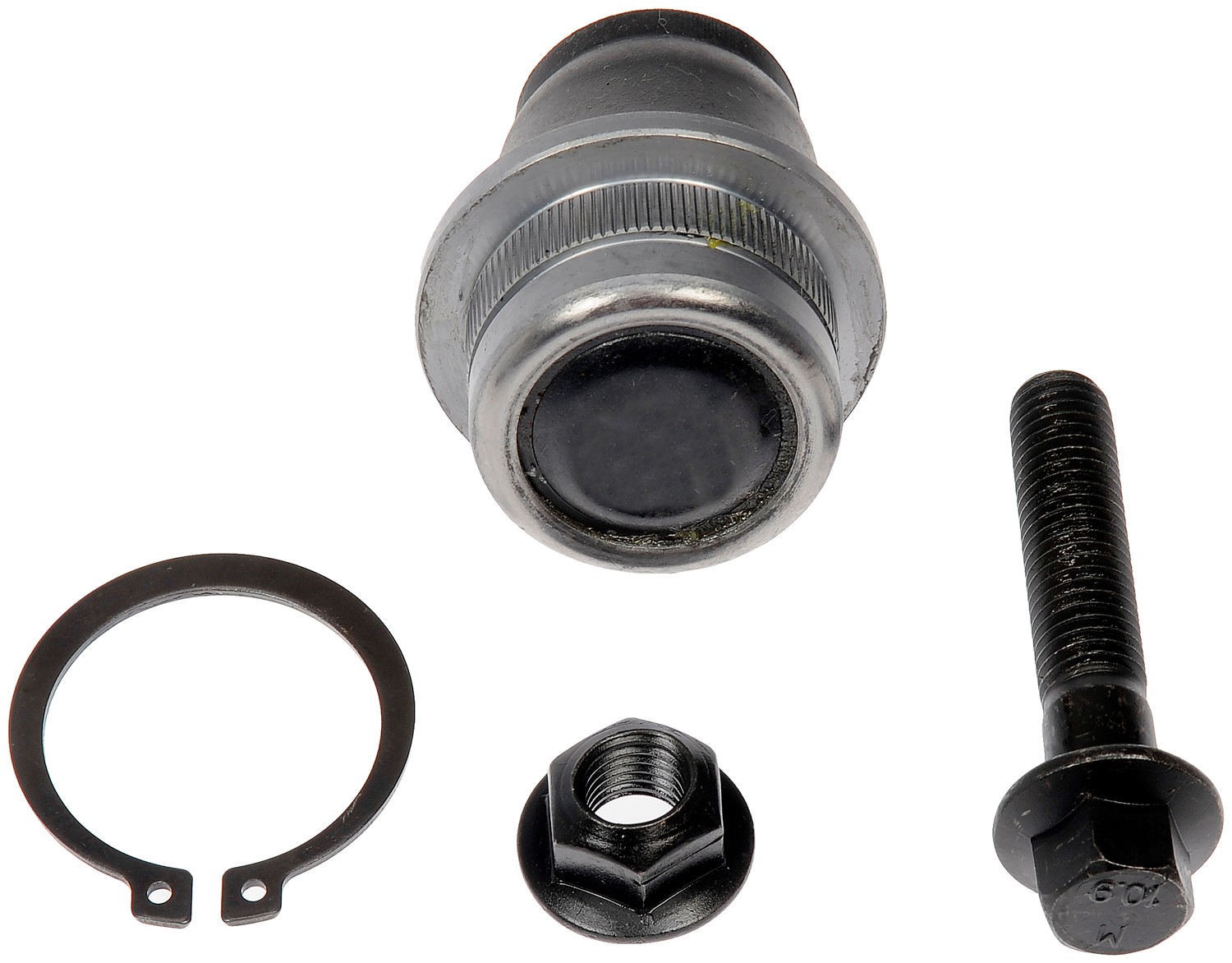

Package Contents	1 Retaining Ring
Package Contents	1 Nut
Package Contents	1 Bolt
Package Contents	1 Ball Joint
Nuts Included	Yes
Bushing Included	No
Bolts/Studs Included	Yes
Material	Steel
Length	111 MM
Width	59 MM
Height	85.03 MM
Maximum Outside Diameter	61 MM
Thread Pitch	1.5 mm MM
Stud Thread Pitch	1.5 mm MM
Stud Thread Diameter	20 mm MM
Housing Press Fit Diameter	40.2 mm MM
839	12 mm MM
9211	2 IN
4966	35.5 MM
9213	27.2 MM
9212	22 MM
9210	Yes
9209	No
9204	No
9090	Polychloroprene
2827	No
2381	Yes
2334	No
881	Pinch
Attachment Type	Pinch
Ball Joint Installed	Yes
