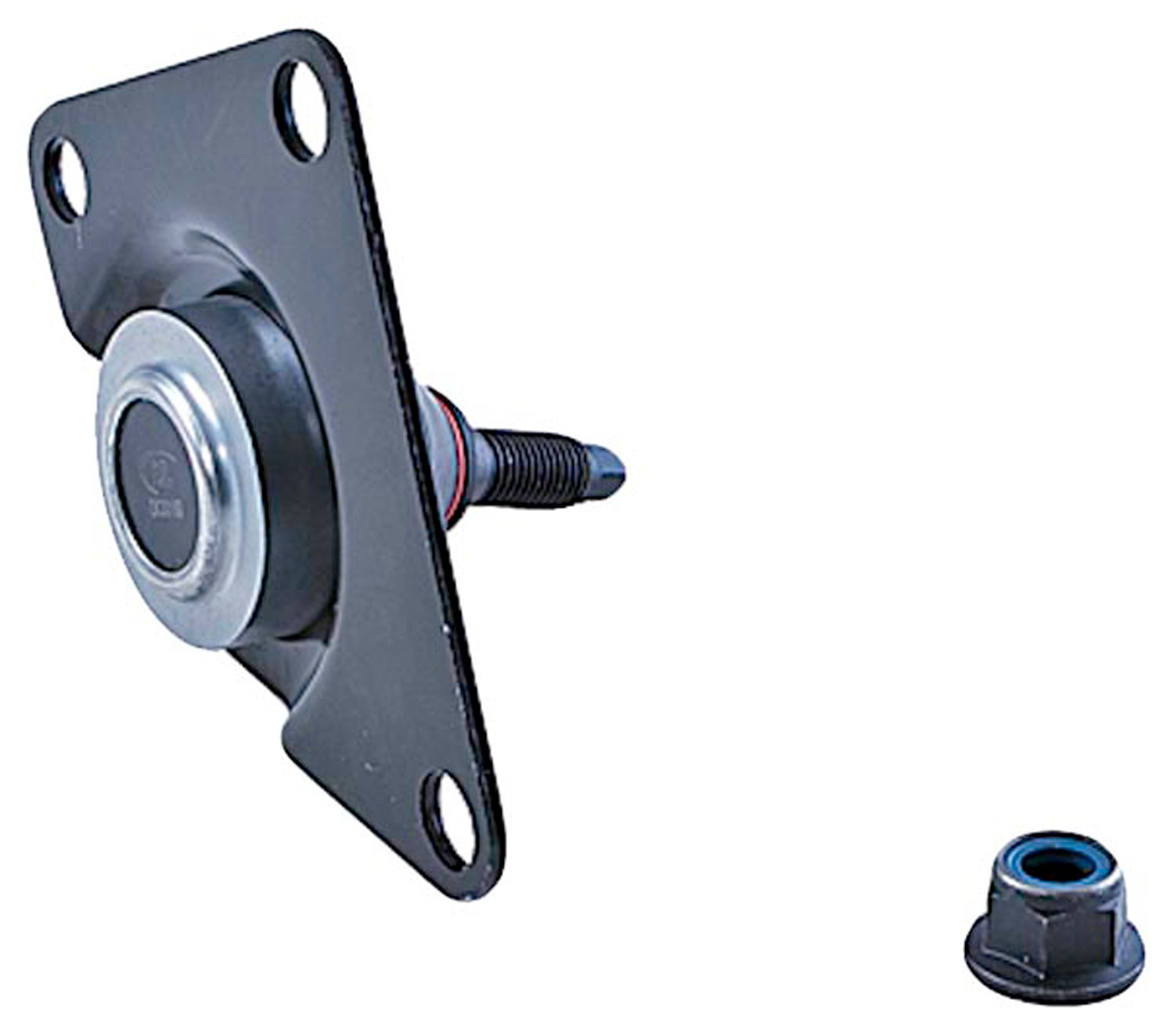

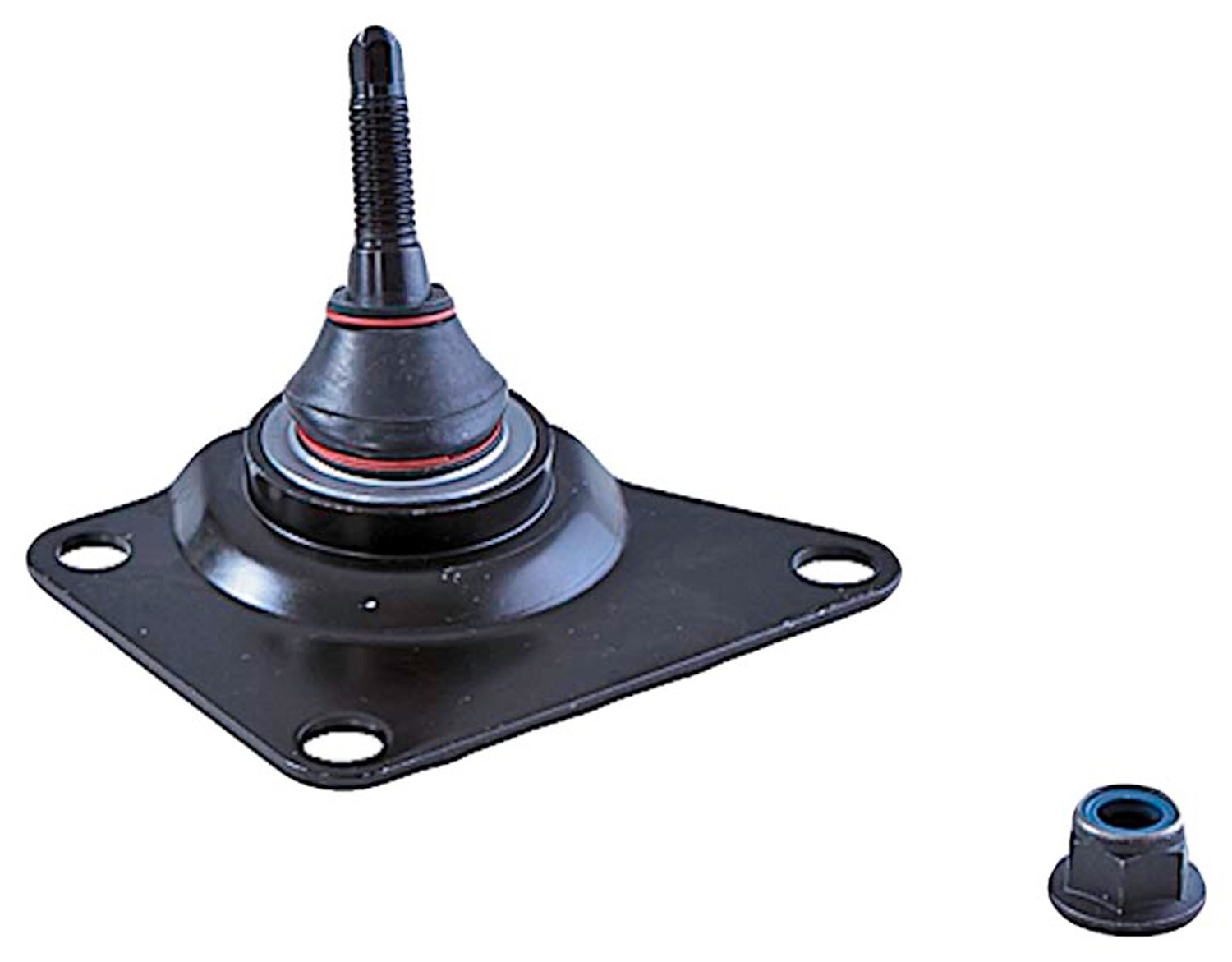

Dorman BJ96519XL Suspension Ball Joint

Dorman BJ96519XL Suspension Ball Joint

Features:

Premium corrosion resistance – WeatherShield external coating to resist corrosion

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

4966	35.5 MM
9211	2 IN
Type	Threaded
Thread Pitch	2 mm MM
Color	Grey
Material	Steel
Package Contents	1 Nut
Package Contents	1 Ball Joint
Nuts Included	Yes
Bushing Included	No
Bolts/Studs Included	Yes
9212	22 MM
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Taper
9210	Yes
9209	No
9204	No
9090	Polychloroprene
9213	27.2 MM
Housing Press Fit Diameter	45 mm MM
Stud Thread Diameter	14 mm MM
Bushing Quantity	0
Greaseable	No
Washers Included	No
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Suspension Grade Type	Standard
Grease Fitting Included	No
Mounting Hole Quantity	3
Mounting Type	Bolt-In
Adjustable	No
Stud Thread Pitch	1.5 mm MM
Mounting Hardware Included	Yes
Length	111 MM
2827	No
2381	Yes
Width	59 MM
Height	85.03 MM
Maximum Outside Diameter	61 MM
2334	No
881	Tapered
839	12 mm MM
