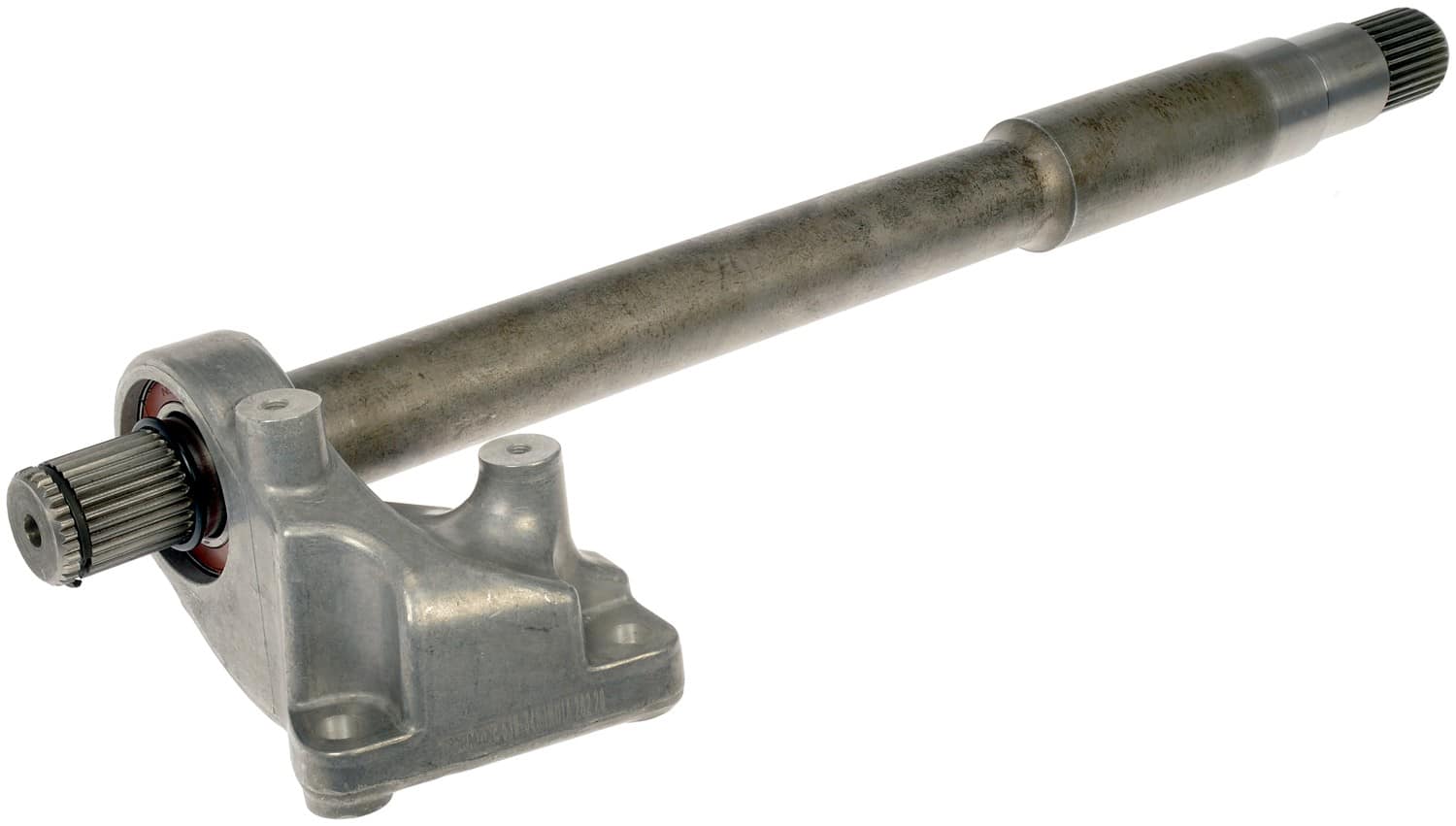

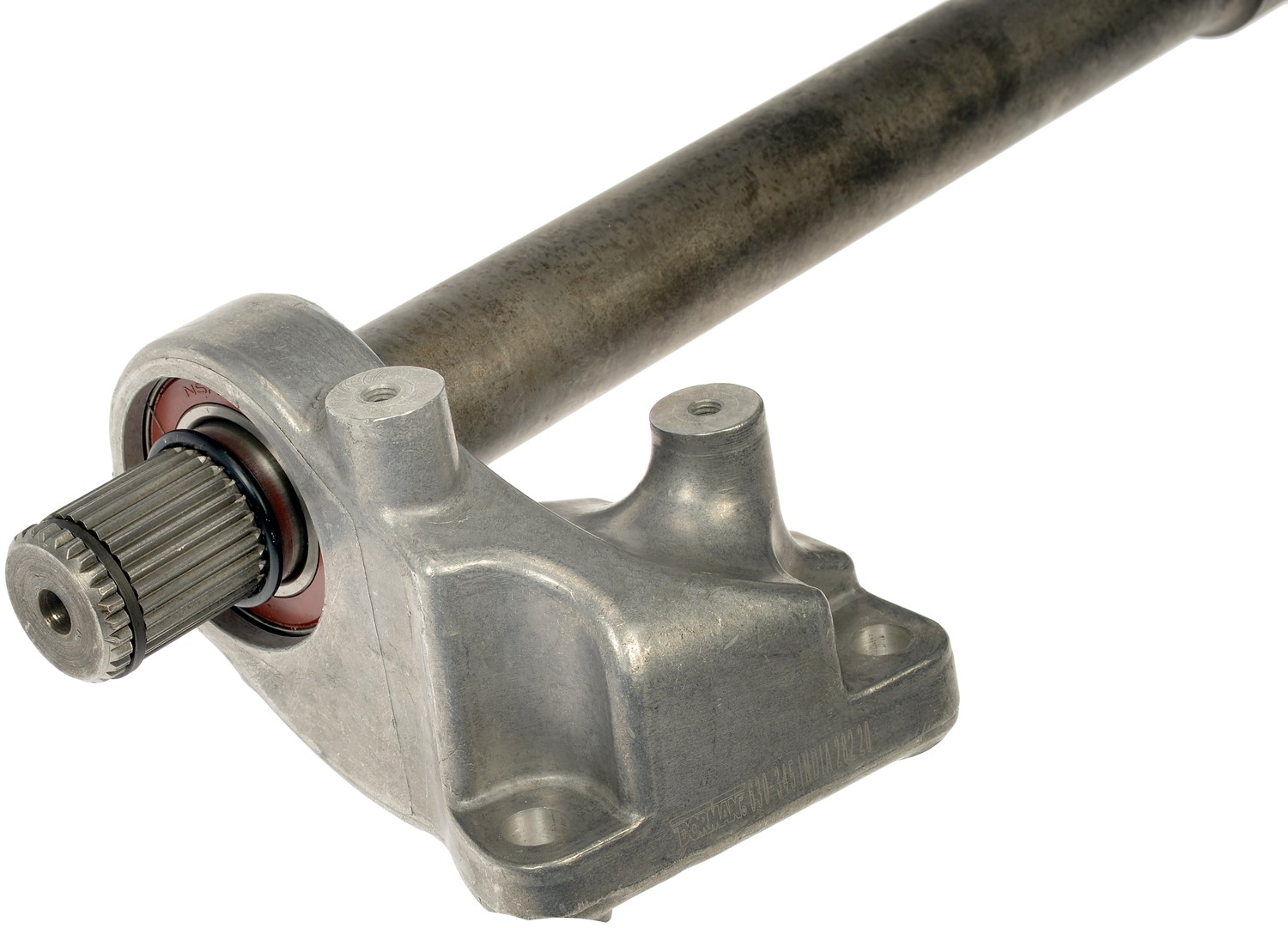

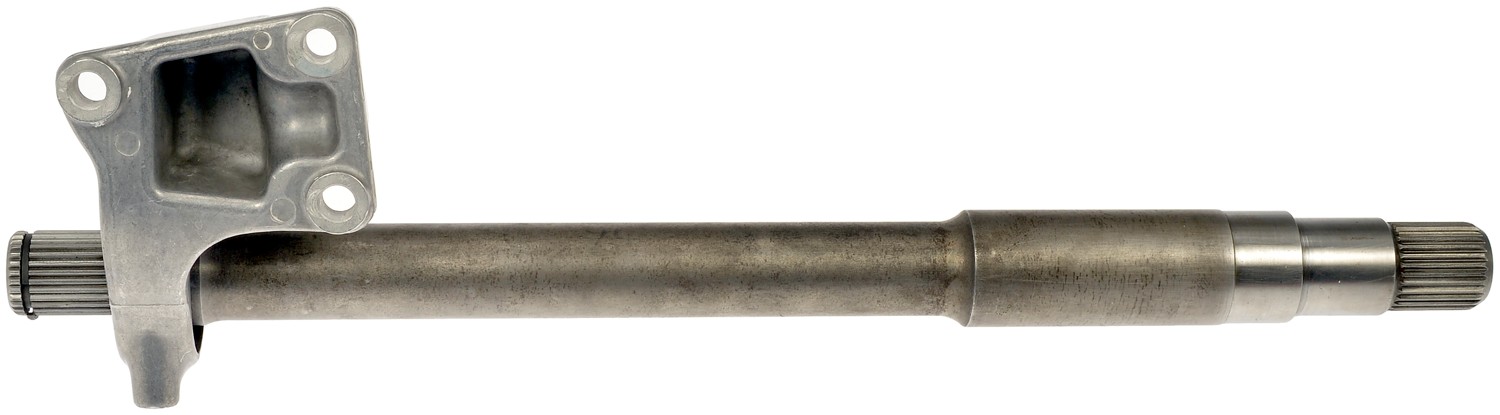

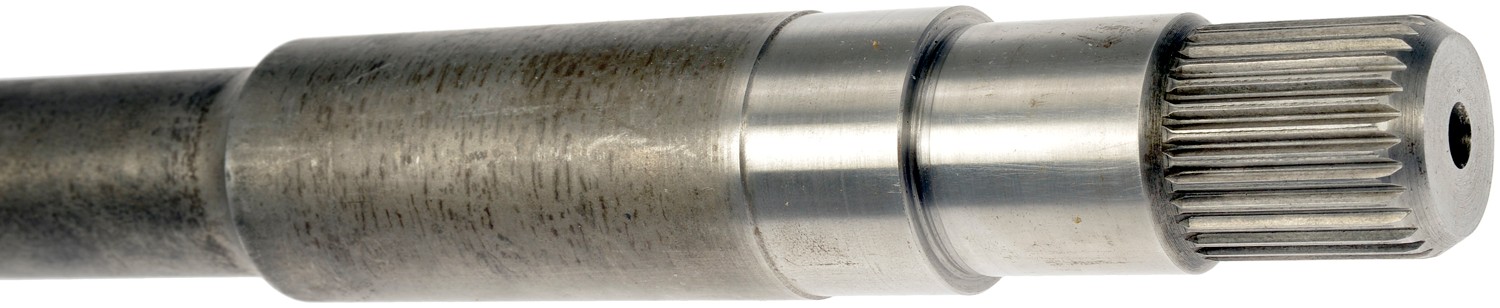

Dorman DOR-630-345 Front Intermediate Axle Shaft Assembly

Dorman DOR-630-345 Front Intermediate Axle Shaft Assembly

Features:

Complete kit – each shaft includes critical installation hardware and components needed for specific vehicle applications
Direct replacement – this axle shaft replaces the original equipment on specific vehicle years, makes and models
Durable construction – designed to rigorous standards and tested to ensure performance
Trustworthy solution – backed by team of engineers and quality control specialists in the United States

Axle shaft damaged or bearings worn out? This axle shaft directly replaces the original equipment on certain vehicles, complete with all necessary application-specific installation components.

Attributes:

Wheel Lug Quantity	5
Inboard Spline Quantity	29
3386	No
Finish	Galvanized
Hole Quantity	3
Outboard Spline Quantity	29
Shaft Length	20.
ABS Tone Ring Installed	Not Included
Differential Case Design Type	Transaxle
Spline Quantity	29
Material	Carbon Steel
Minimum Length	20.1 in
Axle Type	Solid Shaft Axle
9394	No
Axle Nut Included	No
Length (In)	20.1 in
9390	No
4181	No
Retainer Clips Included	Yes
Package Contents	1 Axle Shaft and Bearing Assembly
Wheel Bolt Pattern Size	5 x 4.5 in
Shaft Diameter	1.3
Rust Resistant Coating	Yes
Shaft Material	SAE1541H
Diameter	1.3 in
