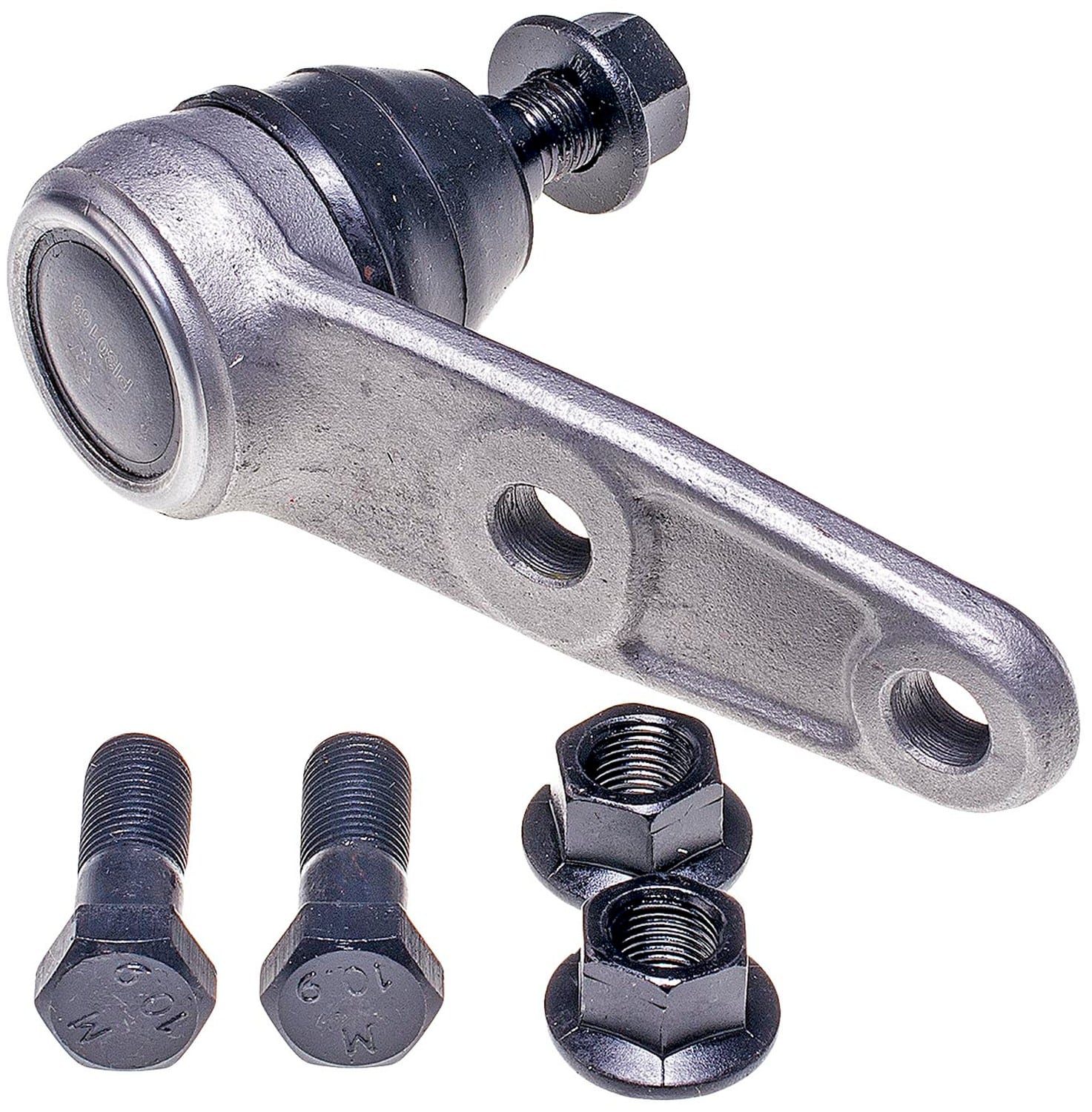

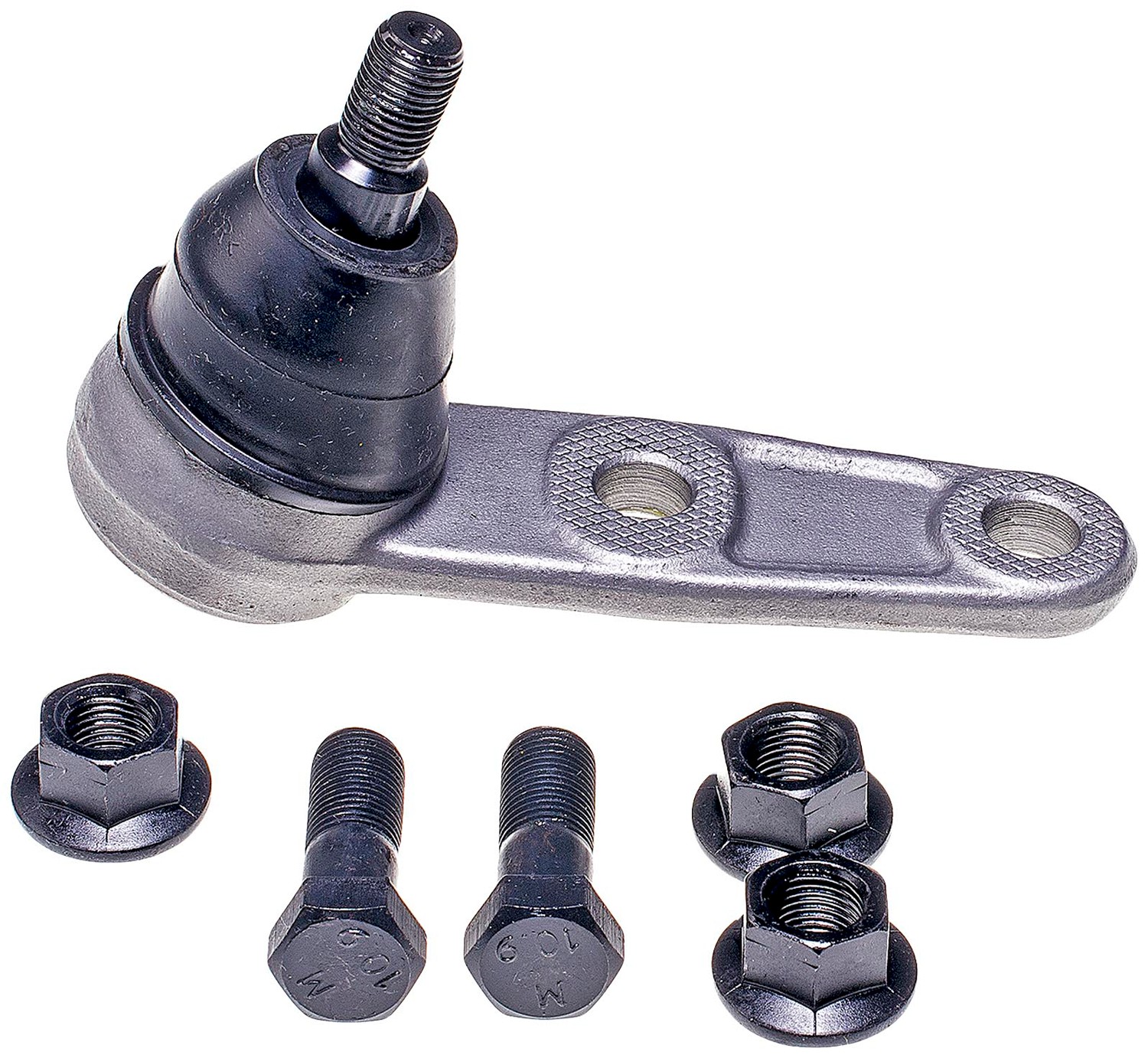

Dorman DOR-BJ55005XL Suspension Ball Joint

Dorman DOR-BJ55005XL Suspension Ball Joint

Features:

Premium corrosion resistance – WeatherShield external coating to resist corrosion
Extended-life construction – this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Cotter Pin Hole	No
Maximum Outside Diameter	61
9204	No
Nuts Included	Yes
Greaseable	No
Bushing Quantity	0
9090	Polychloroprene
4966	35.5
2827	No
2381	Yes
2334	No
839	12 mm
9215	1.5
Mounting Hole Quantity	0
Mounting Type	Bolt-In
Adjustable	No
Housing Press Fit Diameter	45 mm
Bushing Included	No
Bolts/Studs Included	Yes
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Taper
9209	No
9210	Yes
9211	2
9212	22
9213	27.2
Height	85.03
Mounting Hardware Included	Yes
Type	Threaded
Width	59
Color	Grey
Length	111
Material	Steel
Stud Thread Diameter	12
Package Contents	1 Ball Joint
Package Contents	3 Nuts
Package Contents	2 Bolts
Thread Pitch	1.25 mm
Grease Fitting Included	No
Suspension Grade Type	Premium
Bushings Included	No
Dust Boot Included	Yes
881	Tapered
Washers Included	No

Vehicle Applications:

Make	Model	Years
Chevrolet	Aveo5	2006 to 2011
Chevrolet	Aveo	2004 to 2018
Pontiac	G3 Wave	2009 to 2009
Pontiac	G3	2007 to 2010
Pontiac	Wave5	2005 to 2007
Pontiac	Wave	2005 to 2008
Suzuki	Swift+	2004 to 2010
