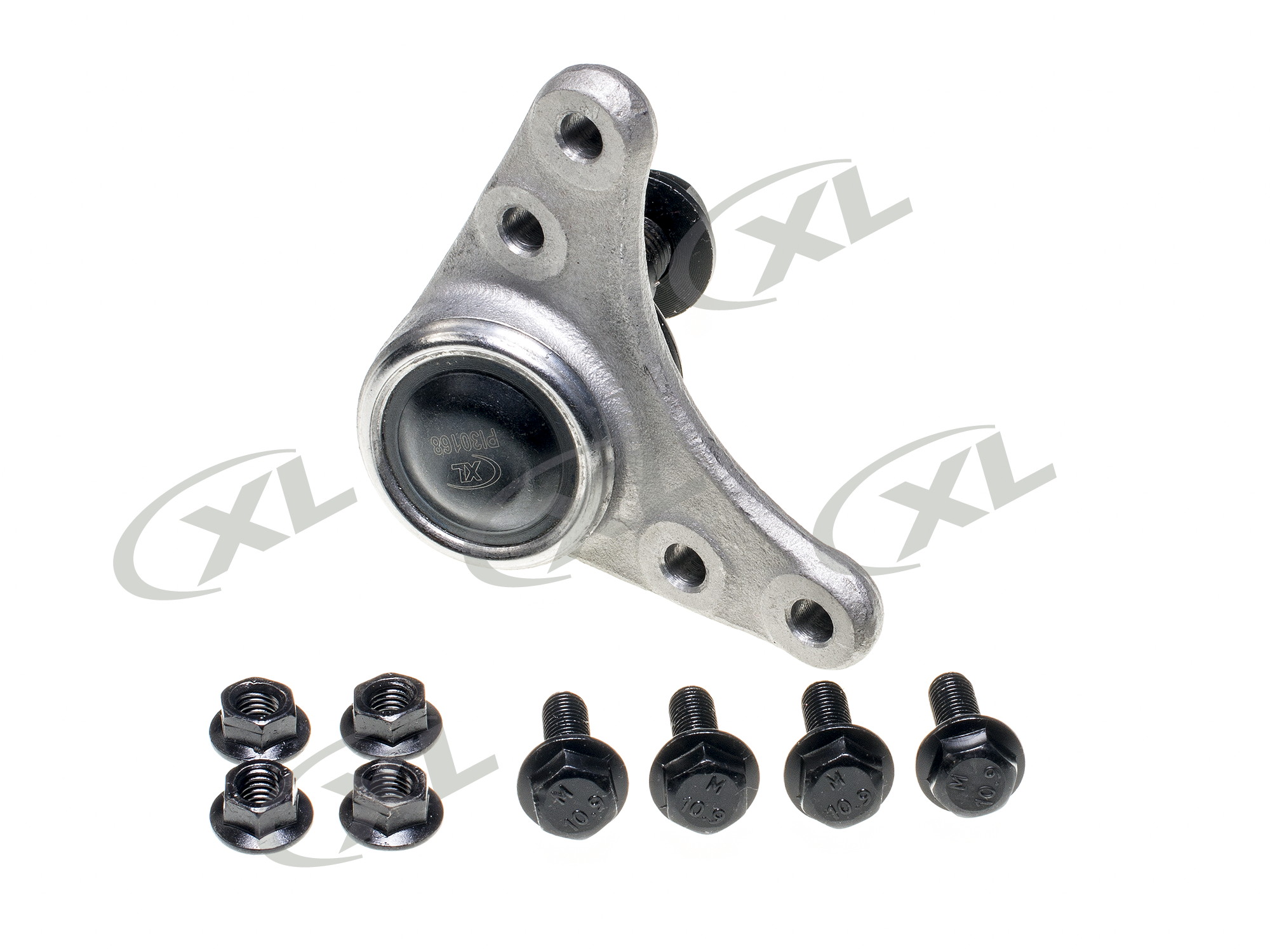

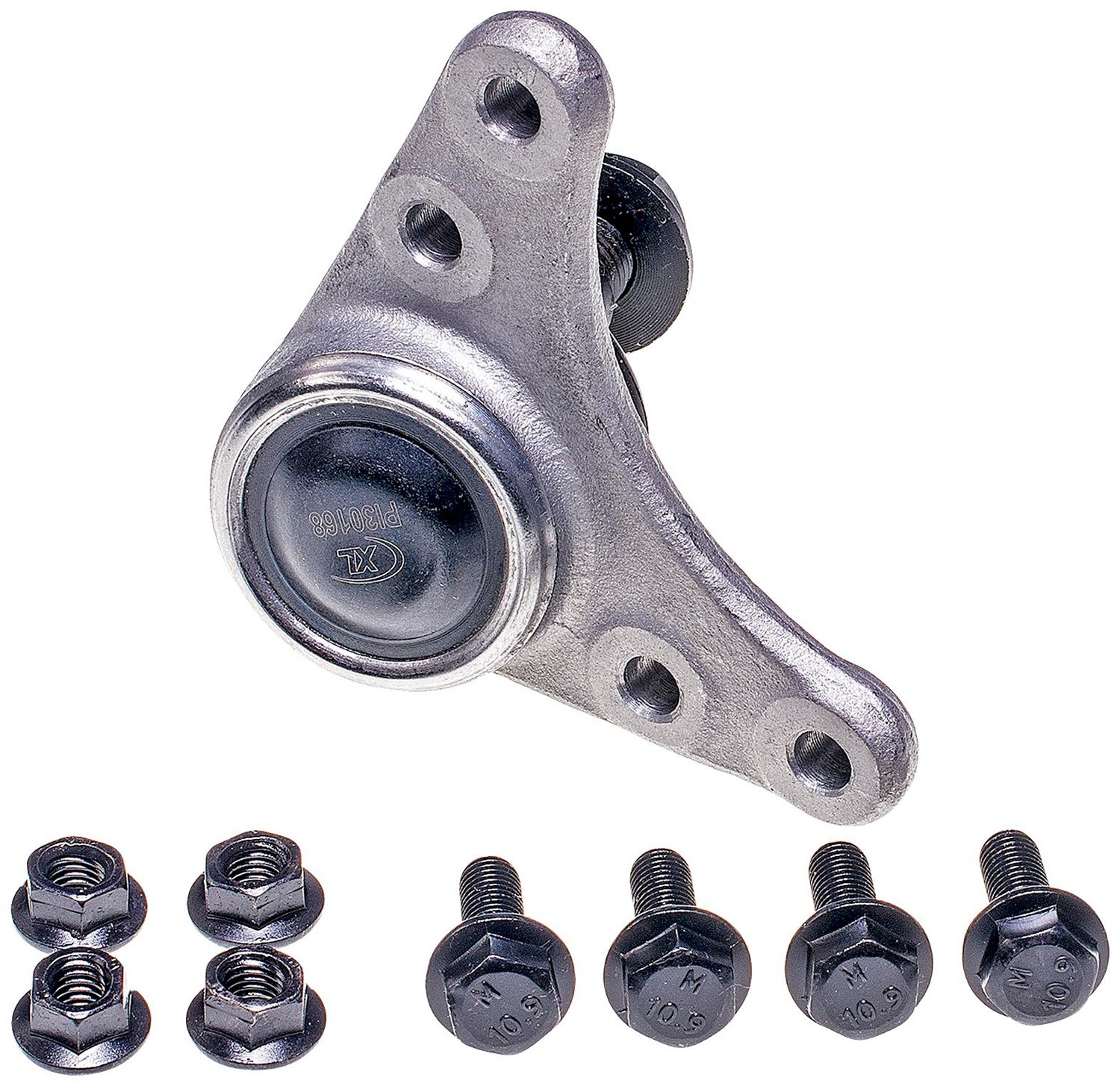

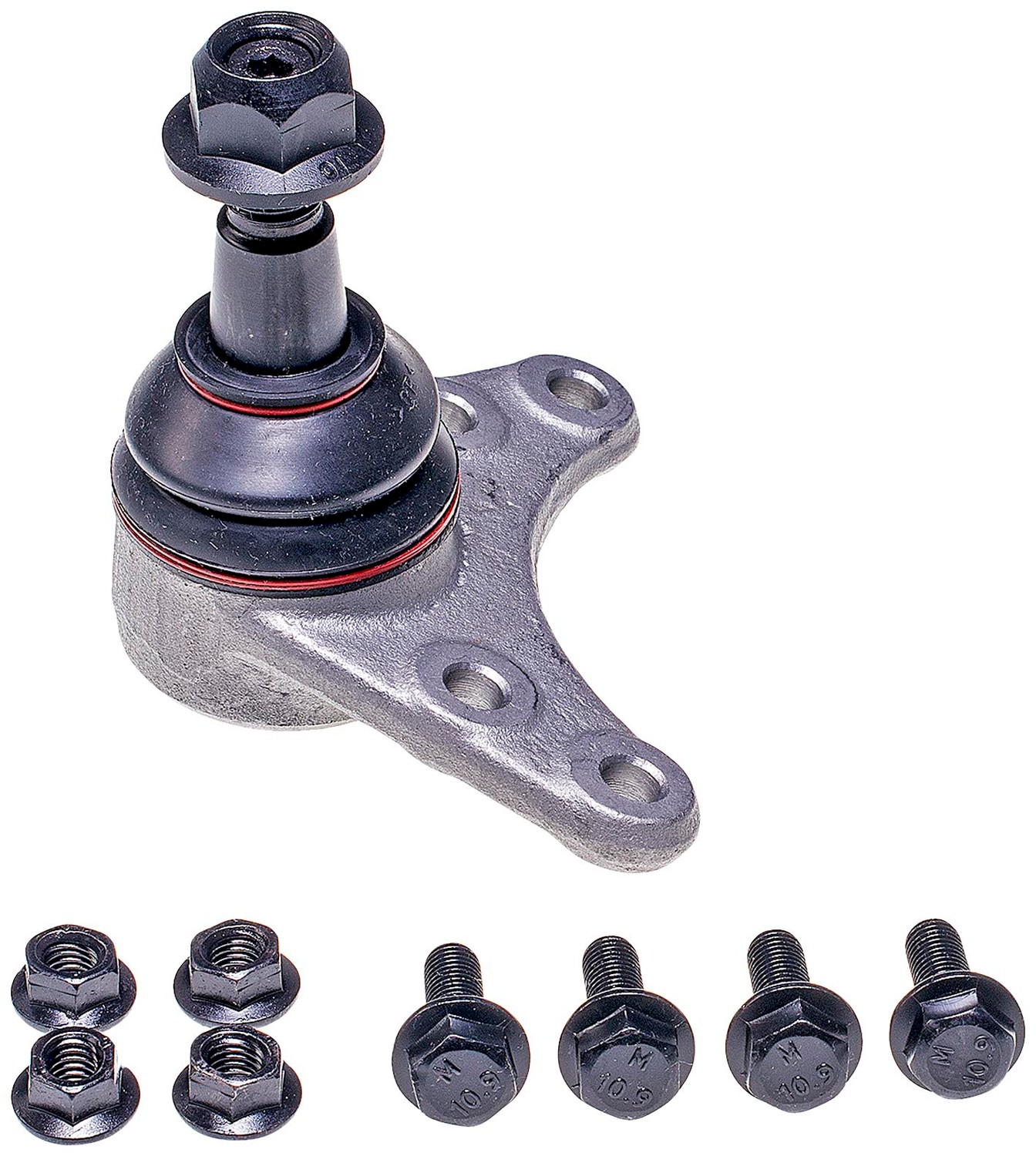

Dorman DOR-BJ90036XL Suspension Ball Joint

Dorman DOR-BJ90036XL Suspension Ball Joint

Features:

Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Extended-life construction – this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Premium corrosion resistance – WeatherShield external coating to resist corrosion

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

2334	No
881	Tapered
839	12 mm
Mounting Hardware Included	Yes
Suspension Grade Type	Premium
Grease Fitting Included	No
Type	Threaded
Width	59
Color	Grey
Length	111
Material	Steel
Bearing Material	Polymer
Ball Joint Installed	Yes
Attachment Type	Taper
9215	1.5
9213	27.2
9212	22
9211	2
9210	Yes
Stud Thread Diameter	14
Maximum Outside Diameter	61
Mounting Hole Quantity	4
Mounting Type	Bolt-In
Adjustable	No
Height	85.03
Washers Included	No
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Bushing Quantity	0
Greaseable	No
Nuts Included	Yes
Thread Pitch	2 mm
Package Contents	5 Nuts
Package Contents	4 Bolts
Package Contents	1 Ball Joint
Housing Press Fit Diameter	45 mm
Bushing Included	No
Bolts/Studs Included	Yes
9209	No
9204	No
9090	Polychloroprene
4966	35.5
2827	No
2381	Yes

Vehicle Applications:

Make	Model	Years
Chevrolet	Colorado	2004 to 2015
Chevrolet	S10	2016 to 2017
GMC	Canyon	2004 to 2012
Isuzu	i-280	2006 to 2006
Isuzu	i-290	2007 to 2008
Isuzu	i-370	2008 to 2008
