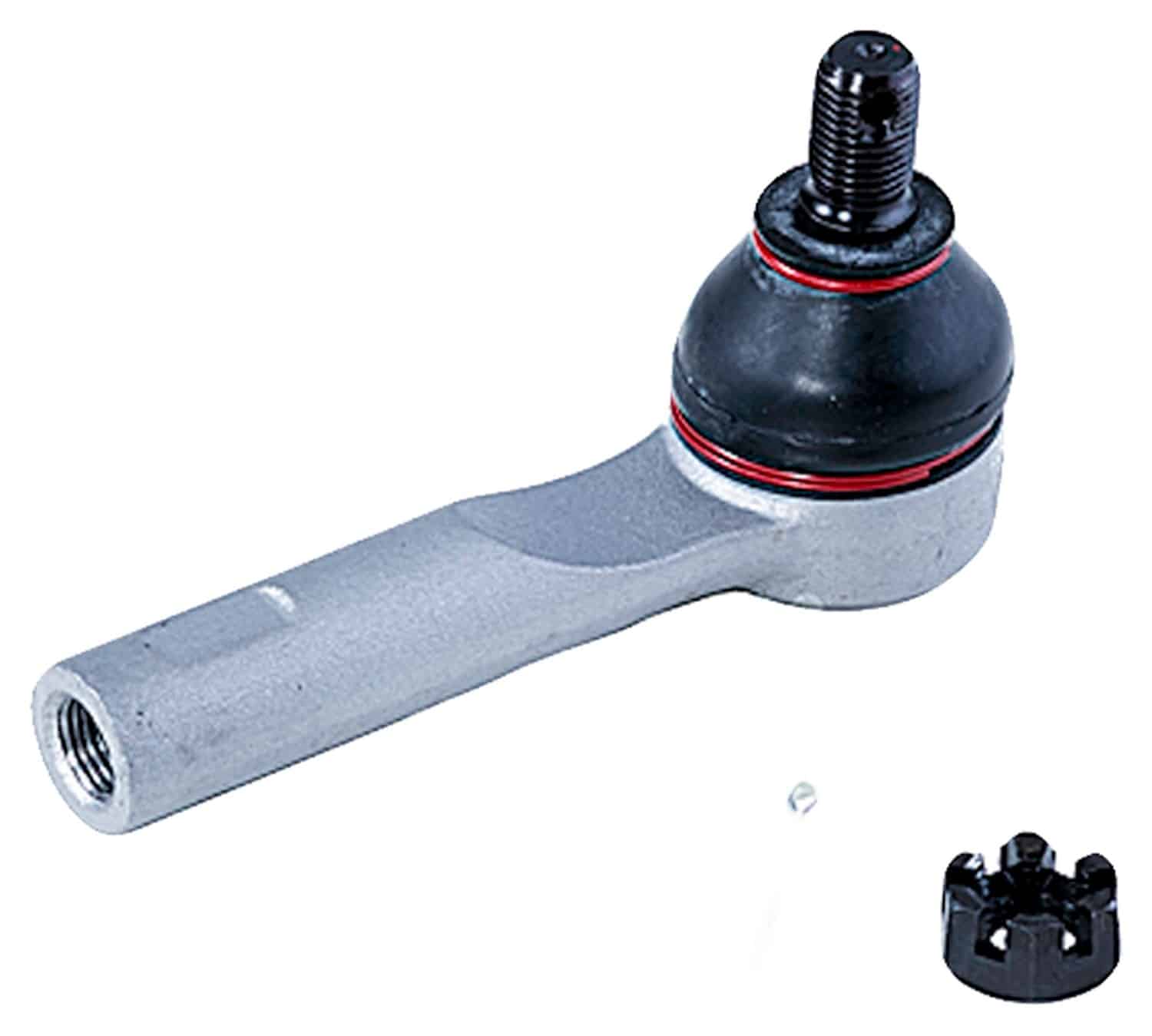

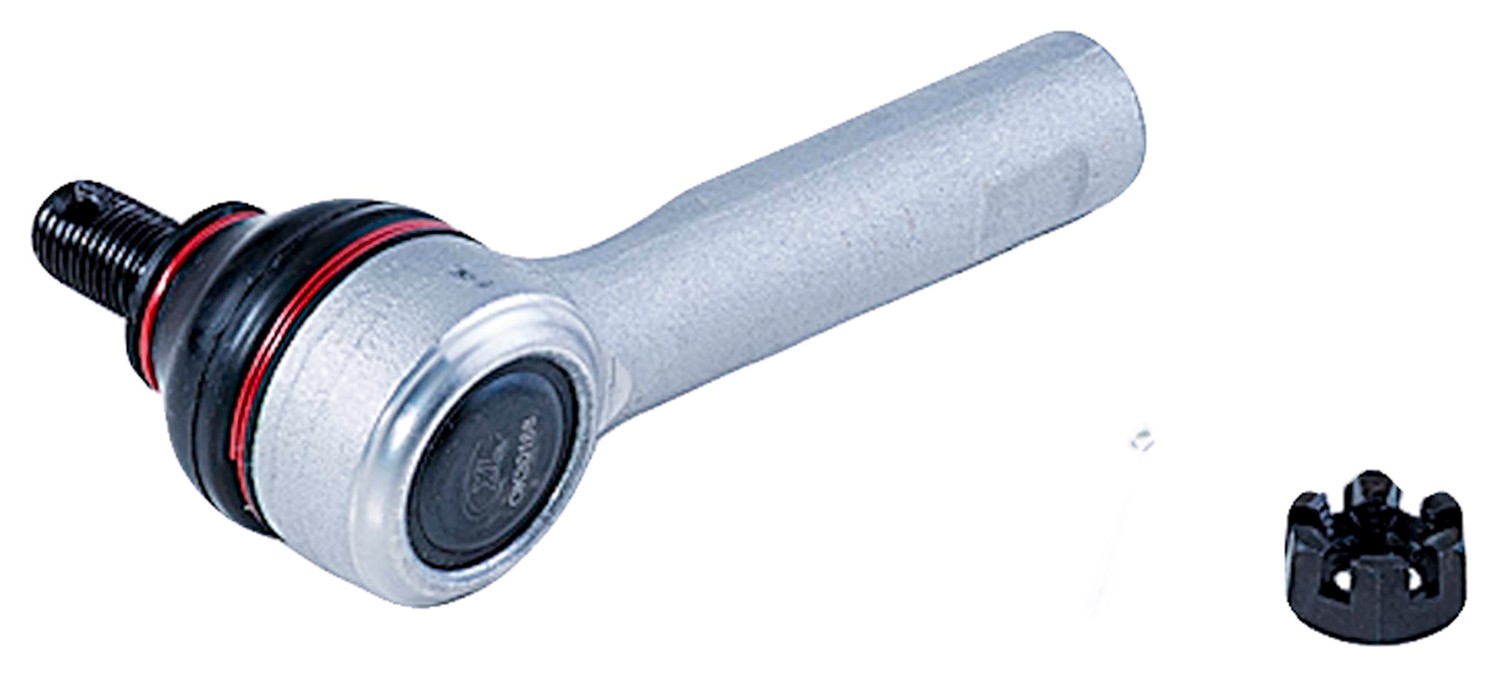

Dorman DOR-T2814XL Steering Tie Rod End

Dorman DOR-T2814XL Steering Tie Rod End

Features:

Premium corrosion resistance – WeatherShield external coating to resist corrosion
Extended-life construction – this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Greaseable	No
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Pitch	1.25
Dust Boot Included	Yes
36	20
End 2 Threads per Inch	2
Outside Diameter	41.15 mm
Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
Center Mount Stud Quantity	1
Center Mount Hole Quantity	1
Bolts Included	No
Ball Joint Included	Yes
9091	Steel
9090	Polychloroprene
5235	No
4241	Yes
2827	Yes
2334	Yes
881	Threaded
705	Regular
662	12.8
End 1 Thread Pitch	1.25
Head Drive Type	Smooth
Length	100
Color	Silver
Color	Black
Width	41.15
Type	Straight
Mounting Hardware Included	Yes
Height	66.57
Adjustable	Yes
Stud Length	19
Finish	E-Coated
Package Contents	1 Tie Rod
Package Contents	1 Castle Nut
Package Contents	1 Cotter Pin
Thread Pitch	1.25 mm
Tie Rod End Thread Diameter	12 mm
Weight	0.8 lb
Housing Material	Steel
Boot Colour	Black
Bearing Material	Polymer
End 1 Thread Diameter	12
Washer Included	No
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
End 2 Thread Diameter	12
Grade Type	Standard
End 1 Thread Direction	Counterclockwise (Left)

Vehicle Applications:

Make	Model	Years
Nissan	200SX	1995 to 1998
Nissan	240SX	1989 to 1994
Nissan	Almera	2001 to 2005
Nissan	Altima	1996 to 2001
Nissan	Hikari	1988 to 1992
Nissan	Lucino	1996 to 2000
Nissan	Multi	1986 to 1988
Nissan	Pulsar NX	1987 to 1990
Nissan	Sentra	1986 to 2006
Nissan	Stanza	1986 to 1988
Nissan	Tsubame	1993 to 2004
Nissan	Tsuru	1986 to 2017
