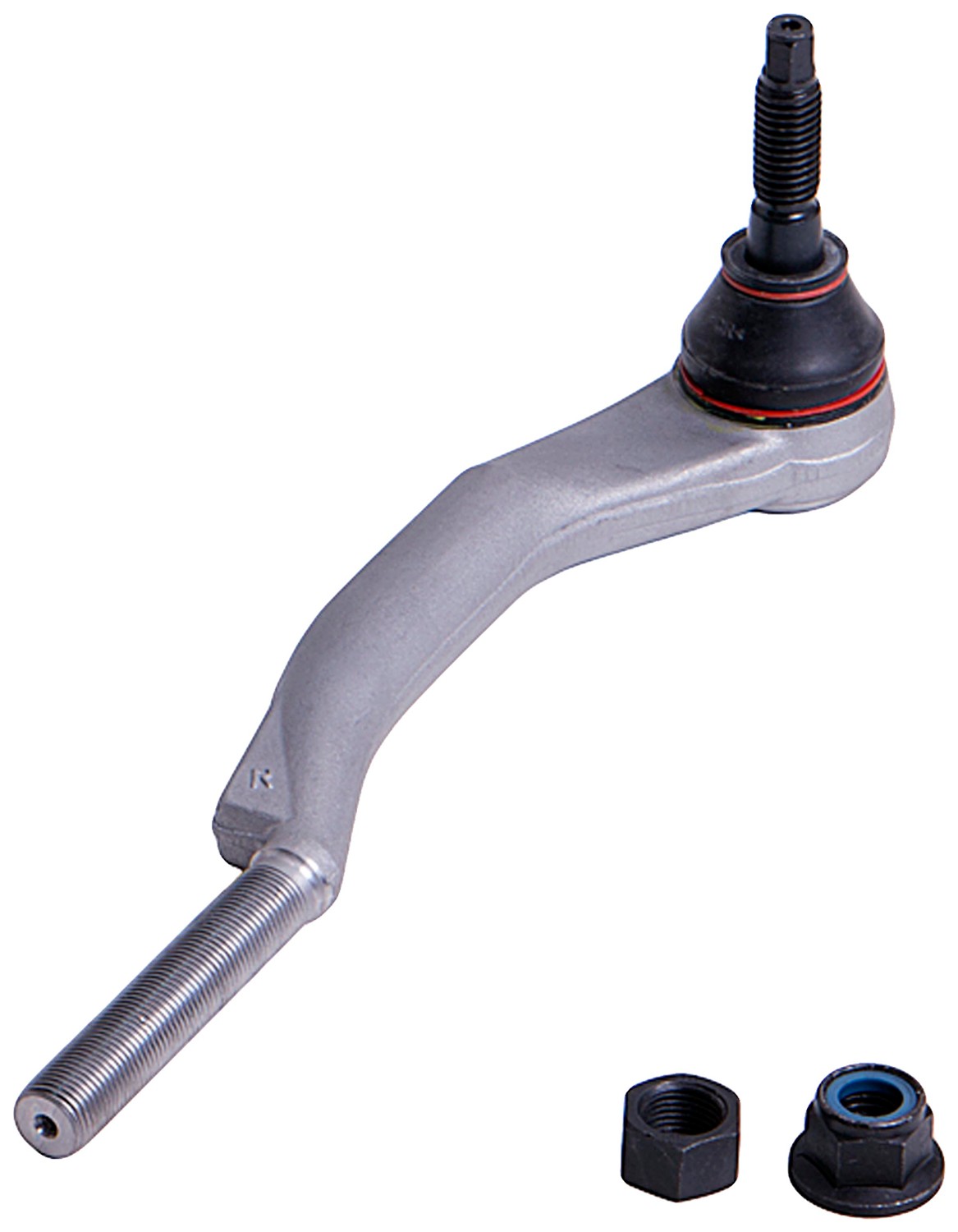

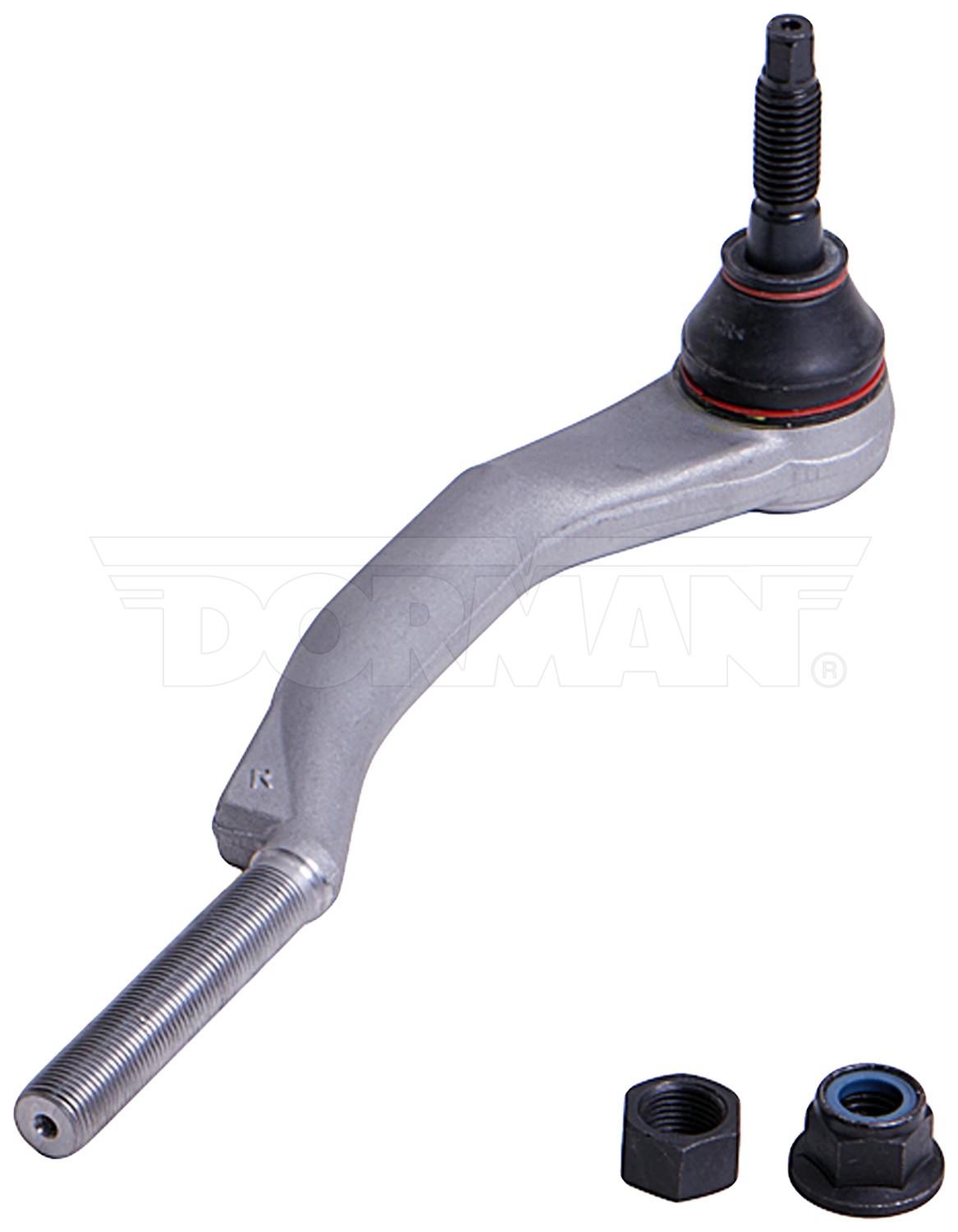

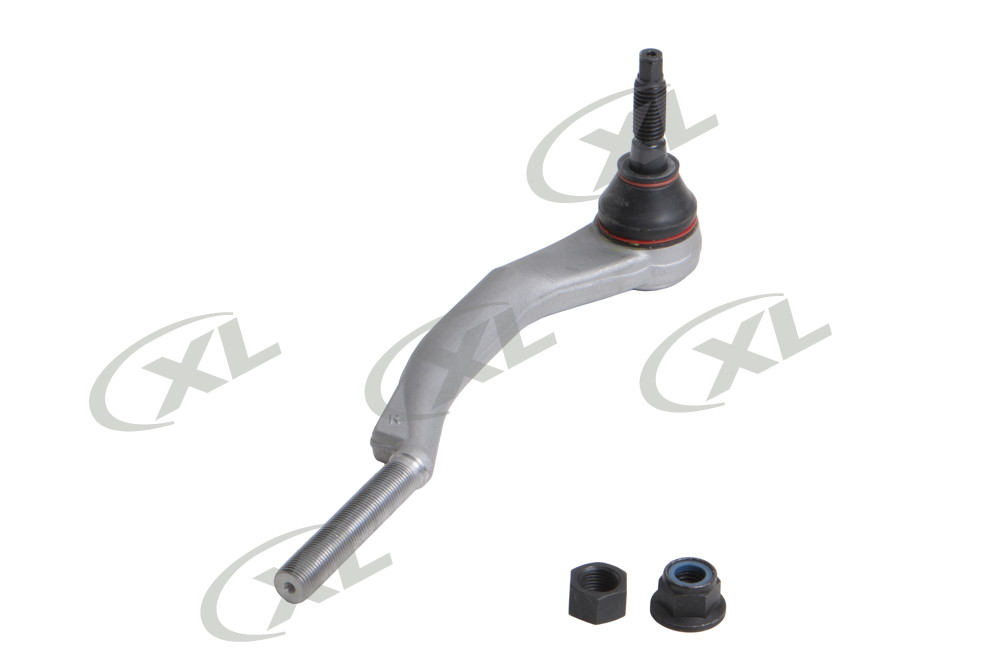

Dorman DOR-TO91092XL Steering Tie Rod End

Dorman DOR-TO91092XL Steering Tie Rod End

Features:

Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Extended-life construction – this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Premium corrosion resistance – WeatherShield external coating to resist corrosion

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Width	39.74
36	26.19
662	14.4
705	Regular
881	Threaded
1786	23.4
2334	Yes
2827	No
4241	Yes
5235	No
Head Drive Type	Hex
Length	280
Color	Gray
Type	Bent
Mounting Hardware Included	Yes
Height	102.1
Adjustable	Yes
Stud Length	41
Finish	E-Coated
Housing Material	Steel
Boot Colour	Black
Bearing Material	No
End 1 Thread Diameter	16
Washer Included	No
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
End 2 Thread Diameter	14
Grade Type	Standard
Greaseable	No
Tie Rod End Thread Diameter	16 mm
Weight	3 lb
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Pitch	2
End 1 Thread Pitch	1.5
End 2 Threads per Inch	2
Thread Pitch	2 mm
Package Contents	2 Nuts
Package Contents	1 Tie Rod End
Outside Diameter	39.74 mm
Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
Center Mount Stud Quantity	1
Center Mount Hole Quantity	0
Bolts Included	No
Ball Joint Included	Yes
9091	Steel
9090	Polychloroprene

Vehicle Applications:

Make	Model	Years
Buick	Rainier	2004 to 2007
Chevrolet	SSR	2003 to 2006
Chevrolet	Trailblazer EXT	2002 to 2006
Chevrolet	Trailblazer	2002 to 2009
GMC	Envoy XL	2002 to 2006
GMC	Envoy XUV	2004 to 2005
GMC	Envoy	2002 to 2009
Isuzu	Ascender	2003 to 2008
Oldsmobile	Bravada	2002 to 2004
Saab	9-7x	2005 to 2009
