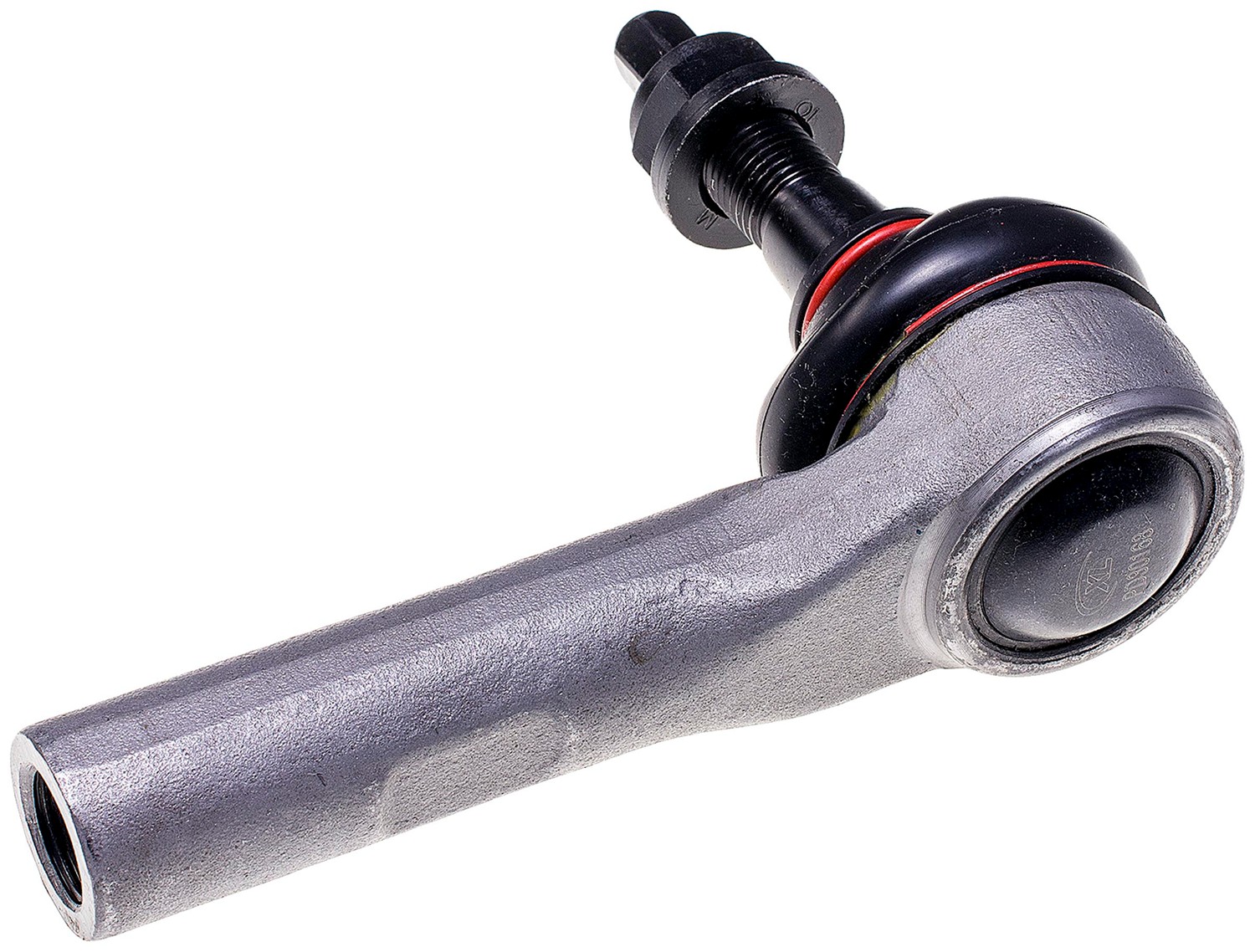

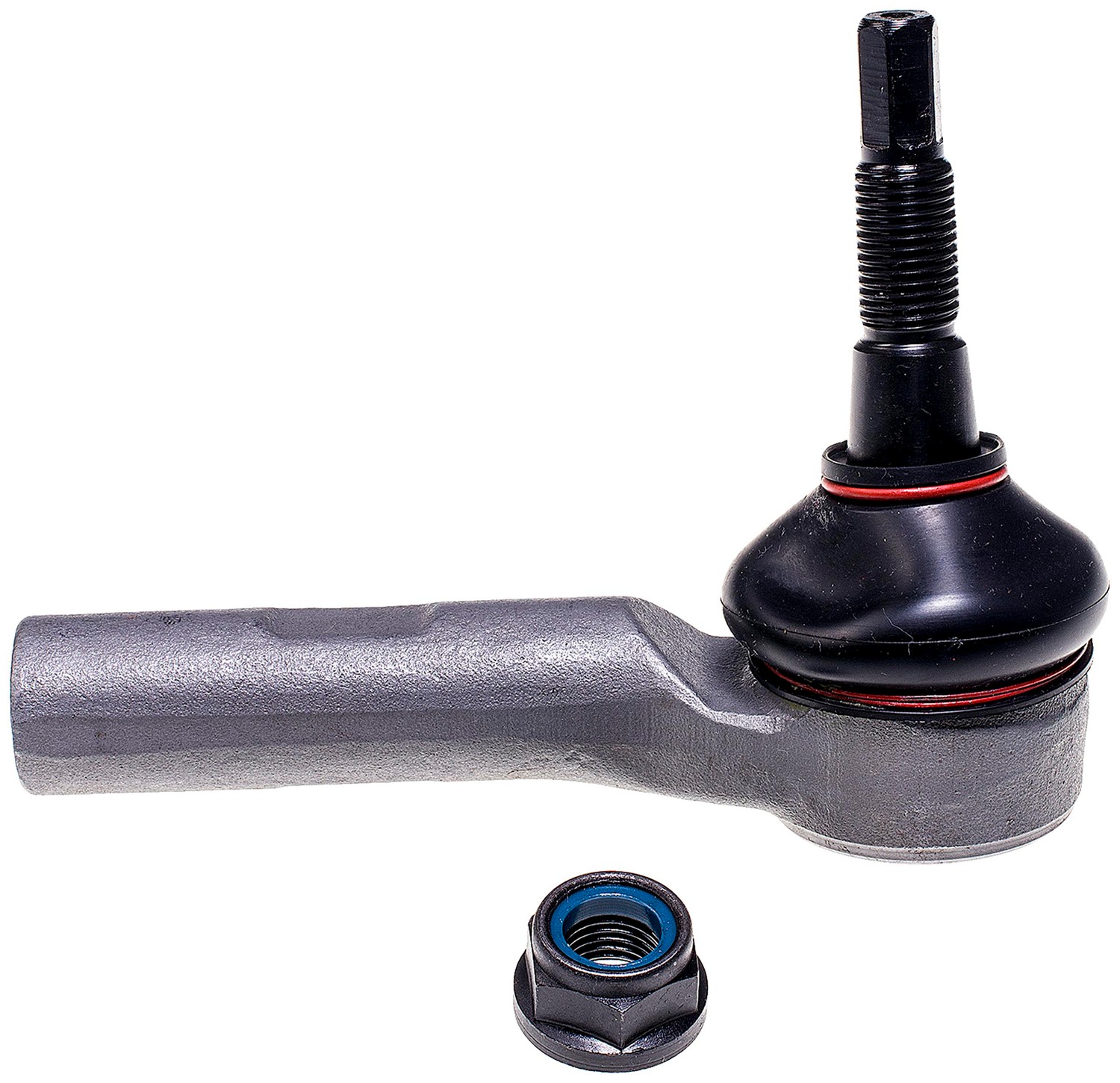

Dorman DOR-TO96002XL Steering Tie Rod End

Dorman DOR-TO96002XL Steering Tie Rod End

Features:

Extended-life construction – this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Center Mount Hole Quantity	1
Bolts Included	No
Ball Joint Included	Yes
9091	Steel
9090	Polychloroprene
2334	No
2827	No
4241	Yes
5235	No
End 2 Attachment Type	Threaded
End 2 Type	Threaded
Material	Steel
Outside Diameter	39.54 mm
Package Contents	1 Tie Rod End
Package Contents	1 Nut
Thread Pitch	1.5 mm
Tie Rod End Thread Diameter	16 mm
Weight	1.68 lb
End 2 Threads per Inch	2
End 1 Thread Pitch	1.5
End 1 Thread Pitch	1.5
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Greaseable	No
Grade Type	Standard
End 2 Thread Diameter	14
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Female
Washer Included	No
End 1 Thread Diameter	16
Bearing Material	Polymer
Boot Colour	Black
Housing Material	Steel
Finish	E-Coated
Stud Length	42.5
Adjustable	Yes
Height	110.9
Mounting Hardware Included	Yes
Type	Straight
Width	39.54
Color	Black
Color	Silver
Length	120
36	24.02
662	15
705	Regular
881	Threaded
1786	22.8
Head Drive Type	Hex
End 1 Attachment Type	Threaded
Center Mount Stud Quantity	1
