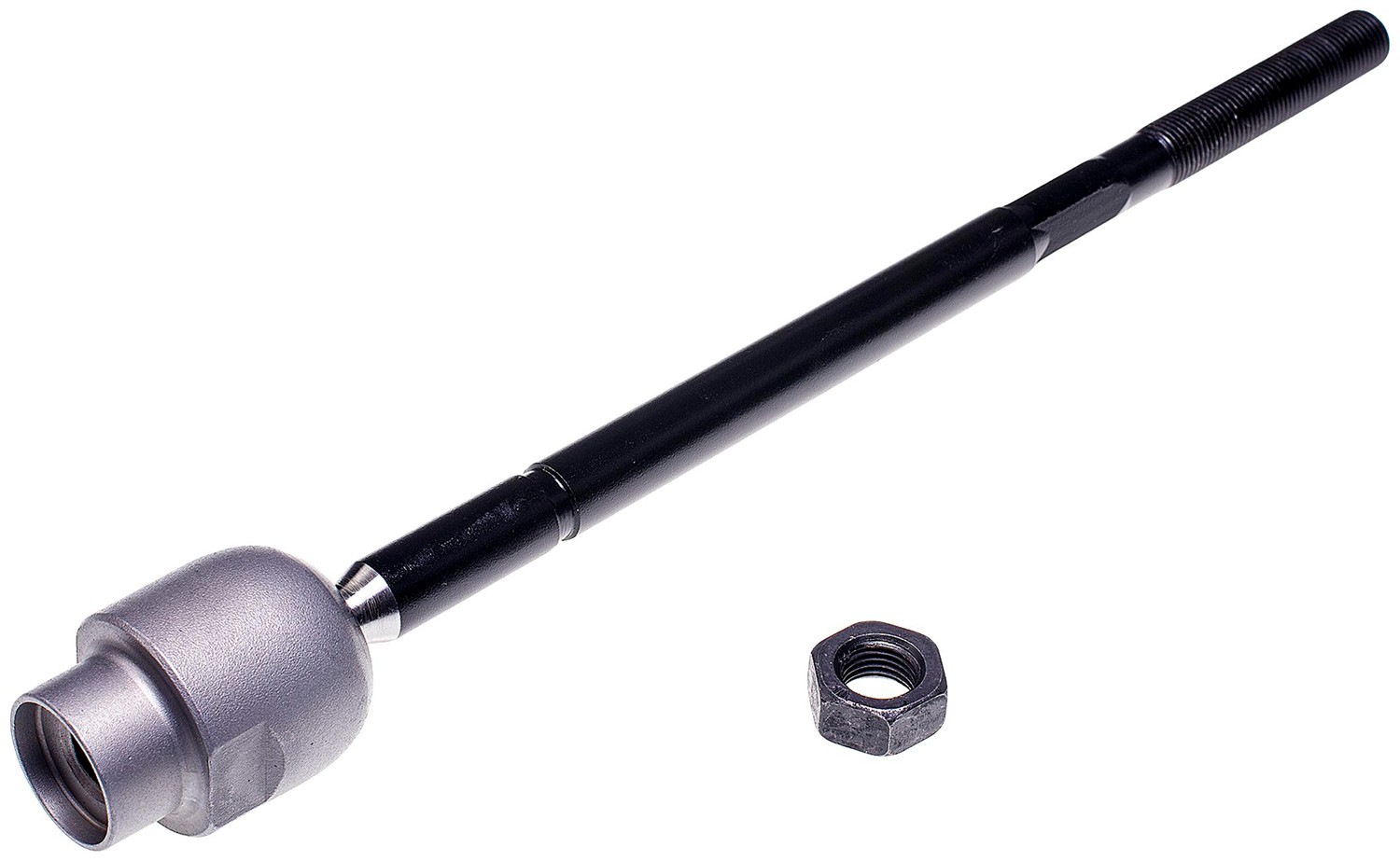

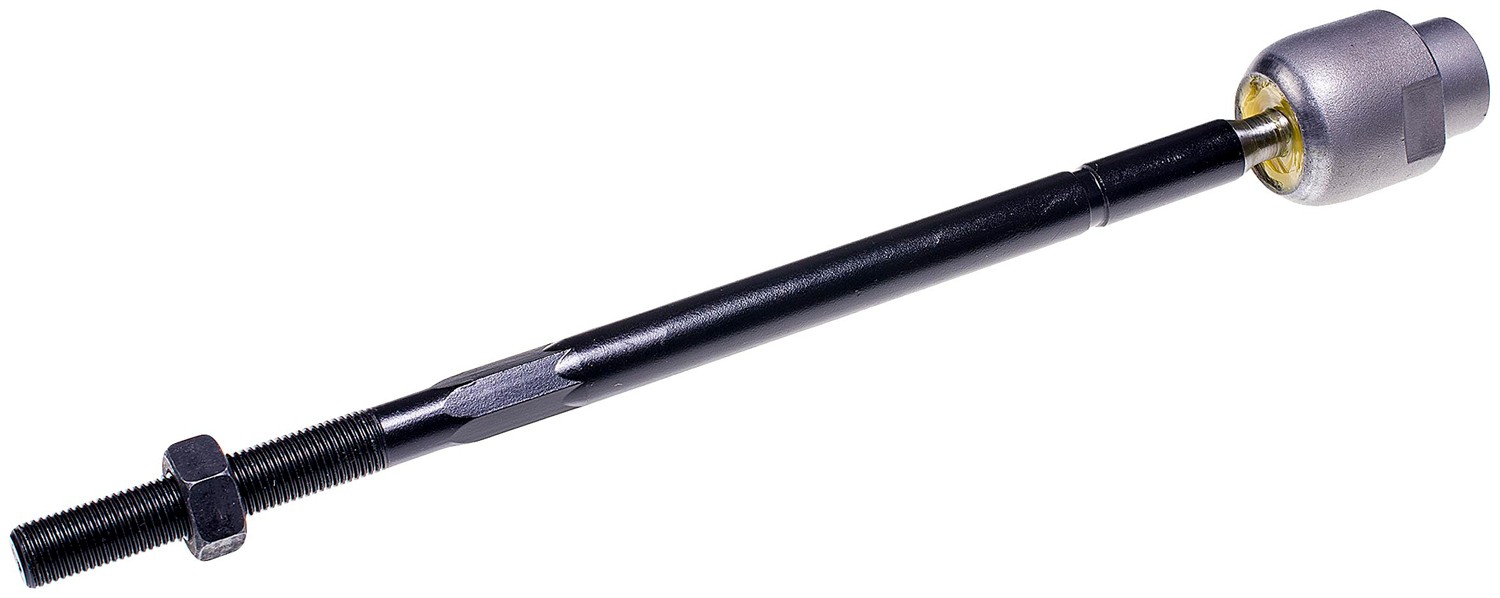

Dorman IS195XL Steering Tie Rod End

Dorman IS195XL Steering Tie Rod End

Features:

Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Ball Joint Included	Yes
36	15 MM
662	14.46 MM
Center Mount Hole Quantity	1 IN
Center Mount Stud Quantity	1 IN
End 1 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
881	Threaded
2334	No
2827	No
4241	Yes
End 2 Thread Diameter	14 mm MM
End 2 Thread Pitch	1.5 mm MM
5235	No
Outside Diameter	40 mm MM
9091	Steel
Bolts Included	No
End 1 Attachment Type	Threaded
End 2 Attachment Type	Threaded
Thread Pitch	1.5 mm MM
Tie Rod End Thread Diameter	14 mm MM
Weight	1.52 lb LB
Head Drive Type	Smooth
Color	Black
Type	Straight
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	E-Coated
Housing Material	Steel
Bearing Material	Polymer
Washer Included	No
End 1 Gender	Male
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	No
Grade Type	Standard
Greaseable	No
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Counterclockwise (Left)
End 2 Type	Threaded
Material	Steel
Package Contents	1 Tie Rod End
Package Contents	1 Nut
Length	347.5 MM
Width	40 MM
Height	40 MM
