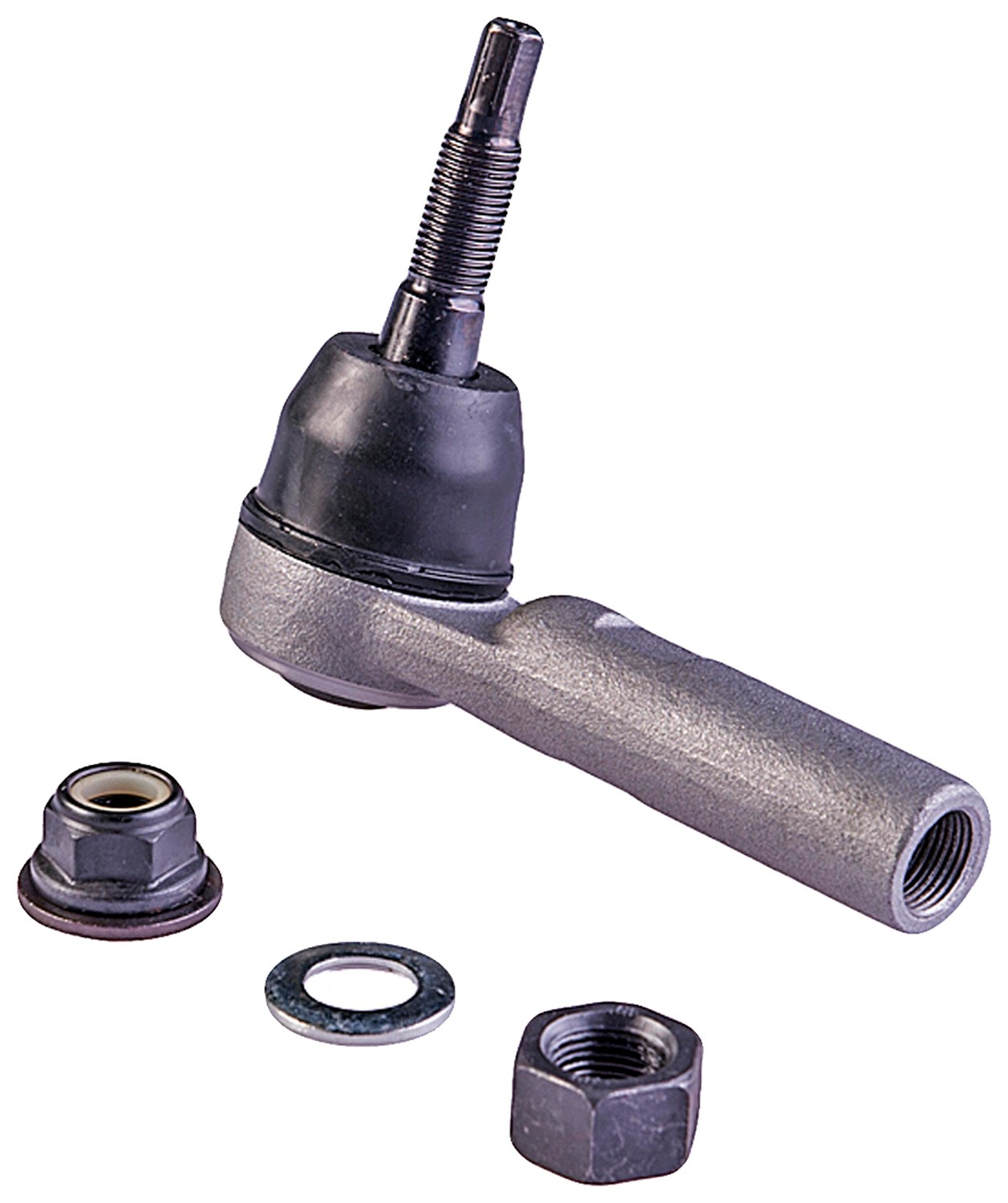

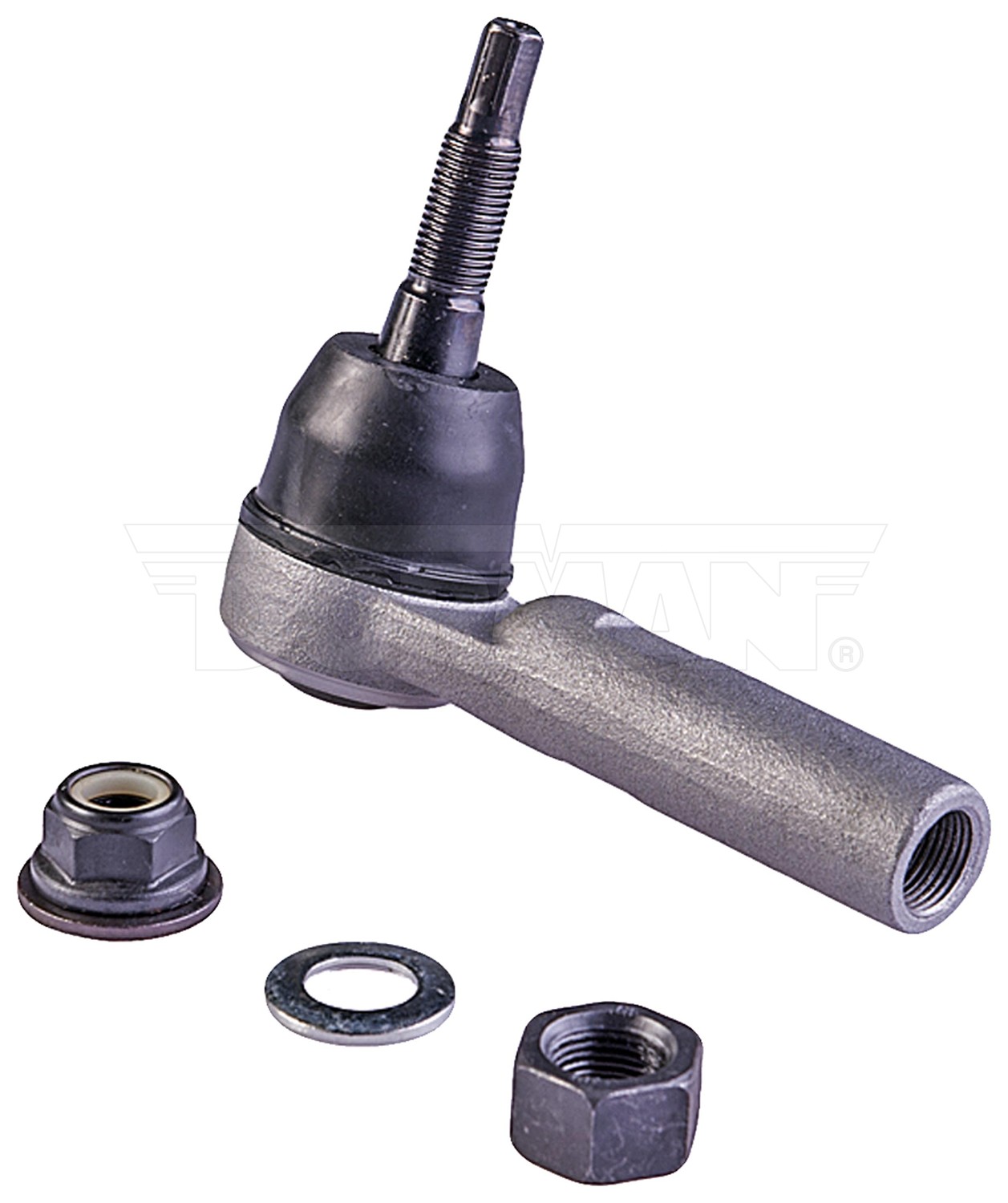

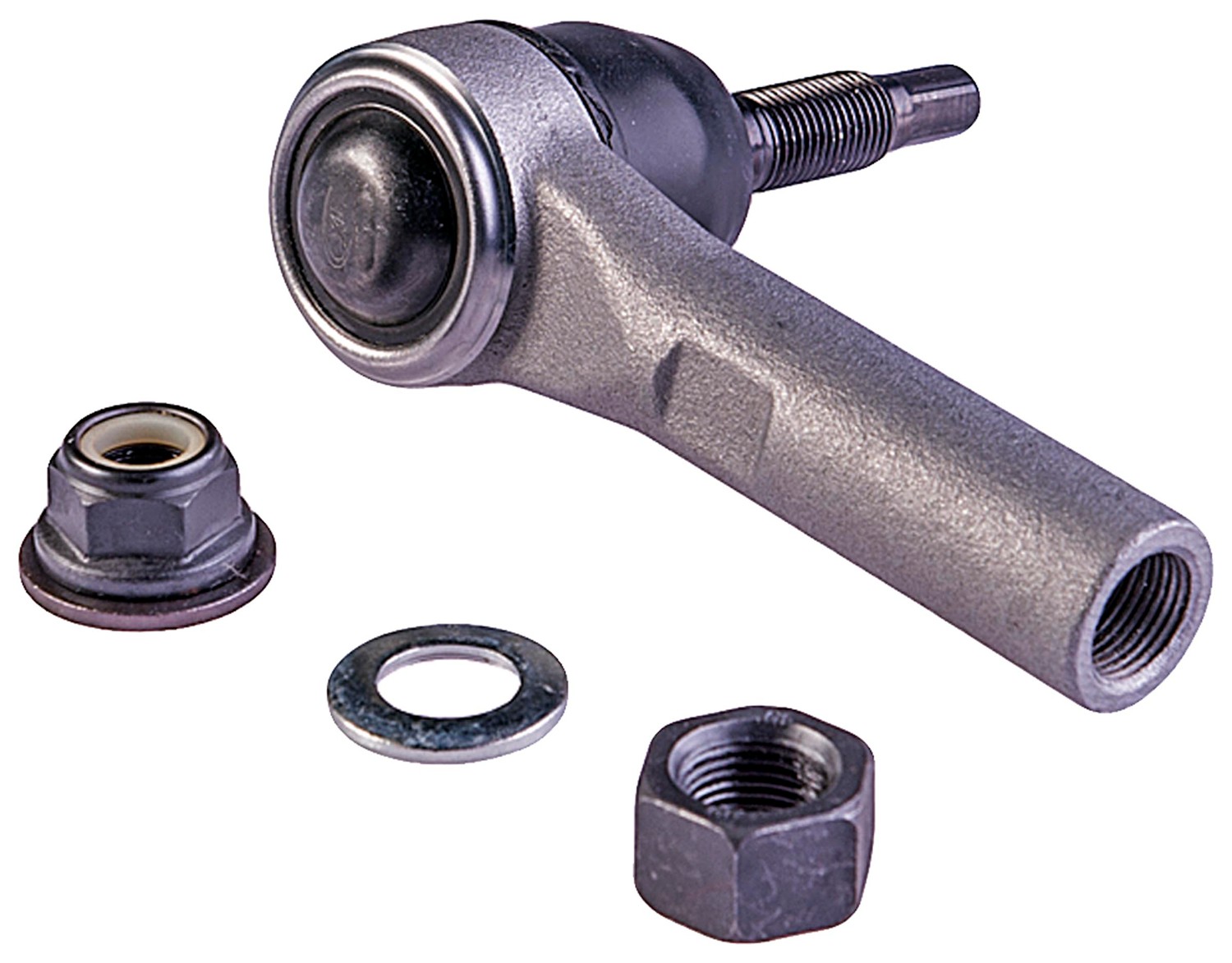

Dorman TO82065XL Steering Tie Rod End

Dorman TO82065XL Steering Tie Rod End

Features:

Extended-life construction – this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Grade Type	Standard
Package Contents	2 Nuts
Package Contents	1 Tie Rod End
Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
End 1 Attachment Type	Threaded
Bolts Included	No
Ball Joint Included	Yes
9091	Steel
9090	Polychloroprene
5235	No
4241	Yes
2827	Yes
2334	No
881	Threaded
Stud Length	28 MM
Height	113.8 MM
Width	44.14 MM
Length	120 MM
Weight	1.8 lb LB
Tie Rod End Thread Diameter	18 mm MM
Thread Pitch	1.5 mm MM
Outside Diameter	44.14 mm MM
End 2 Threads Per Inch	2 mm MM
End 2 Thread Pitch	1.5 mm MM
End 2 Thread Diameter	14 mm MM
End 1 Thread Pitch	1.5 mm MM
End 1 Thread Diameter	18 mm MM
Center Mount Stud Quantity	1 IN
Center Mount Hole Quantity	1 IN
1786	22.2 MM
662	15.1 MM
36	25.66 MM
Head Drive Type	Hex
Color	Silver
Color	Black
Type	Straight
Mounting Hardware Included	Yes
Adjustable	Yes
Finish	E-Coated
Housing Material	Steel
Boot Colour	Black
Bearing Material	Polymer
Washer Included	No
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Greaseable	No
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
