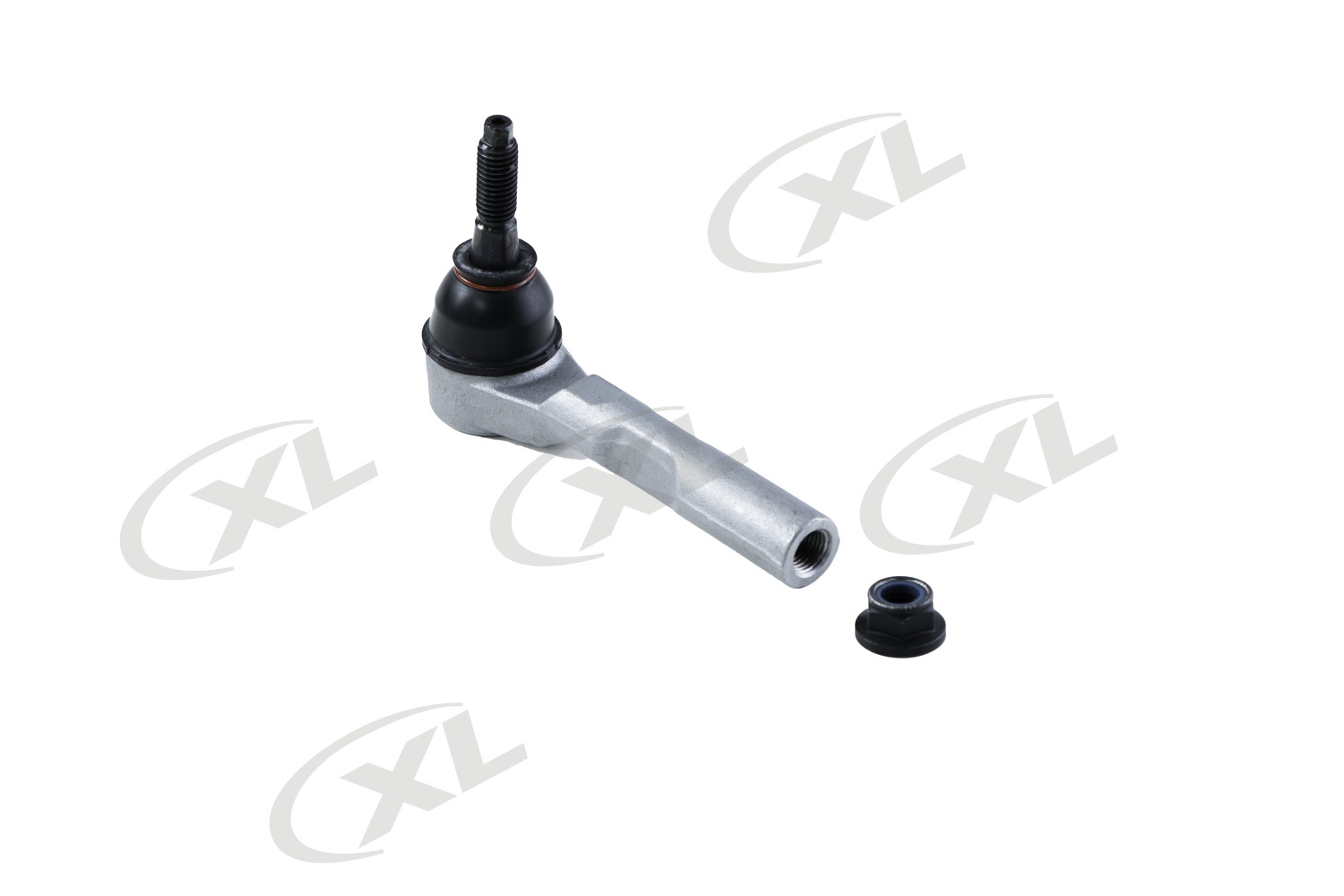

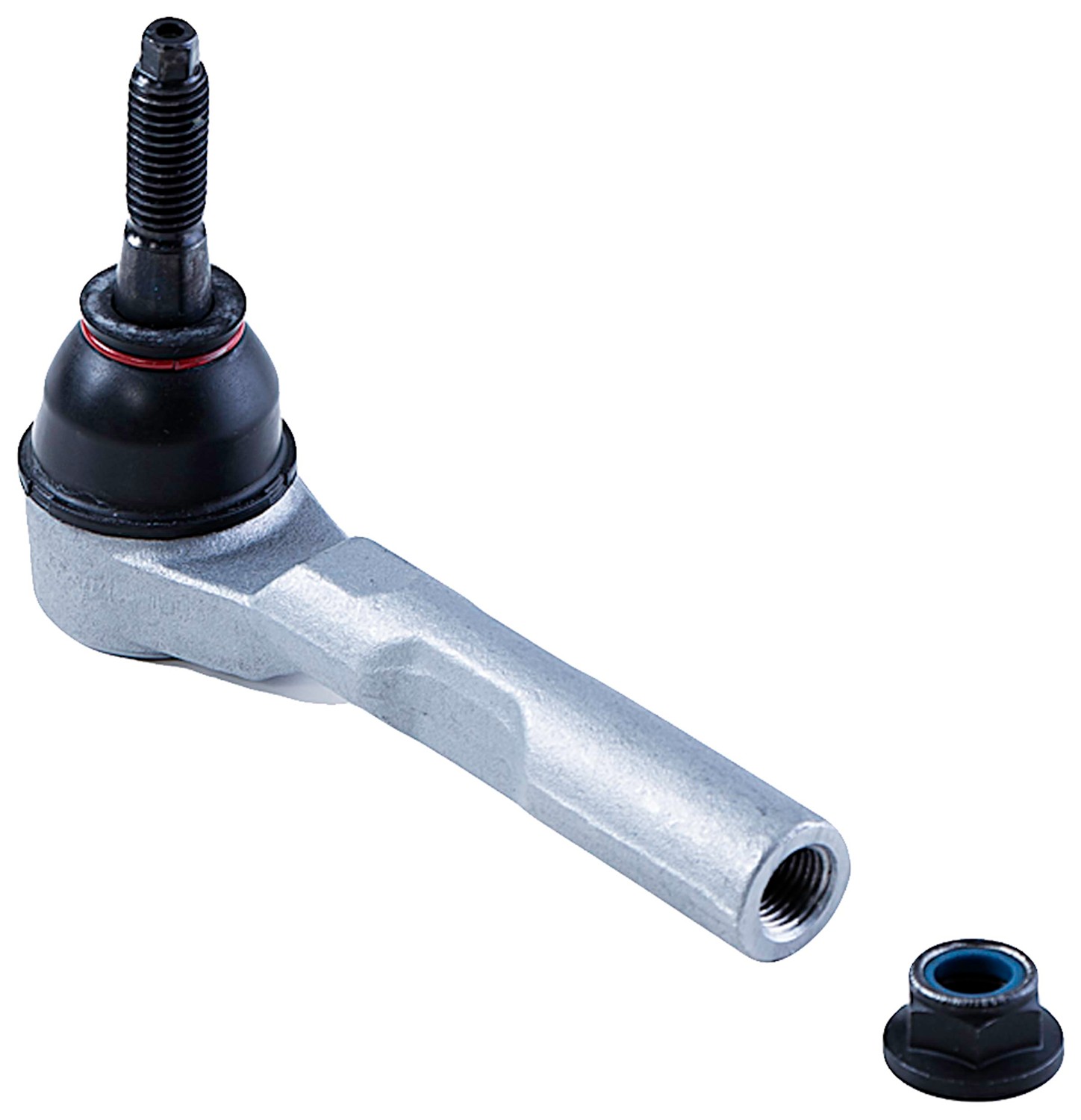

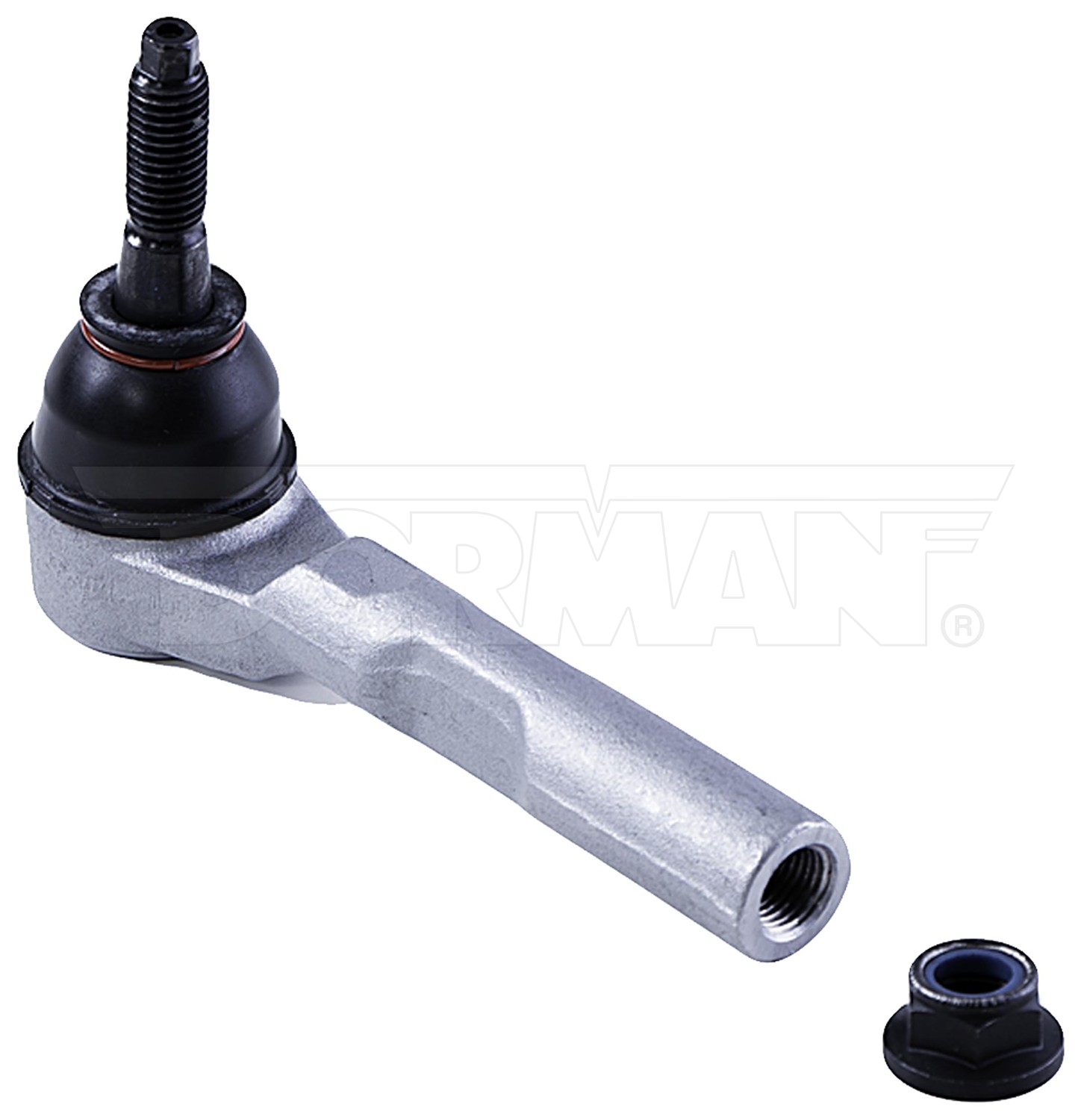

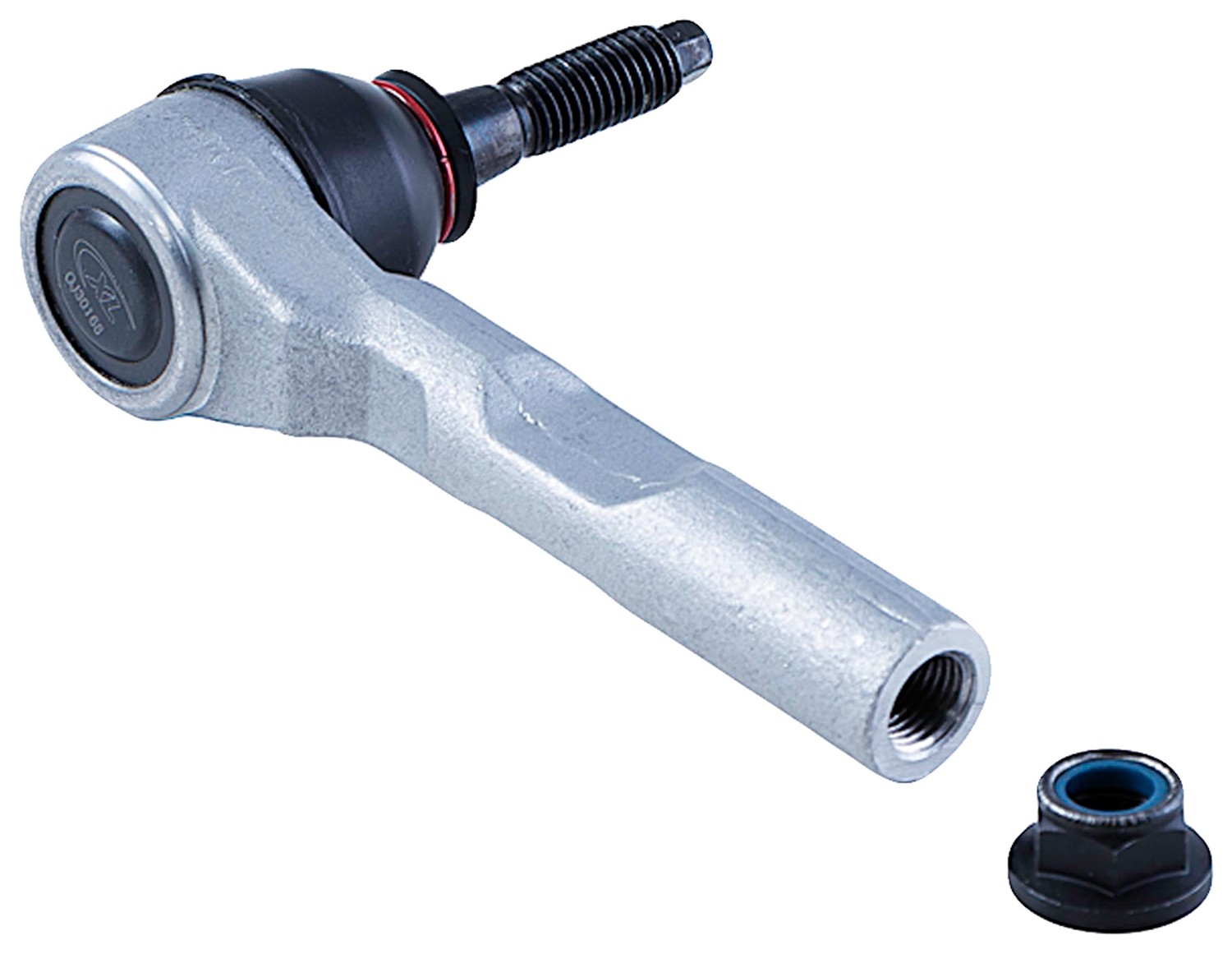

Dorman TO90365XL Steering Tie Rod End

Dorman TO90365XL Steering Tie Rod End

Features:

Extended-life construction – this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion
Extended-life construction – this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

Boot Colour	Black
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Counterclockwise (Left)
Material	Steel
End 2 Type	Threaded
End 2 Attachment Type	Threaded
Width	38 MM
Length	135 MM
Package Contents	1 Nut
Bearing Material	Polymer
36	22.38 MM
Package Contents	1 Tie Rod End
662	12.3 MM
1786	22.2 MM
Housing Material	Steel
Center Mount Hole Quantity	1 IN
Ball Joint Included	Yes
Center Mount Stud Quantity	1 IN
Bolts Included	No
End 1 Attachment Type	Threaded
Type	Straight
Weight	1.56 lb
Tie Rod End Thread Diameter	14 mm MM
Color	Black
Color	Silver
Thread Pitch	1.75 mm MM
Adjustable	Yes
Pre-greased	Yes
End 2 Gender	Male
Outside Diameter	38 mm MM
End 2 Threads Per Inch	2 mm MM
881	Threaded
Head Drive Type	Hex
2334	No
2827	No
End 2 Thread Pitch	1.75 mm MM
4241	Yes
End 2 Thread Diameter	12 mm MM
End 1 Gender	Female
End 1 Thread Pitch	1.5 mm MM
Grease Fitting Included	No
End 1 Thread Diameter	14 mm MM
Finish	E-Coated
Dust Boot Included	Yes
Grade Type	Standard
Mounting Hardware Included	Yes
Washer Included	No
Stud Length	34 MM
5235	No
Greaseable	No
9090	Polychloroprene
9091	Steel
Height	99.45 MM
