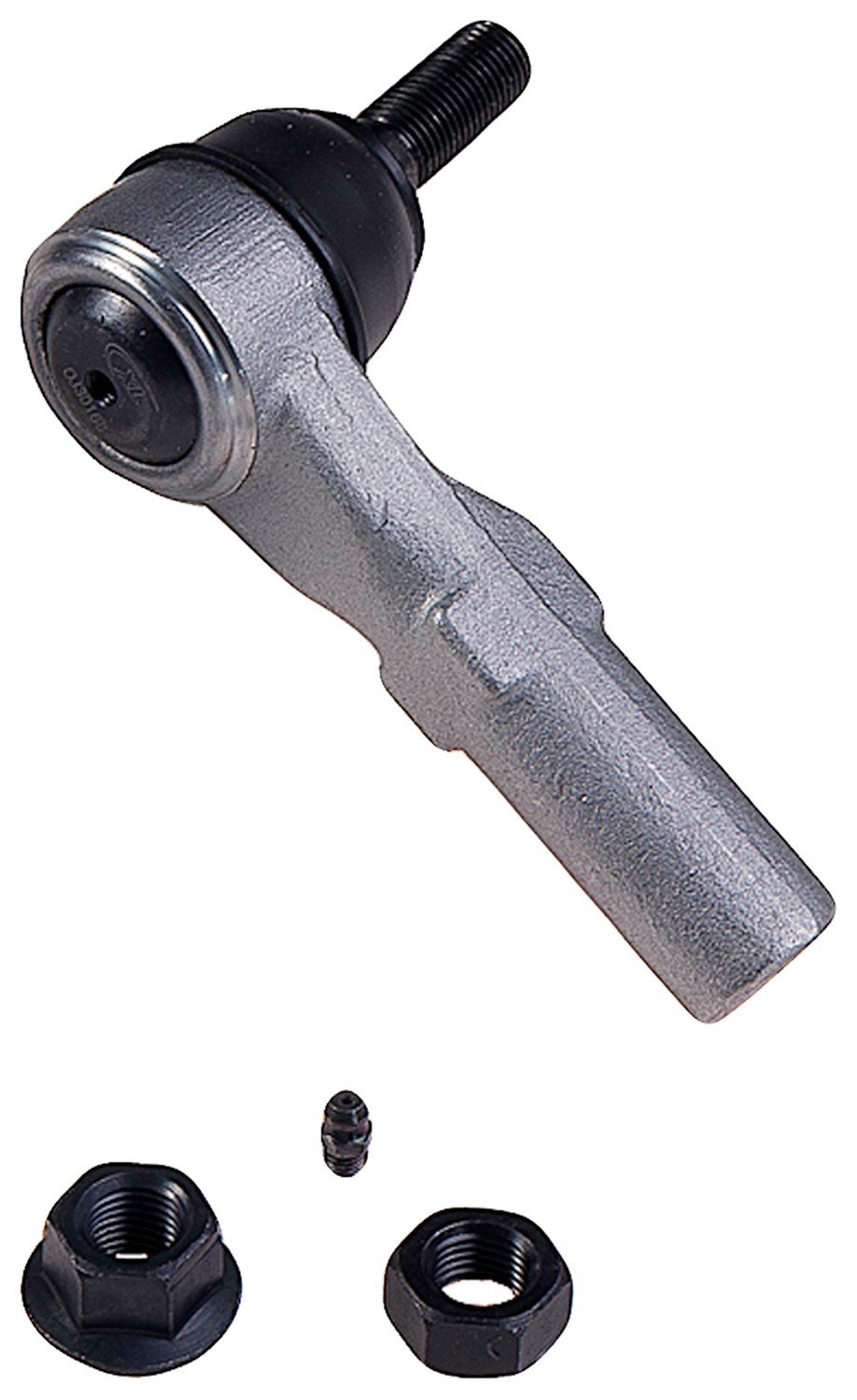

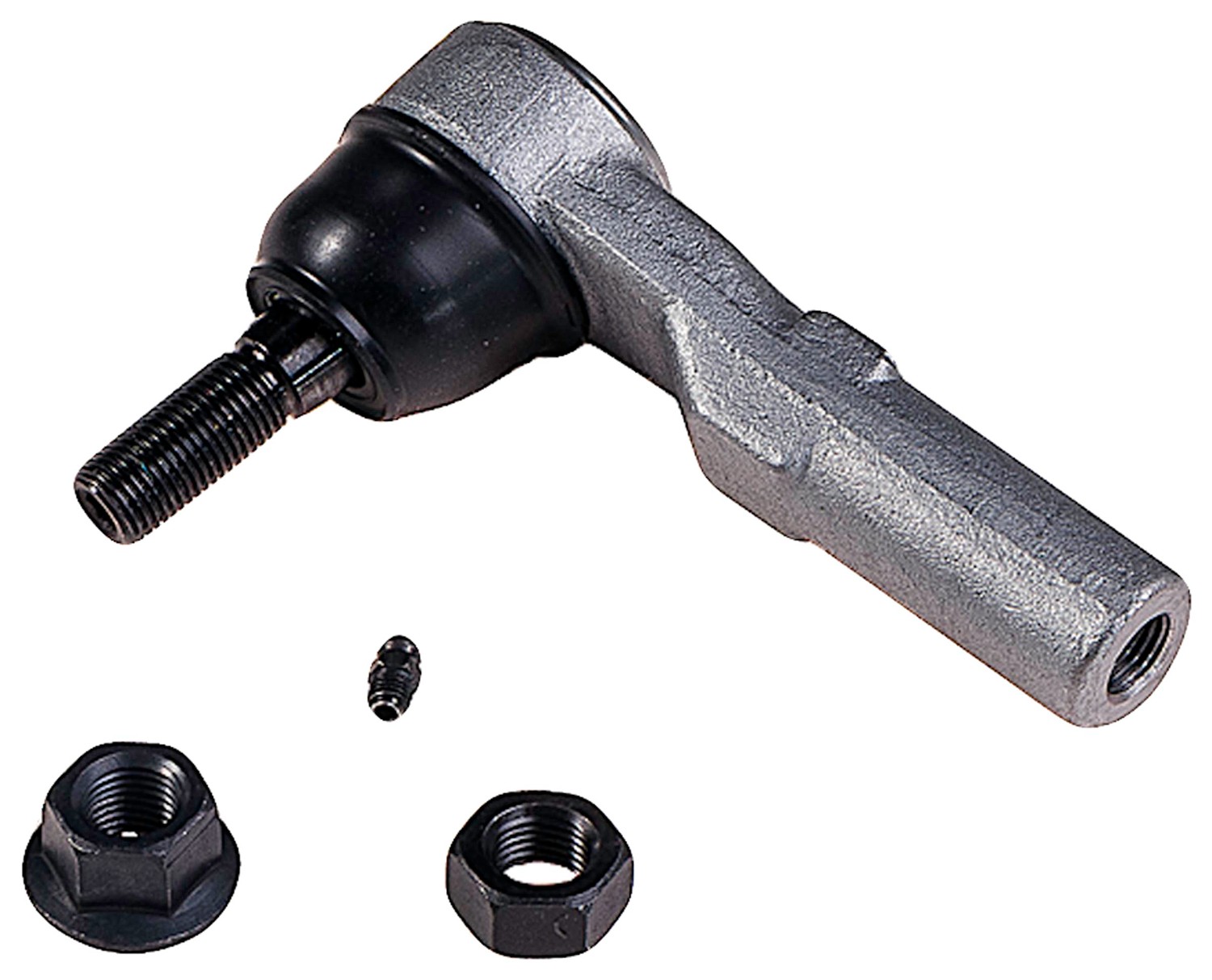

Dorman TO92435XL Steering Tie Rod End

Dorman TO92435XL Steering Tie Rod End

Features:

Extended-life construction – this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud – hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing – UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance – WeatherShield external coating to resist corrosion
Trustworthy replacement – this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
Durably designed – factory-sealed and precision-forged housing resists future corrosion

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

Attributes:

End 2 Attachment Type	Threaded
Package Contents	2 Nuts
Adjustable	Yes
Package Contents	1 Zerk Fitting
Weight	2.02 lb
Mounting Hardware Included	Yes
Type	Straight
End 2 Thread Diameter	14 mm MM
Color	Black
Color	Silver
Head Drive Type	Hex
End 1 Thread Pitch	1.5 mm MM
Length	120 MM
881	Threaded
5235	No
Stud Length	31.5 MM
Height	92.39 MM
4241	Yes
Center Mount Stud Quantity	1 IN
Width	41.15 MM
9090	Polychloroprene
9091	Steel
Ball Joint Included	Yes
Bolts Included	No
End 2 Thread Direction	Clockwise (Right)
Center Mount Hole Quantity	1 IN
Tie Rod End Thread Diameter	14 mm MM
36	24.64 MM
End 1 Attachment Type	Threaded
End 1 Thread Direction	Counterclockwise (Left)
Greaseable	Yes
Grade Type	Standard
Dust Boot Included	Yes
2827	No
Thread Pitch	1.5 mm MM
Outside Diameter	41.15 mm MM
Grease Fitting Included	Yes
Pre-greased	Yes
End 1 Thread Diameter	14 mm MM
1786	18 MM
2334	No
End 2 Gender	Male
End 1 Gender	Female
End 2 Type	Threaded
Washer Included	No
Bearing Material	Metal
Boot Colour	Black
Housing Material	Steel
End 2 Thread Pitch	1.5 mm MM
662	14.6 MM
Material	Steel
Finish	E-Coated
Package Contents	1 Tie Rod End
