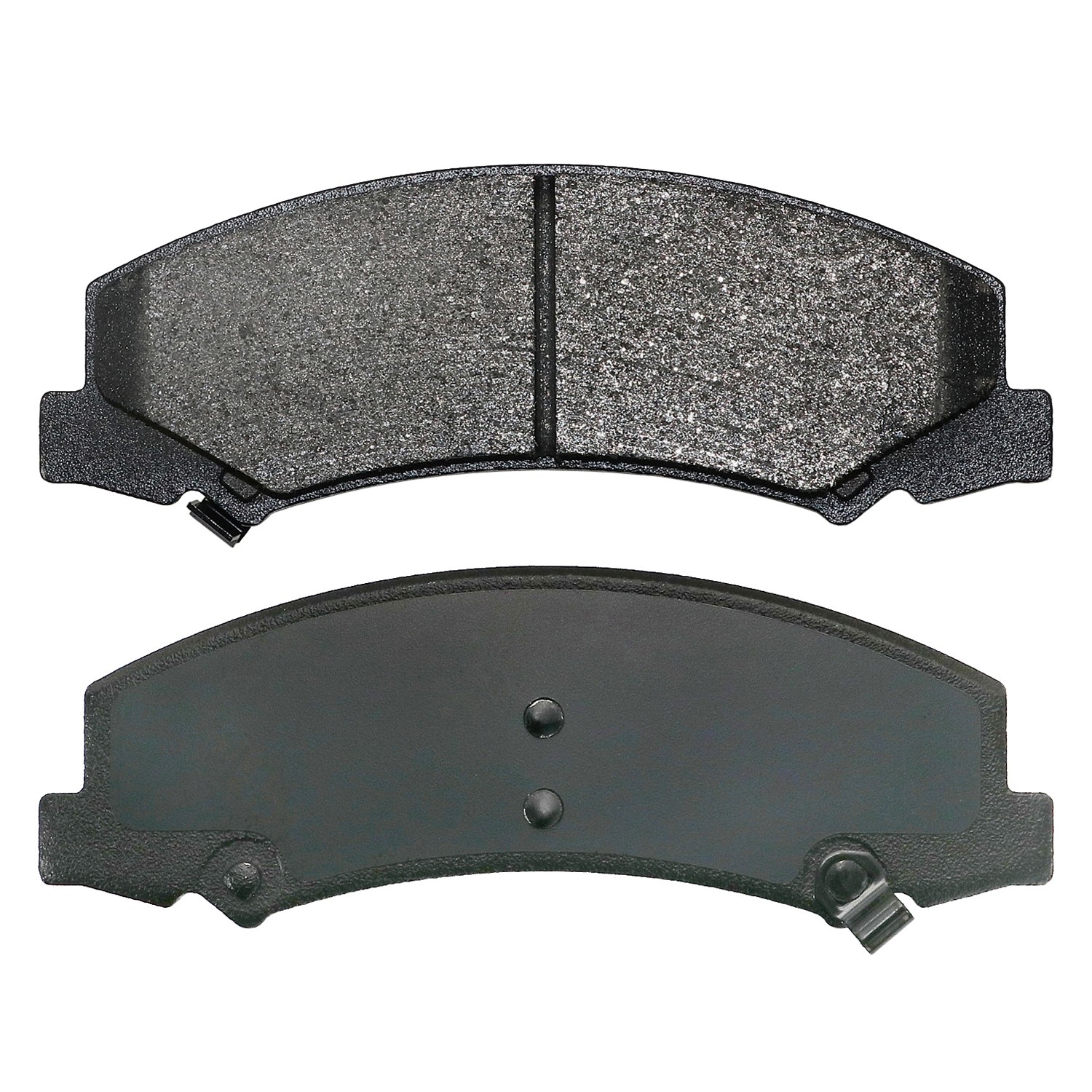

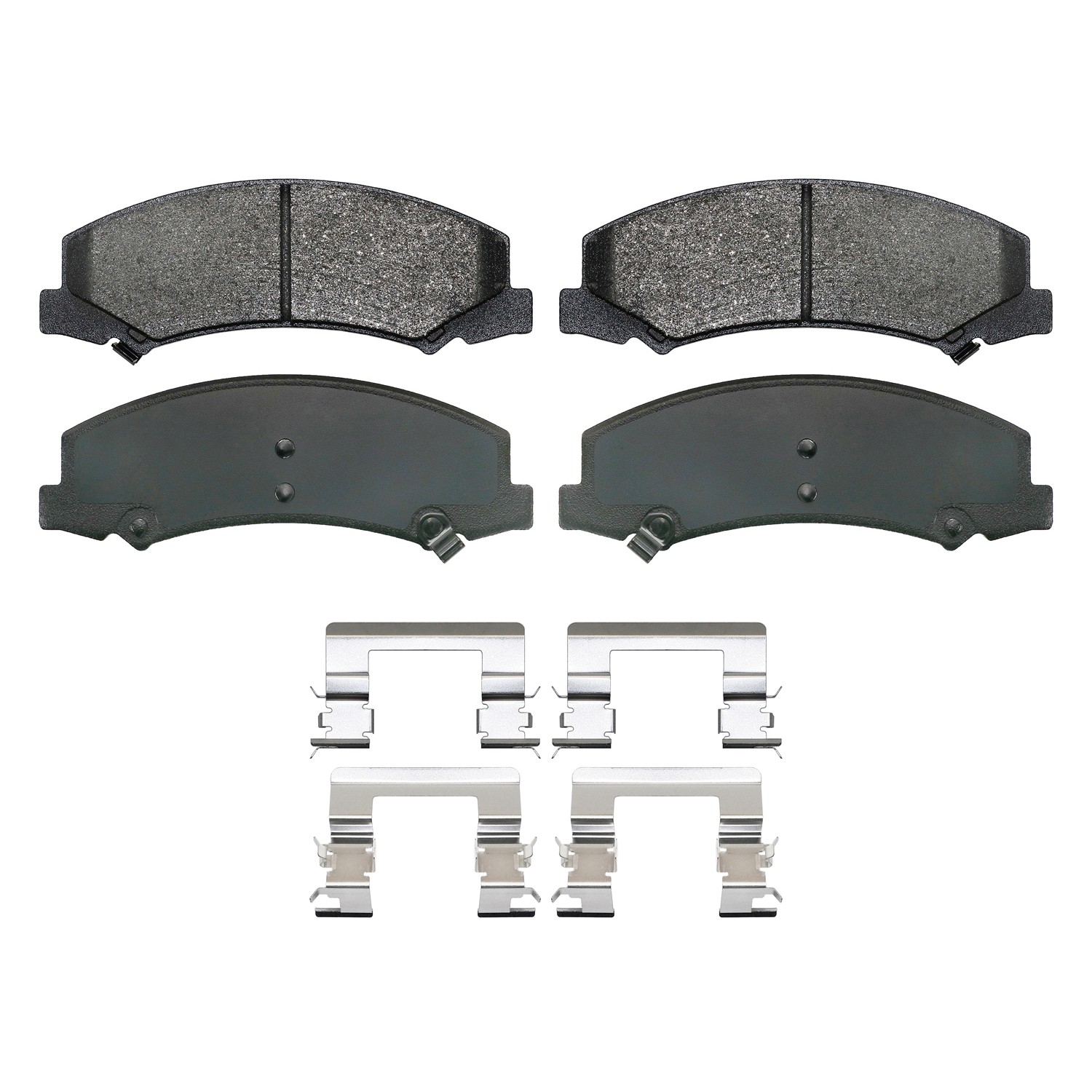

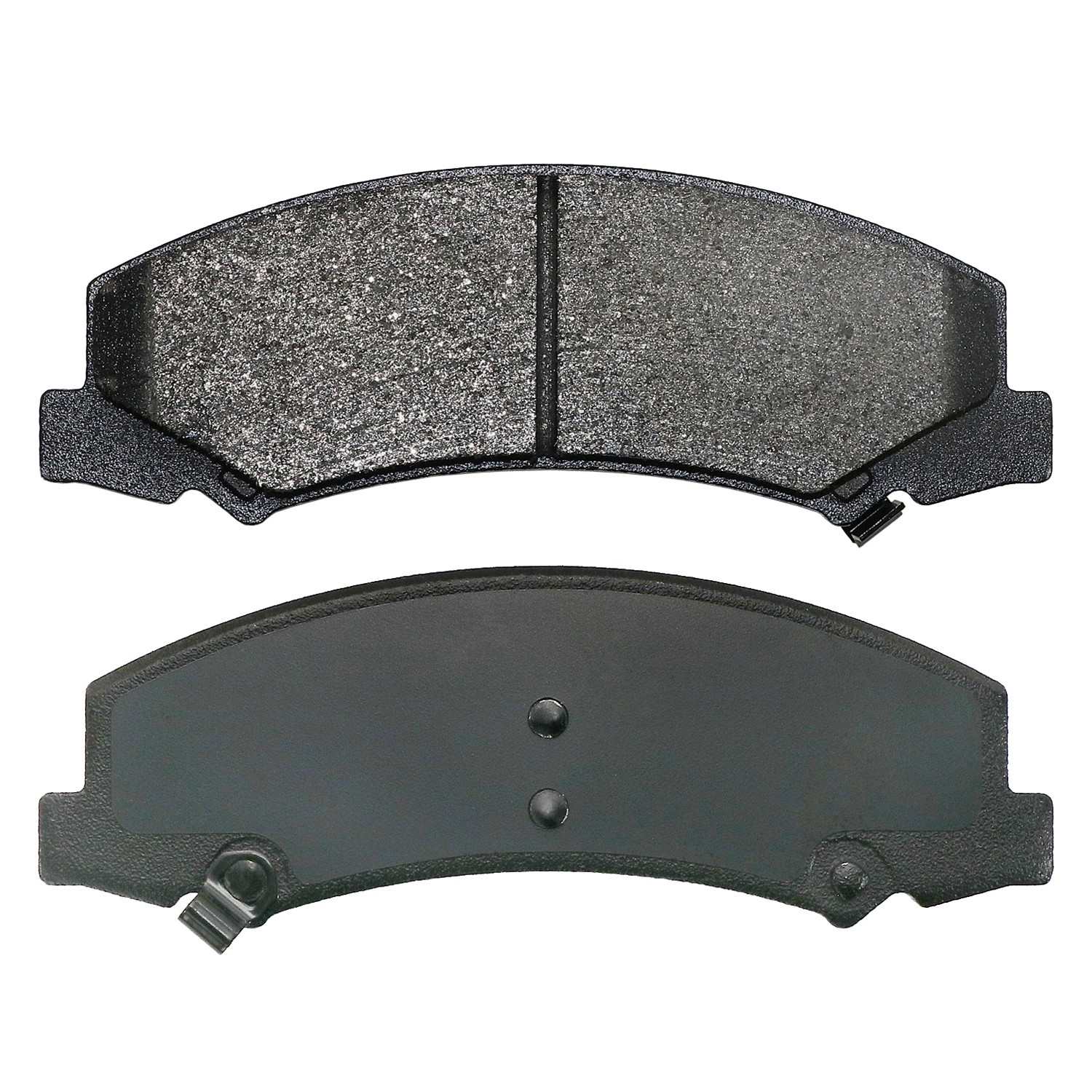

DuraGo BP1159C Premium Brake Pad

DuraGo® BP1159C Premium Brake Pad

Shimmed, slotted and chamfered for maximum performance (where applicable)

Ceramic material formulation adds stability and predictability to the brake pad. Integrally molded with superior bond retention and shear strength for optimum braking performance and extremely quiet operation.

DuraGo® has a rich history in manufacturing aftermarket automotive products. The company was founded over 45 years ago and through the years has developed a diverse product offering. DuraGo® offers a comprehensive Brake Friction program for every budget and consumer. Everyday driving safety and reliability were of paramount importance in developing our Brake Pad program. DuraGo® Brake Pads provide superior vehicle control, driver comfort and safety over a wide range of driving conditions – maximizing driver confidence. We offer unique friction materials that are designed for fit and function in a wide range of vehicles. All formulas have been independently tested for wear and noise squeal protocols. We manufacture our brake pads using the latest technologies in “State of the Art” ISO/TS 16949 certified facilities.

Attributes:

Friction Material Attachment	Bonded
Backing Material	Iron
Outer Pad Height	58.4 MM
Pad Wear Sensor Included	Yes
Inner Pad Overall Thickness	16.2 MM
Inner Pad Overall Thickness	0.64 IN
Outer Pad Overall Thickness	16.2 MM
Outer Pad Overall Thickness	0.64 IN
Outer Pad Width	6.42 IN
Inner Pad Friction Material Thickness	0.4 IN
Inner Pad Friction Material Thickness	10.1 MM
Pad Wear Sensor Type	Mechanical
Outer Pad Friction Material Thickness	10.1 MM
Inner Pad Width	163.1 MM
Outer Pad Height	2.3 IN
Inner Pad Plate Thickness	0.24 IN
Inner Pad Width	6.42 IN
Outer Pad Width	163.1 MM
Mounting Hardware Included	No
Friction Material Composition	Ceramic
Inner Pad Plate Thickness	6.1 MM
Outer Pad Plate Thickness	0.24 IN
Outer Pad Plate Thickness	6.1 MM
Slotted	Yes
Inner Pad Height	2.3 IN
Inner Pad Height	58.4 MM
Abutment Clips Included	No
Chamfered Edges	Yes
Pad Shims Included	Yes
Grade Type	Regular
Outer Pad Friction Material Thickness	0.4 IN

Vehicle Applications:

Make	Model	Years
Buick	Allure	2008 to 2009
Buick	LaCrosse	2008 to 2009
Buick	Lucerne	2006 to 2011
Cadillac	DTS	2006 to 2011
Chevrolet	Impala Limited	2014 to 2016
Chevrolet	Impala	2006 to 2013
Chevrolet	Monte Carlo	2006 to 2007
