DuraGo® BR90169202 Premium Electrophoretic Brake Rotors - One Pair

DuraGo® BR90169202 Premium Electrophoretic Brake Rotors – One Pair

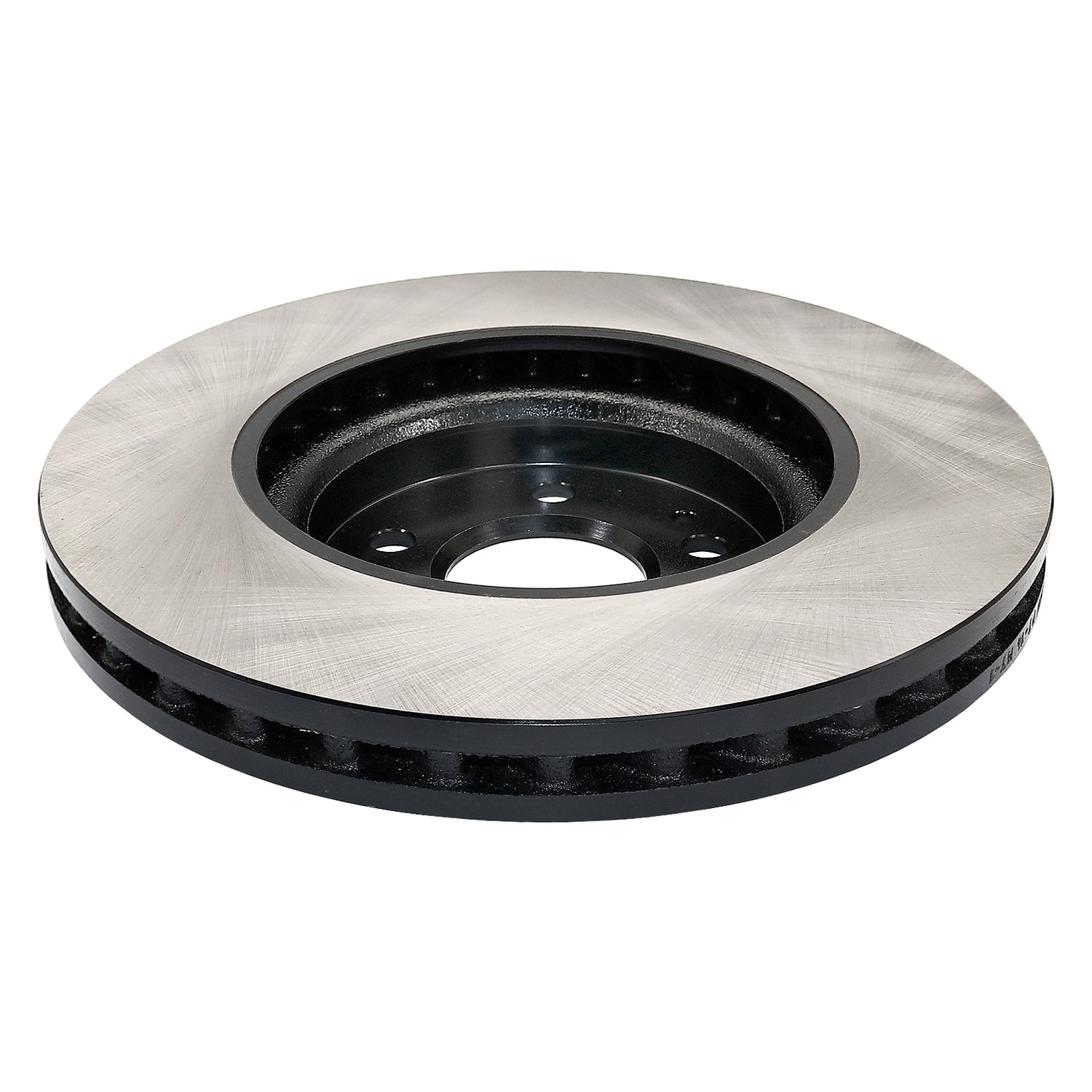

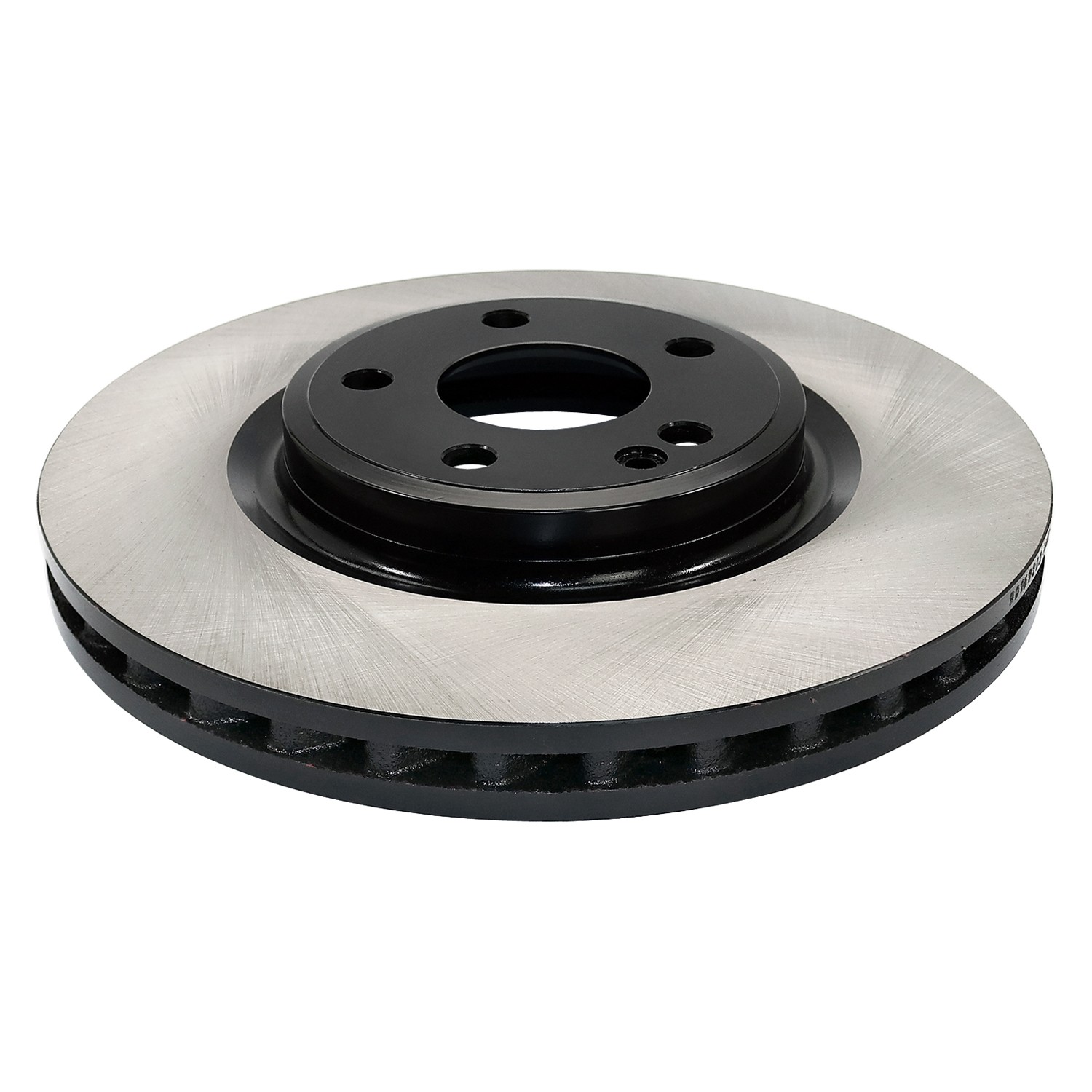

DuraGo® BR90169202 Premium Electrophoretic Brake Rotor

Precision balanced; non-directional swirl finish

Engineered to high metallurgical standards, precision balanced, and non-directional swirl finish eliminates the need for machining prior to installation.

DuraGo® has engineered a new line of Electrophoretic Coated Brake Rotors that offer dynamic performance with the utmost in corrosion resistance. Our new Premium Brake Rotors have superior esthetics and pricing values that will strike a chord with the professional installer and automotive enthusiast. Premium Core Technology Allows for tighter tolerances and cleaner castings. With this process, non-machined areas of the rotors are more detailed. Machine Balanced for smooth braking. Multiple Vane configurations for heat dissipation. Non-Directional Swirl Finish promotes brake pad bedding and eliminates the need for machining prior to installation.

Attributes:

Construction	Full Cast
Material	Cast Iron
4181	No
9565	Conventional
Cross Drilled	No
Slotted	No
Discard Thickness	1.08 IN
Discard Thickness	27.4 MM
Outside Diameter	12.6 IN
Nominal Thickness	1.18 IN
Nominal Thickness	30 MM
Overall Height	2.01 IN
Overall Height	51.1 MM
Centre Hole Diameter	67 MM
Outside Diameter	320 MM
9446	4.41 IN
9446	112 MM
9447	0.6 IN
Mounting Bolt Hole Quantity	5
Centre Hole Diameter	2.64 IN
Disc Type	Vented
Directional	Non-Directional
9447	15.3 MM
Rust Resistant Coating	Yes
