DuraGo® BR901948-03 Municipal Series Brake Rotors - One Pair

DuraGo® BR901948-03 Municipal Series Brake Rotors – One Pair

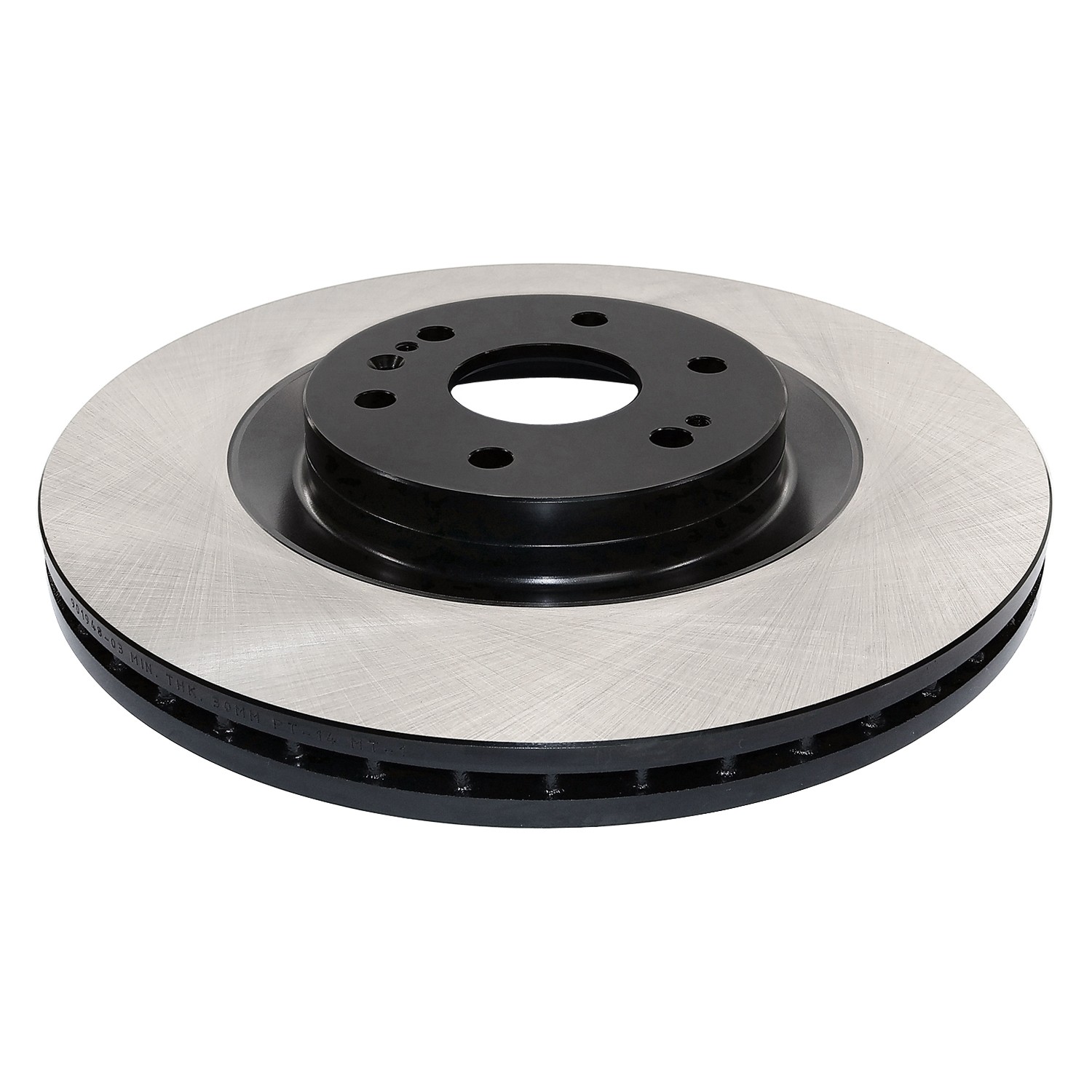

DuraGo® BR901948-03 Municipal Series Brake Rotor

Precision balanced; non-directional swirl finish

Engineered to meet the demanding requirements of law enforcement, first response, and special service vehicles.

DuraGo® Municipal Series offer dynamic performance for the demanding requirements of law enforcement, first response, and special service vehicles. Pursuit Rotors utilize GG20HC High Carbon Metallurgy for improved heat dissipation and distortion resistance, resulting in better-stopping power with reduced noise and vibration. They offer excellent braking performance in the most extreme stopping situations. Special Service Rotors are engineered to SAE J431 metallurgical standards ensuring dependable performance, long life, and quiet braking. All DuraGo® Municipal Series rotors are Electrophoretic Coated including the inner vanes. Unlike a sprayed on paint, the rotor is fully immersed into a tank and coated by the process of Electrophoretic deposition. During the process, resin particles are suspended within a liquid medium and have a charge placed upon them. Under a charged current, the coating particles migrate to the rotor and are deposited onto all exposed surfaces, resulting in a highly corrosive-resistant and durable coating. Premium Core Technology allows for tighter tolerances and cleaner castings. With this process, non-machined areas of the rotors are more detailed. Machine Balanced for smooth braking. Multiple Vane configurations for heat dissipation. Non-Directional Swirl Finish promotes brake pad bedding and eliminates the need for machining prior to installation.

Attributes:

Rust Resistant Coating	Yes
Construction	Full Cast
Material	Cast Iron
Slotted	No
Cross Drilled	No
9565	Conventional
4181	No
9446	139.7 MM
Outside Diameter	16.14 IN
Centre Hole Diameter	78.6 MM
Centre Hole Diameter	3.09 IN
Outside Diameter	410 MM
Discard Thickness	1.18 IN
Discard Thickness	30 MM
Nominal Thickness	1.27 IN
Nominal Thickness	32.2 MM
Overall Height	2.18 IN
Overall Height	55.3 MM
9446	5.5 IN
Directional	Non-Directional
Disc Type	Vented
9447	0.63 IN
9447	16 MM
Mounting Bolt Hole Quantity	6
