DuraGo BR950022-04 Air Disc Brake Discs - One Pair

DuraGo® BR950022-04 Air Disc Brake Rotors – One Pair

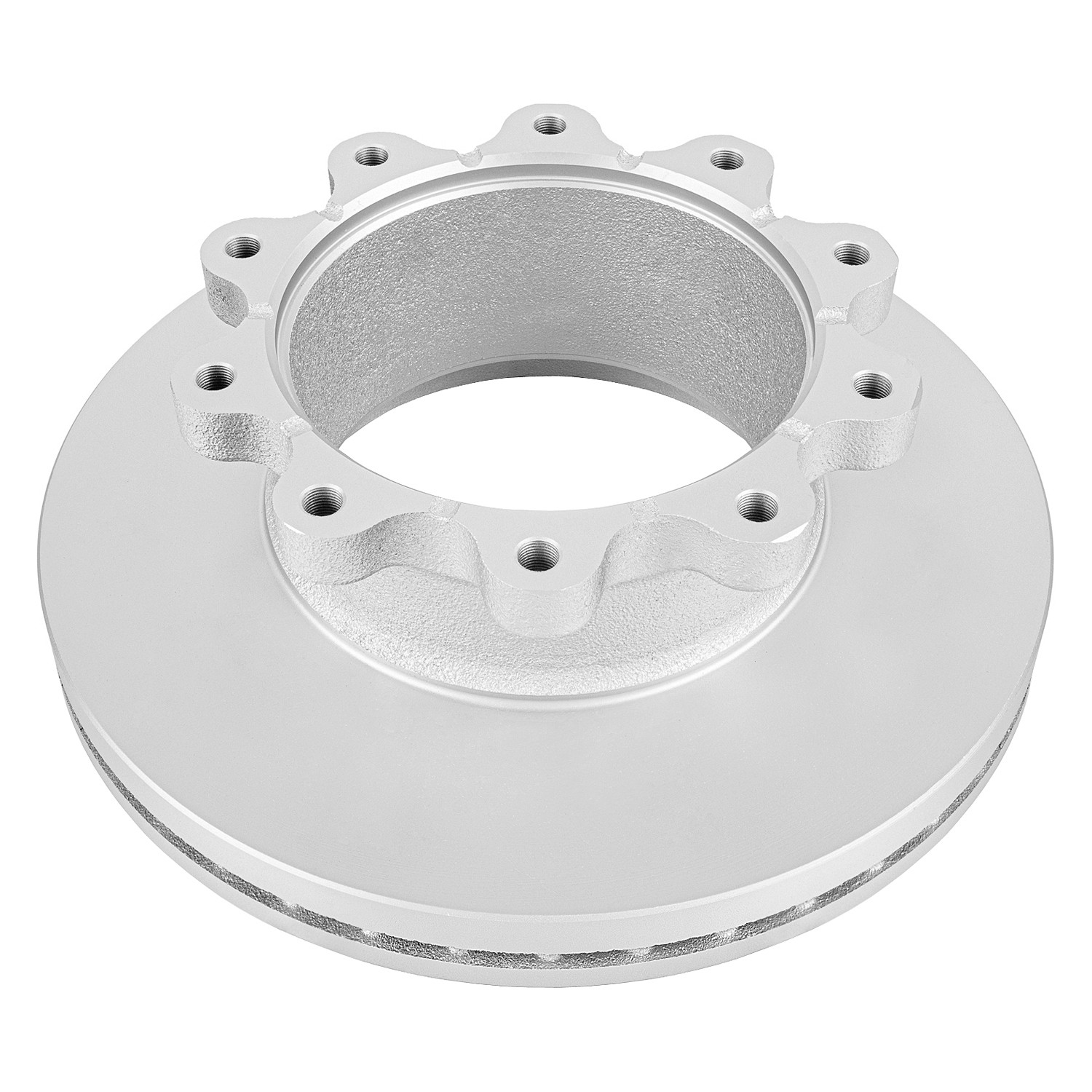

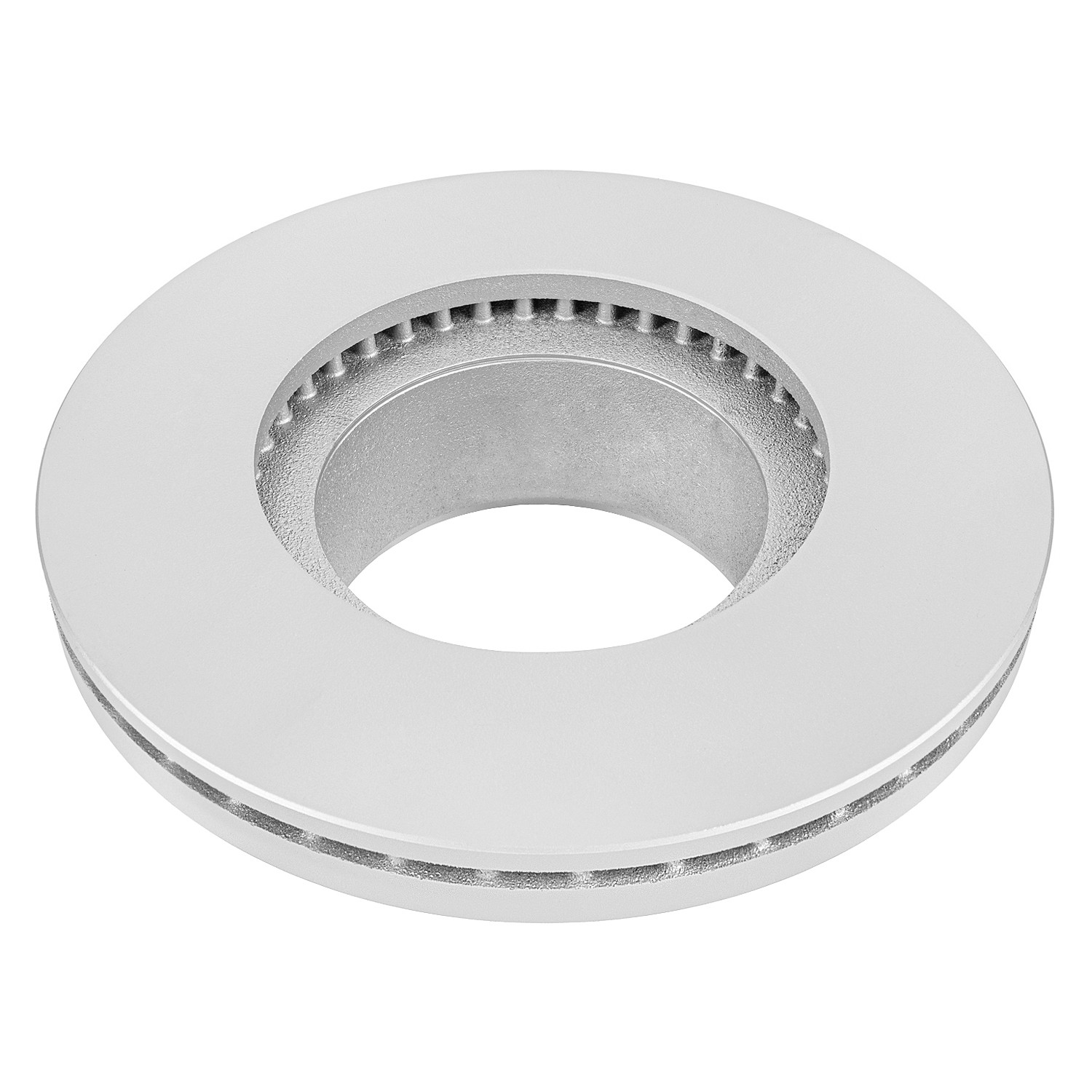

DuraGo® BR950022-04 Air Disc Brake Rotor

Precision balanced; DuraNetic™ corrosion-resistant coating

Engineered to meet the demanding requirements of class 7 & 8 air disc equipped applications.

DuraGo® Air Disc Brake Rotors are engineered for extreme durability and meet all requirements of fit, form, and function. To ensure dependable performance, DAS Brake Rotors are manufactured in IATF 16949:2016 certified facilities with premium ASTM G3500b metallurgy. Our utilization of ASTM G3500b metallurgy and leading-edge casting design provides better tensile strength and excellent heat dissipation resulting in dependable performance and long service life. Each brake rotor is coated with our exclusive DuraNetic™ corrosion-resistant coating. Our DuraNetic™ coating is a premium rust-resistant barrier engineered with metal oxides, metallic zinc, and aluminum flakes. The zinc and aluminum particles align in multiple layers forming a metallic inorganic silver coating to ensure ultimate corrosion resistance.

Attributes:

Discard Thickness	1.46 IN
Bolt Size	5/8″-18 IN
9446	266.7 MM
9446	10.5 IN
Material	Cast Iron
Construction	Full Cast
Rust Resistant Coating	Yes
Mounting Bolt Hole Quantity	10
Disc Type	Vented
Slotted	No
Cross Drilled	No
9565	Conventional
4181	No
Outside Diameter	434 MM
Outside Diameter	17.09 IN
Overall Height	143.3 MM
Overall Height	5.64 IN
Nominal Thickness	45 MM
Nominal Thickness	1.77 IN
Discard Thickness	37 MM
Centre Hole Diameter	8.5 IN
Centre Hole Diameter	215.9 MM
