Edelbrock EDL-77485 Victor Jr Big-Block Chevy 106cc Hydraulic Roller Camshaft
£2,030.95 Inc VAT
Availability: 31 in stock
EDL-77485 Victor Jr Big-Block Chevy 106cc Hydraulic Roller Camshaft
Genuine Edelbrock – not cheap chinese imitations

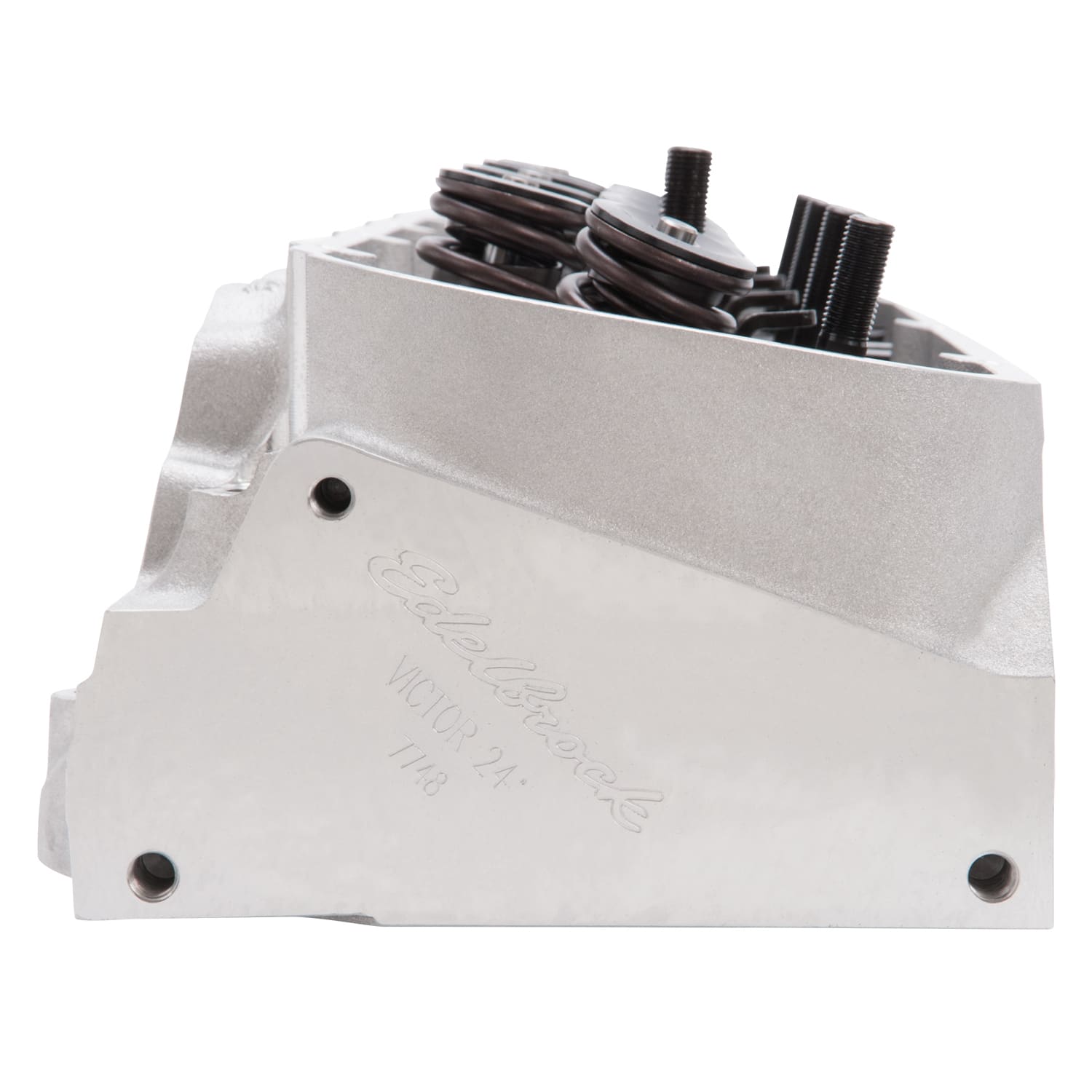

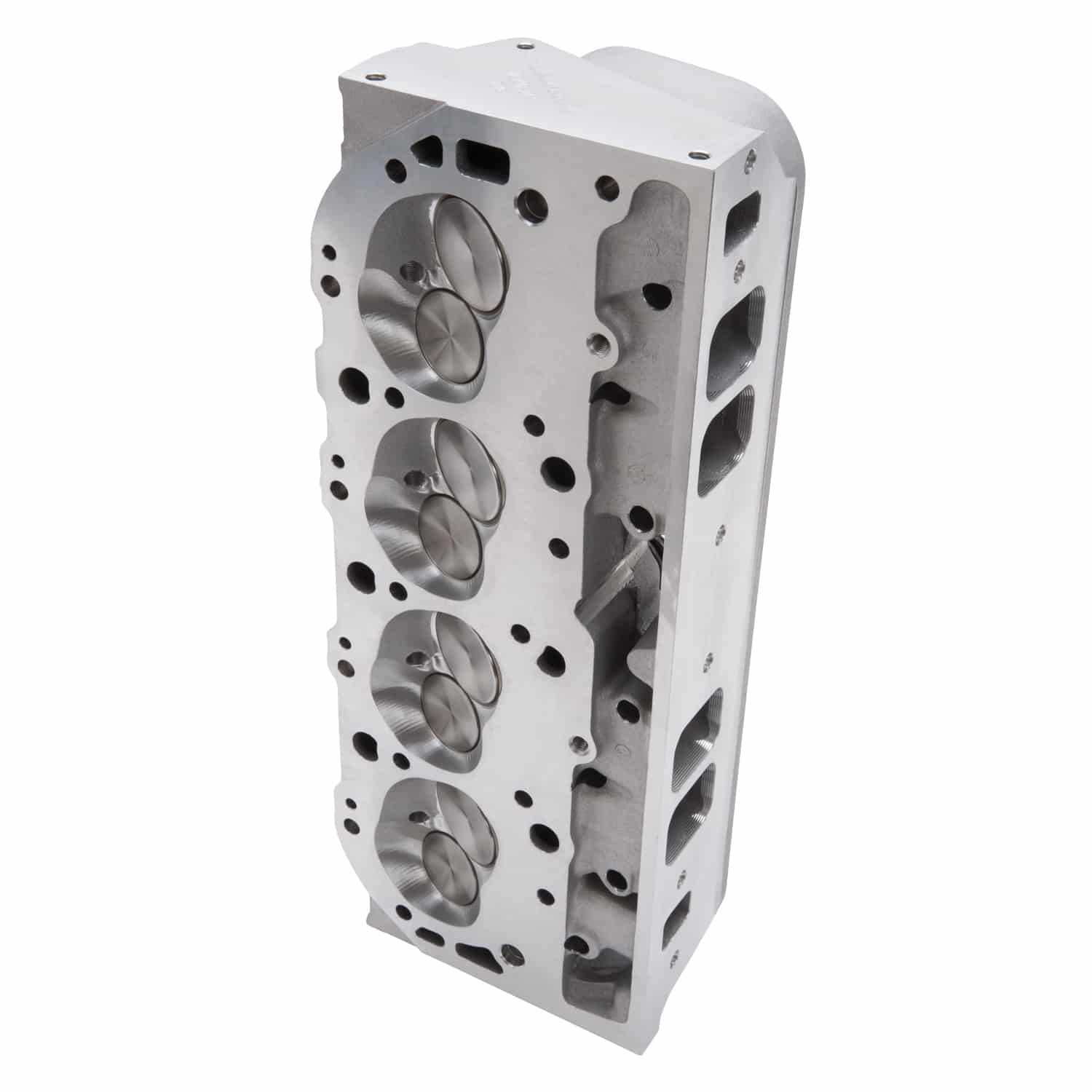

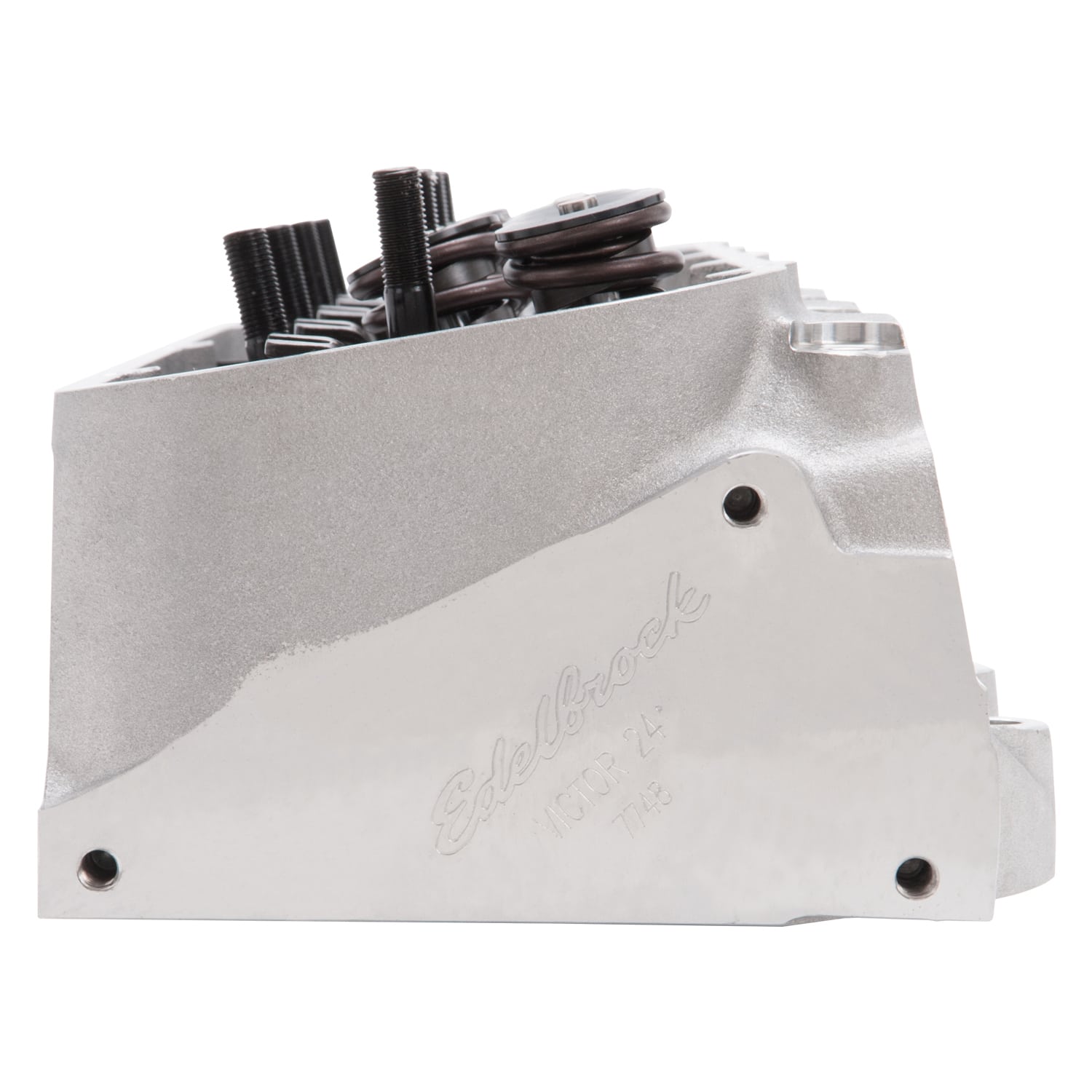

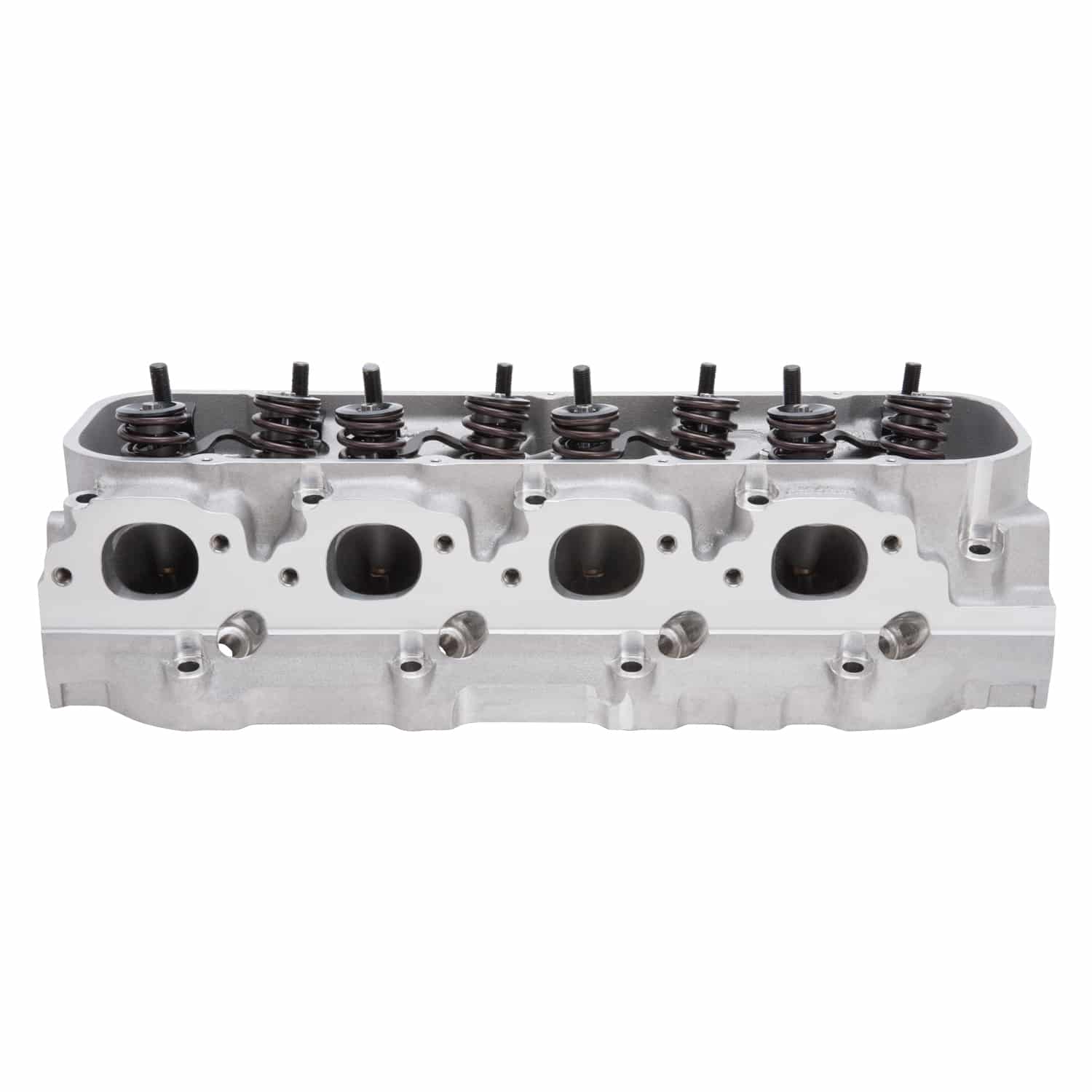

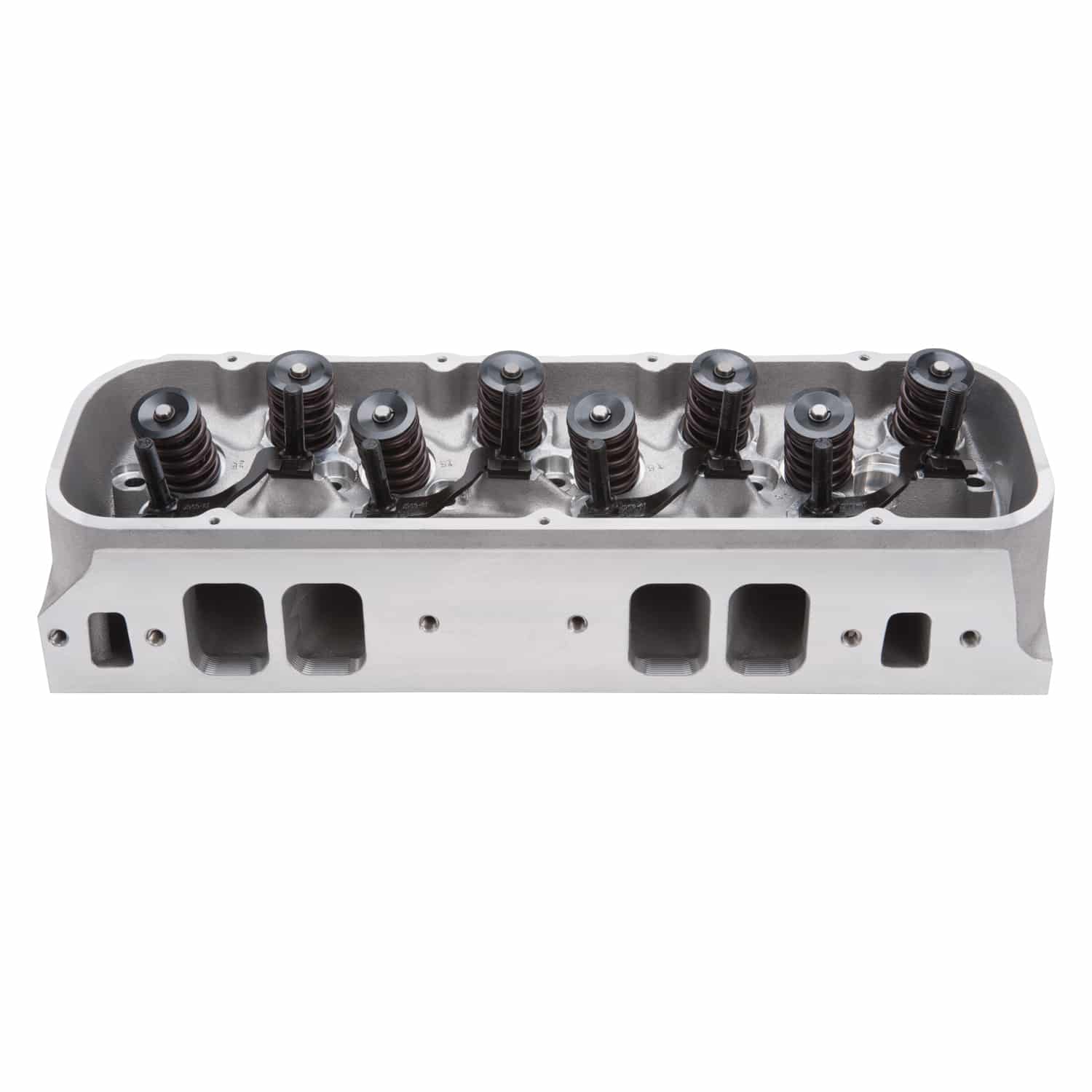

Edelbrock part #77485 Victor Jr. 24 Degree is a complete cylinder head designed for Big Block Chevy 396-502 V8 engines. The 300cc rectangle ports produce impressive flow on competition big-blocks up to 510 c.i.d. with 4.310″ or larger bore.
Attributes:
| Intake Valve Diameter | 2.25 |
| Rocker Arm Stud Diameter | 0.4375 |
| Intake Runner Volume | 300 |
| Push Rod Diameter | (Suggested) 0.375 |
| Family | Victor Jr. |
| Material | Aluminum |
| Series | Victor Jr. |
| Guide Material | Manganese Bronze |
| Head Casting Number | N/A |
| Valve Spring Maximum Lift | 0.700 |
| Exhaust Valve Diameter | 1.90 |
| Combustion Chamber Volume | 106 |
| Grade Type | Performance |
| CNC Ported | No |
| Valve Springs Included | Yes |
| Valve Angle | 24 |
| Deck Thickness | 0.5625 |
| Camshaft Type | Hydraulic Roller |
| Construction Type | Complete |
| Horsepower | 600-800 |
| EGR Port | No |
| Exhaust Runner Volume | 129 |
| Exhaust Port Location | +0.500 |
| Flange Type | Rectangle Intake |
| Valve Spring Diameter | 1.55 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Guide Plate Material | Hardened Steel |
| Valve Included | Yes |
| Retainer Included | Yes |
| Seat Material | Ductile Iron |
| Quantity | Sold Individually |
| Valve Stem Diameter | 0.3438 |
| Guide Plates Included | Yes |
| Weight | 21.291 kg |
|---|
